Key Features
- JBL and Elac Home cinema package
- MA510 features 8K/60 and 4K/120 HDMI for smooth visual passthrough
- Easy wireless streaming with AirPlay 2 and Chromecast
- Clear dialogue plus punchy bass from matched ELAC set
- Can't find the bundle you want? Call 01706 878444 and we'll make the perfect package for you!

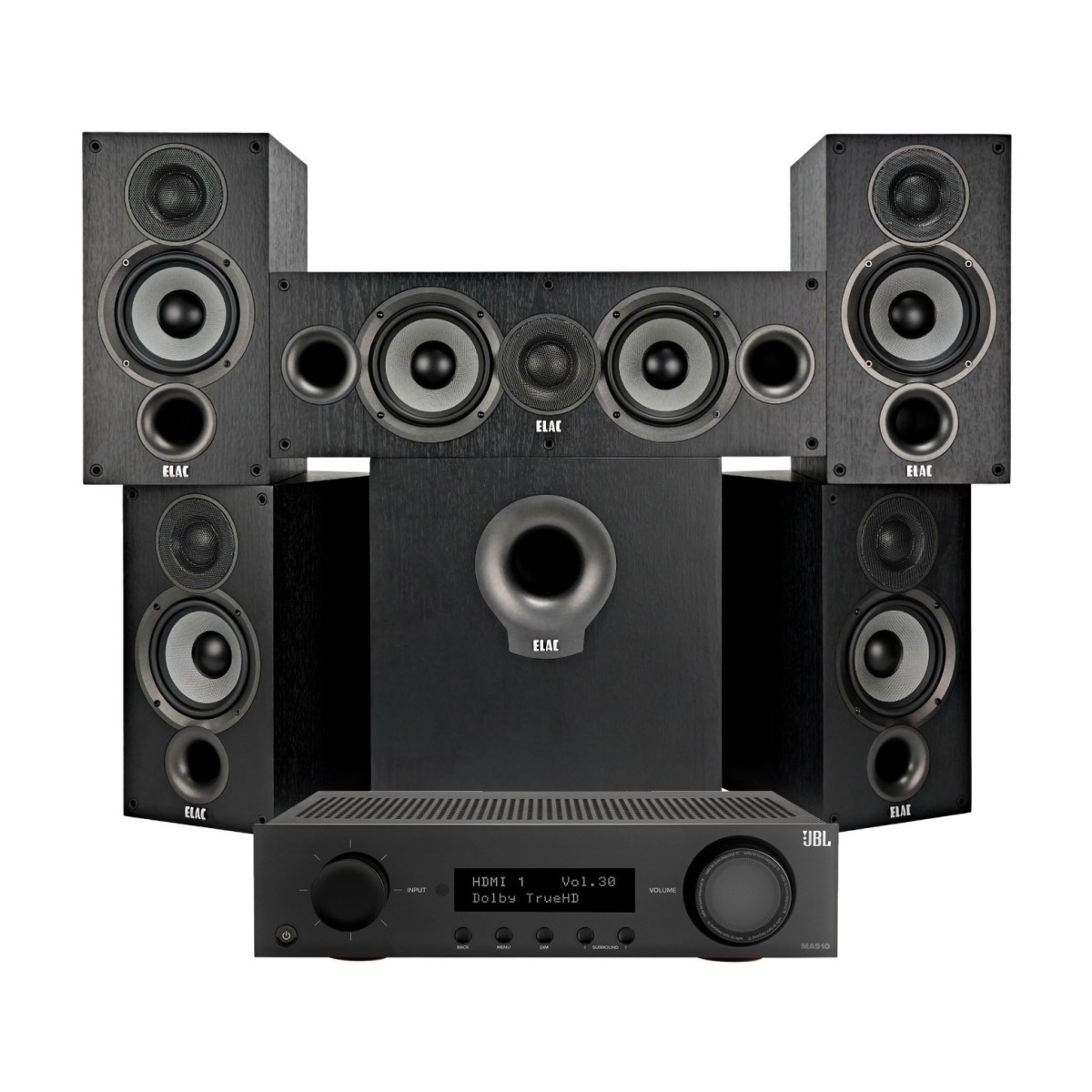

JBL MA510 AV Receiver & ELAC Debut B5.2 5.1 Speaker Package, Black Overview
The JBL MA510 AV Receiver & ELAC Debut B5.2 5.1 Speaker Package is for anyone building a straightforward, modern home cinema for films, gaming, and streaming. You get a 5.2-channel JBL receiver with four HDMI 2.1 inputs, so you can run 8K/60 or 4K/120 sources and keep your picture looking sharp and responsive. For gamers, VRR and ALLM help cut down tearing and input lag, so controls feel more immediate.
On the sound side, the ELAC package gives you four compact bookshelf speakers, a dedicated centre channel for clearer speech, and a 10-inch powered subwoofer for the weight and rumble modern soundtracks rely on. The MA510’s 192kHz/24-bit DAC and Pure Direct mode keep music listening clean and detailed, while EZ Set EQ helps balance the system to your room.
Product Ref: 361379
Full Description

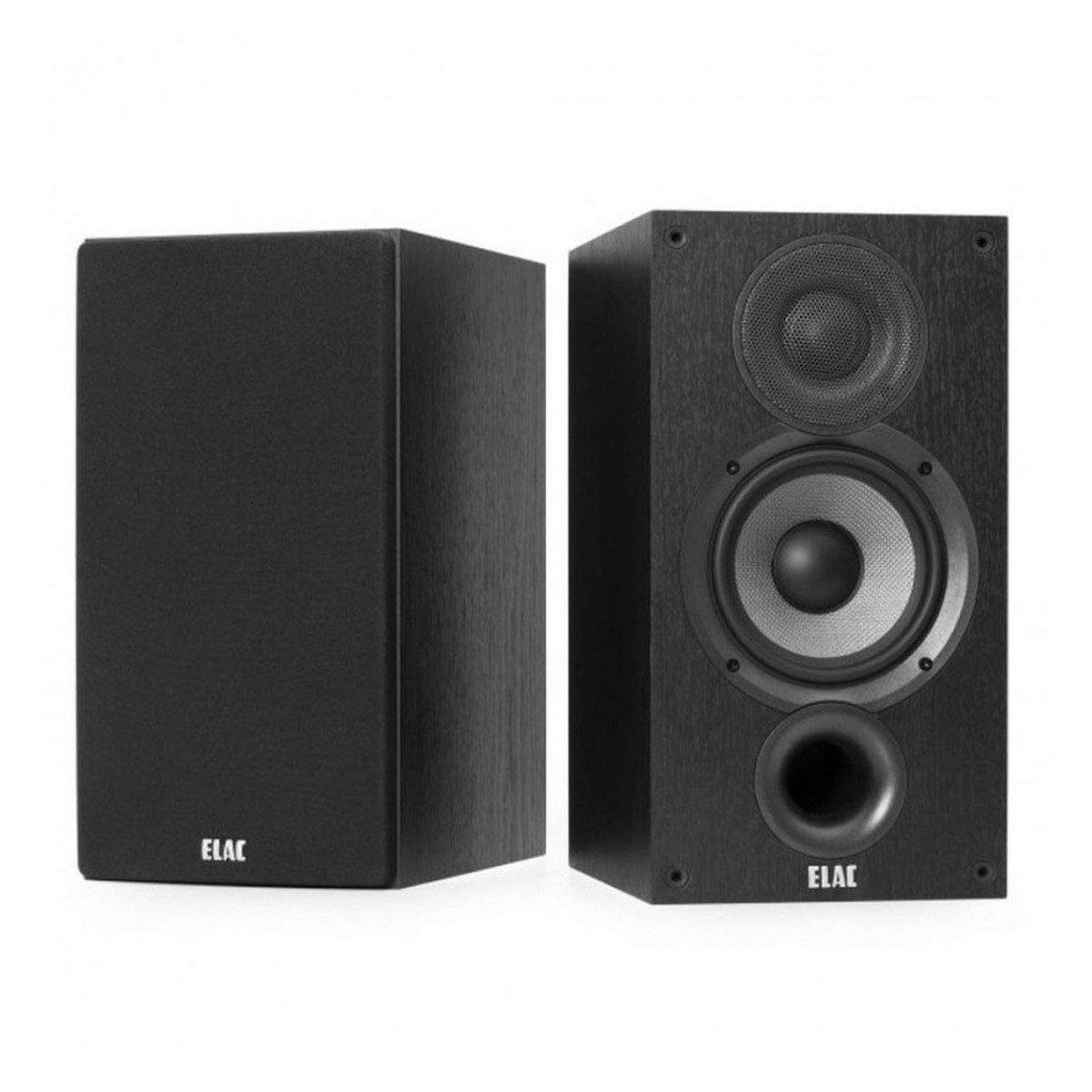

ELAC Debut B5.2 Vinyl Bookshelf Speakers
2021-2023 Best standmount speaker under £300
2019-2020 Best standmount speaker £200-£400
"It's fair to say that these new Debut B5.2 speakers should be considered one of the company’s finest efforts, particularly when their price is taken into account. If the established budget speaker brands aren’t worried about these boxes, they should be."

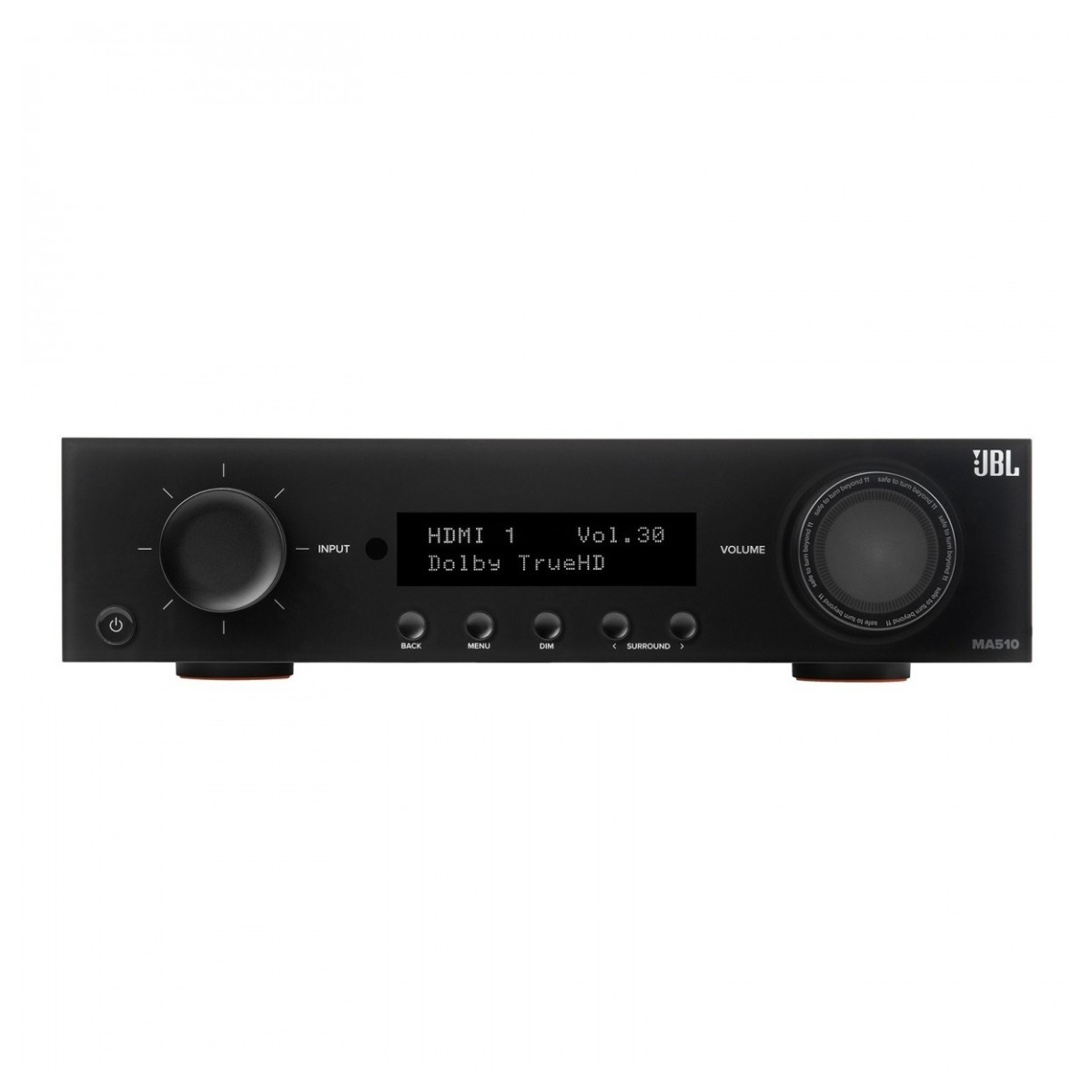

The JBL MA510 5.2 Channel AV Receiver is a step up from the MA310 model thanks to its support for both 8K/60Hz and 4K/120Hz visuals. The four HDMI 2.1 inputs let you relish ultra-high-definition video, providing an incredibly detailed and lifelike picture. This AVR even features HDR10+ and Dolby Vision technologies for enhanced brightness, contrast, and colour accuracy. The receiver's efficient Class D amplifier produces 75W of power to 5.2 channels, providing a low-noise sound to your audio sources.
For gaming, HDMI 2.1 technology in the MA510 supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM), providing seamless gaming experiences with reduced input lag and screen tearing. VRR matches the frame rate of the display to the game, eliminating screen tearing, while ALLM automatically switches the TV to the ideal settings for gaming, reducing unnecessary processing and input lag. The MA510 also features two subwoofer outputs, if you want to expand the bass capabilities of your system.
The built-in DAC delivers hi-res 192kHz/24-bit audio, ensuring a precise sound output that will elevate your favourite films and music. The Pure Direct mode ensures the highest audio fidelity by bypassing unnecessary processing stages, ideal for music as well as movies where critical listening is desired. For avid streamers, you can wirelessly connect to your smart devices via Spotify and Tidal Connect, Bluetooth, Apple AirPlay 2 and Google Chromecast. The MA510 is also Roon Ready. Plus, the EZ Set EQ room equalisation optimises sound quality in any space, making the initial setup a breeze.

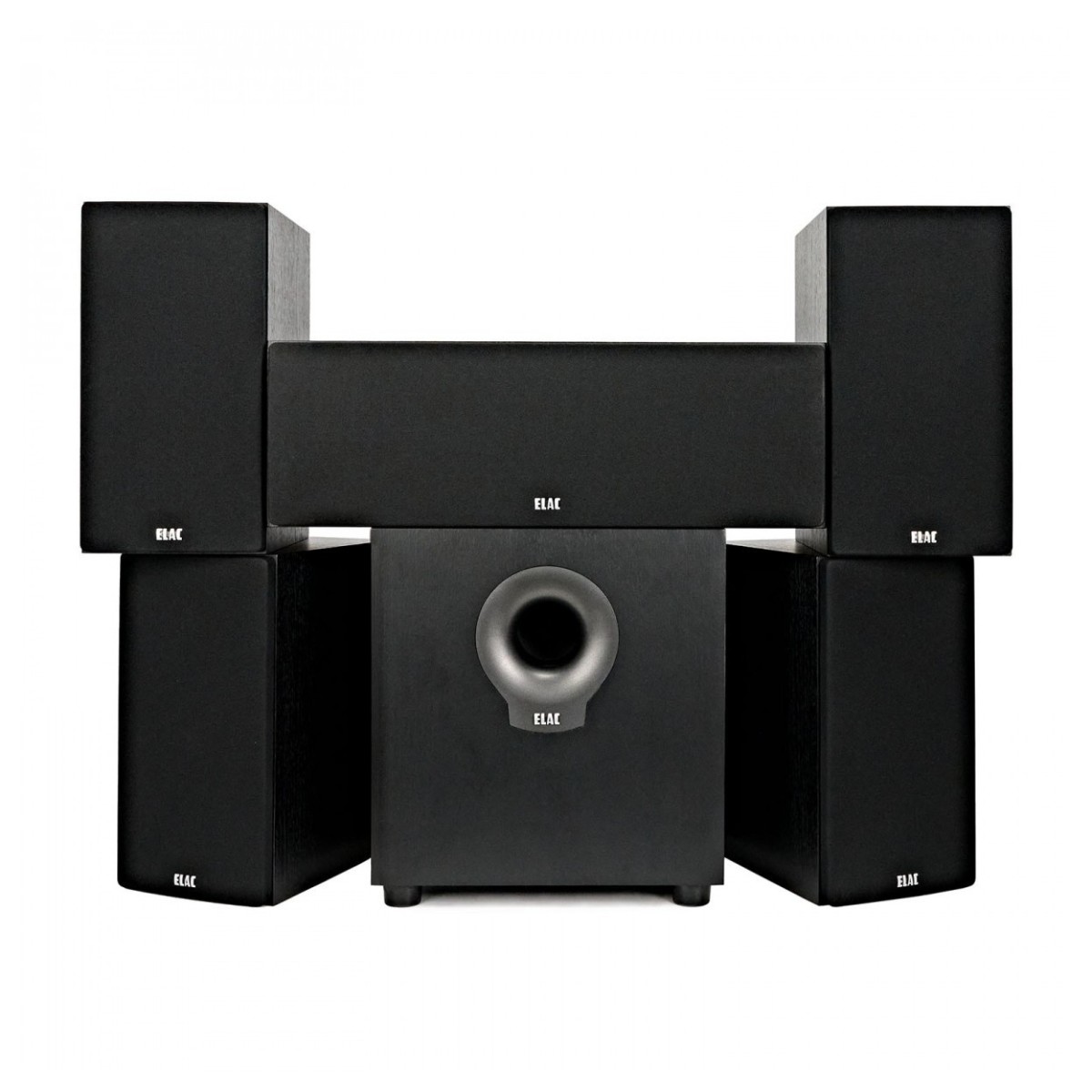

The ELAC Debut B5.2 5.1 Speaker Package is a well-renowned, surround sound system that features four What Hi-Fi? award-winning Debut B5.2 Vinyl Bookshelf Speakers, one Debut C5.2 Vinyl Centre Speaker, and a Debut 2.0 SUB10.2 Subwoofer. The speakers all feature a commanding, two-way bass reflex design, aramid fibre woofers, and cloth dome tweeters, creating a wide-ranging sound that will optimise your favourite films and TV shows. This perfectly complements the Debut 2.0 SUB10.2 Subwoofer, with its 100W BASH tracking amplifier and ten-inch long-throw design ensuring a thundering bass response.
Package includes
JBL MA510 Reciever Specifications
Video Features
| HDMI eARC | Yes |
|---|---|
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 4 |
| HDR 10+, Dolby Vision | Yes, Yes |
Audio Features
| File format | MP3 / MPEG-4 AAC: up to 48 kHz / 320kbpsWMA: up to 48 kHz / 192kbpsALAC: up to 192 kHz / 24-bitFLAC: up to 192 kHz / 24-bitPCM / WAV / AIFF: up to 192 kHz / 24-bit |
|---|---|
| Pure Direct | Yes |
| EZ Set EQ | Yes |
| DA converter | 192kHz/24-bit |
| Channels | 5.2 |
| Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 75 W RMS |
| Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 100 W RMS |

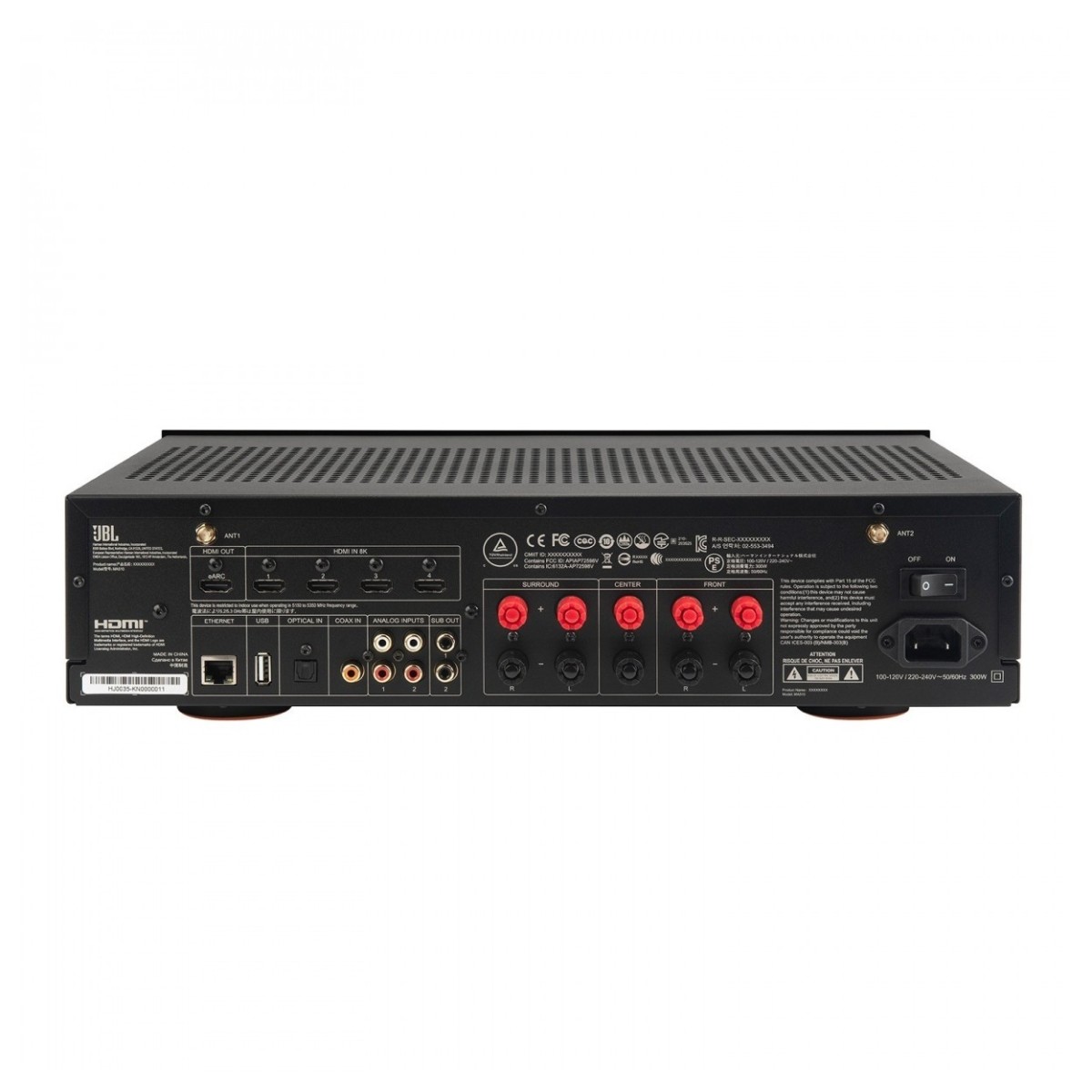

| HDMI Input/Output | 4 / 1 |
| Wi-Fi | Yes (2.4/5GHz) |
| Bluetooth receive | Yes (v4.1, Low Energy) |
| Digital Audio Input | 1 x Coaxial1 x Optical |
| Stereo analog input | 2 x single-ended RCA |
| Pre-Out (single ended RCA) | 2 x subwoofer |
Dimension and Weight
| Dimensions incl. feet and speaker terminals (H x W x D) | 109.2mm x 432.0mm x 347.6mm |
|---|---|
| Weight | 5.4kg |
| Product Code | JBLMA510BLKEU |
ELAC Debut B5.2 Vinyl Bookshelf Speaker Specifications
Dimensions
| Dimensions W x D x H | 180mm x 233mm x 341mm |
|---|---|
| Net Weight (each) | 5.9 kg |
General
| Speaker type | 2-Way Bass Reflex |
|---|---|
| Tweeter | 1″ Cloth Dome |
| Woofer | 5-1/4″ Aramid Fiber |
| Crossover Frequency | 2200Hz |
| Frequency Response | 46Hz – 35000Hz |
| Sensitivity | 86db @2.83v/1m |
| Max Power Input | 120 Watts |
| Nominal Impedance | 6 Ω; minimum 5.1 Ω |
| Cabinet | CARB2 Rated MDF |
| Cabinet Finishes | Black Ash vinyl |
| Port | Dual Flared |
| Binding Posts | 5-way metal |

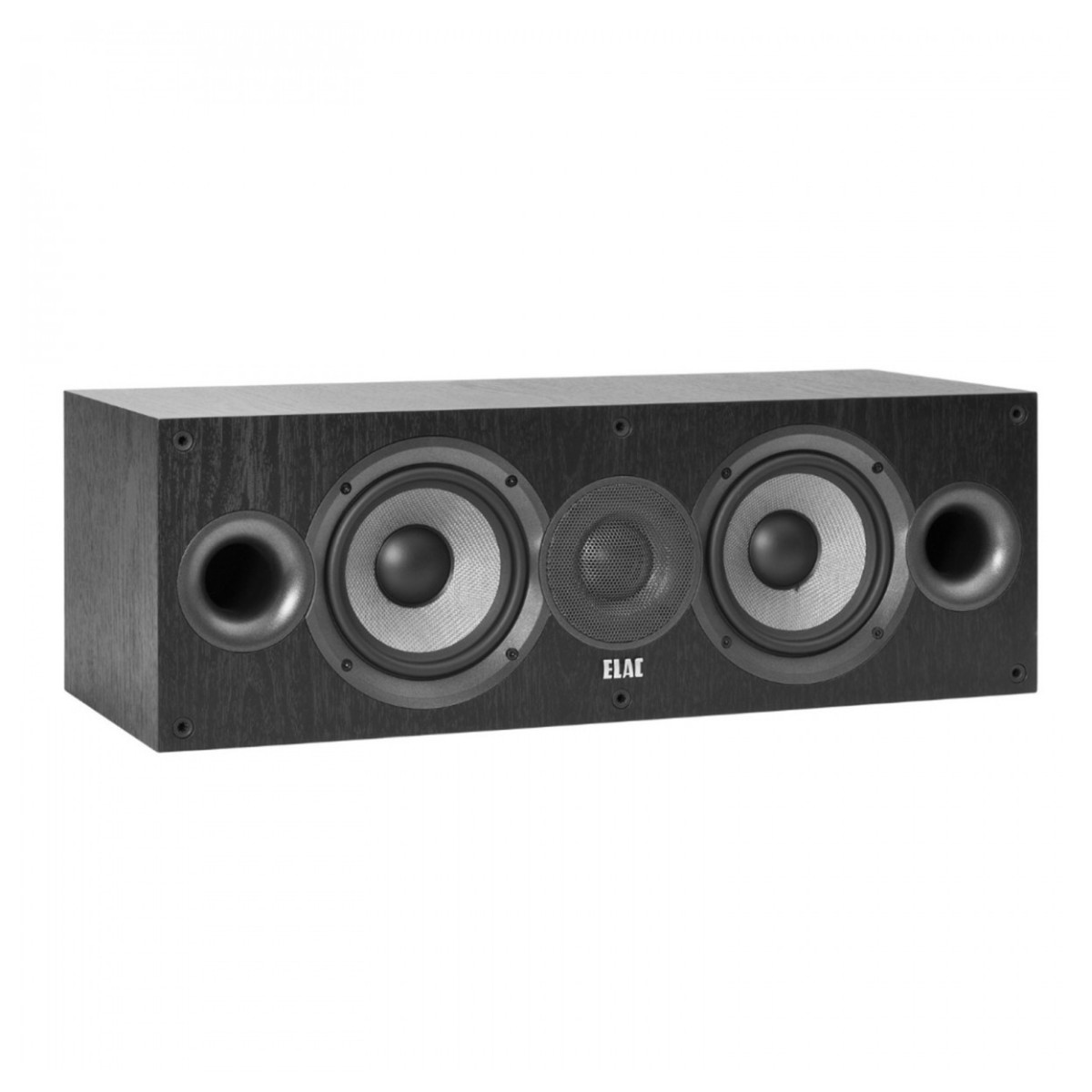

ELAC Debut C5.2 Vinyl Centre Speaker Specifications
General
| Speaker Type | 2-way bass reflex |
|---|---|
| Frequecny Reponse | 55 to 35,000 Hz |
| Nominal Impedance | 8 Ω |
| Sensitivity | 87 dB at 2.83 v/1m |
| Crossover Frequency | 2,200 Hz |
| Maximum Power Input | 120 Watts |
| Tweeter | 1-inch cloth dome |
| Woofer | 2 x 5.25-inch woven aramid-fiber cones with oversized magnet and vented pole piece |
| Cabinet | CARB2 rated MDF |
| Cabinet Finish | Black Ash vinyl |
| Ports | 2 x dual flared |
| Binding Posts | 5-way metal |
| Dimensions (W x H x D) | 540 x 180 x 291 mm |
| Weight | 8.3 kg |
| Product Code | Debut C5.2 Black |

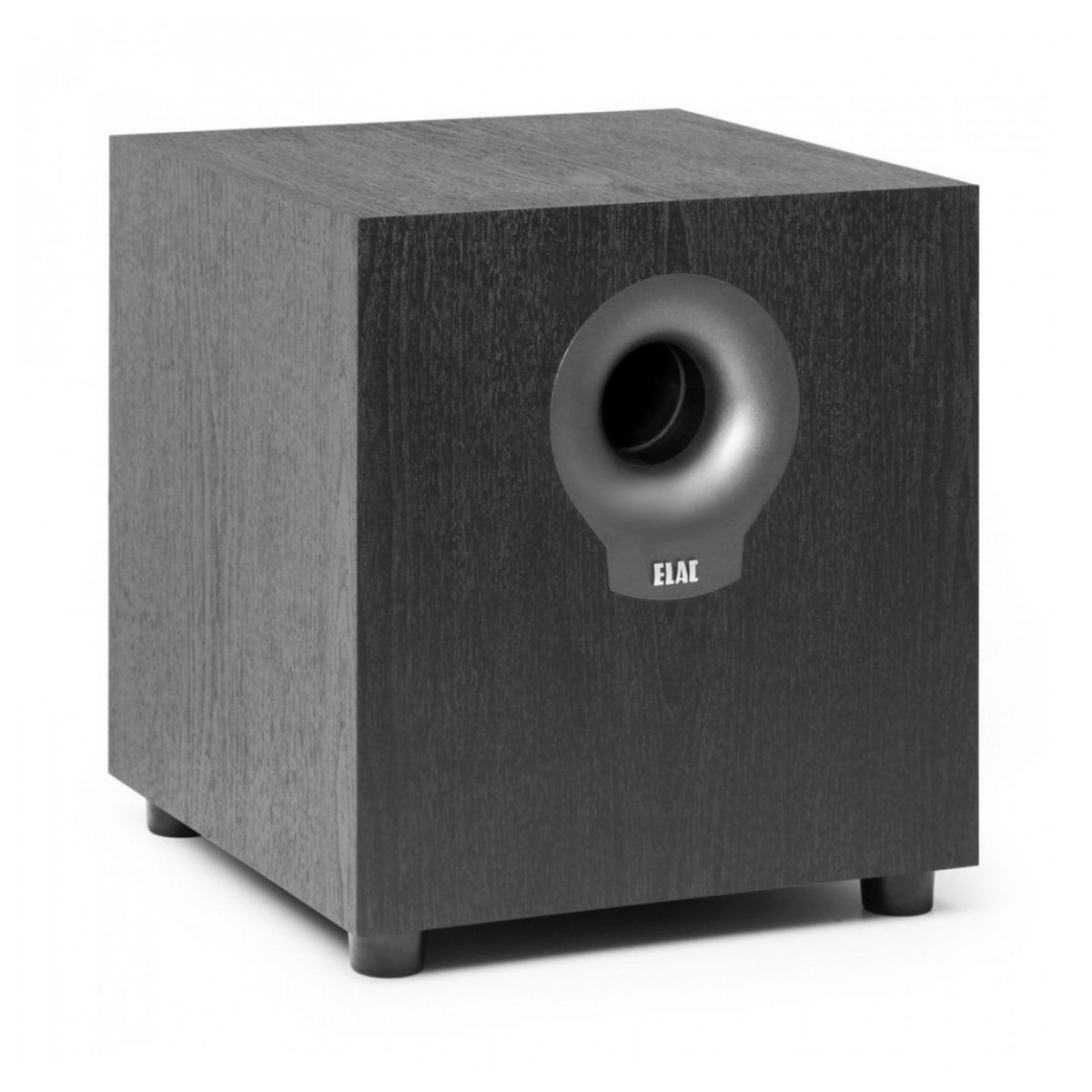

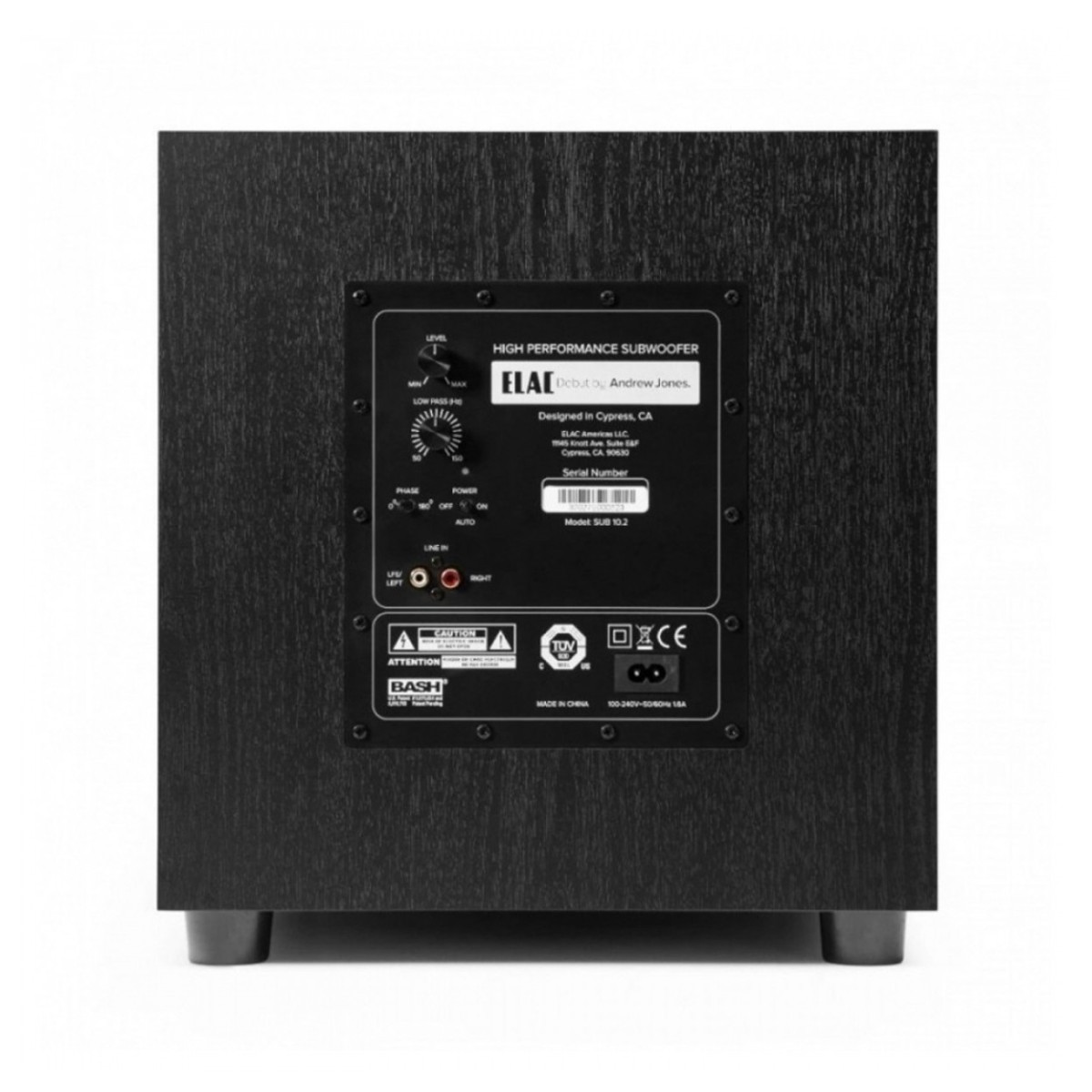

ELAC Debut 2.0 SUB10.2 Subwoofer Specifications
General
| Speaker type | Powered bass-reflex subwoofer |
|---|---|
| Woofer | 1 x 10-inch high-excursion doped paper cone |
| Frequency response | 35 to 150 Hz |
| Crossover frequency | 50 to 150 Hz, continuously adjustable |
| Amplifier type | BASH-Tracking |
| Maximum amplifier power | 200 Watts peak / 100 Watts RMS |
| Standby power consumption | 0.5 Watt |
| Inputs | LFE RCA |
| Cabinet finish | Black Ash vinyl |
| Accessories included | AC power cable |
| Dimensions (W x D x H) | 343 x 343 x 343 mm (13.5 x 13.5 x 13.5 in) |
| Net weight | 13.0 kg (28.7 lb) |
| Product code | ELAC-SUB102-BLK |
