Key Features
- Complete JBL home cinema solution
- JBL's MA510 8K AV Receiver supports UHD content and 5.2 surround sound compatibility
- Bluetooth, Apple AirPlay 2, and Google Chromecast wireless streaming in 192kHz/24-bit audio
- JBL Stage speakers including 250B & 240B Bookshelf, 245C Centre, and the 200P Subwoofer
- Can't find the bundle you want? Call 01706 878444 and we'll make the perfect package for you!

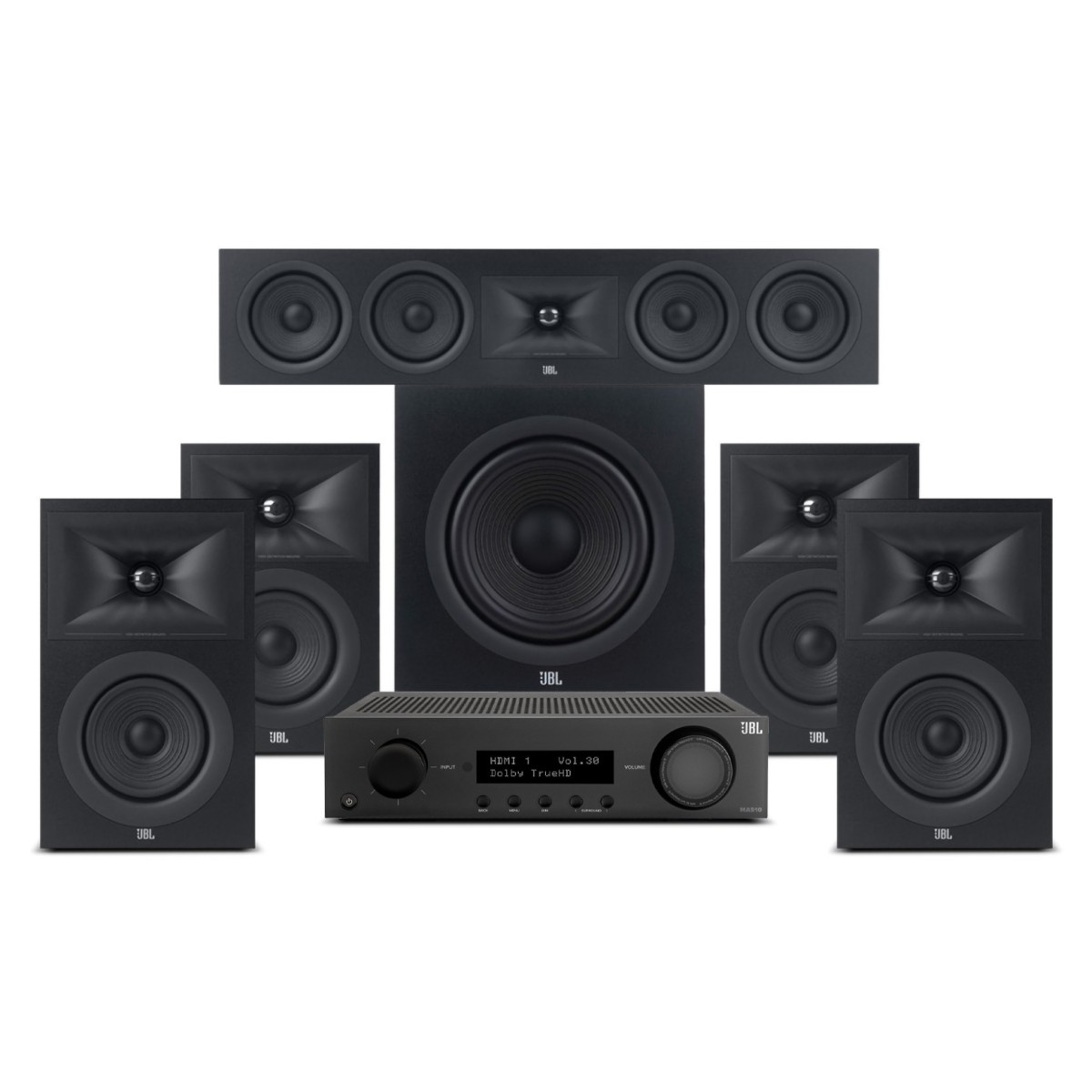

JBL MA510 AV Receiver & JBL Stage 250B 5.1 Speaker Package, Black Overview
The JBL MA510 AV Receiver & JBL Stage 250B 5.1 Speaker Package is built for film lovers and gamers who want powerful surround sound that feels cinematic but stays easy to live with. The MA510 AV receiver brings everything together, giving you clear control of your TV, console, and streaming sources while decoding surround formats so sound moves naturally around the room. Dialogue stays focused, effects feel more precise, and everyday viewing becomes more engaging.
Matched with the Stage 250B 5.1 speaker package, you get a balanced and immersive soundstage. The bookshelf speakers use JBL’s HDI waveguide to spread sound evenly, helping action scenes feel wider and more involving without needing bulky floorstanders. A dedicated centre speaker keeps voices clear and anchored to the screen, while the powered subwoofer adds weight and depth to explosions, soundtracks, and bass-heavy moments. It’s a complete, well-matched system that lets you enjoy big, room-filling sound without complicated setup or constant tweaking.
Product Ref: 361376
Full Description
View Full DescriptionThe JBL MA510 5.2 Channel AV Receiver is a step up from the MA310 model thanks to its support for both 8K/60Hz and 4K/120Hz visuals. The four HDMI 2.1 inputs let you relish ultra-high-definition video, providing an incredibly detailed and lifelike picture. This AVR even features HDR10+ and Dolby Vision technologies for enhanced brightness, contrast, and colour accuracy. The receiver's efficient Class D amplifier produces 75W of power to 5.2 channels, providing a low-noise sound to your audio sources.
For gaming, HDMI 2.1 technology in the MA510 supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM), providing seamless gaming experiences with reduced input lag and screen tearing. VRR matches the frame rate of the display to the game, eliminating screen tearing, while ALLM automatically switches the TV to the ideal settings for gaming, reducing unnecessary processing and input lag. The MA510 also features two subwoofer outputs, if you want to expand the bass capabilities of your system.
The built-in DAC delivers hi-res 192kHz/24-bit audio, ensuring a precise sound output that will elevate your favourite films and music. The Pure Direct mode ensures the highest audio fidelity by bypassing unnecessary processing stages, ideal for music as well as movies where critical listening is desired. For avid streamers, you can wirelessly connect to your smart devices via Spotify and Tidal Connect, Bluetooth, Apple AirPlay 2 and Google Chromecast. The MA510 is also Roon Ready. Plus, the EZ Set EQ room equalisation optimises sound quality in any space, making the initial setup a breeze.
The JBL Stage 250B 5.1 Speaker Package is perfect for audiophiles creating a high-quality home cinema speaker system. This package features a pair of 240B Bookshelf Speakers, a pair of 250B Bookshelf Speakers, and a 245C Centre Speaker. Each model uses polycellulose ribbed cone drivers and tweeter featuring the Next Generation HDI waveguide, giving you a commanding, broad sound to optimise the front, rear, and central channels. Additionally, the Stage 200P Powered Subwoofer boasts a 10-inch woofer and a 150W power output, delivering a thrilling bass to enhance your favourite entertainment.
Package includes
JBL MA510 AV Receiver Specifications
Video Features
| HDMI eARC | Yes |
|---|---|
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 4 |
| HDR 10+, Dolby Vision | Yes, Yes |
Audio Features
| File format | MP3 / MPEG-4 AAC: up to 48 kHz / 320kbpsWMA: up to 48 kHz / 192kbpsALAC: up to 192 kHz / 24-bitFLAC: up to 192 kHz / 24-bitPCM / WAV / AIFF: up to 192 kHz / 24-bit |
|---|---|
| Pure Direct | Yes |
| EZ Set EQ | Yes |
| DA converter | 192kHz/24-bit |
| Channels | 5.2 |
| Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 75 W RMS |
| Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5 THD max) | 100 W RMS |
| HDMI Input/Output | 4 / 1 |
| Wi-Fi | Yes (2.4/5GHz) |
| Bluetooth receive | Yes (v4.1, Low Energy) |
| Digital Audio Input | 1 x Coaxial1 x Optical |
| Stereo analog input | 2 x single-ended RCA |
| Pre-Out (single ended RCA) | 2 x subwoofer |
Dimension and Weight
| Dimensions incl. feet and speaker terminals (H x W x D) | 109.2mm x 432.0mm x 347.6mm |
|---|---|
| Weight | 5.4kg |
| Product Code | JBLMA510BLKEU |

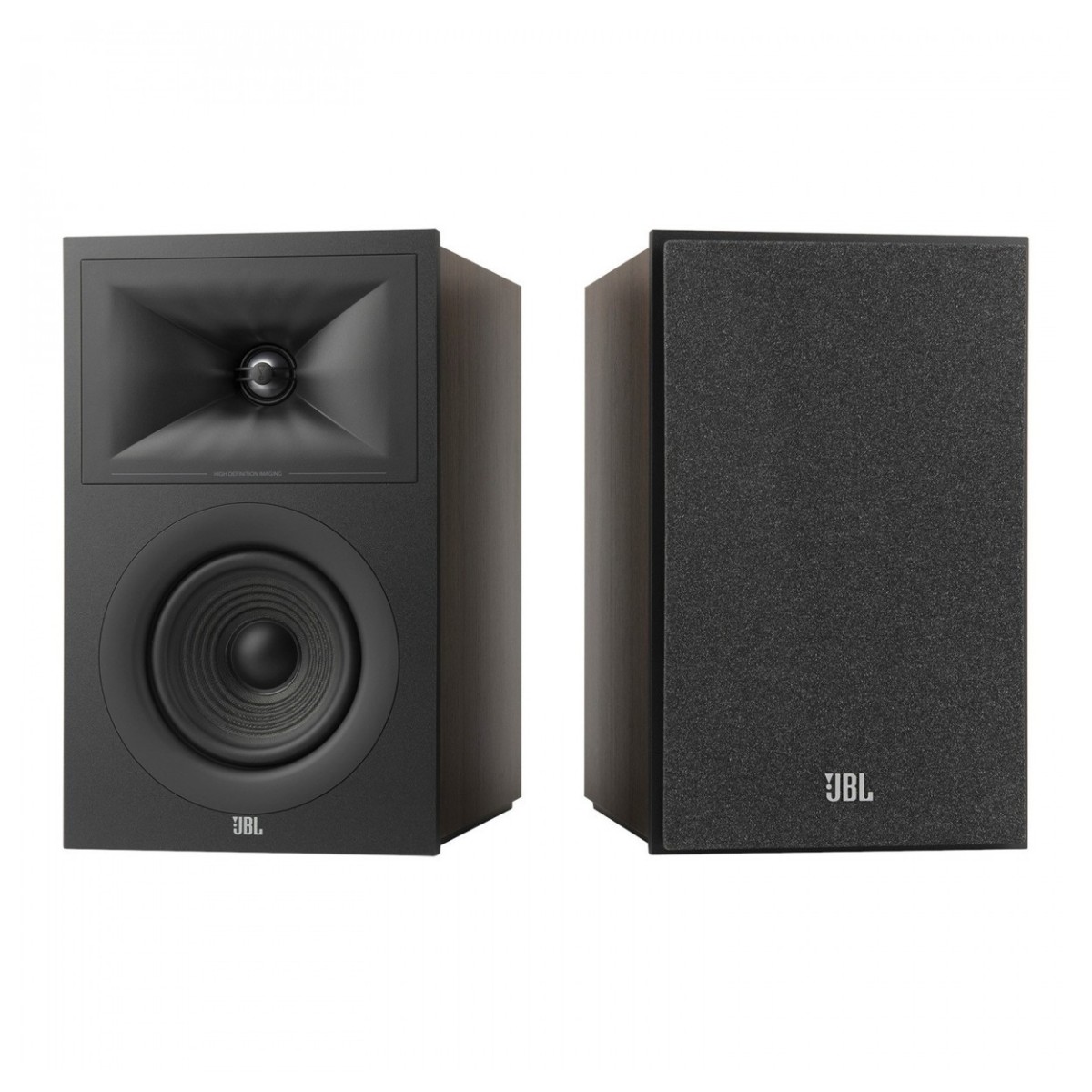

JBL Stage 250B Bookshelf Speakers Specifications
General
| Type | Bookshelf Loudspeaker System |
|---|---|
| Low-Frequency Driver | 5.25-inch (130mm) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodized Aluminum |
| Waveguide | Next Generation HDI™ |
| Recommended Amplifier Power | 20-150W |
| Frequency Response ± 6dB | 50Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 86dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.7Khz |
| Enclosure Tuning | Bass Reflex via Rear-Firing Flared Tuned Port |
| Finish | Espresso or Latte |
| Dimensions (H x W x D) | 321mm x 200mm x 241mm |
| Product Weight | 5.6kg |
| Shipping Weight | 13.6kg |
| Shipping Units of Measure | Pair |
| Product Code | JBL250BBLK |
| EAN | 1200130013065 |
JBL Stage 240B Bookshelf Speakers Specifications
General
| Type | Bookshelf Loudspeaker System |
|---|---|
| Low-Frequency Driver | 4.5-inch (114mm) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodised Aluminum |
| Waveguide | Next Generation HDI |
| Recommended Amplifier Power | 20-125W |
| Frequency Response + 6dB | 53Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 85dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.4Khz |
| Enclosure Tuning | Bass Reflex via Rear-Firing Tuned Port |
| Finish | Espresso or Latte |
| Dimensions (H x W x D) | 272mm x 175mm x 217mm |
| Product Weight | 4.6 kg |
| Shipping Weight | 10.4kg |
| Shipping Units of Measure | Pair |
| Product code | JBL240BBLK |
| EAN | 1200130013089 |

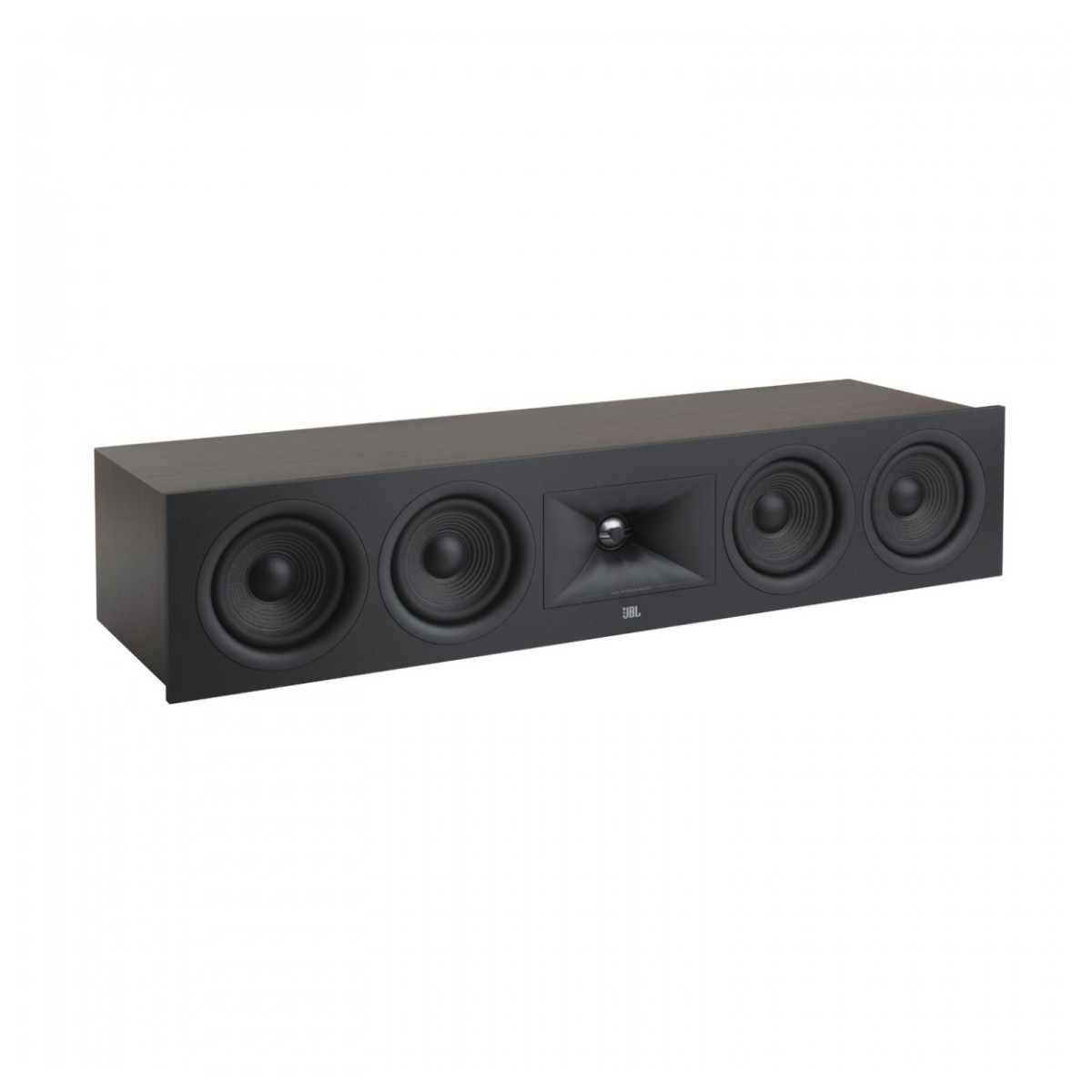

JBL Stage 245C Centre Speaker Specifications
General
| Type | Center Channel Loudspeaker System |
|---|---|
| Low-Frequency Driver | Quad 4.5-inch (114mm) Polycellulose Ribbed Cone |
| High Frequency Driver | 1-inch (25mm) Anodized Aluminum |
| Waveguide | Next Generation HDI™ |
| Recommended Amplifier Power | 20-150W |
| Frequency Response | 6dB: 55Hz-25kHz |
| Sensitivity @ 1M, 2.83V | 91dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.3kHz/2.0kHz |
| Enclosure Tuning | Bass Reflex via Dual Rear-Firing Tuned Ports |
| Finish | Espresso or Latte |
| Dimensions (H x W x D) | 156 x 740 x 217mm |
| Product Weight | 12.0kg |
| Shipping Weight | 14.7kg |
| Product weight | JBL245CBLK |
| EAN | 1200130013102 |

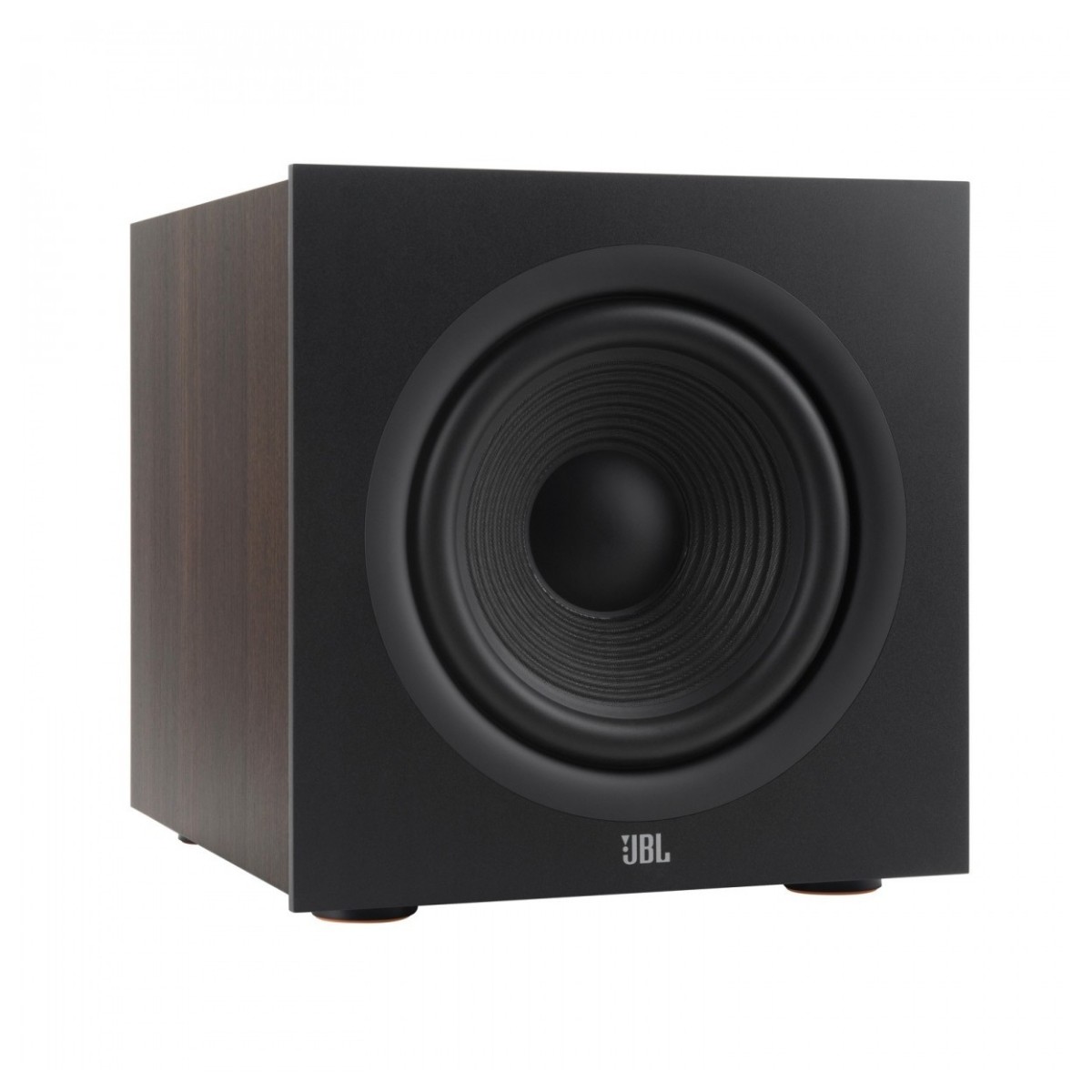

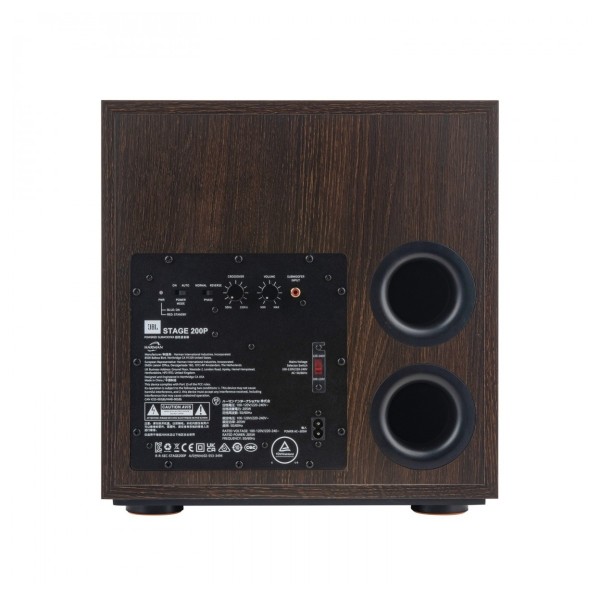

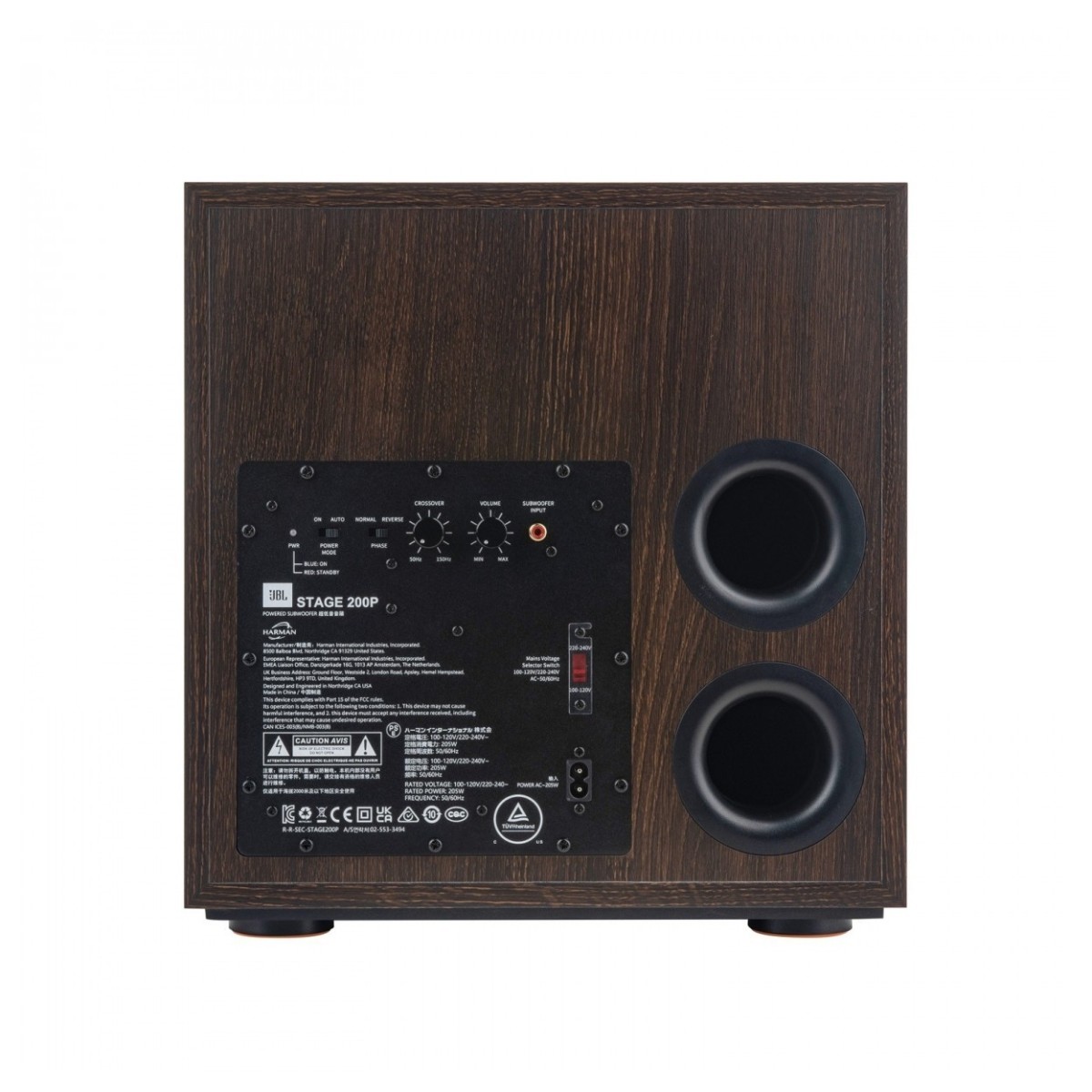

JBL Stage 200P Powered Subwoofer Specifications
General
| Type | Powered Subwoofer |
|---|---|
| Low Frequency Driven | 10-inch Polycellulose Ribbed High Excursion |
| Amplifier Power | 150W RMS (300W Dynamic) |
| Frequency Response ± 6dB | 28Hz-150Hz |
| Crossover Frequencies | 50Hz-150Hz (variable) 24dB/octave |
| Controls | 35Hz-150Hz |
| Controls | Auto Power, Crossover, Level, Phase |
| Inputs | One (1) Line-Level LFE Input |
| Enclosure Tuning | Bass-Reflex via Dual Rear-Firing Tuned Ports |
| Power Requirements | 120V, 60Hz (US) 220-230V, 50/60Hz (EU) |
| Power Consumption | <0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V) |
| Finish | Espresso or Latte |
| Dimensions (H x W xD) | 361 x 350 x 385mm |
| Product Weight | 14.4 kg |
| Shipping Weight | 18.3kg |
| Product code | JBL200PBLKEU |
| EAN | 1200130013164 |
