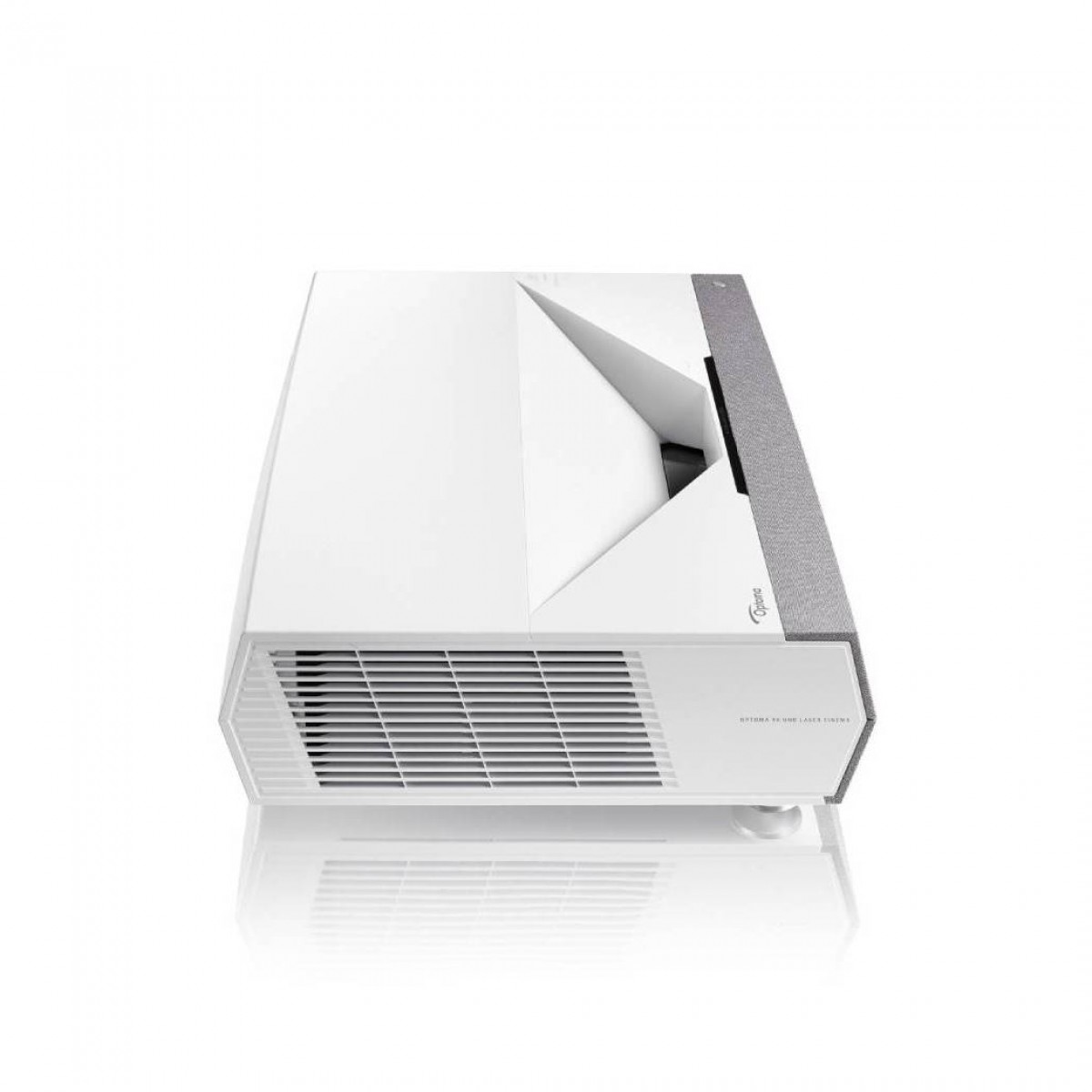

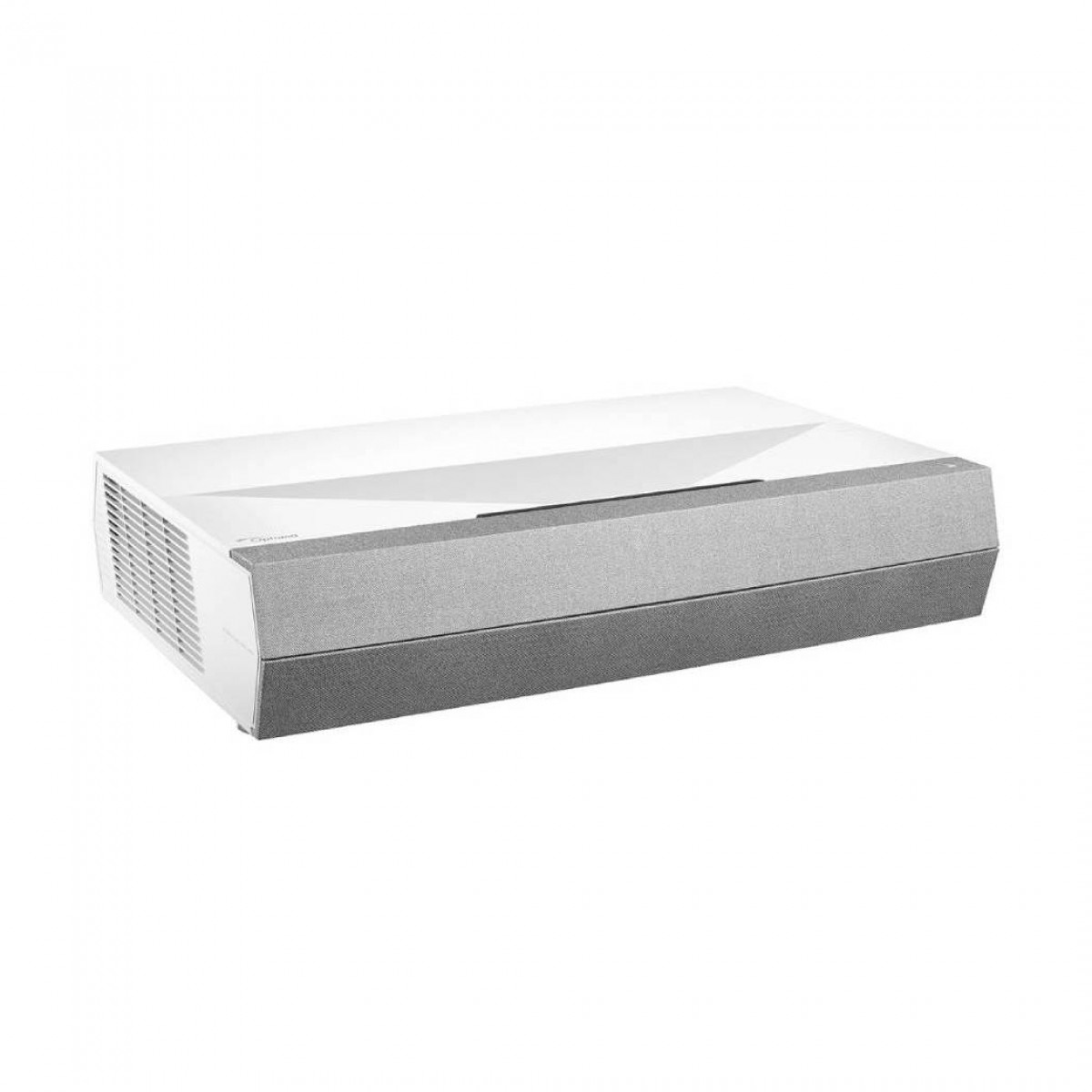

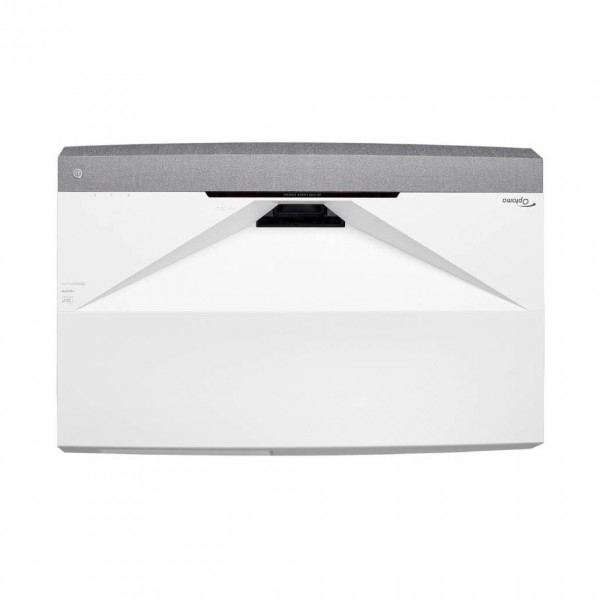

Optoma CinemaX P2 UST Laser 4K Projector
-
-
-
-
-
-
-
-
Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.
Key Features
- Ultra short-throw with built-in speaker
- This projector has HDR compatibility and sophisticated PureMotion frame-interpolation processing
- Simply place the CinemaX P2 at the front of your room, no need for ceiling mounting
- The colour management system displays accurate lifelike colours to perfectly match your viewing environment
- The built-in speaker is capable of decoding Dolby 5.1 to deliver a clear and powerful sound
Optoma CinemaX P2 UST Laser 4K Projector Overview
Part of the CinemaX range, this stylish ultra short throw projector delivers an unforgettable 4K UHD digital cinema quality image in the comfort of your own home. Laser technology provides accurate, true to life colour reproduction with extensive DCI-P3 coverage - perfect for recreating the big-screen experience at home.
Packed with the latest technology and features, the CinemaX P2 boasts HDR compatibility, sophisticated PureMotion frame-interpolation processing which eliminates motion blurring or image judder, voice control, streaming apps and a built-in media player.
Product Ref: 209465
Full Description
View Full DescriptionPart of the CinemaX range, this stylish ultra short throw projector delivers an unforgettable 4K UHD digital cinema quality image in the comfort of your own home. Laser technology provides accurate, true to life colour reproduction with extensive DCI-P3 coverage - perfect for recreating the big-screen experience at home.
Packed with the latest technology and features, the CinemaX P2 boasts HDR compatibility, sophisticated PureMotion frame-interpolation processing which eliminates motion blurring or image judder, voice control, streaming apps and a built-in media player.

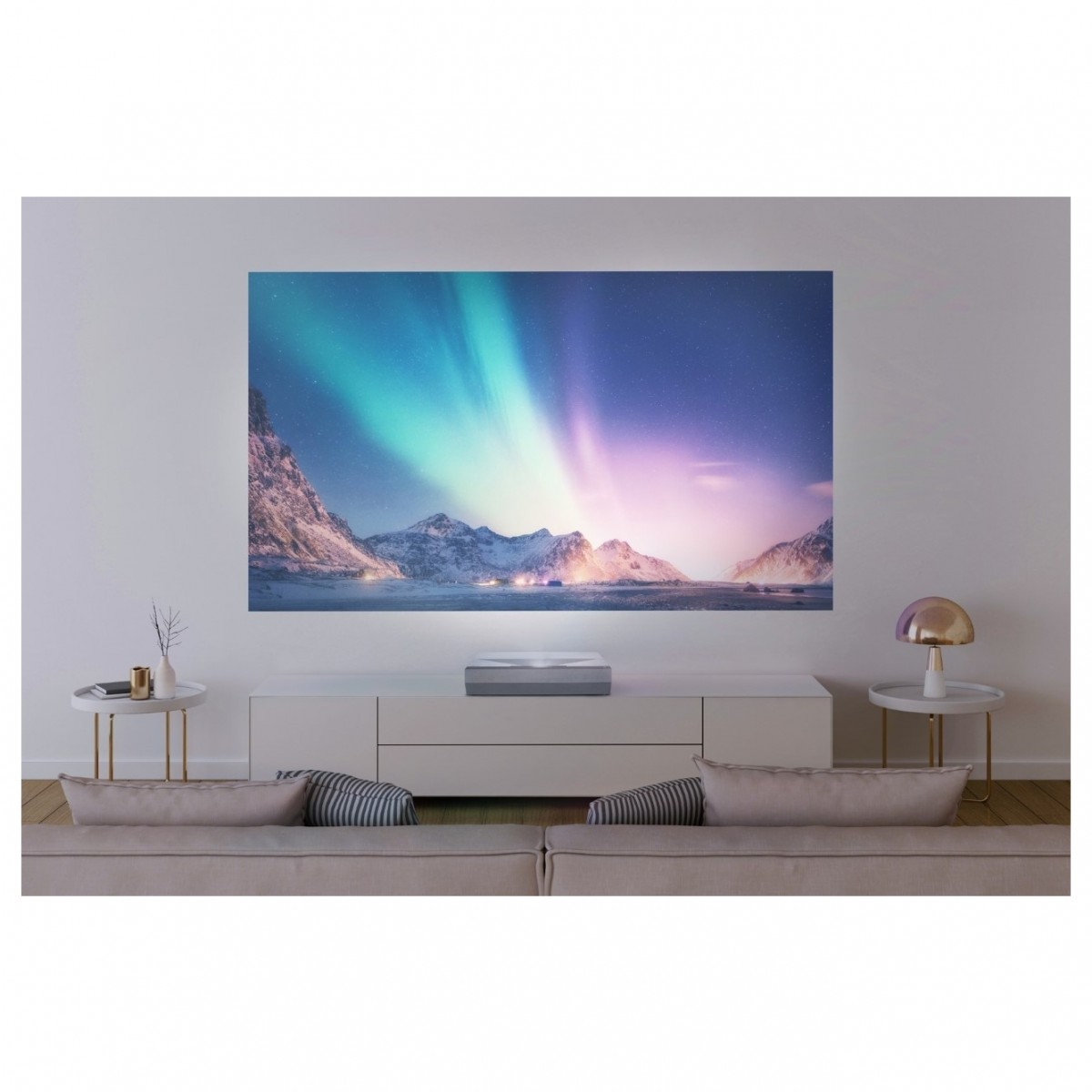

Bring The Cinematic Experience Home

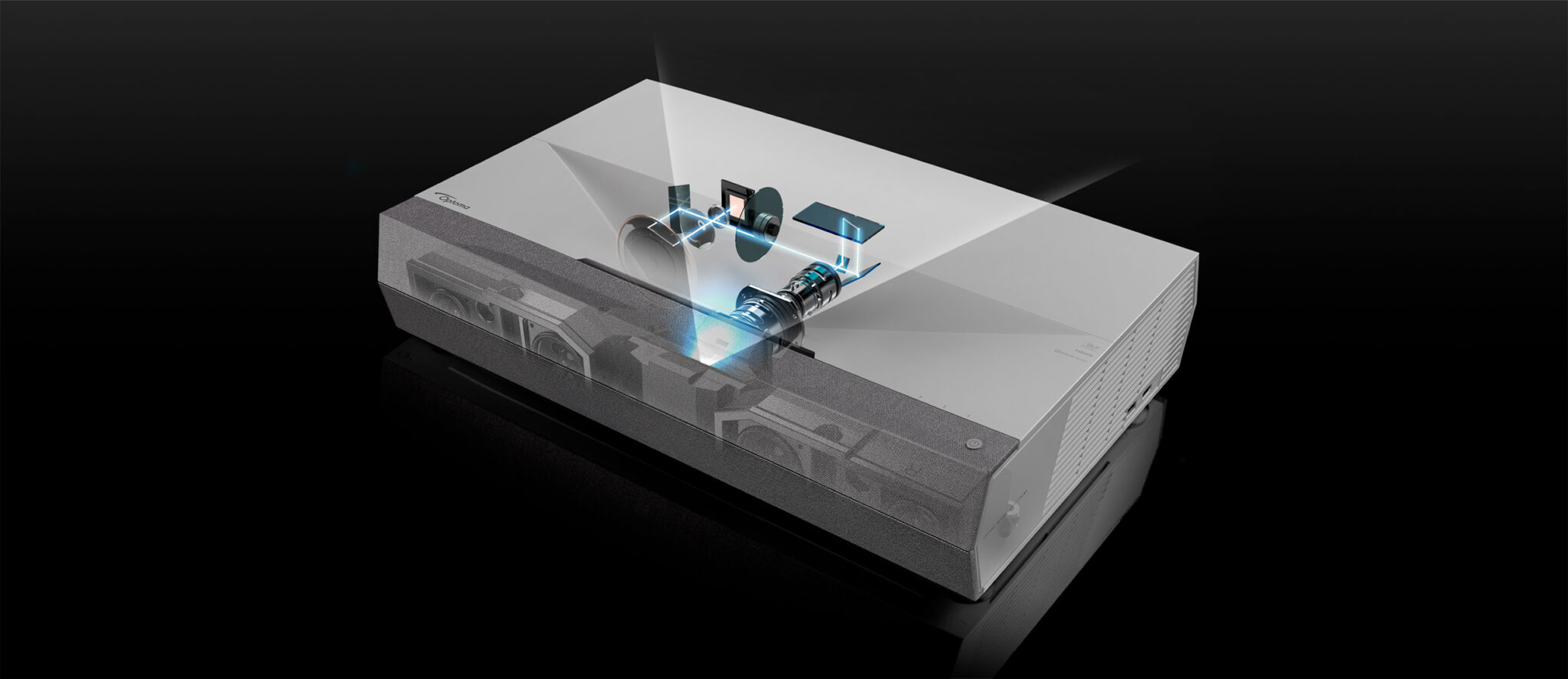

Laser Technology
Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.
Stunning HDR10 Performance
HDR10 compatibility ensures the Optoma Cinema X P2 renders vivid 4K UHD content. Optoma HDR tone mapping combined with dynamic contrast presents an optimized image with brighter whites, deeper black levels and realistic colors that jump off the screen for an immersive visual experience.
ISF Modes
This feature allows you to save your calibrated day and night mode settings for the highest possible viewing experience.
Colour Management System
(CMS) Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings for optimal precision.

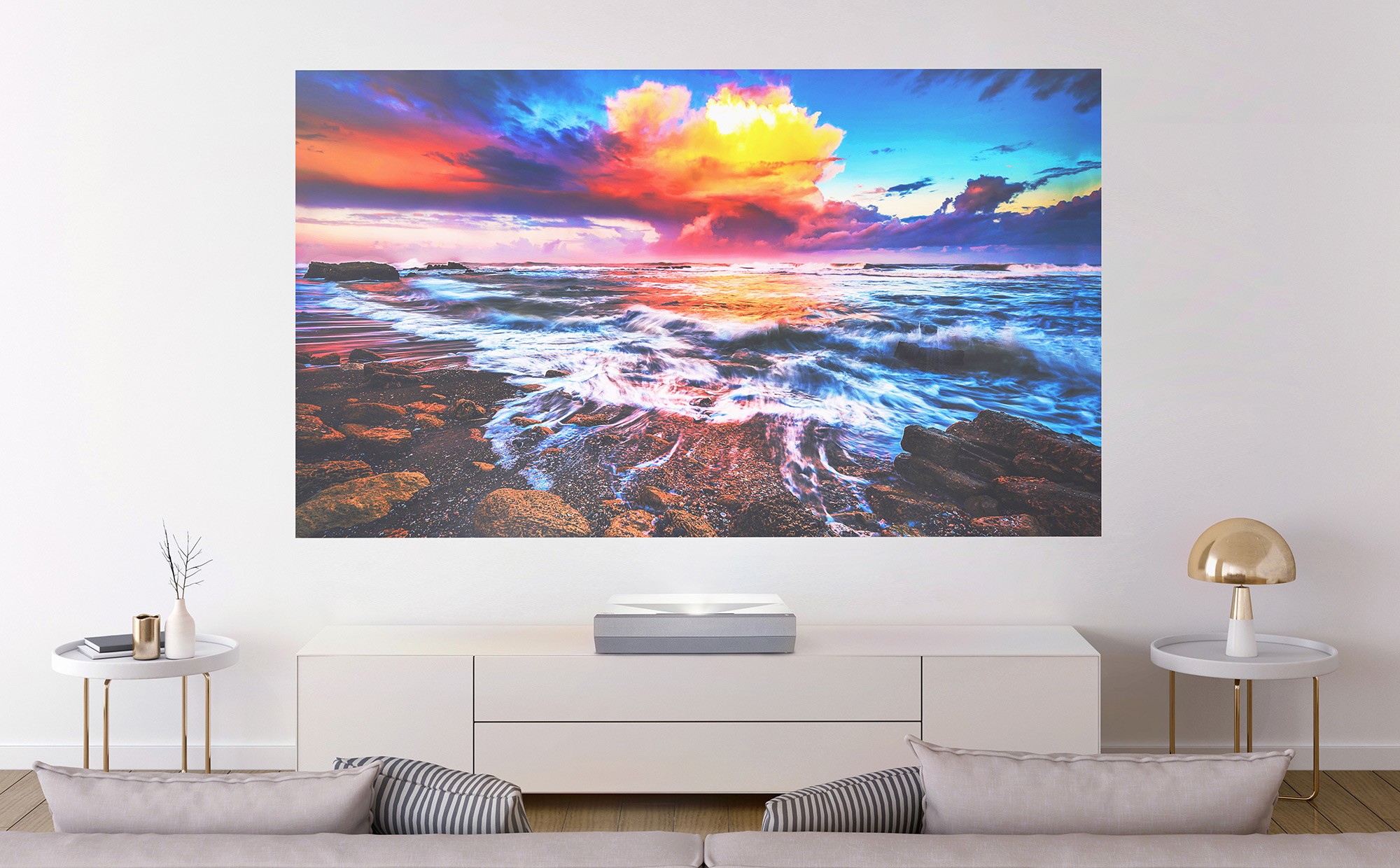

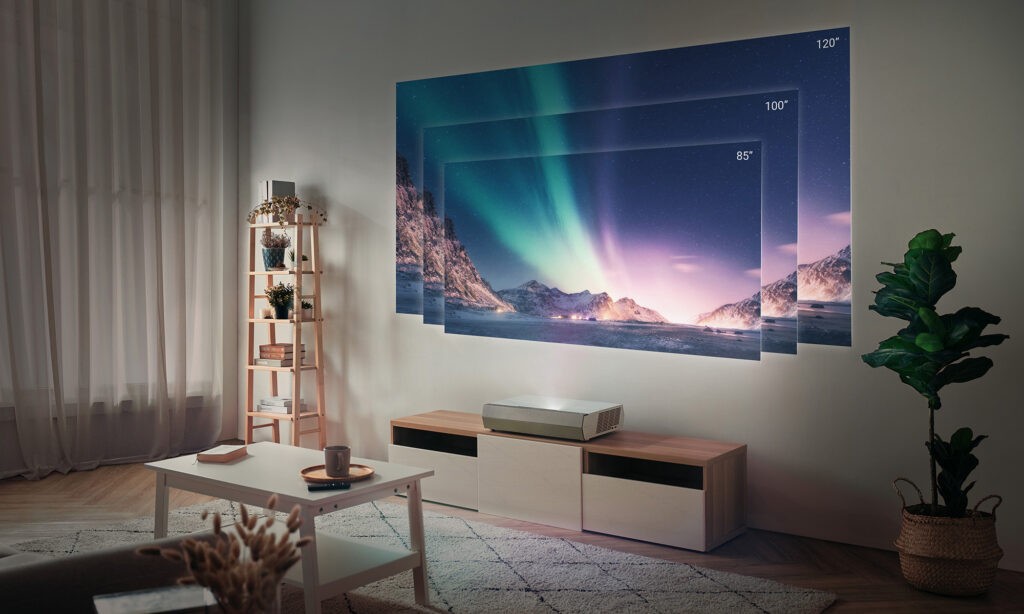

Ultra Short Throw - up to 120'' Image
The CinemaX P2’s space-saving, ultra-short throw design provides convenient placement for a huge screen experience – up to 120 inches from inches away.
24p
Most movies are shot at 24 frames per second (fps). To preserve the purity of the original image, Optoma projectors can accept high definition sources at 24 fps to display movies exactly as the director intended.
Dolby Audio
Capable of decoding Dolby 5.1 to delivers rich, clear and powerful sound. It even supports pass through via S/PDIF out port so that you can connect it to your surround sound system.

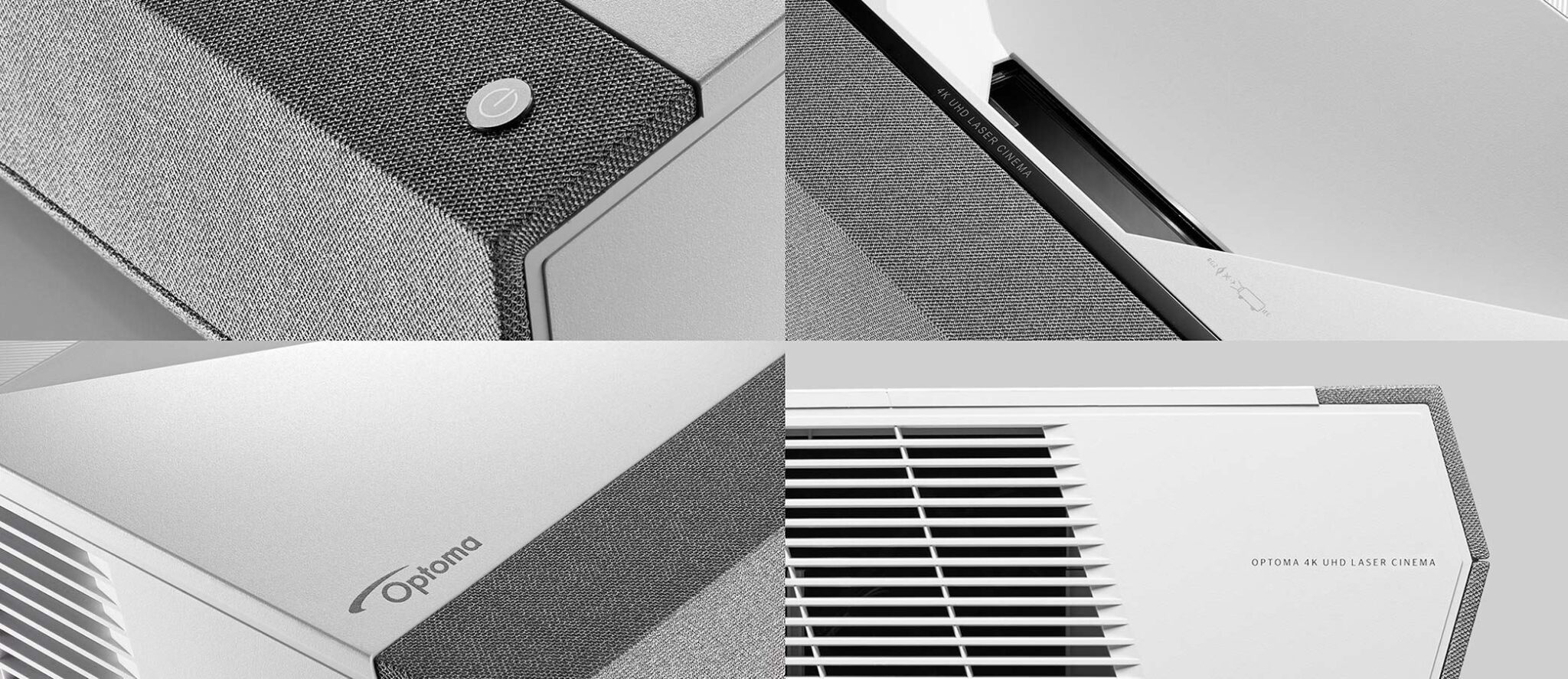

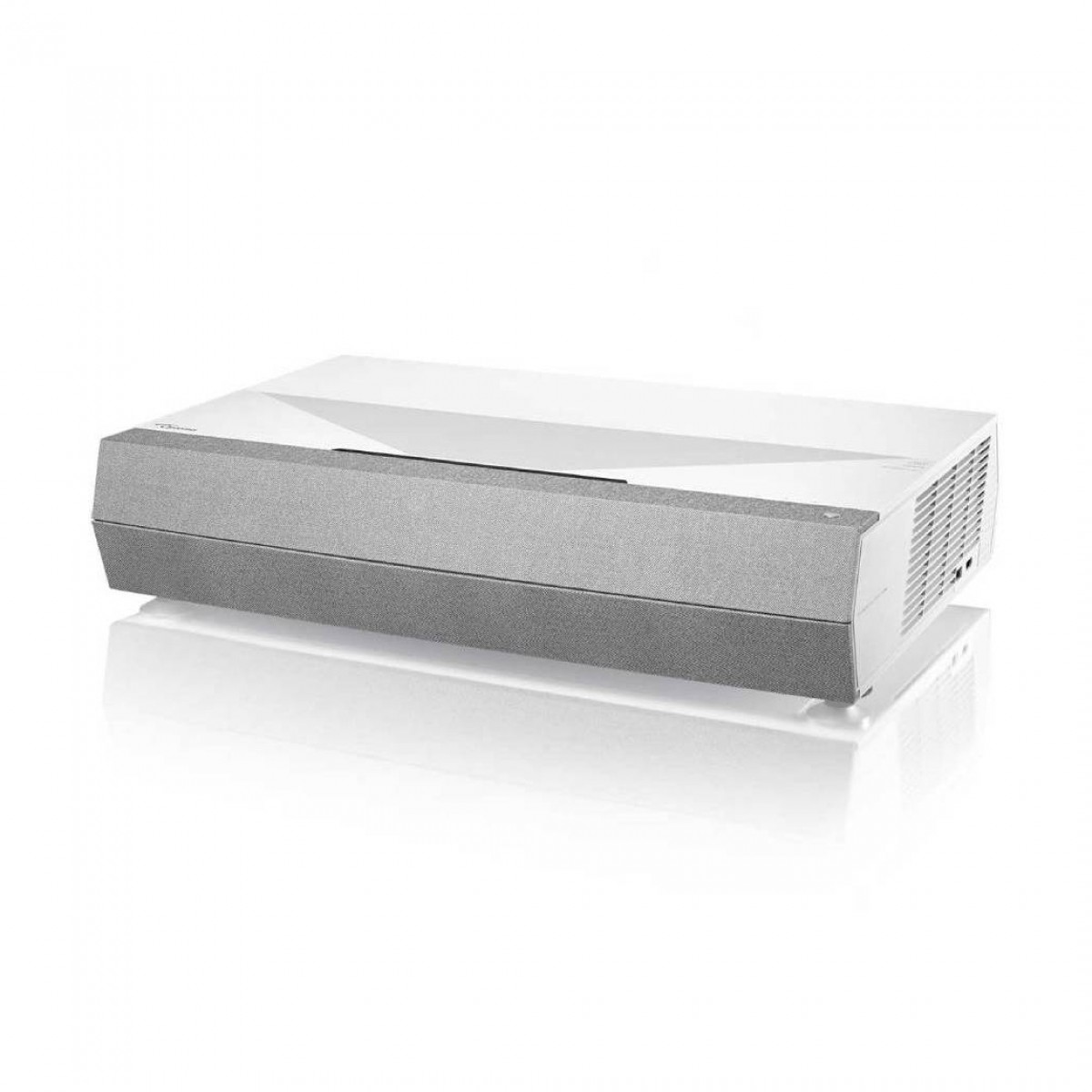

Sleek and Stylish Design
Stunning white finish, complemented with grey and silver detailing

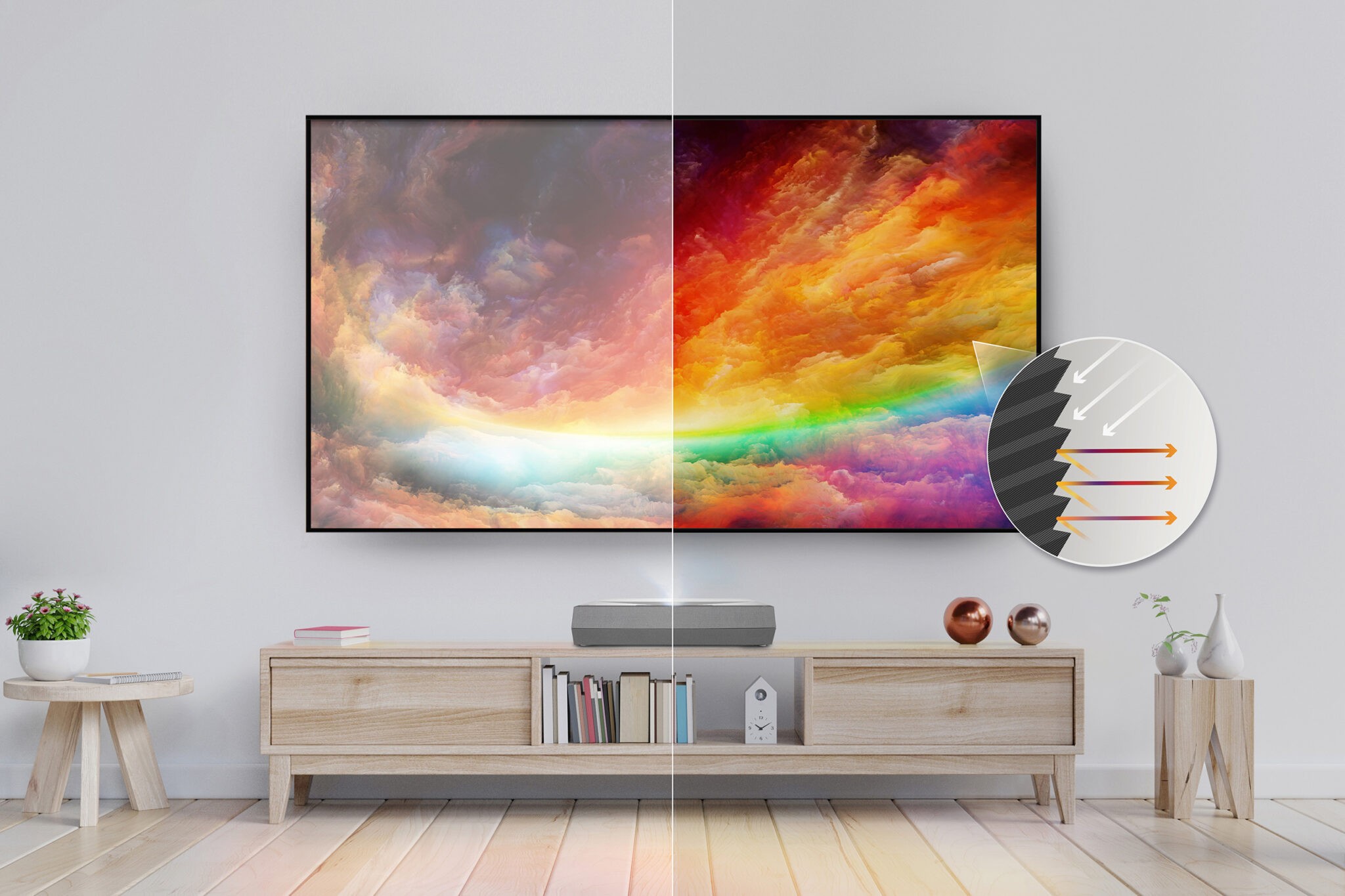

Better with ALR
Combat ambient light for superior daytime and lights-on viewing with an ambient light rejection (ALR) screen. ALR screens feature unique triangle micro structures on the screen surface that block reflections for vivid colors and incredible details at any time of the day. Grandview ALR Screens are perfect for ultra short throw projectors.
Built in Media Player
Watch movies directly from your projector without the need of a laptop or PC by using the built-in media player. Simply copy your files to a USB stick and watch them on the big screen.
IFTTT
IFTTT (If This Then That) is a free web-based service that allows you to create chains of simple conditional statements, called applets. Applets are used to trigger events such as getting your projector to turn off when you leave the house.

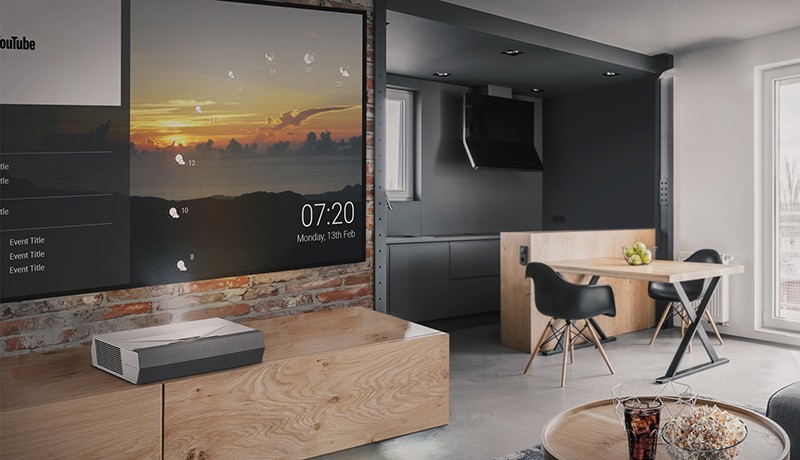

Apps
Access compatible apps such as YouTube and Spotify using the built-in App store – Marketplace. Perfect for streaming movies, TV shows and clips.
Note: Optoma projectors run on a customised version of android. Google Play Services not supported. Not all third-party apps will be compatible and can vary in quality and resolution.
USB-Power
Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
WiFi
Connect to your network for internet access and OTA (over the air updates).
Technical Specifications
| Aspect Radio | 16:9 (native), 4:3, auto compatible |
|---|---|
| Audio | Premium Dolby Digital 2.0 soundbar |
| Brightness | 3,000 ANSI lumens |
| Colour Depth | 3840 x 2160, 30Hz YUV 4:4:4 / 4:2:2 / 4:2:0 (8 /10 / 12 bit), 3840 x 2160, 60Hz YUV 4:4:4 / YUV 4:2:2 (8bit), YUV 4:2:0 (8 / 10 / 12bit) |
| Colour Gamut Support | REC.709, DCI-P3, REC.2020 |
| Colour Wheel | 6 segment RGBRGB |
| Contrast Ratio | 2,000,000:1 (Dynamic Black enabled) |
| Digital Zoom | 0.8 – 2.0x |
| Display Technology | Texas Instruments™ 0.47” 4K UHD ECD DMD |
| Displayable Colours | 1.07 billion |
| Geometry | SmartFIT companion app (Android and iOS) with auto geometry correction system |
| HDR (High Dynamic Range) | HDR SIM (simulate HDR effect with non-HDR content), HDR10 compatible (REC.2020), Picture Modes: Normal, Bright, Detail, Film |
| High Altitude | Operating temperature at sea level up to 10,000 feet = 104° F (max); Must manually switch to high altitude mode from 5,000 feet and above (using OSD menu) to maintain optimal functionality. |
| Image Size | 85” – 120” |
| Input Response | 67.6ms (4K UHD, 60 Hz) / 67.1ms (1080p, 60Hz) SmartFIT and PureMotion must be disabled for PC and console gaming. |
| Keystone Correction | +5/-10 vertical, ±5° horizontal |
| Light Source Life | Up to 30,000 hrs (Eco), 20,000 hrs (Normal) |
| Light Source Type | Laser |
| Maximum Input Resolution | 4K (4096 x 2160, 30Hz), 4K UHD (3840 x 2160, 60Hz) |
| Native Resolution | 4K UHD (3840 x 2160) |
| Noise Level | 24dB |
| Offset | 124% +6%/-2.5% |
| Operating Temperature | 41–104°F (5–40°C), 85% max humidity |
| Power Consumption | Bright: 410W max, 360W typical, Eco: 255W max, 225W typical |
| Power Supply | AC input 100–240V, 50–60Hz, auto-switching |
| Projection Distance | 8″ – 16.5″ (back of projector to projection surface) |
| Projection Method | Front, rear and table top |
| Remote Control | Bluetooth smart home remote and air mouse |
| Throw Ratio | 0.25:1 |
| Uniformity | 90% |
| Video Processing | Upscales WXGA, 720p, 1080p, WUXGA, 1440p up to 4K UHD (3840 x 2160, 60Hz), PureMotion technology |
| Wireless Security | WEP, TKIP, AES, WPA, WPA2 |
Compatibility Specifications
| 3D Compatibility | 3D glasses are needed and sold separately, Refer to user manual for details., Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). |
|---|---|
| Computer Compatibility | VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60Hz), 4K DCI |
| Horizontal Scan Rate | 15.375 ~ 91.146 KHz |

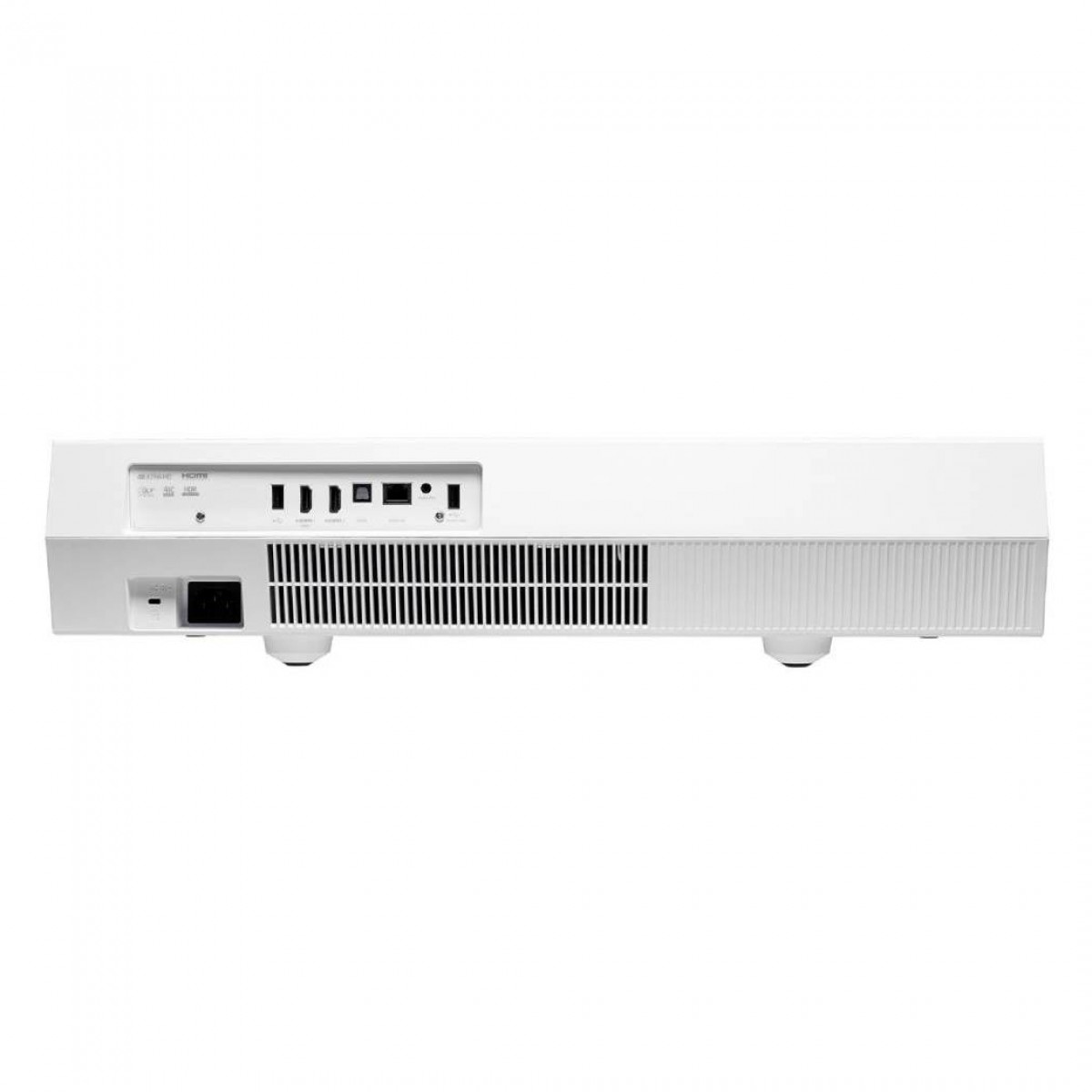

| I/O Connection Ports | 2x HDMI 2.0 (HDCP 2.2, 18Gbps) (HDMI CEC & ARC compatible), 1x HDMI 1.4a (HDCP 1.4) (side), 2x USB 2.0 (rear, for 4K USB media player), USB power (service) |
| USB Media Payer Compatibility | Audio: MP3, AAC, WAV, FLAC 16/24-bit, Files: MKV, MP4, M4V, AVI, H.264, HEVC, MOV, TS, Images: JPEG, BMP, GIF, Videos: 480p, 720p, 1080p, 1440p, 4K UHD, HDR10, HLG |
| User Controls | Graphic user interface and on-screen menu in 27 languages |
| Vertical Scan Rate | 50 ~ 85 Hz (120 Hz for 1080p 3D feature) |
| Video Input Compatibility | PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD (24/30/50/60Hz) |
Physical Specifications
| Dimensions | 22.1'' x 5.1'' x 15'' |
|---|---|
| Recommended Furniture Height | 13'' - 18'' (124% offet) |
| Security | Kensington® lock port, password (OSD) |
| Weight | 24.25 lbs |
Embedded System
| Bluetooth | Bluetooth 2.0 |
|---|---|
| Firmware | OTA updates via Wi-Fi or ethernet |
| Wi-Fi | 802.11ac (dual-band, 2×2) |
Smart Features
| Alexa AV Gear Region Support | United States – English, Canada |
|---|---|
| Amazon Alexa Custom Skill | Commands: change display mode, HDR picture mode, PureMotion setting |
| Amazon Alexa Smart Home Skill | Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over) |
| Google Assistant Actions | change display mode, HDR picture mode, PureMotion setting, Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over), |
| Google Assistant Region Support | All regions – English only |
| Operating System | Android 8.0 with customizable launcher |
| Smart Home Features | Amazon Alexa, Google Assistant & IFTTT |
| SmartFIT | iOS (App Store) & Android (Play Store & Amazon Appstore) |
| USB Image & Document Viewer | Autoplay PDF/PPT: 3, 5, 10, 15 & 20s intervals, Office documents (Word, Excel & PowerPoint), PDFs and images |
| Video Streaming | Available Optoma Marketplace with access to YouTube 4K, Netflix (480p), CNBC, TED TV, NBA TV, CNBC, BBC & more |
Connectivity
| Control | HDMI-CEC, Smart+ (Amazon Alexa, Google Actions, IFTTT compatible) |
|---|
Other
| What's in the Box? | CinemaX P2 projector, distance cards, quick start user manual, Bluetooth smart home remote with Airmouse (rechargeable), power cable |
|---|---|
| Accessories Part Numbers | 4K UHD Casting and mirroring adapter: UHDCast Pro, Bluetooth smart home remote with Airmouse (replacement): BR-3074R, CinemaX P2 distance cards (replacement): BD-25120 |
| UPC | 796435 81 371 0 |
| Warranty Info | 2 Year parts and labor limited warranty on the projector, 5-year or 12,000 hour light source warranty (whichever comes first) |
