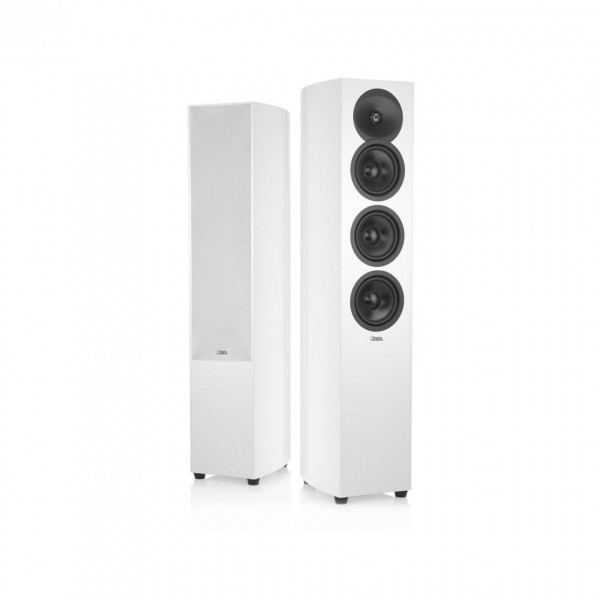

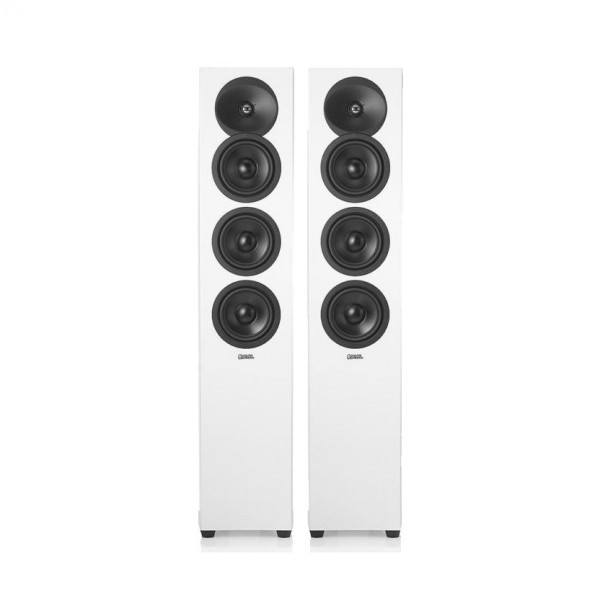

Revel Concerta2 F35 Floorstanding Speakers (Pair), Gloss White

Full Description

The F35 is a true full range 2 1/2-way 5.25” floorstanding loudspeaker that was designed to provide true high-end sound quality. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.  High frequency response is supported by 1 inch aluminium dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminium cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.  The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this Revel sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure Revel's selected high gloss black and white finishes to highlight the features of this beautiful speaker.

Tweeter

Revel engineers created a tweeter with a mechanical resonance that is well below the operating band. Advanced design methodologies have allowed the tweeter/mid range crossover to be set an octave lower thereby improving the critical system directivity. The Concerta2’s sophisticated high frequency wave guides match the off-axis response, or directivity of the tweeter and the mid range throughout the crossover thereby making a clear difference between what is a “mechanical reproduction” and the seamless sound of real music.

Latest Port Design

Utilising a patented Constant Pressure Gradient (CPG) technology in the port design, the Concerta2 ports are designed such that the inner wall of the port is contoured, allowing the change in pressure along the axis of the port from inlet to outlet duct be kept substantially constant. This design reduces the compression, or change in sound at different volumes that is present in other port designs, and optimises both the output capability and distortion.

Woofer

Revel engineers utilise state-of-the-art computer modelling tools during transducer design to optimise everything that affects performance. Laser-based analysis of the resulting prototypes confirms ideal symmetry, which results in lowered distortion and cleaner sound quality. Micro-Ceramic Composite cones insure ideal piston-like performance, eliminating resonances that would colour the sound.

Functional Cabinets

A novel technique of cabinet construction was used to create Concerta2 enclosures that are not only beautiful, but also have rigid, curved side walls plus extensive bracing that result in a strong and inert enclosure. This ensures that the enclosures do not contribute coloration to the sound.

• Derived from Revel’s award-winning Performa3 Series Loudspeakers
• 5.25"deep anodised aluminium cone woofers
• 1" Aluminium Tweeter
• Fourth generation Acoustic Lens wave guides
• Computer optimised driver positioning and network integration
• Constant Pressure Gradient Port Design
• No visible fasteners on the front, top or side panels
• Magnetic grilles with brushed metallic logos
