Key Features
- 10-inch front firing C-CAM Driver
- 220 watt Class D amplification

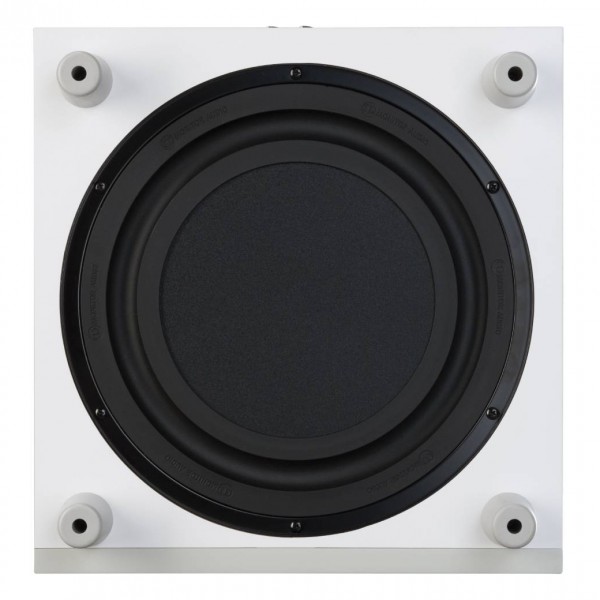

- 10-inch downward firing flat panel ABR (Auxiliary Bass Radiator)
- Sealed cabinet design for precise and accurate low-end
- Ultimate calibration and setup with bespoke DSP algorithms
Monitor Audio Bronze W10 6G Subwoofer, White Overview
The Monitor Audio Bronze W10 is a subwoofer designed to enhance the low frequencies of your home listening setup. Pairing perfectly with Monitor Audio's floorstanding and bookshelf speakers, this subwoofer features a unique long-throw C-CAM driver, utilising aerospace manufacturing materials for a rigid yet lightweight design. This improves output power, efficiency, and transient response while preventing distortion, meaning any transient-heavy material, from raucous rock music to thrilling action movies will sound full, and larger than life.
The Bronze W10 delivers a completely sealed cabinet that pronounces and enhances the consistency of its low-frequencies. Instead of a speaker port, this subwoofer features an Auxiliary Bass Radiator (ABR), which moves back and forth in sync with the motion of the driver, adding extra punch to its sound while remaining a completely closed system. A reduced moving mass and redesigned rubber feet help to focus the energy within the cabinet to the driver, out into your room without any frustrating resonances or vibrations.
Product Ref: 208776
Full Description
View Full DescriptionThe Monitor Audio Bronze W10 is a meticulously designed reinforcement for your home cinema, living room, or complete AV setup. Achieving that same precise, powerful low-end often associated with cinemas and hi-fi listening, this subwoofer is a fantastic way to enhance your listening.
The Bronze subwoofer is a fantastic fit for being put to use with the rest of Monitor Audio's Bronze speaker series, both floorstanding and bookshelf. Tuned to combine with them harmoniously and articulately, the W10 can be a part of a 5.1 surround setup, an ultra-immersive Dolby Atmos surround system, or to add extra bass to a standard stereo combination - whatever suits your needs.
Redesigned Finish

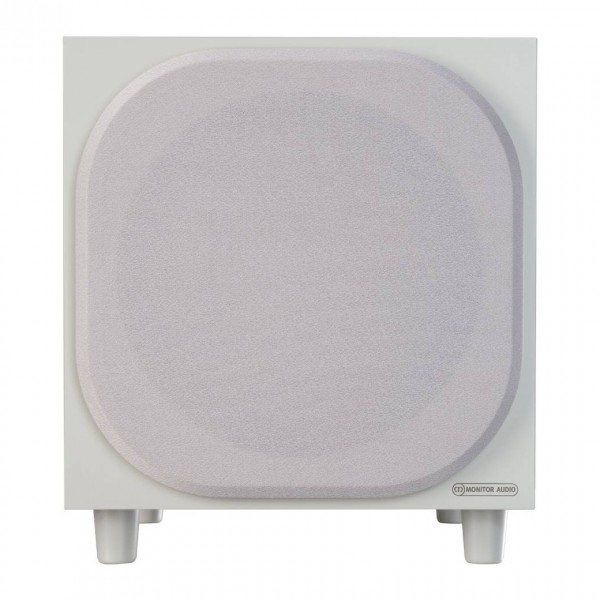

The new Bronze Series has undergone a complete redesign, featuring four contemporary finishes (White, Walnut, Urban Grey and Black) with a sleek contrasting baffle and matching magnetic grille
ABR System
The Bronze W10 subwoofers feature a completely enclosed cabinet to help enhance low-frequency response and output power even further. As such, instead of a bass reflex port, Monitor Audio have designed an Auxiliary Bass Radiator, which moves back and forth with the air pushing the driver.
C-CAM Drivers
Monitor Audio's Bronze series also features their unique C-CAM drivers. Built from ceramic-coated aluminium and magnesium typically found in aerospace engineering for jet engines, this material is rigid yet lightweight. The result is a driver that reacts quickly to the movement of air without being too heavy to do so accurately. This helps to provide excellent transient response with no audible distortion, a key element for any great subwoofer.
Key Features
- Sixth generation subwoofer for Hi-Fi and home cinema listening
- Deep, well-defined low-end helps to reinforce full-range speakers
- 10-inch C-CAM driver provides excellent, crisp transient response
- Auxiliary Bass Radiator (ABR) enhances bass without creating an opening in the cabinet
- Fully sealed cabinet enhances low-frequencies without creating unwanted resonances
- Improved rubber feet prevent vibrations from transferring through floors and walls
Specifications
| External Dimensions, incl. Amp, Drivers & Terminals (HxWxD) | 321 x 321 x 364 mm |
|---|---|
| External Dimensions, incl. Amp, Drivers, Terminals & Feet (HxWxD) | 366.5 x 321 x 364 mm |
| Weight (unpacked) | 13.4 kg |
| System Format | Long-throw 10” Driver featuring ‘Dished’ C-CAM Cone 10” Flat Panel ABR (Auxiliary Bass Radiator) 18mm MDF Internally Braced Construction |
| Lower Frequency Limit | -3 dB @ 33 Hz / -10 dB @ 28Hx (Free Field) Default Preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
| Upper Frequency Limit | -6 dB @ 150 Hz |
| Drive Unit Complement | 1 x 250mm (10") C-CAM Subwoofer Driver featuring a 2" Long Throw Voice Coil |
| Linear Driver Excursion | 17 mm Peak to Peak |
| Amplifier Output | 220 W |
| Amplifier Classification | Class D with High Current Switch Mode Power Supply (SMPSU) |
| Phase Control | 0 Degrees & 180 Degree Pure Invert |
| Low Pass Filter Alignment | 2nd Order (12 dB/Octave), from 40 Hz to 120 Hz |
| Equalisation DSP | 3 Pre-set Modes: Music, Movie, Impact |
| Auto Sensing | Line Level > 3 mV. Auto Standby Feature after 20 mins |

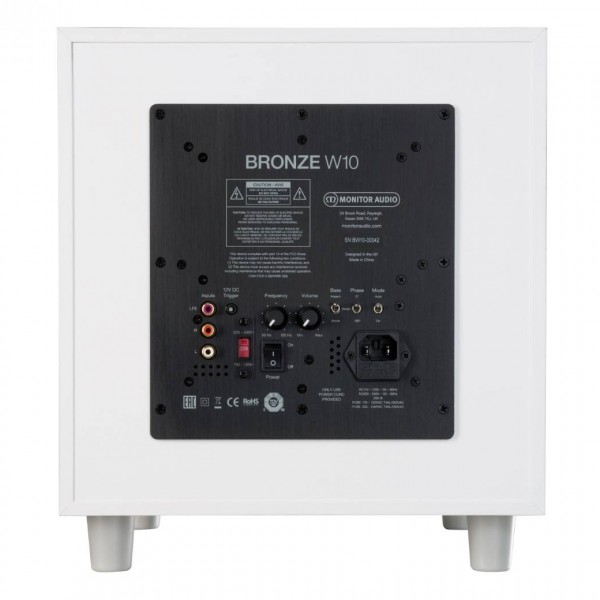

| Audio Inputs | LFE Unbalanced Input RCA Stereo Unbalanced Inputs RCA |
| Input Impedance | 20 kOhms |
| 12 V Trigger | 3.5 mm Mono Mini-jack. 6 V Threshold |
| Electrical Certifications | CE / CB/ ETL / Fcc / CCC / ErP (Energy Saving Compliant) |
| Mains Input Voltage | 100 - 120 V AC, 50 - 60 Hz / 220 - 240 V AC, 50 - 60 Hz (Manually Selected) |
| Power Consumption | Maximum 300 W, Standby < 0.5 W (ErP Compliance) |
| Fuse Type | 20mm T4AL 250 V AC |
| Finishes | Black, White, Walnut, Urban Grey |
