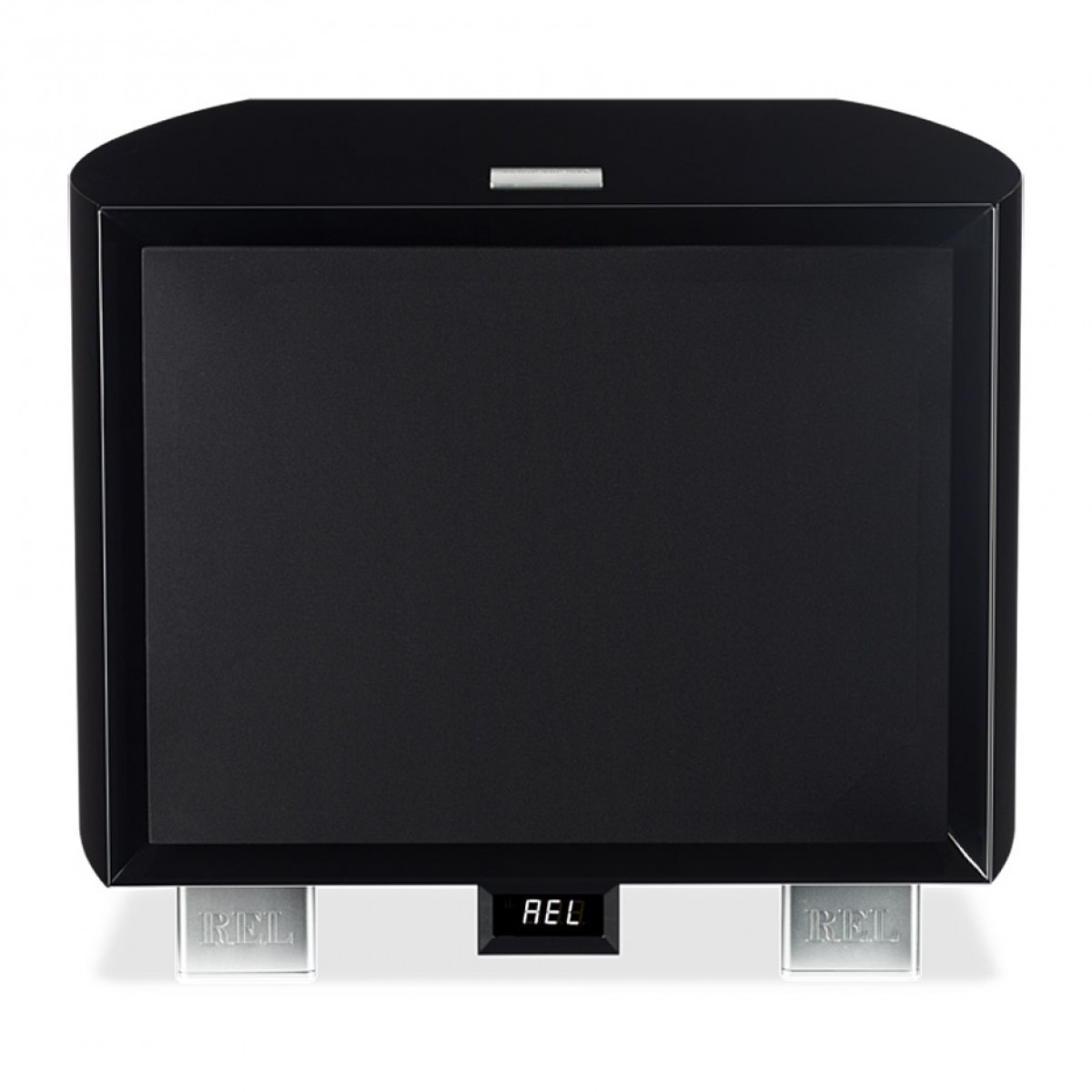

DISC REL G1 Mk2 Subwoofer, Black
Key Features
- Floor To Ceiling Bass
- Reliable Power
- Total Control
DISC REL G1 Mk2 Subwoofer, Black Overview
G1 MKII represents a study in contrast. Familiar, yet different—visibly unchanged, better in every way than the original G1, Rels best-selling reference sub.

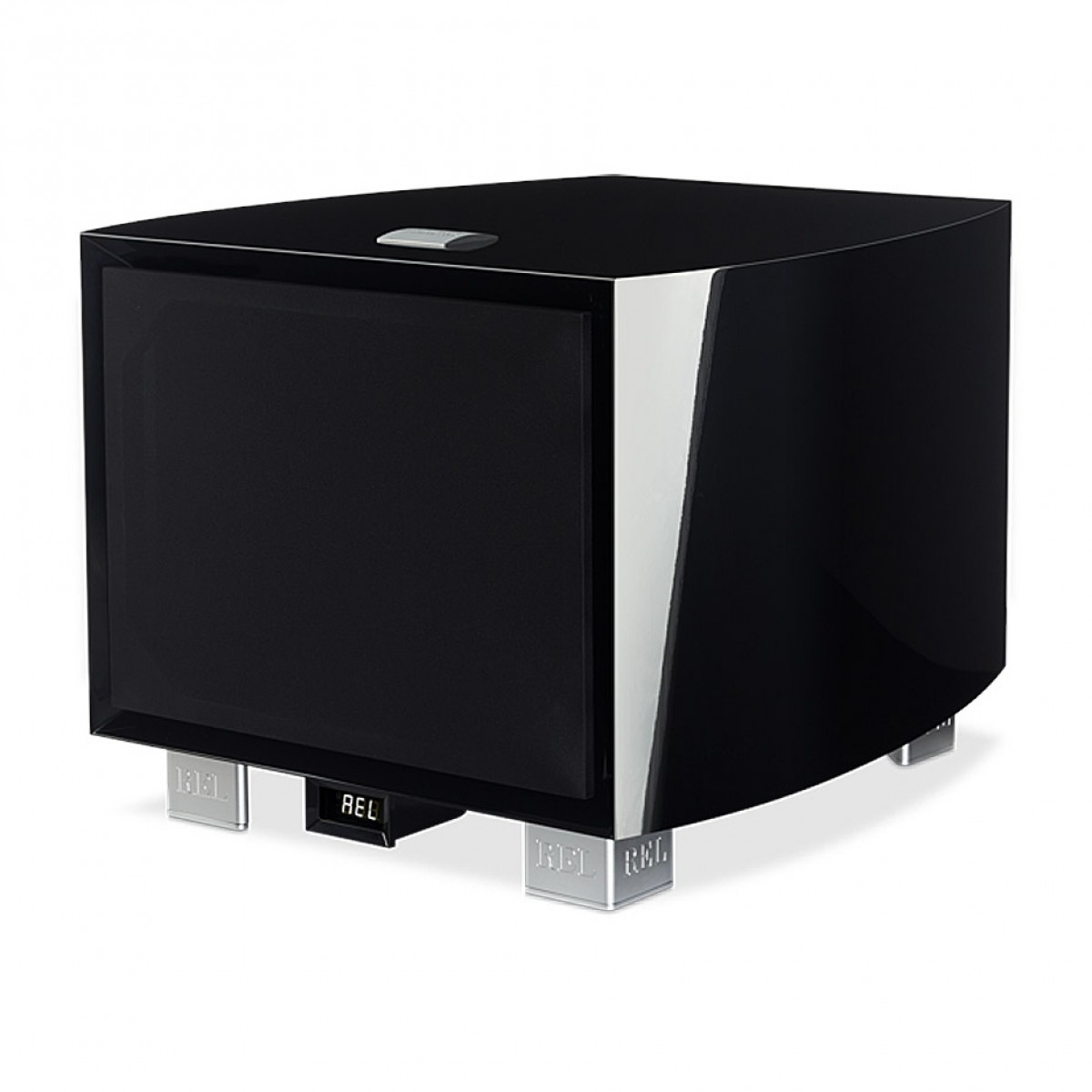

Retained is the classic curvilinear cabinet, with its shape carefully engineered to cancel standing waves as they travel rearward through the cabinet. The laminated hardwood bracing reminiscent of musical instruments still finds a home—though re-configured for even greater rigidity. The amplifier is the powerful, yet highly controlled and ultra-reliable 600w Class A/B with new limiters that allow almost 40% more power being delivered without compression.
The driver—the heart and soul of any REL– has been dramatically upgraded with greater fore-and-aft stroke, a more supple suspension and the ability to handle greater dynamics. This new version is now capable of 112 dB output. expands the performance horizons of the original in every way, whilst retaining its core strengths of dignified beauty coupled to even more savage output.
Product Ref: 203871
Full Description
View Full DescriptionG1 MKII represents a study in contrast. Familiar, yet different—visibly unchanged, better in every way than the original G1, Rels best-selling reference sub.
Retained is the classic curvilinear cabinet, with its shape carefully engineered to cancel standing waves as they travel rearward through the cabinet. The laminated hardwood bracing reminiscent of musical instruments still finds a home—though re-configured for even greater rigidity. The amplifier is the powerful, yet highly controlled and ultra-reliable 600w Class A/B with new limiters that allow almost 40% more power being delivered without compression.
The driver—the heart and soul of any REL– has been dramatically upgraded with greater fore-and-aft stroke, a more supple suspension and the ability to handle greater dynamics. This new version is now capable of 112 dB output. expands the performance horizons of the original in every way, whilst retaining its core strengths of dignified beauty coupled to even more savage output.

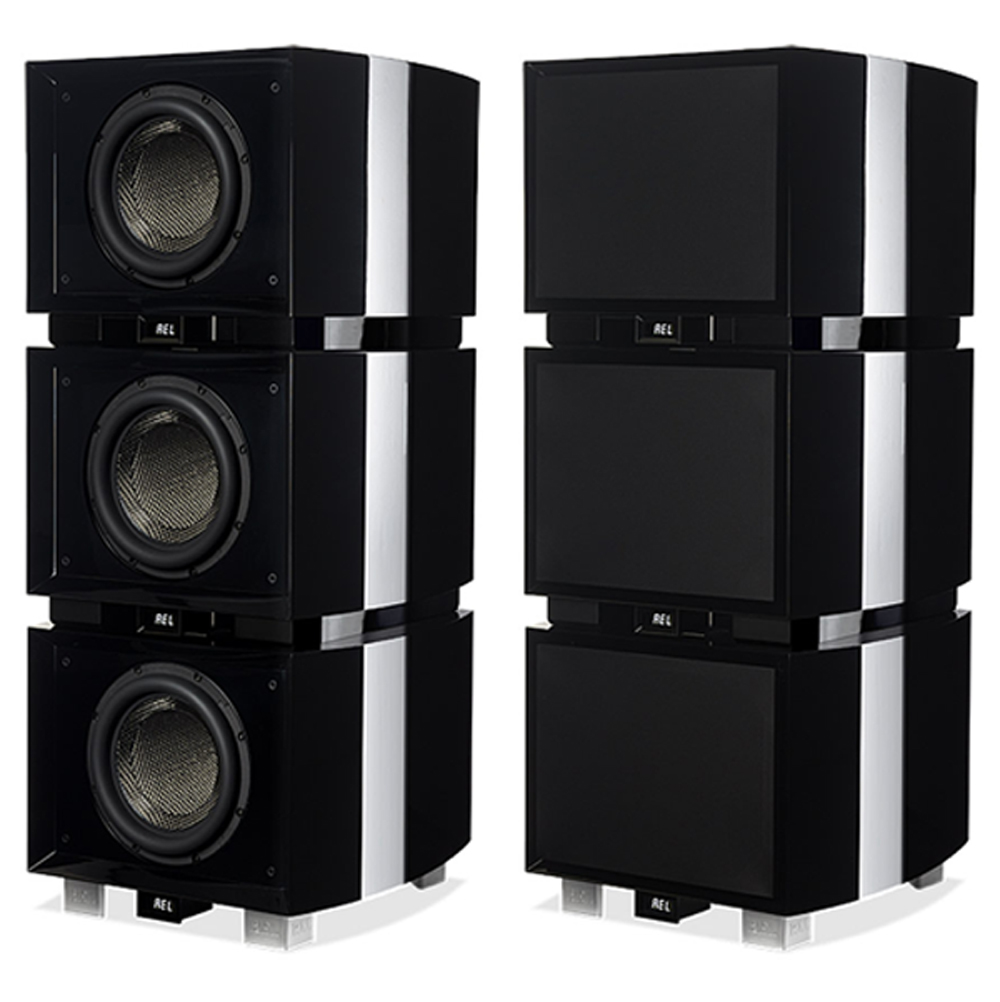

Floor To Ceiling Bass

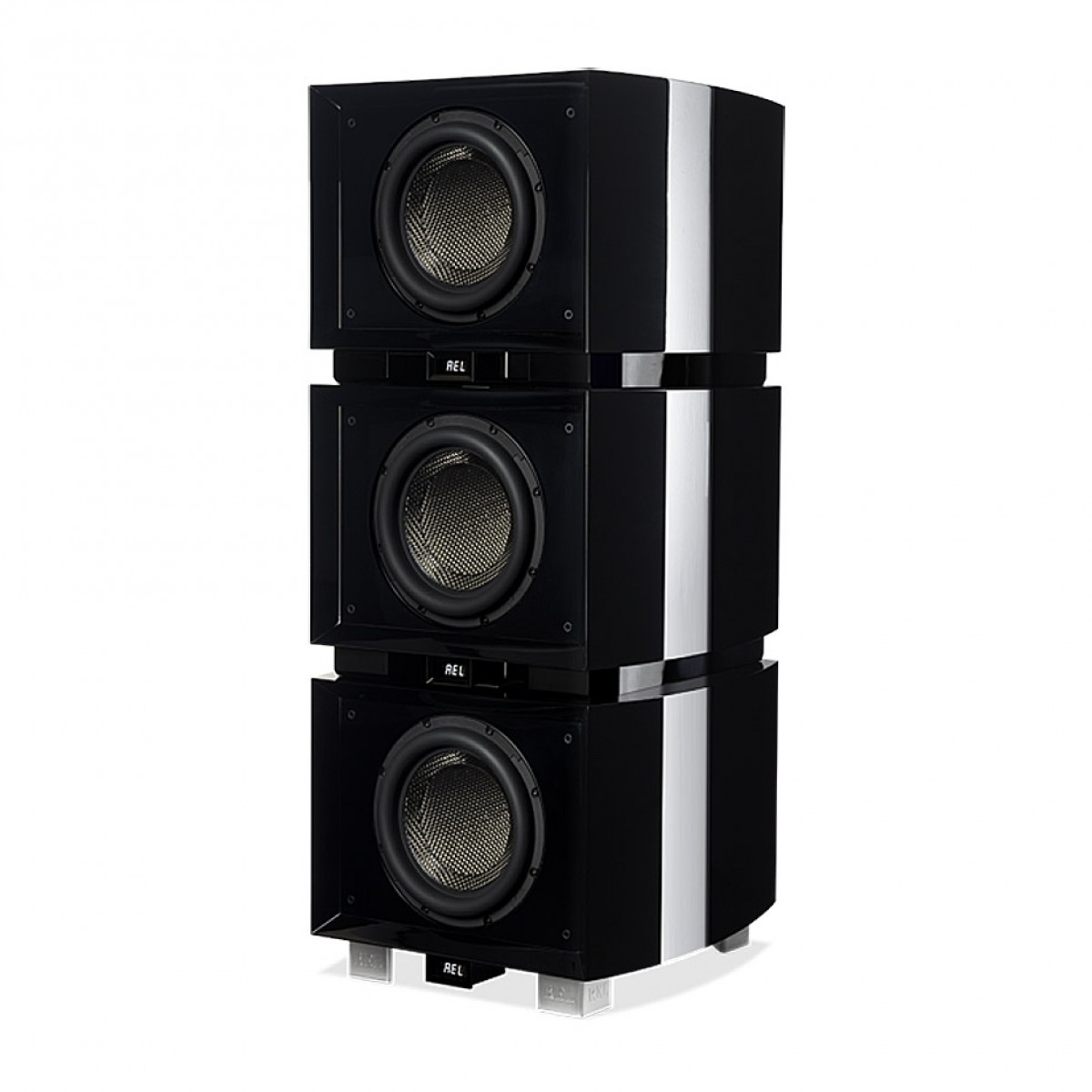

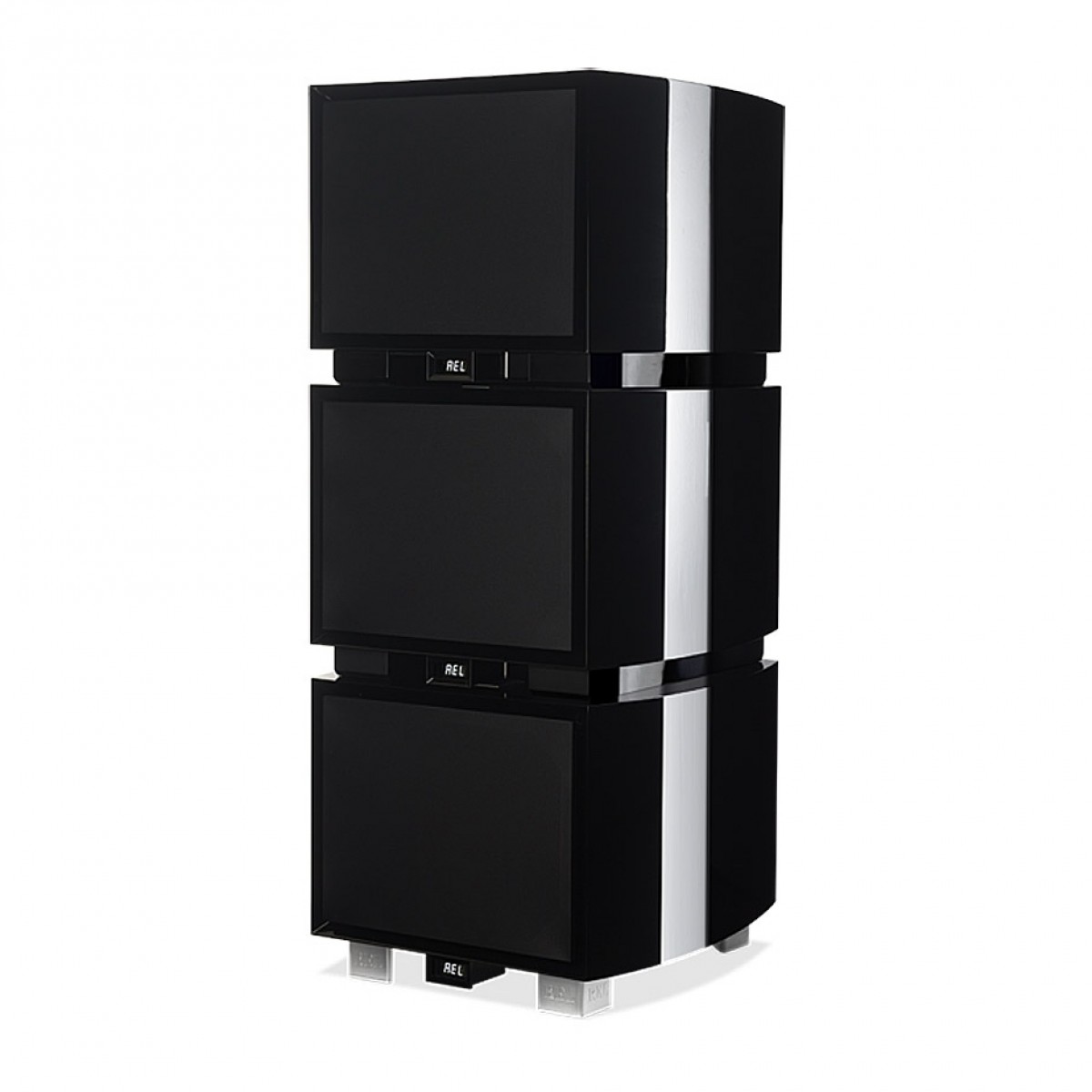

When we experience bass in real time out in the world, it occurs with height to it. It strikes our sinuses, it kicks at our chest cavities, it rumbles along the floor conveying power authority and majesty. Our Reference Line Arrays permits bass to emerge more naturally, adding a height component in how it propagates throughout the room. Since 90 percent of the energy produced by a system resides in the bass regions, Reference Line Arrays are the magic element missing from so many otherwise state of the art systems. This air, transparency and, of course, effortless power that Reference Line Arrays convey can’t be imagined, it can only be experienced in person.

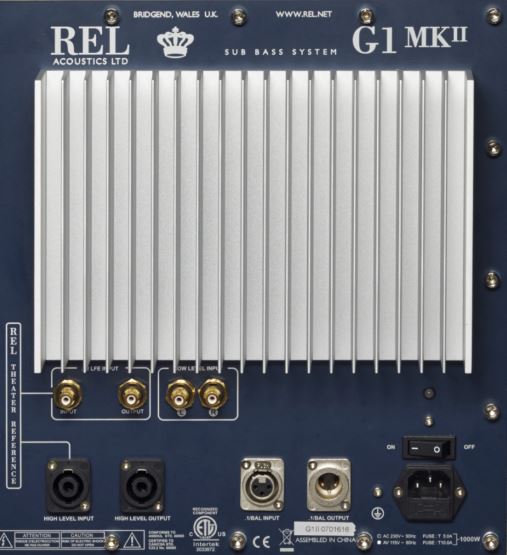

Reliable Power

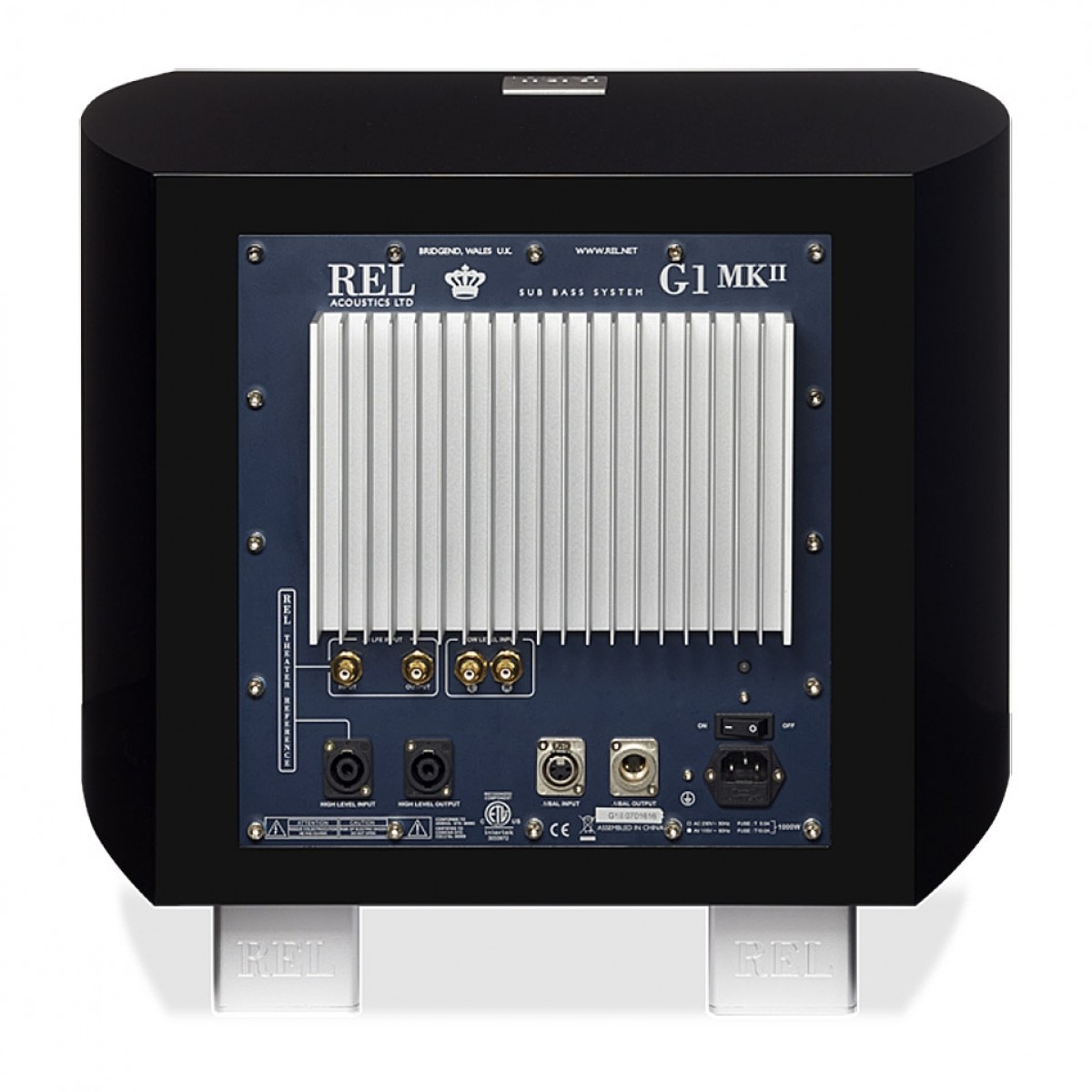

The massively beautiful, finned, alloy heatsink is necessary when dissipating the sorts of power necessary to produce prodigious deep bass for hours on end. Capable of outputting a conservative 600W (120V) on occasion, our dedicated Class A/B amplifier used in G1 MKII is a true dreadnaught. Powerful, fast and capable of tremendous current delivery, it is the finest amplifier ever designed by our engineers. These newly developed circuits allow for almost 40% more power being developed through the driver before gentle limiting takes over. The net result is that plays substantially louder (about 5 dB) than its illustrious forebear.

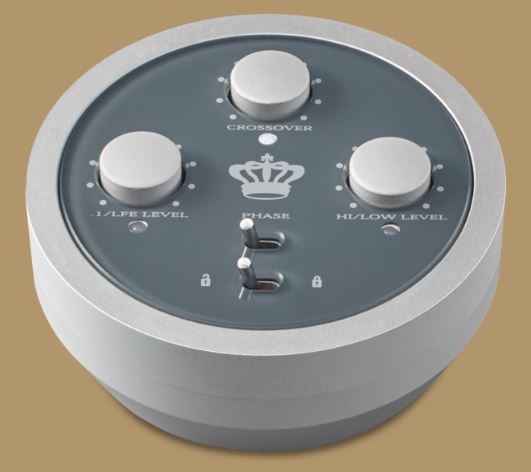

Total Control

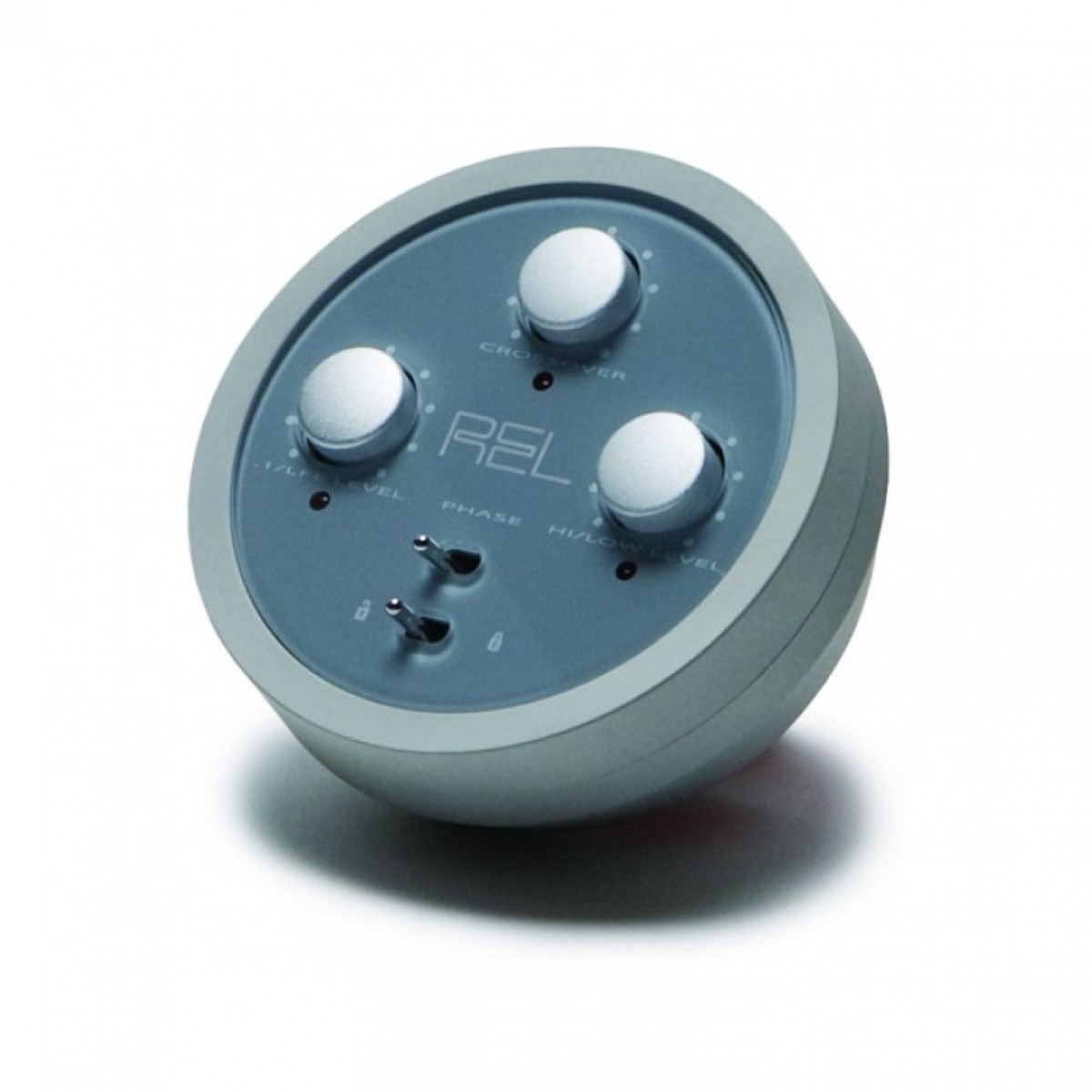

Begin your relationship with REL Reference by simply picking up the remote in the cup of your hand. This is a carefully wrought system improvement that encourages the sort of finely detailed decisions during set-up necessary to achieve the perfect balance to the ultimate system owner. REL Reference models employ remote control in order to assist and increase ease of initial set-up.
Monoblock Amplifiers and High Level Connection Note:
REL do not recommend use of a single REL subwoofer with ANY brand of monoblock amplifier as it is possible to observe slight channel-to-channel dc offset that can result in mild oscillation. For any monoblock, REL recommend use of stereo pairs of the appropriate model of subwoofer.
| Type | Closed box, front firing woofer |
|---|---|

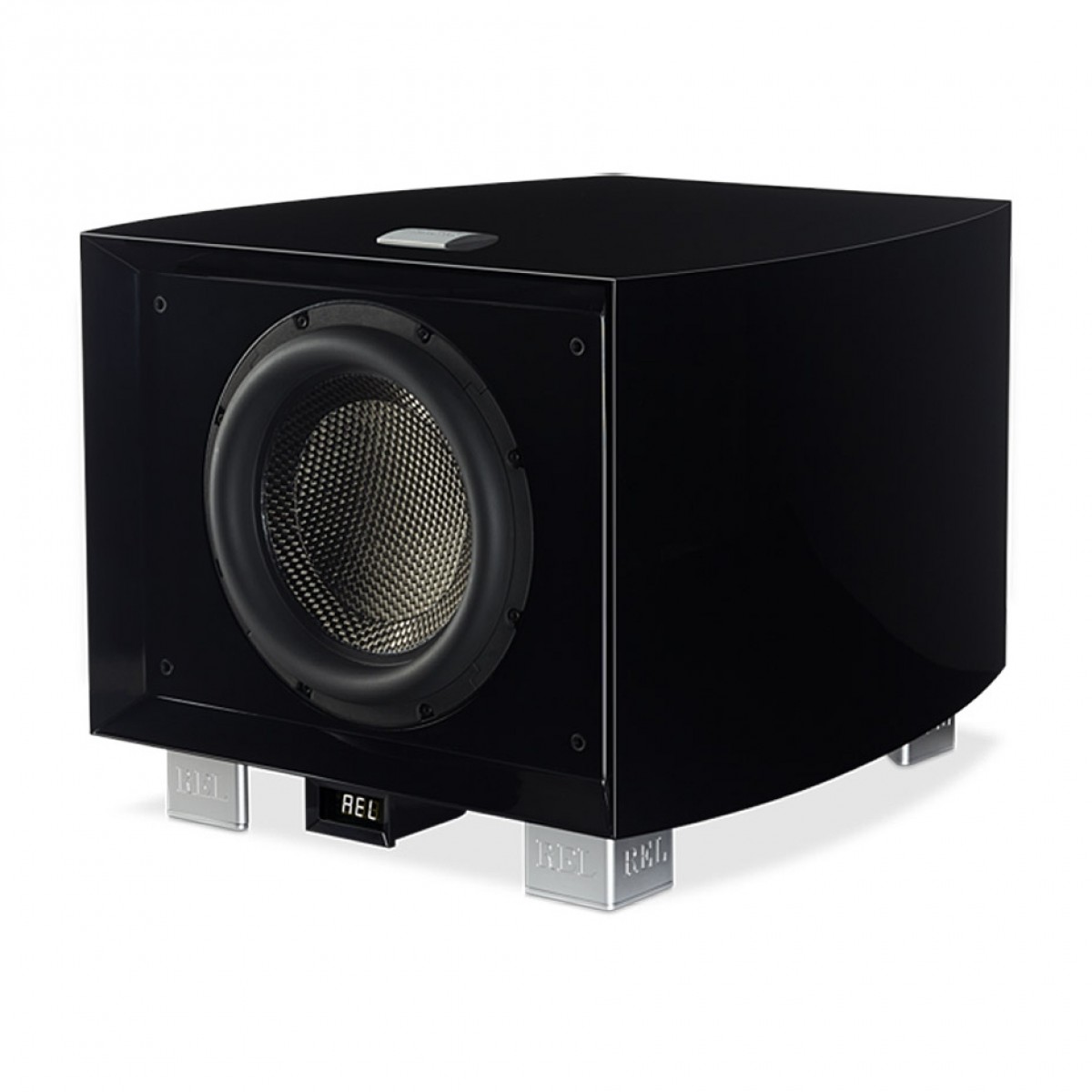

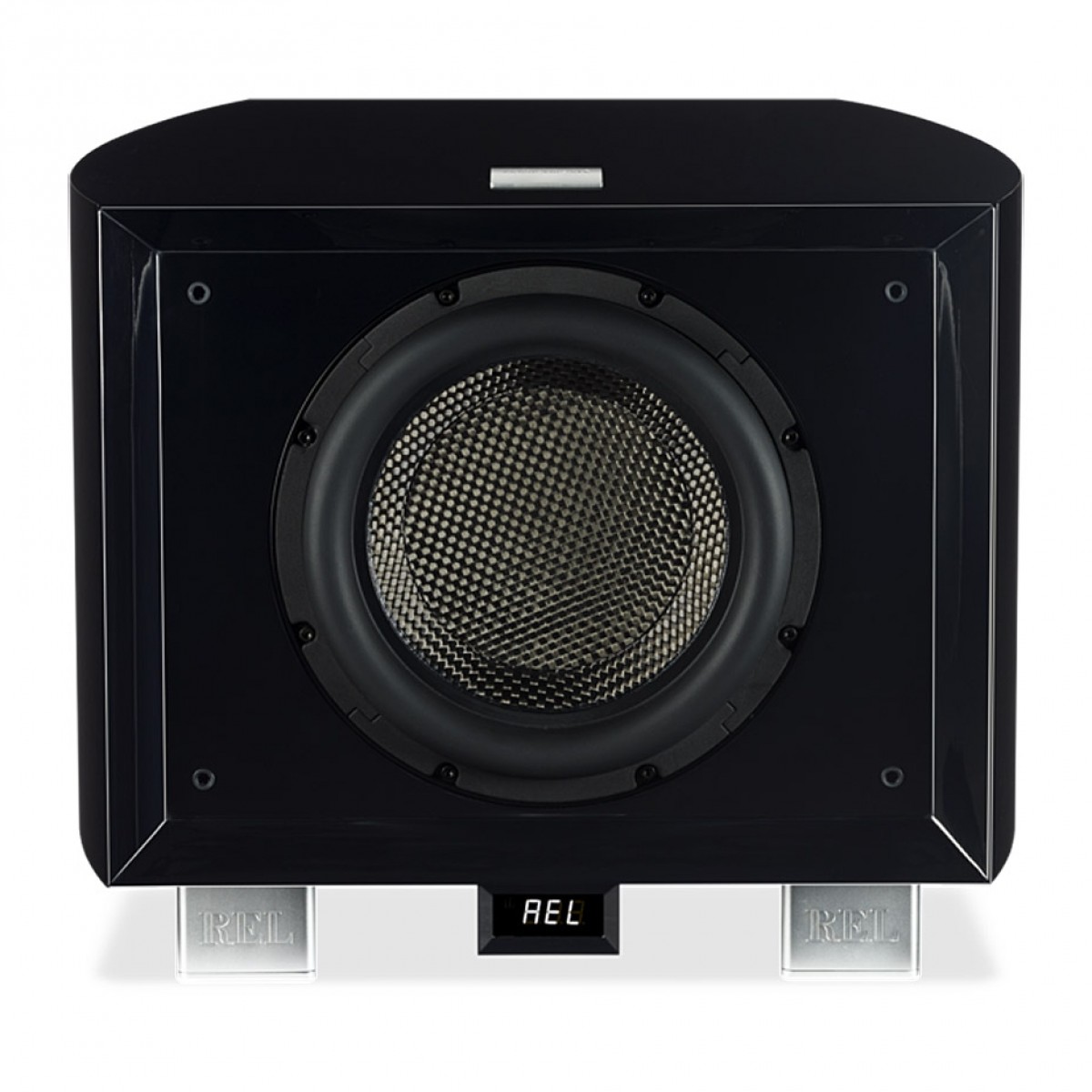

| Drive Unit | 12 in., 300mm long throw, carbon fiber cone |
| Lower Frequency Response in Room | 15 Hz at -6 dB |
| Input Connectors | High level, Neutrik Speakon, Low Level stereo RCA, LFE RCA |
| Output Connectors | High Level, Low Level RCA, Balanced XLR, Daisy Chain Outputs |
| Amplifier Type | Class AB |
| Power Output | 600 watts (RMS) Ultra High-Current PowerSupply |
| Mains Input Voltage | 220-240 volts, 110-120 volts for certain markets |
| Phase Switch | Yes, 0 or 180 degrees |
Protection System
| Fully Electronic Set Safe | Yes |
|---|---|
| D.C. Fault | Yes |
| Output Short | Yes |
| Fuses | 5 Amp semi delay 230 volts operation 10 Amp semi delay 115 volts operation |
Physical Properties
| Dimensions W x H x D | 22.5 x 18.2 x 26.8 in. (571.5 x 462 x 680.3 mm) |
|---|---|
| Net. Weight | 108 lbs (49 kg) |
| Finish | Piano Black Lacquer, 12 coats |
Accesories
| Mains Lead | Yes |
|---|---|
| Neutrik Speakon Cable | Yes - 10 Meters |
| User Manual | Yes |
