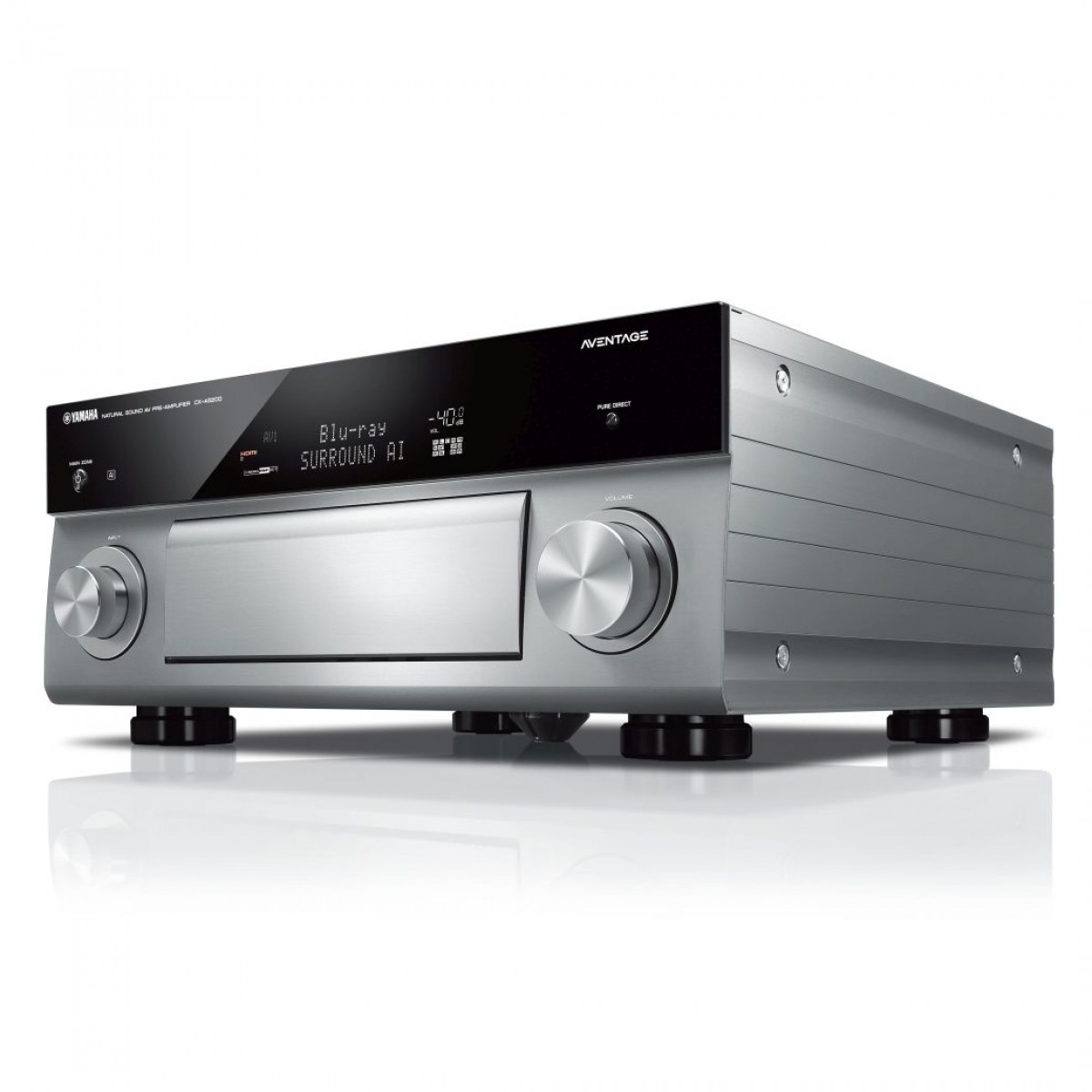

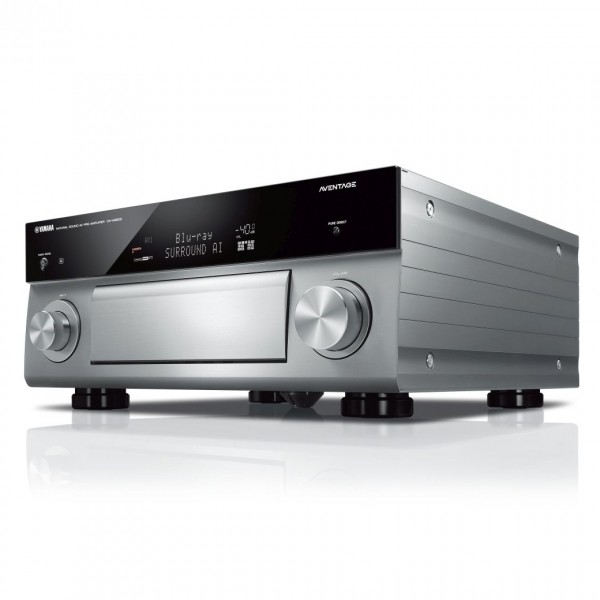

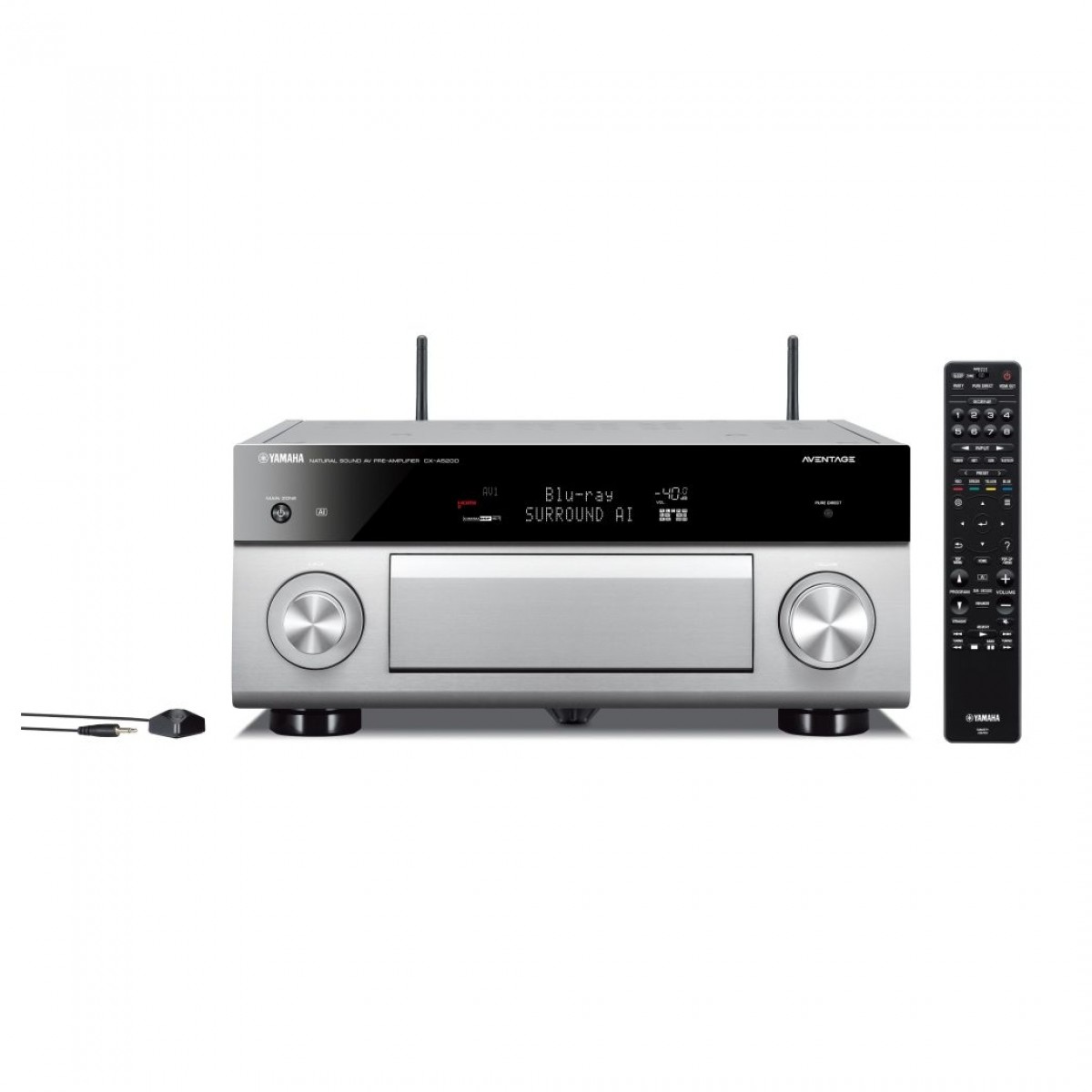

Yamaha Aventage CX-A5200 AV Processor w/ MusicCast, Titanium
Key Features
- Balanced Connections and High-quality XLR Terminals
- Designed for Dolby Atmos
- A World of Music
Yamaha Aventage CX-A5200 AV Processor w/ MusicCast, Titanium Overview
Experience the future of home cinema with the 11.2-channel CX-A5200 AVENTAGE pre-amplifier. Yamaha’s renowned CINEMA DSP HD3 combined with Dolby Atmos and DTS:X deliver an exhilarating home cinema experience.
Product Ref: 206857
Full Description
AV Tech Media Awards 2018/19
Best AV Processor
"This new revision to Yamaha's top-of-the-range AV controller layers extensive functionality on top of a premium performance. An 11-channel design with balanced XLR output."
Experience the future of home cinema with the 11.2-channel CX-A5200 AVENTAGE pre-amplifier. Yamaha’s renowned CINEMA DSP HD3 combined with Dolby Atmos and DTS:X deliver an exhilarating home cinema experience.
Surround AI
The AI technology built into the DSP analyses the scene and then creates the optimal surround effect to reproduce it with the greatest impact.This AI instantaneously analyses scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimises surround effect in real time.The result is a compelling sense of expressive power beyond conventional sound field effects that deliver the most profound entertainment experience available today.

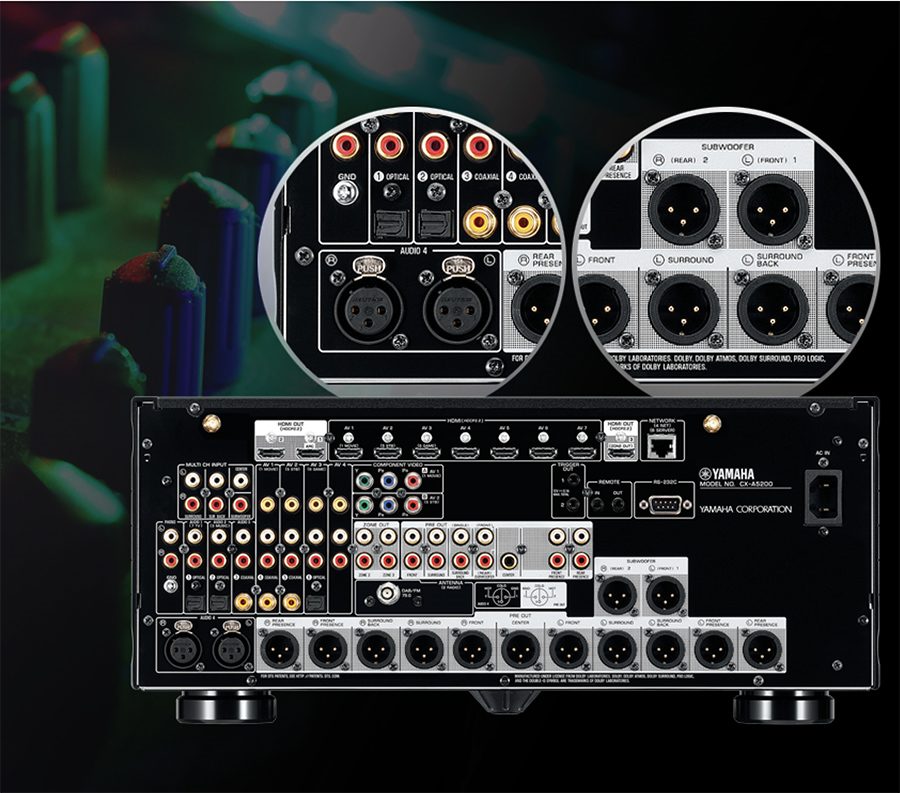

Balanced Connections and High-quality XLR Terminals
Electrical noise is an inherent issue with cabling due to connection with other AV components, the connections between them and from other sources of external noise. To ensure that the CX-A5200 is not affected by this distortion, it uses balanced connections that are highly noise resistant - the same type as generally used in professional audio equipment. Even the RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission.XLR terminals allow for the use of long cables. The CX-A5200 also allows balanced audio input connection to high-end source components such as CD players.
A New Generation in Sound. Dolby Atmos and DTS:X
Nothing captivates an audience quite like the grandeur of the big screen and the thrill of cinema surround sound. Object-based audio brings this sense of immersion to breathtaking new heights through the use of overhead speakers and precise location of sounds not just around the listener, but on a 3D plane. Together with Dolby and DTS, Yamaha brings this latest development in cinema surround sound into the home with astonishing realism and unsurpassed performance.

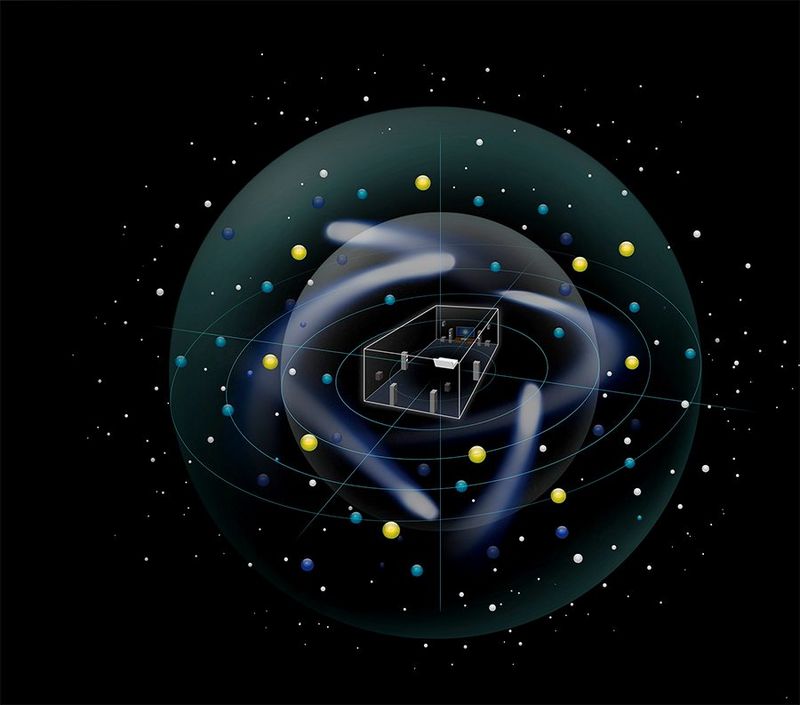

A New Dimension in Sound
In addition to conventional channel-based audio, it is possible to create a 3D space in which separate acoustic elements can move freely - giving a sensation of the motion of 'objects' above the viewer’s head that realises the filmmaker’s vision. Improved CINEMA DSP HD3 features signal processing algorithms to heighten this sense of realism further. With high-performance processors, home theatre performance is maximised - accurately reproducing a new dimension of realism with a rich sense of presence unlike any system you’ve ever experienced.
Automatically Calibrated, Advanced Sound Optimisation
YPAO R.S.C. (Reflected Sound Control) analyses the acoustics of the room with the included YPAO microphone to automatically tune your system for the best sound in your room.The calibration employs R.S.C. to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimisation that maximises the 3D sound field of CINEMA DSP HD3 as well Dolby Atmos and DTS:X. 64-bit high-precision EQ calculation achieves the most natural room acoustics possible.

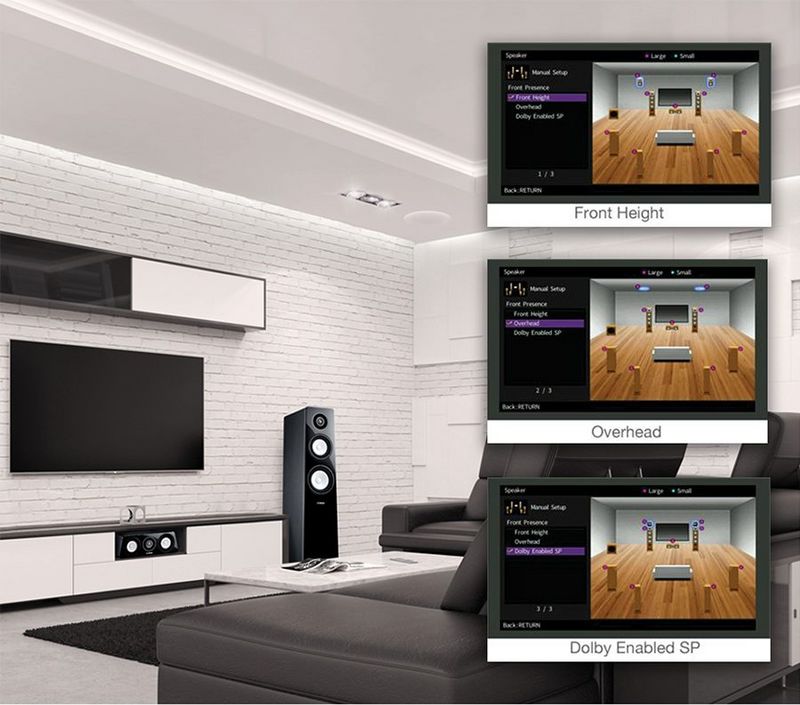

Designed for Dolby Atmos
Yamaha provides multiple placement patterns for presence speakers that support Dolby Atmos - creating a sound field that’s ideal for your setup. Any layout can be appropriately reproduced, including the three-dimensional space of CINEMA DSP as well as Dolby Atmos. Furthermore YPAO R.S.C. optimises the listening environment and takes full advantage of the detailed spatial localisation capability of Dolby Atmos.

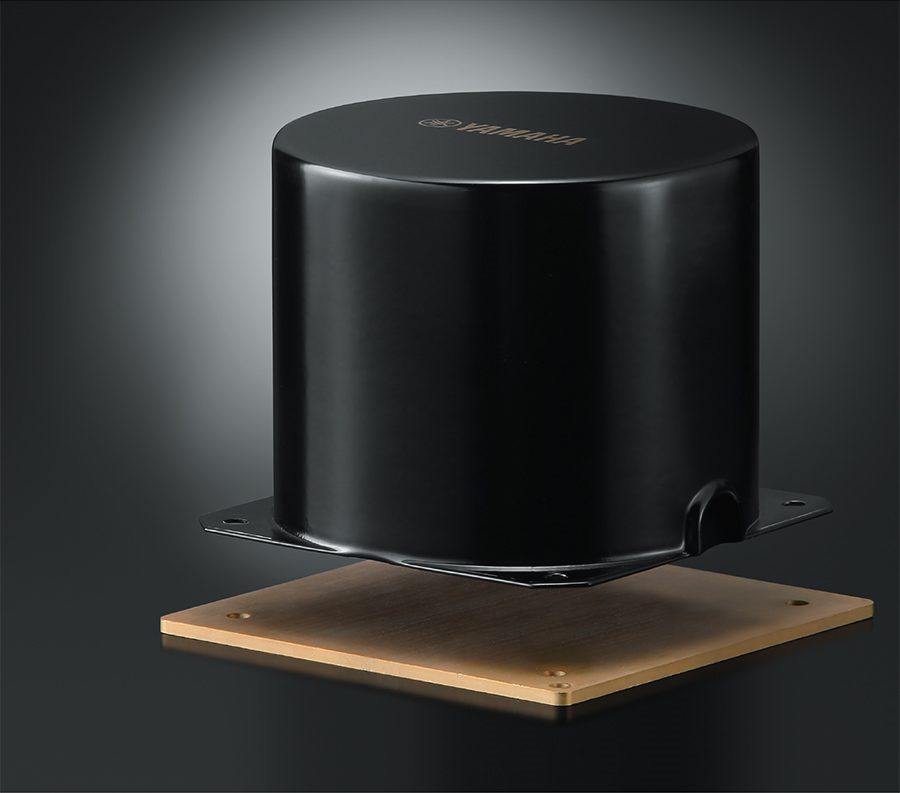

Redesigned Power Transformer
In pursuit of dynamic expression, the CX-A5200 employs a large, redesigned power transformer to maximise the performance of the new ESS DAC. Deep and powerful sound is achieved with enhanced regulation of power while a thick brass plate dampens unwanted vibrations from the transformer on surrounding circuitry.

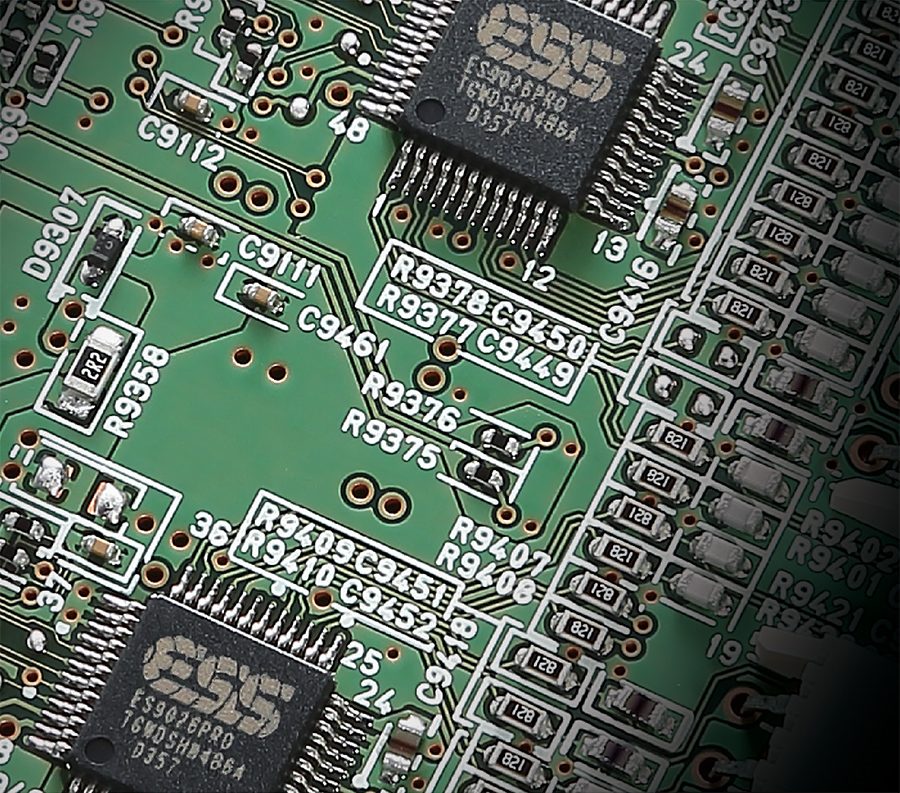

Professional-grade ESS DACs
The CX-A5200 features 2 of the latest ESS SABRE PRO Premier DAC (ES9026 PRO) delivering state-of-the-art 32-bit performance. Further, the DAC also minimises noise levels and achieves an exceptional signal-to-noise ratio.

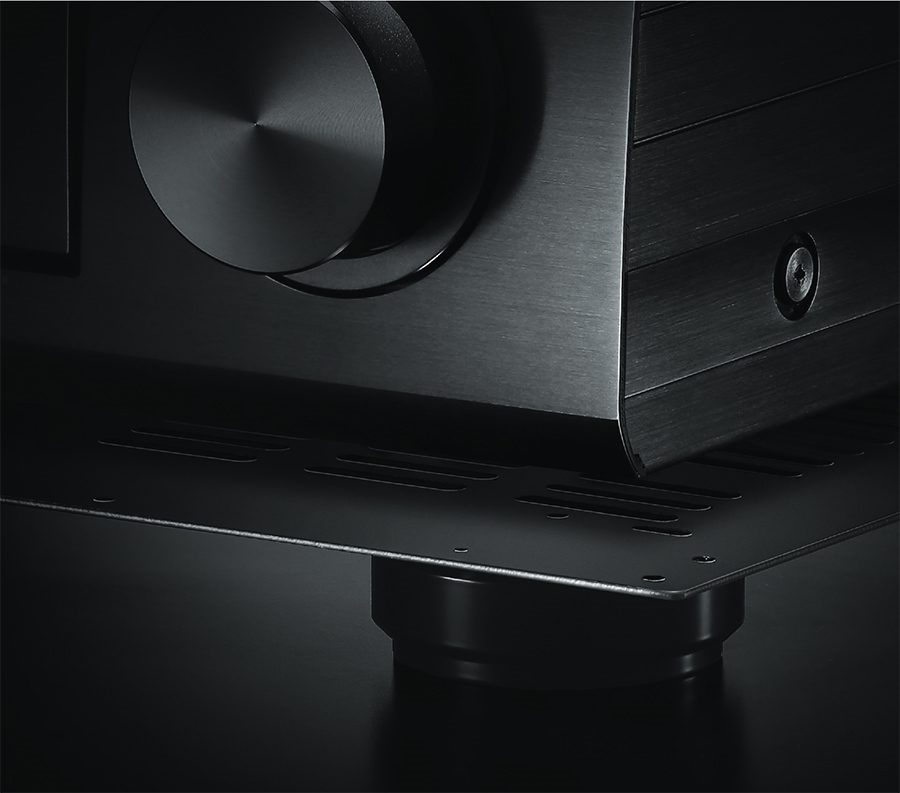

Heavy-duty Bottom Plate
Stabilising the chassis is the key to enhanced performance and deep, sinking sound. The CX-A5200 achieves this by employing a thick bottom plate which acts to steady the entire structure and achieve optimal sound.

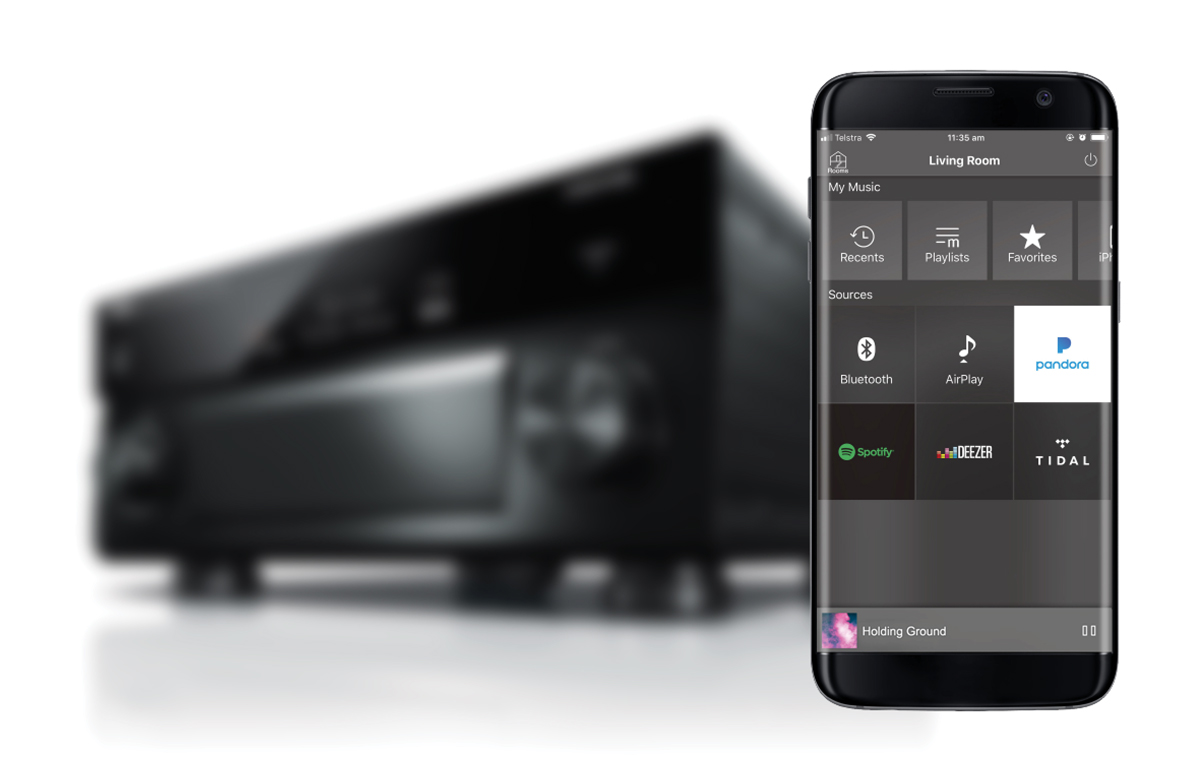

Welcome to a new frontier in multi-room audio.
MusicCast makes it easier than ever to share audio throughout the home. The CX-A5200 unlocks a range of entertainment options when connected to the MusicCast system. For example, CDs, TV sound and even vinyl records are able to be streamed wirelessly to other MusicCast models using the intuitive app interface. Supporting high-resolution audio, MusicCast fills every room with high-quality sound from any source. By acting as a hub, the CX-A5200 delivers unsurpassed flexibility for a truly integrated home audio system.

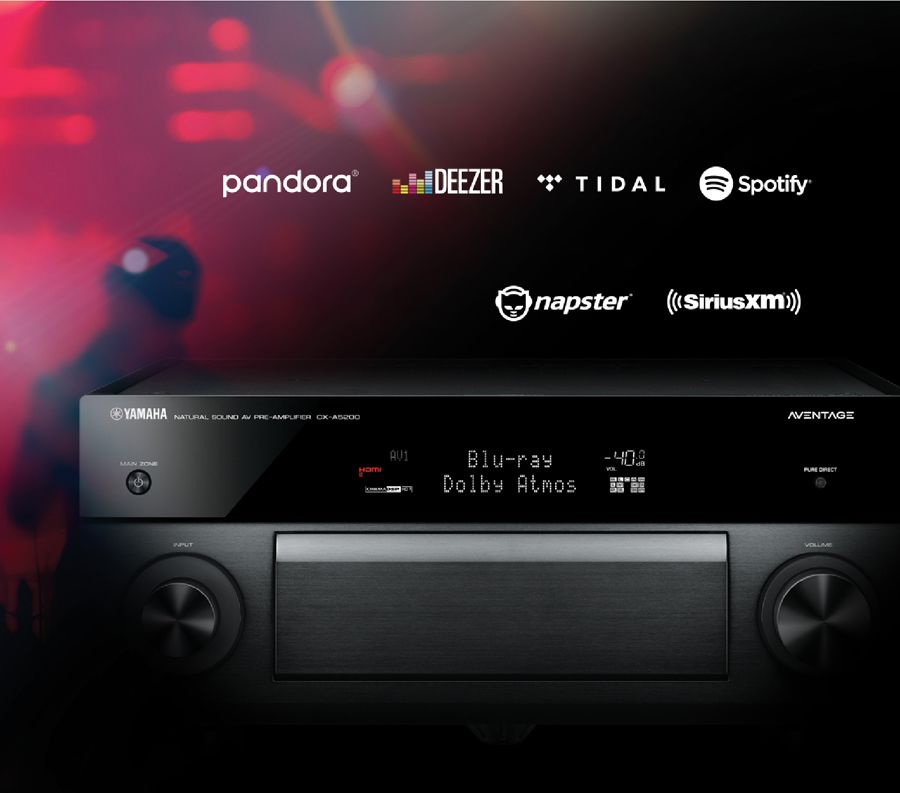

A World of Music
Explore a world of music with music streaming services built-in.Conveniently synchronised to your music streaming accounts that you access from your computer or smart device, there has never been a better way to discover new artists or listen to your favourite tunes.
It’s How We Connect
The CX-A5200 features Bluetooth for simple and convenient wireless music streaming from smart devices including phones, tablets and laptops. iTunes and iOS users can take advantage of having AirPlay to wirelessly stream audio seamlessly from compatible devices.
Let’s Talk
“Alexa, ask MusicCast to play Favourite 1 in the kitchen.” With Alexa voice control integration, all you have to do is ask. The CX-A5200 offers full compatibility with Amazon’s range of voice control devices. Welcome to the smart home.
Surround Sound
| Surround: AI | Yes |
|---|---|
| ProcessingCINEMA DSP | Yes (HD3) |
| DSP Programs | 34 |
| Dialog Level Adjustment | Yes |
| Virtual Presence Speaker | Yes (with Virtual Rear Presence Speakers) |
| Dialogue Lift | Yes (no presence speakers required) |
| SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) |
| Dolby Atmos | Yes |
| Dolby TrueHD | Yes |
| Dolby Digital Plus | Yes |
| Dolby Digital | Yes |
| Dolby Pro Logic IIx | Yes |
| DTS:X | Yes |
| DTS-HD Master Audio | Yes |
Audio Features
| File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
|---|---|
| Pure Direct | Yes (with video on mode) |
| Compressed Music Enhancer | Yes |
| High-resolution Music Enhancer | Yes |
| YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement |
| YPAO Volume | Yes |
| Adaptive DRC (Dynamic Range Control) | Yes |
| Initial Volume & Maximum Volume Setting | Yes |
| A.R.T. Wedge | Yes |
| Audio Delay | Yes (0-500 ms) |
| DA Converter | Yes (ESS) ESS 384 kHz / 32-bit SABRE PRO Premier DAC ES9026PRO x 2 (for all channels incl. presence speakers) |
Video Features
| 4K Ultra HD Pass-through and upscaling | Yes (4K60p 4:4:4) |
|---|---|
| HDMI 3D passthrough | Yes |
| HDMI Audio Return Channel | Yes |
| Component upconversion | Yes |
| HDMI upscaling | Yes (Analogue to HDMI / HDMI to HDMI) |
| Video adjustment | Yes |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes |
Connectivity
| MusicCast Surround | Yes |
|---|---|
| HDMI Input/Output | 7 / 3 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible) |
| HDMI CEC | Yes (SCENE, Device Control) |
| USB Input | iPod / iPhone, USB Memory, Portable Audio Player |
| Network Port | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) |
| AirPlay | Yes |
| Bluetooth | Yes |
| Front AV Input | USB / Analogue Audio |
| Digital Audio Input/Output: Optical | 3 / 0 |
| Digital Audio Input/Output: Coaxial | 3 / 0 |

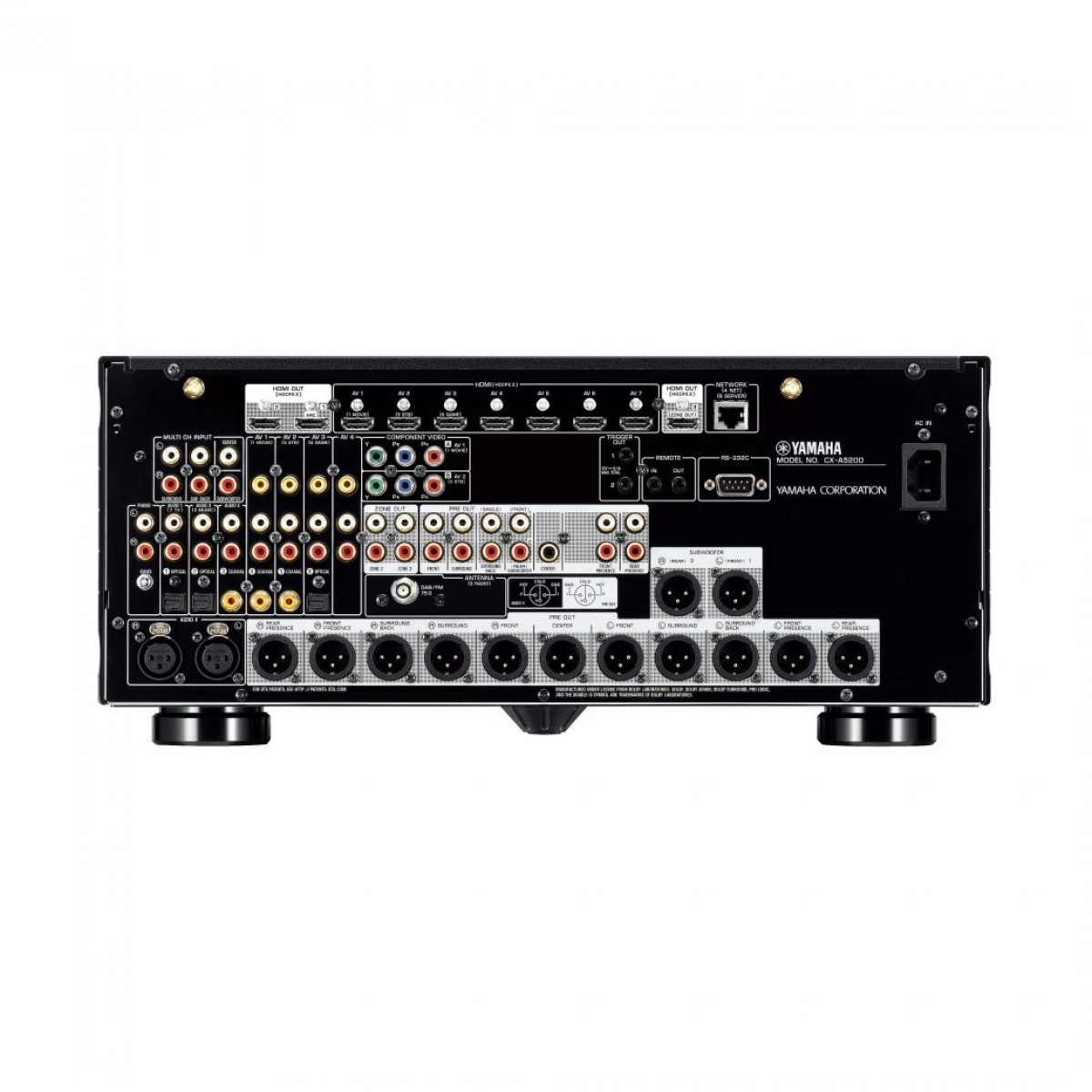

| Analog Audio Input/Output | XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0 |
| Phono Input | Yes |
| XLR Terminal | Yes |
| Component Video Input/Output | 2 / 0 |
| Composite Video Input/Output | 4 / 0 |
| Preout | XLR Balance: 11.2 ch, RCA Unbalance: 11.2 ch |
| Headphone Output | 1 |
Tuner Section
| FM/AM Tuner | Yes (FM only) |
|---|---|
| DAB Tuner | Yes (Availability varies by region.) |
User Interface
| On-screen display | Graphical User Interface |
|---|---|
| SCENE | SCENE PLUS (8 sets) |
| App Control | Yes (iPhone / iPad / Android phone / tablet) |
| Web Browser Control | Yes |
| Remote Control Unit | Yes (Full LED Backlight) |
| Zone 2 Audio Output | Preout / HDMI |
| Zone 3 Audio Output | Preout |
| Zone 4 Audio Output | HDMI |
| Zone Video Output | HDMI / Component / Composite |
| Zone HDMI | Yes (Advanced HDMI Zone Switching) |
| Zone B Output | HDMI |
| Zone GUI | Yes |
| RS-232C Interface | Yes |
| +12V Trigger Output | 2 |
| Remote (IR) Input/Output | 1 / 1 |
| Party Mode | Yes |
General
| Standby Power Consumption (IR only) | ≤0.1W (typical) |
|---|---|
| Auto Power Standby | Yes |
| Dimensions (W x H x D) | 435 x 192 x 474 mm17-1/8” x 7-1/2” x 18-5/8” |
| Dimension with antenna up | 435 x 247 x 474 mm17-1/8” x 9-3/4” x 18-5/8” |
| Weight | 15.2 kg, 33.5 lbs. |
