Lyngdorf MP-60 Surround Sound Processor
Key Features
- Media Player
- Control the MP-60 with an app
- Dead Silent
- Flexibility In Installation
Lyngdorf MP-60 Surround Sound Processor Overview
MP-60 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect™ and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 is developed at the group headquarters in Skive, Denmark.
Product Ref: 208398
Full Description
AV Forums Best in Class
"...the Lyngdorf MP-60 exists in a class of its own with a performance that's best described as perfect."
MP-60 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect™ and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 is developed at the group headquarters in Skive, Denmark.
State-of-the-art HDMI processing
The MP-60 features decoding and balanced outputs for 16 audio channels, with extraordinarily easy installation and daily use. With 8 HDMI inputs and 3 outputs (one being HDBaseT), this new masterpiece from Lyngdorf Audio now supports the HDMI 2.1 and features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats.
Now with full 16 channel decoding, the MP-60 offers full support of the immersive surround formats DOLBY ATMOS®, DTS:X® PRO and AURO-3D®, and it delivers a surround sound experience that outmatches anything in and above its class. Allowing a video throughput of up to 18 Gbps, the MP-60 now supports the full 4K 60Hz video stream including the passing of HDR or Dolby Vision information.
eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players. The MP-60 of course also supports the pass-through of the new HDR format for streaming video: HLG (Hybrid Log Gamma).
Immersive surround Sound
The MP-60 offers full support of Dolby Atmos, DTS:X and Auro-3D, as well as legacy surround sound formats. The processor features 16 balanced XLR outputs and can output 12 unique channels. The remaining 4 outputs can be used for additional speakers or woofers.
Media Player
The MP-60 features a built-in media player, which connects to services like Spotify and Airplay as well as internet radio. Through a cabled network or USB connector, you can access your library of music and enjoy it in stereo or as up-mixed to a surround sound format.

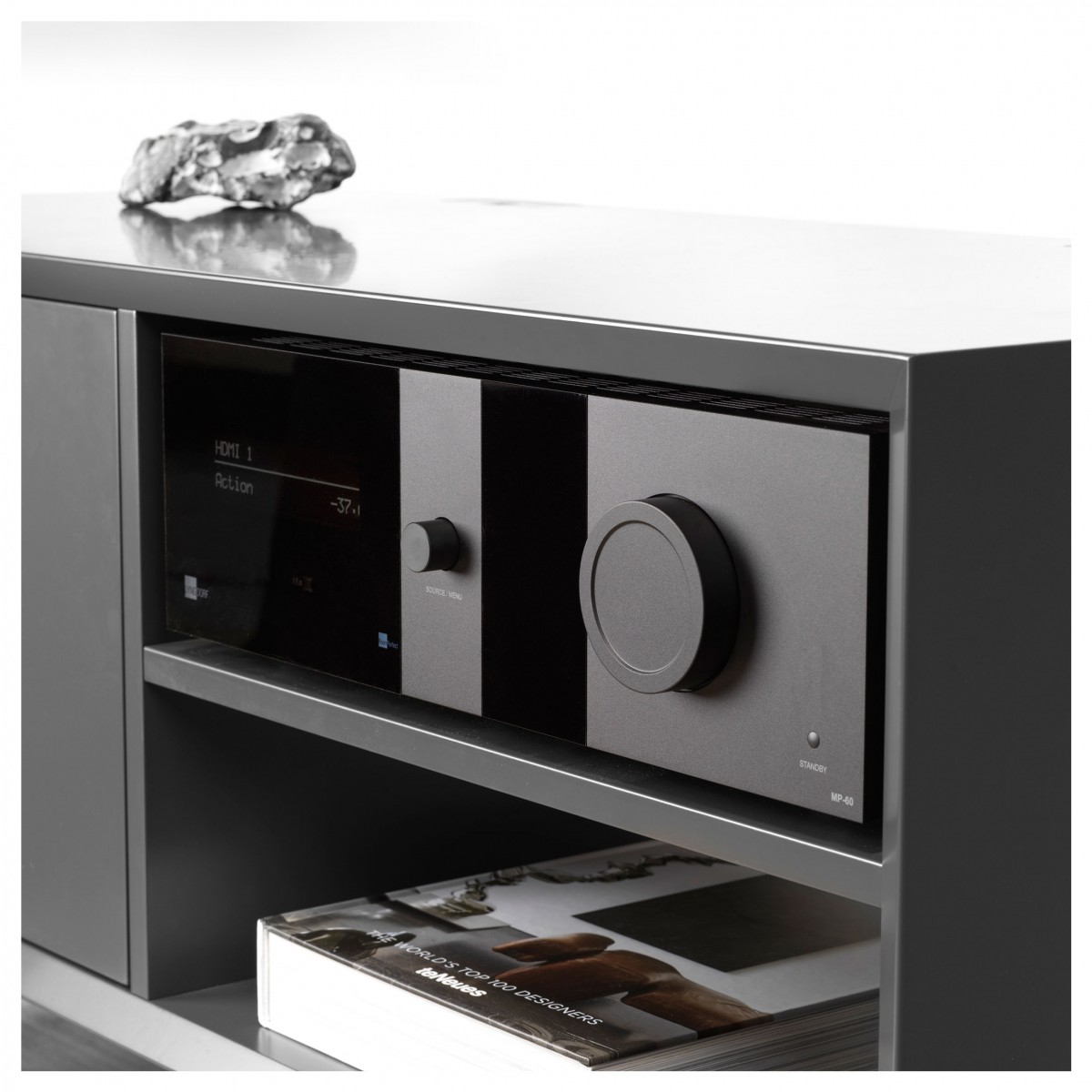

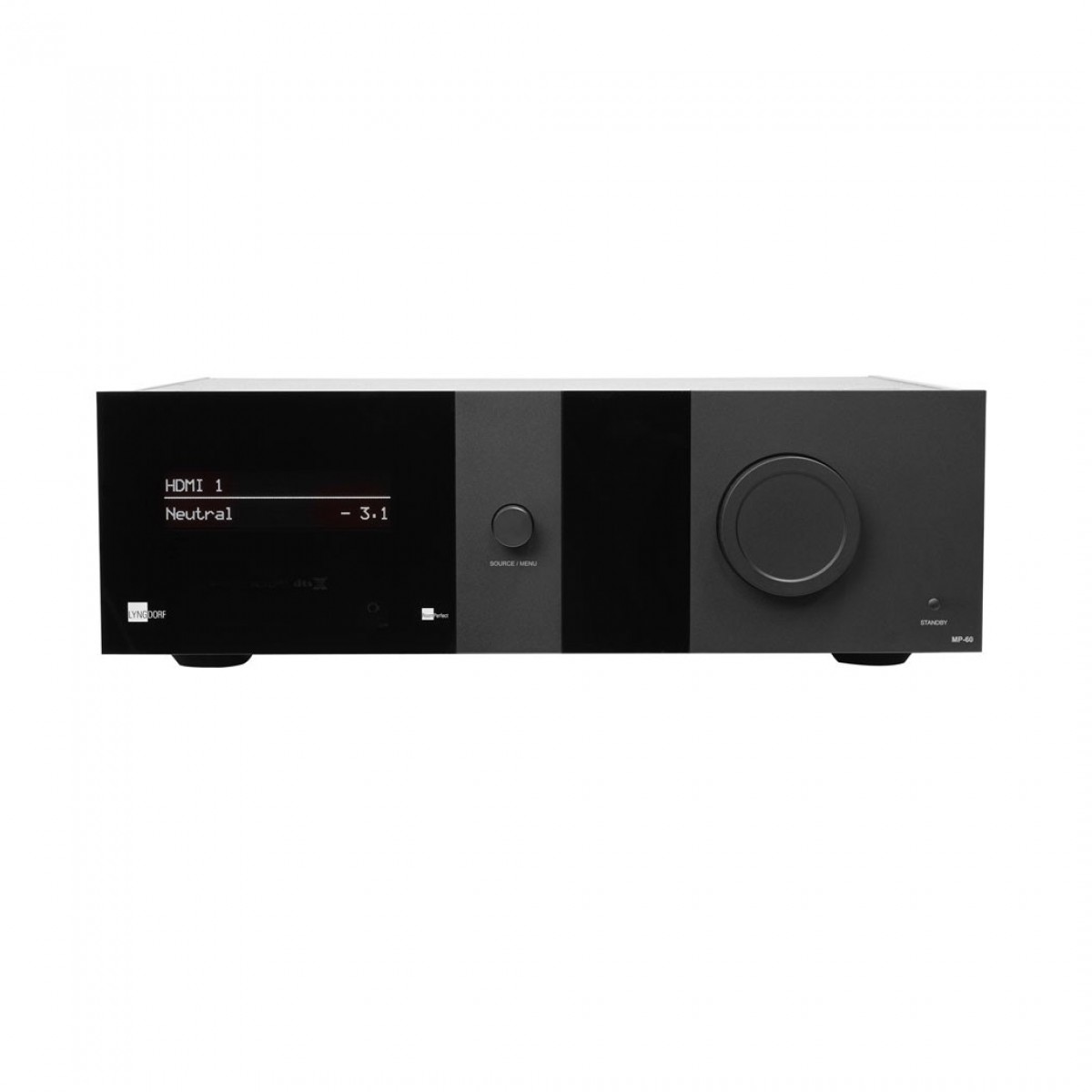

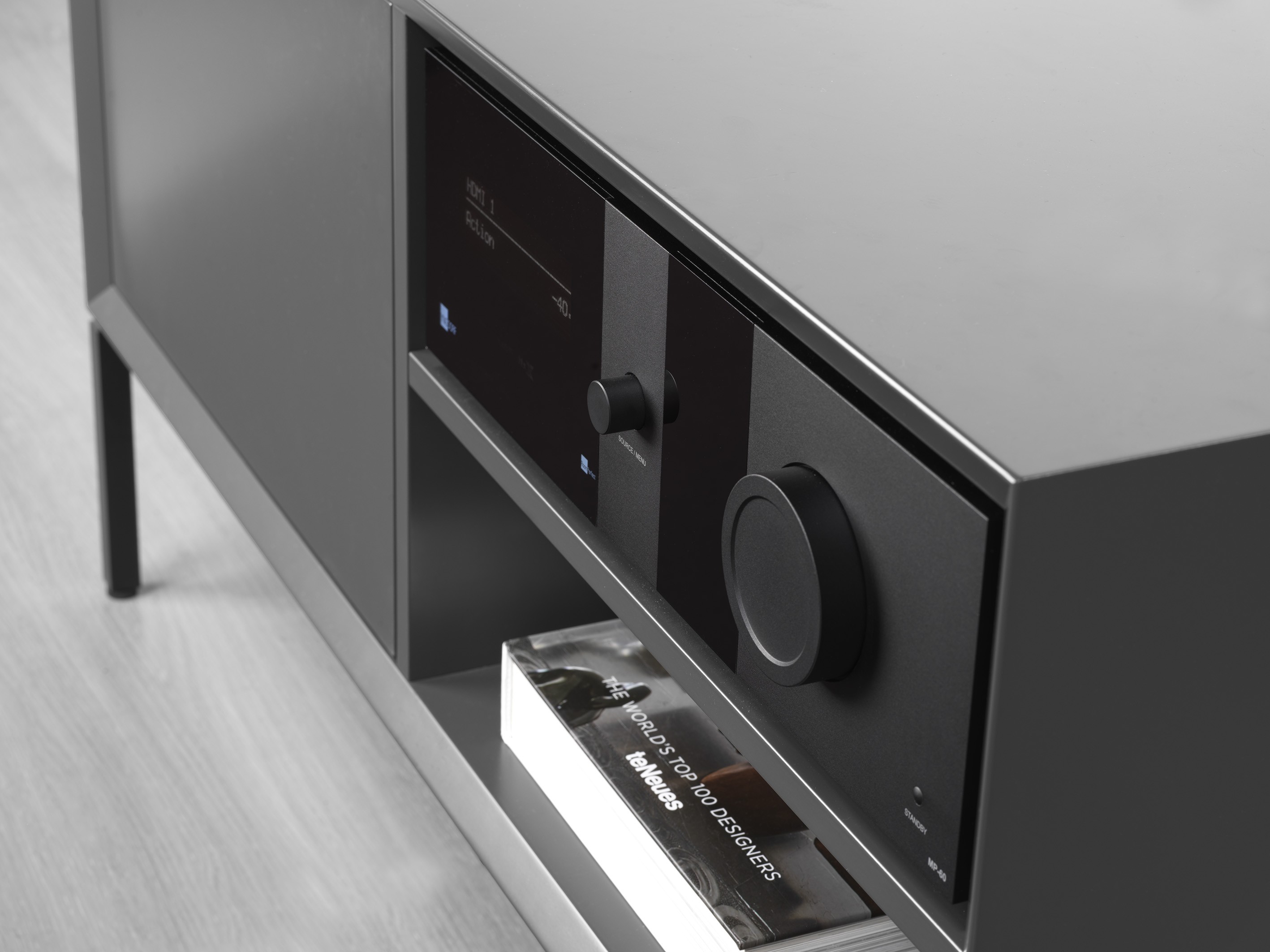

Stunning Good Looks

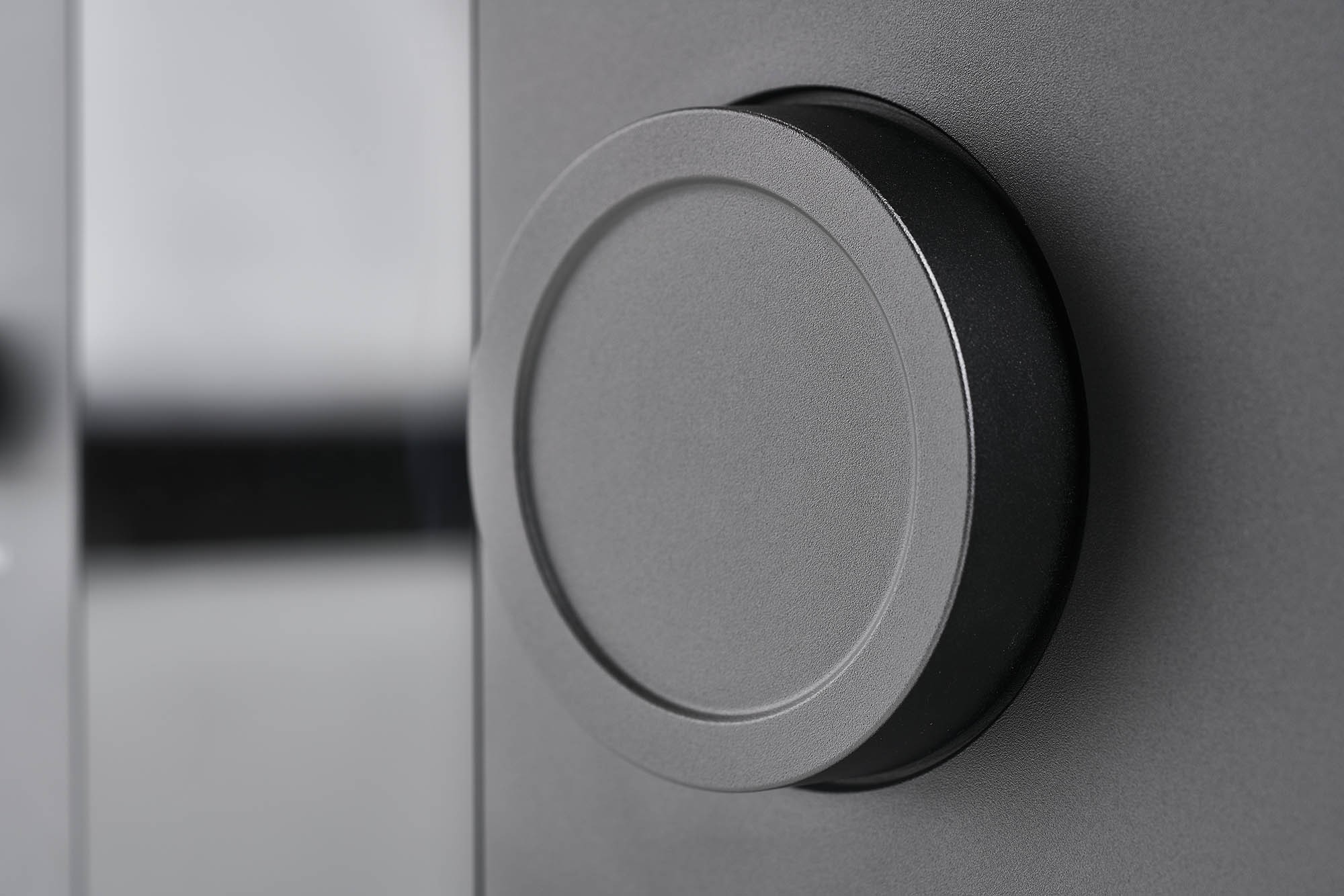

The chassis—a salute to modern industrial design—is executed in the signature black design of Lyngdorf Audio. Complemented with matte black aluminium and glass in a profile that complements its capabilities, the MP-60 radiates Danish design at its best.
Control the MP-60 with an app
The Lyngdorf Remote Application automatically discovers the MP-60 connected to your local network, and you will be able to adjust all the basic functions like input selection and volume level from your handheld device. The built-in media player can be controlled directly, and you can access music files stored on pen drives connected to the Lyngdorf MP-60 as well as search all files stored on your local hard drives. Swiping left and right gives you access to cover art as well as informing you of the signal resolution. The Lyngdorf Remote Application is available for free download from both IOS and Android.

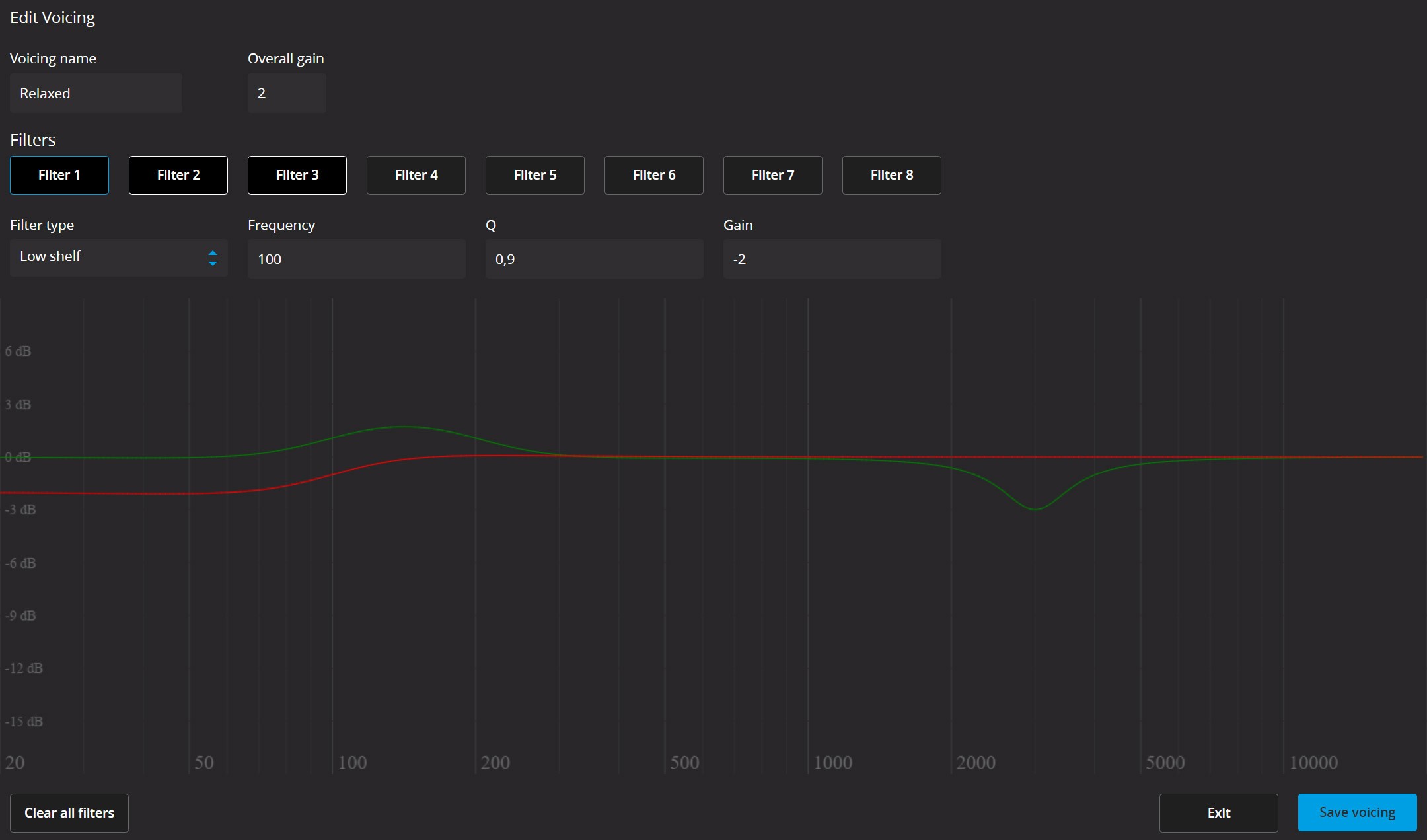

Voicing Tool

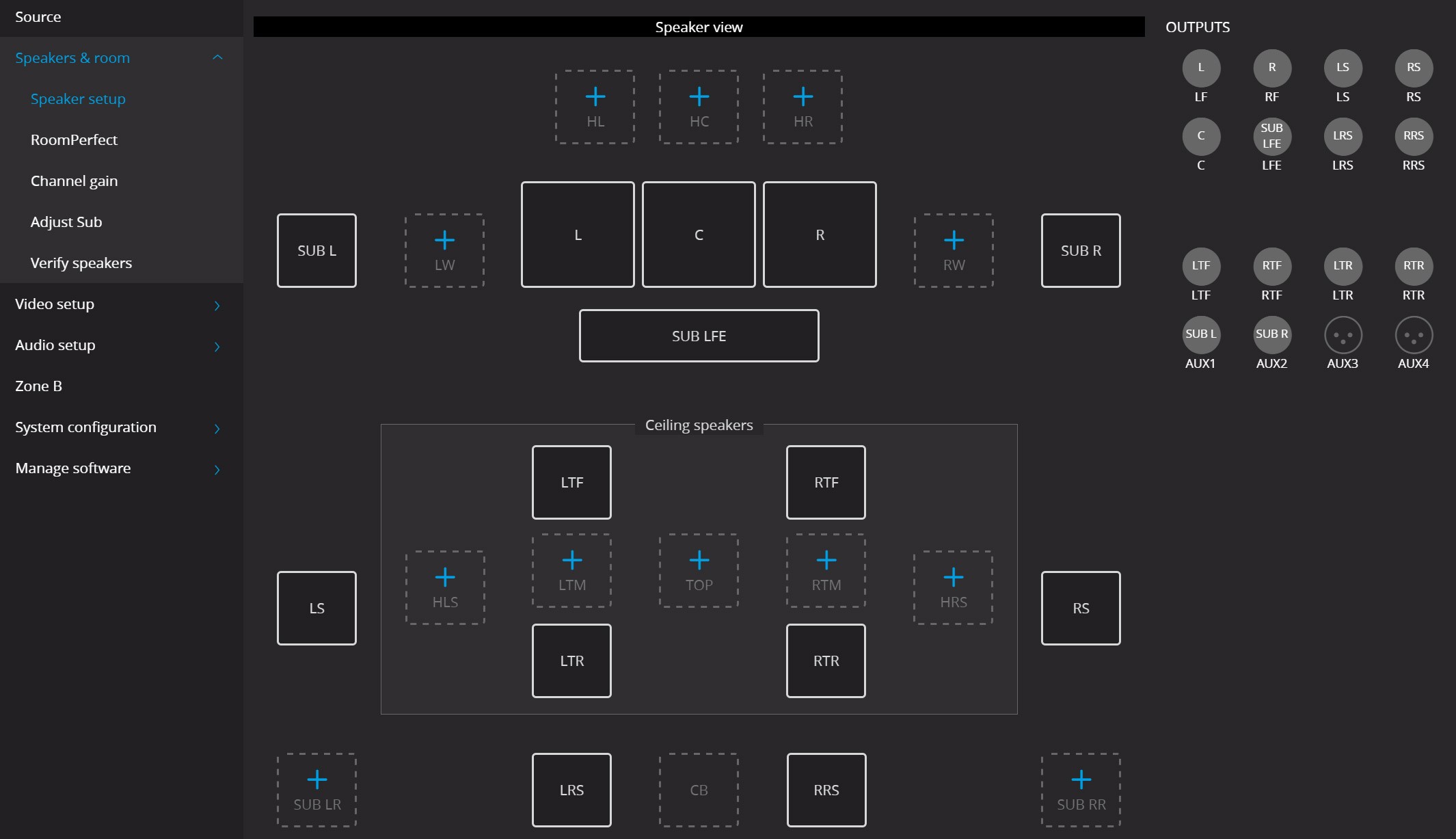

The MP-60’s built-in voicing tool will allow you to customise 32 voicings, thus changing the overall tonality of the system to your preferences and dedicating voicings to each input of the processor. You can also create a voicing to compensate for a particular recording. Each voicing can consist of up to eight filters with adjustable gain and Q, all controlled through the browser interface, which shows the effect of each filter as well as the overall effect to tonality.
Dead Silent
Because of the extremely low background noise of the fully digital signal processing in the MP-60, you will experience . . . silence. You can enjoy everything from the faintest details to the loudest bangs with full dynamics and realism. But to enjoy the silent passages of music or cinema, your room also needs to be quiet. This is where the digital approach has another benefit; the MP-60 doesn´t generate much heat and therefore has only passive cooling with no need for noise-inducing fans.
Built To Last
The MP-60 is, like all Lyngdorf Audio electronics, built to the highest standards. Everything is simply best-in-class—from the meticulous design based on 20 years of know how in digital signal processing, to selection of components, mechanical design, manufacturing, and 48 hours of burn-in before the final QA. Each step ensures that you will not only have ultimate performance but also a product with the highest reliability in the industry.
Connections

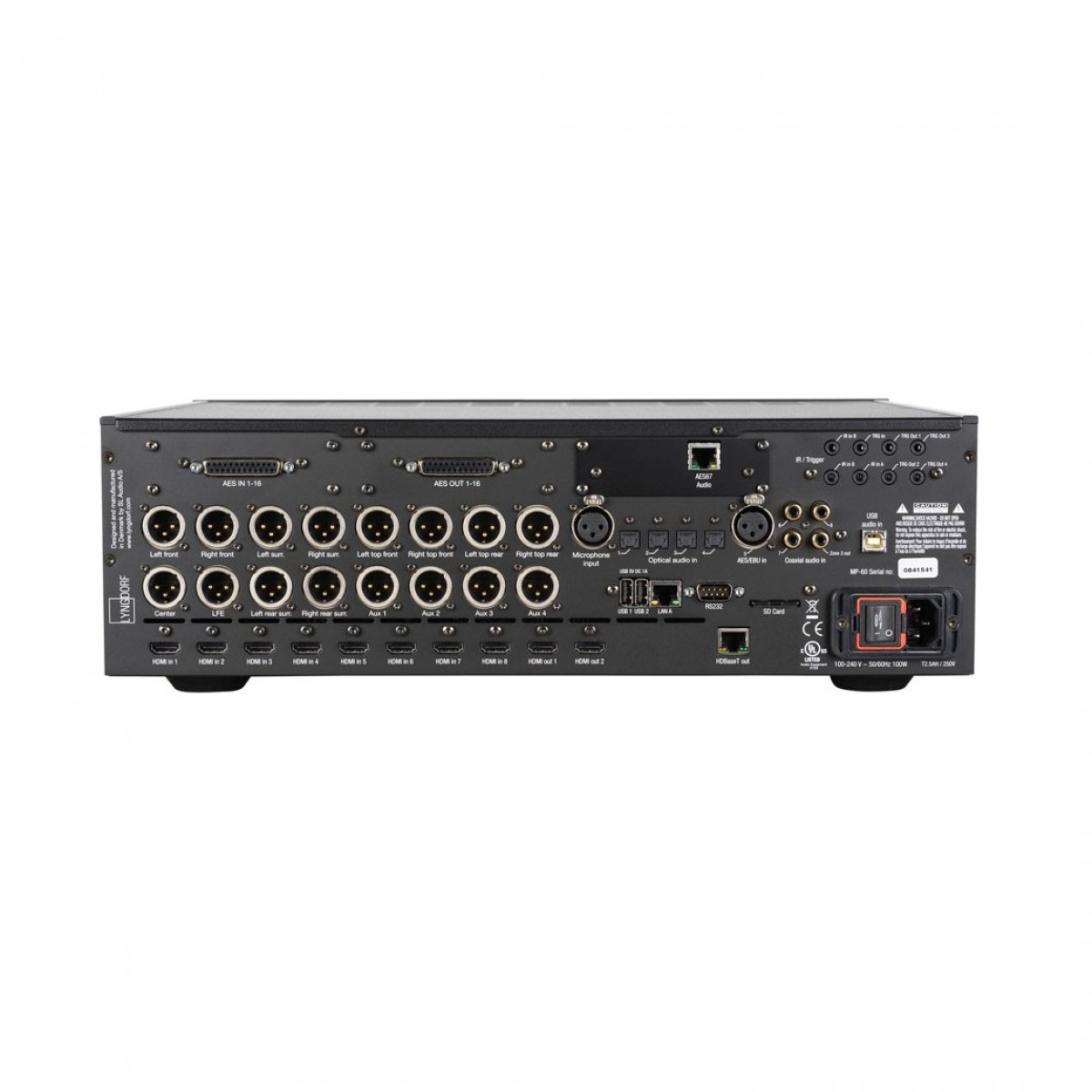

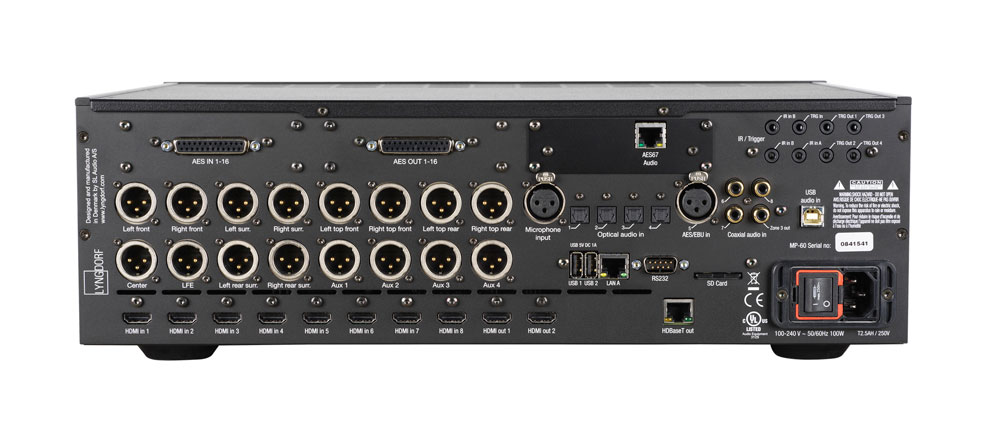

A variety of in- and out-puts provide plenty of options to connect your audio and video sources, including eight HDMI inputs and two HDMI outputs, four optical and three digital coaxial inputs, a USB input that supports audio up to 192kHz/32bit, and an AES/EBU input plus an XLR connector for the RoomPerfect calibration microphone. There’s also an HDBaseT output, a feature set that can converge uncompressed full UHD digital video and audio through a 100m/300ft LAN cable.
Flexibility In Installation
Multiple control options will allow you to integrate the MP-60 with control systems, IR sensors, and triggers, whereas the IP-control or the infrared remote will offer a direct control of all features.
DCI-Compliant Digital AES/EBU Input
For movie aficionados, the MP-60 offers an optional upgrade with a DCI-compliant digital AES/EBU input for integration with digital cinema servers.
| Decoding | Dolby Atmos®Dolby DigitalEX & PlusDolby TrueHDDTS:X PRODTS ES Discrete 6.1DTS ES Matrix 6.1DTS 96/24DTS-HD High Res. AudioDTS-HD Master AudioAURO 3D®16 native channels |
|---|---|
| Post processing options | Dolby SurroundAURO-MATIC®DTS Virtual:XDTS Neural:X |
| Audio inputs | 8 x HDMI™ (≤192kHz/24bit)1 x AES/EBU S/P-DIF input (≤192kHz/24bit)3 x S/P-DIF coaxial inputs (≤192kHz/24bit)4 x S/P-DIF optical inputs (≤96Hz/24bit)1 x USB audio input (≤192kHz/32bit)1 x microphone input (XLR) for RoomPerfect™ |
| Audio outputs | 16 x XLR analog outputs (5.0 Vrms)1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit) |
| Audio specifications | Frequency response: ±0,5dB from 20 to 20,000 HzTotal harmonic distortion: 0.005% max from 20 to 20,000 Hz |
| EQ | RoomPerfect™Subwoofer level assistant32 x adjustable voicings holding ≤8 shelvinghigh/low pass or parametric filters with adjustable gain and Q |
| Media player | Internet radio (vTuner)AirplaySpotify ConnectRoon Endpoint (awaiting certification)DLNA Support of FAT32 based media storage |
| Video inputs | 8 x HDMI™ (2.0b – HDCP 2.2)accepts 3D 30Hz, 4K 60Hz (18 Gbps)accepts HDRDolby Vision and HLG |
| Video outputs | 2 x HDMI™ (HDCP 2.2)1 x HDBaseT™ |
| Video scaling | Upscaling of all video to 4K ultra high definition, no downscaling of 4K video |
| Control interfaces | 1 x DB9 RS232 connector2 x IR sensor inputs1 x IR output (loop from one of the sensor inputs)1 x trigger input4 x trigger outputs1 x RJ45 ethernet LAN connector2 x USB A connectors1 x SD card slot (Backup – storage for system software and settings) |
| Accessories included | RoomPerfect™ microphoneMicrophone standMicrophone cableRF remote control |
| Optional module | 16 channel DCI-compliant digital AES/EBU input for movie servers (≤192kHz/32bit) / DB25)16 channel digital AES/EBU speaker output channels (Fix 97,565kHz/24bit / DB25)16 channel AES67 digital AES/EBU speaker output channels (Fix 48kHz/24bit / RJ45) |
| Placement options | Rack mount and freestanding |
| Dimensions (H x W x D) | 147 x 450 x 370mm |
| Weight | 9 kg |
