Disc Bowers & Wilkins SA1000 Subwoofer Amplifier

prev next

View PDF

Key Features

Bespoke amplifier for Bowers & Wilkins CT subwoofers
Class D technology using ICEpower offers stability and definition
2U size enables simple integration into rack storage
Expand with up to two models of the same subwoofer

Questions? Email [email protected] or call 01706 878444

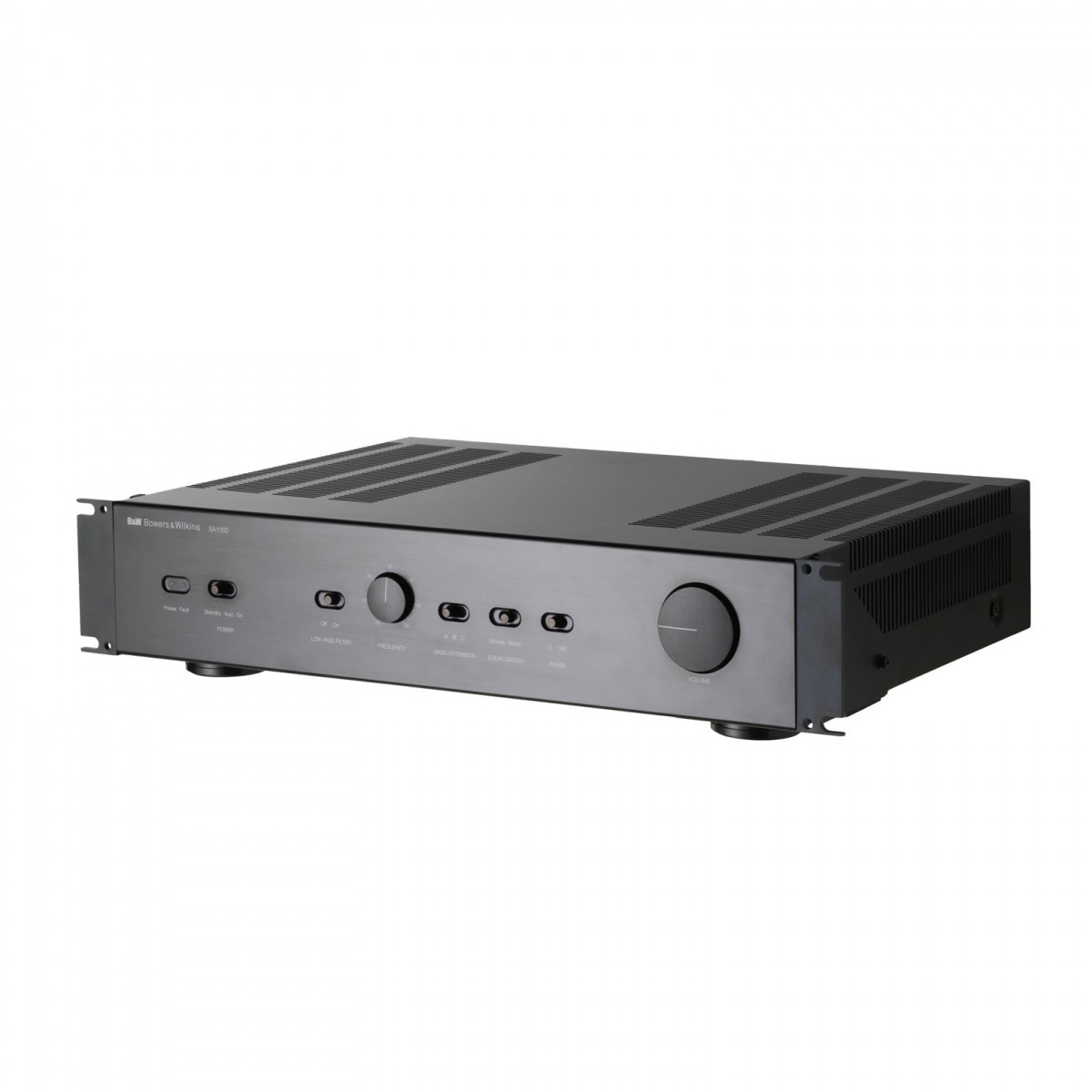

Disc Bowers & Wilkins SA1000 Subwoofer Amplifier Overview

The Bowers & Wilkins SA1000 Subwoofer Amplifier is purpose-built to power your Bowers & Wilkins CT subwoofers. This powerful and stable Class D Amplifier encourages the production of impactful bass for your home cinema or premium hi-fi setups using ICEpower technology. For an expansion that suits you, with the SA1000 you can simultaneously drive two of the same subwoofers for increased stability and low-end definition. The 2U rack size fits into any equipment rack for simple integration into storage compartments.

Product Ref: 230859

Full Description

View Full Description

Description	1000W rack-mount amplifier with built-in subwoofer equalisation
Amplifier functions	Front panel: Rotary volume (line in) Rotary low-pass filter frequency (4th-order Linkwitz, 40Hz - 140Hz) Low-pass filter defeat 2-posn switch Phase 0º/180º 2-position switch Bass extension 3-position switch Movie/music EQ 2-position switch On/auto/standby 3-position switch Status LED Fault LED Rear panel: Model select 3-position switch (CT SW10/CT SW 12/CT SW15)
Amplifier inputs	2x RCA Phono socket, line in 2x RCA Phono socket, link out 1x XLR socket, line in
Amplifier outputs	1x XLR socket, link out 3.5mm jack - 12V trigger on/standby (overrides manual standby setting) 3.5mm jack - 12V trigger equalisation movie/music 1x Neutrik® Speakon® 4-pole speaker socket 2x pairs of Binding Posts
Amplifier power output	1000W
Input impedance	33kΩ
Signal / noise	80dB
Amplifier rated power consumption	300W – 1/8 full power 34W – Idling
Dimensions	Height: 100mm (3.9 in) [88.5mm (3.5 in) plus feet] Width: 430mm (16.9 in) Depth: 322mm (12.7 in) Front panel Height: 2U 88.1mm (3.5 in)
Net weight	6.45kg (14.3 lb)
Product code	FP30880
