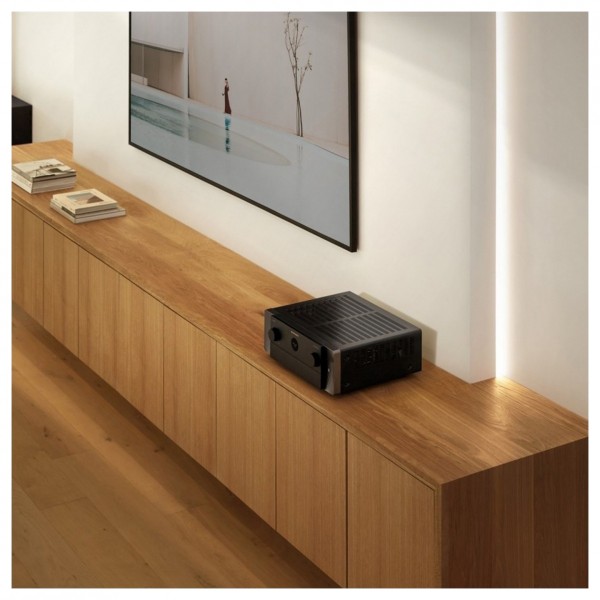

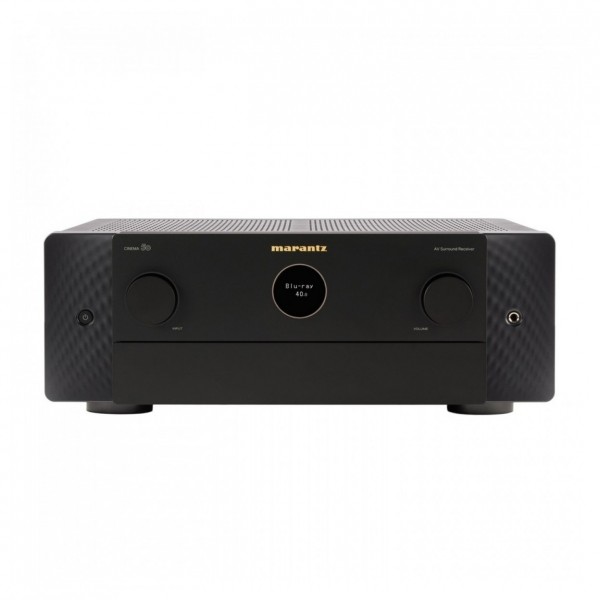

The Marantz Cinema 50 AV Amplifier is an 8K, 9.4 channel receiver with HEOS streaming and six 8K UHD inputs for enormous device compatibility, including upscaling for HD/4K content, along with a host of digital and analogue inputs for HiFi music and audio to partner visual entertainment. It supports advanced sound and vision technologies for an enhanced user experience, including Dolby Atmos, DTS:X, Dolby Vision, IMAX Enhanced and Auro3D with HDR10+ Dynamic HDR support. It also features Bluetooth and AirPlay 2 for easy music streaming options. Simple to use, the Cinema 50 includes a backlit remote and Audyssey MultEQ XT32 room configuration, meaning you can enjoy an immersive, high-definition audio-visual experience tailored to you.

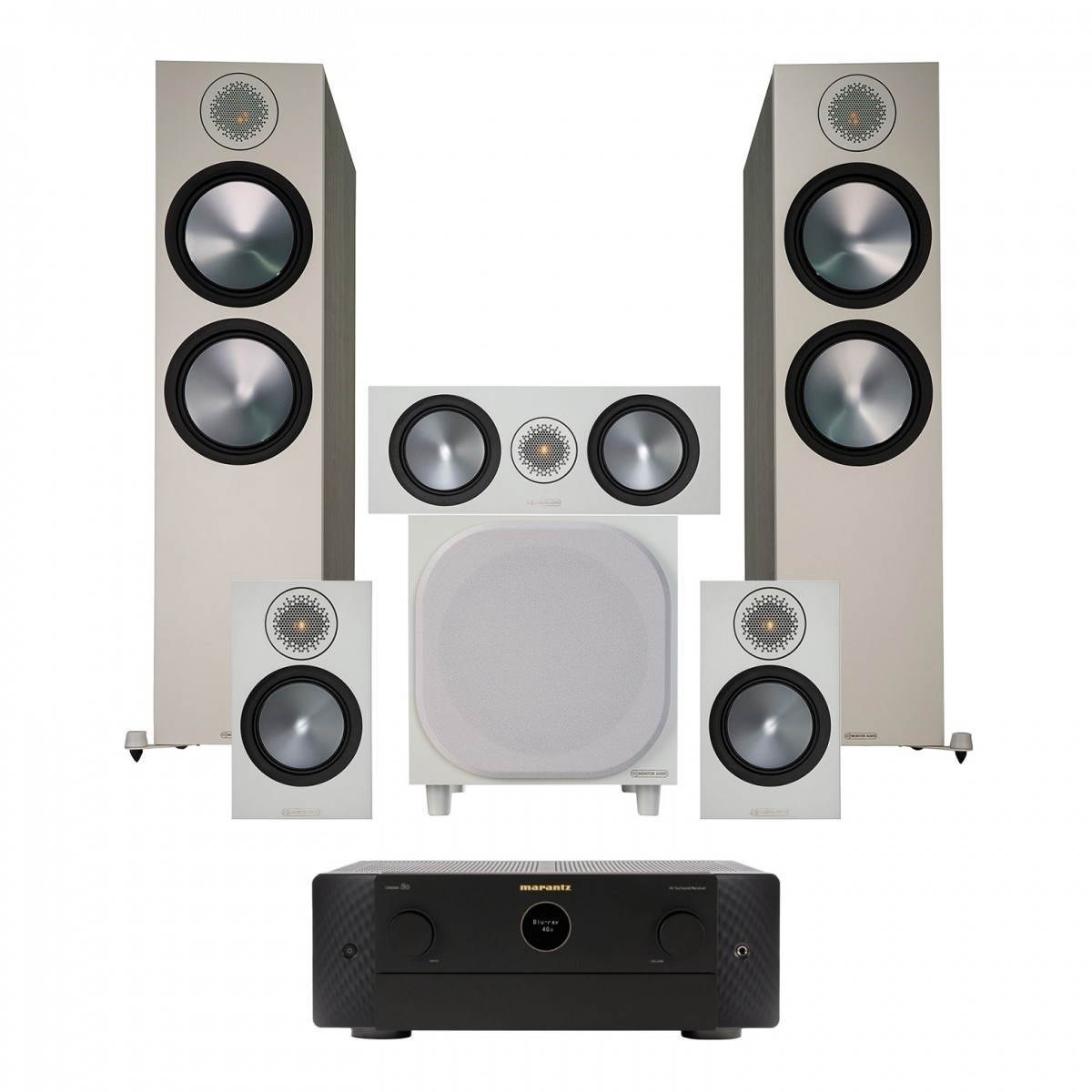

To unleash the potential of this receiver, the Monitor Audio Bronze 500 5.1 Speaker Package includes all required components for a mid-sized home cinema system: the Bronze 500 floorstanding speakers, Bronze 50 bookshelf speakers, Bronze C150 centre speaker, and a Bronze W10 subwoofer. As the largest speakers in the Bronze range, these floorstanding speakers provide powerful front sound, while the bookshelf speakers offer considerable rear support. Ideal for first-time home cinema creators or those seeking a suitable surround sound system in a modern style, the sixth-generation Bronze Series bundle is an excellent choice, and even leaves room to expand up to 9.4 should you choose.

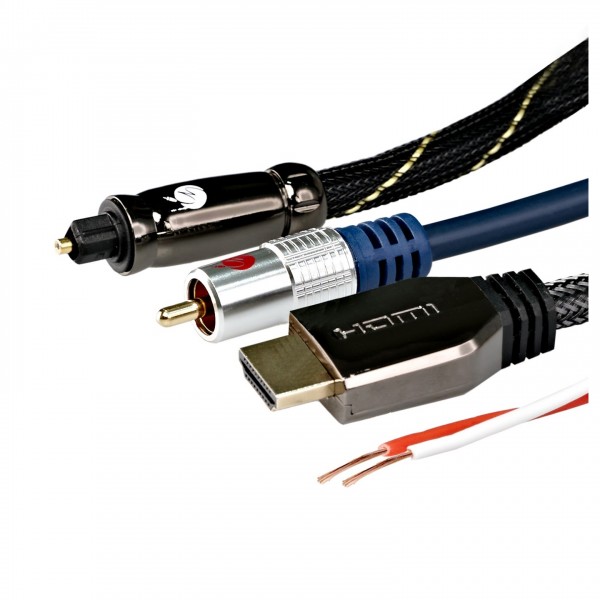

This home cinema bundle also comes with the Fisual Premium Home Cinema Cable Pack. This includes a 25m length of unterminated speaker cable, two high-speed UHD HDMI cables, one digital optical cable and a subwoofer cable. Order from AV.com and get everything you need for system setup in one neat package.
Package Includes

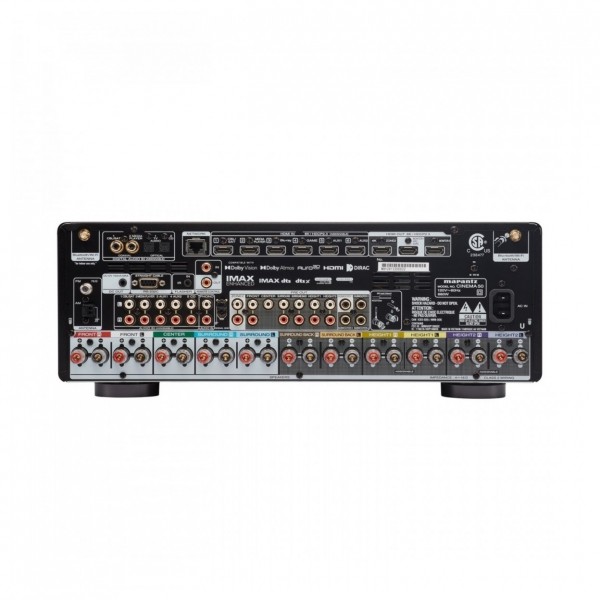

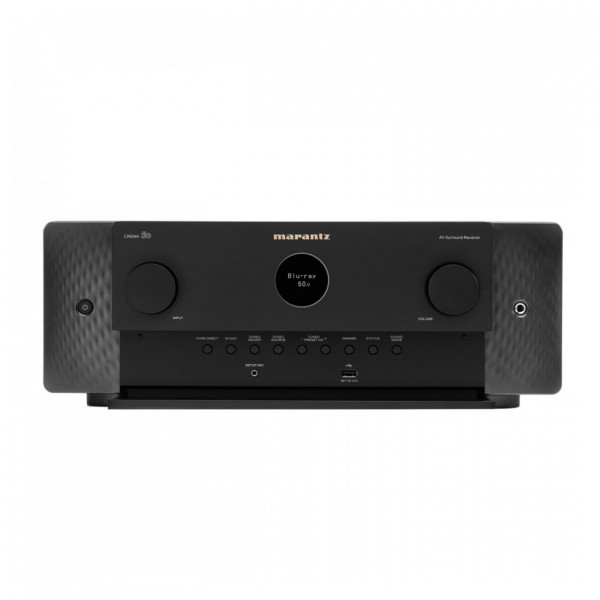

Marantz Cinema 50 AV Receiver Specifications
Power Amplifier
| Number of Powered Channels | 9 |
|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08 2ch Drive) | 110 W |
|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05 2ch Drive) | - |
|---|
| Power Output (6 ohm, 1 kHz, 0.7 2ch Drive) | 150 W |
|---|
| Power Output (6 ohm, 1 kHz, 10 1ch Drive) | 220 W |
|---|
| 70 Guarantee | Yes |
|---|
| Discrete Power Amplifier | Yes |
|---|
| Amplifier Topology | Class A/B |
|---|
| Current Feedback Topology | Yes |
|---|
| Bi-Amp Drive | assignable |
|---|
Multichannel Surround Technologies
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
|---|
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
|---|
| Other | IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo |
|---|
| Max Number of Processing (Preamp) Channels | 11.4 |
|---|
Inputs/Outputs
| Composite In / Out | 0/0 |
|---|
| Component In / Out | 0/0 |
|---|
| HDMI In / Out | 6 / 3 |
|---|
| Multi-Room Video Out via HDMI | No / Yes |
|---|
| Analog In / Fixed Level Out | 6 in / 0 out |
|---|
| Phono (MM) In | Yes |
|---|
| Digital In: Optical / Coaxial | 2 / 2 |
|---|
| Multi-Room Out: analog / digital | 1 /0 |
|---|
| Multichannel Preamp Out | 11.4 |
|---|
| Subwoofer Out | 4 (independent) |
|---|
| 7.1 multichannel input | Yes |
|---|
| Number of Speaker Terminals | 11 |
|---|
| Speaker A / B | assignable |
|---|
| Multi-Room Speaker Terminal | assignable |
|---|
| Front Inputs | USB-A |
|---|
| USB Audio | Yes / No / No |
|---|
| FM Tuner with RDS | No |
|---|
| DAB+ Tuner | No |
|---|
HDMI
| Total HDMI Inputs / No. Support 8K | 6 / 6 |
|---|
| HDCP2.3 support | Yes |
|---|
| HDMI Outputs: Main / Zone | 2 / 1 |
|---|
| Analog to HDMI Video Conversion | No |
|---|
| HDMI Upscaling | 1080P/4K to 8K |
|---|
| Audio Return Channel | eARC |
|---|
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
|---|
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
|---|
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
|---|
| HDMI Pass-Through in Standby Mode | Yes |
|---|
| CEC | Yes |
|---|
| DSD Audio over HDMI | Yes |
|---|
| Auto LipSync | Yes |
|---|
Performance Technologies
| Copper Plated Chassis | No |
|---|
| Toroidal Power Supply Transformer | No |
|---|
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
|---|
| Pure Direct Mode | Yes |
|---|
| Gold Plated RCA Terminals | Yes |
|---|
| Clock Jitter Reducer | Yes |
|---|
Acoustic / Room Correction
| Audyssey | MultEQ XT32 |
|---|
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
|---|
| Audyssey LFC | Yes / Yes |
|---|
| Dirac Live Support | Yes |
|---|
| Variable Cross Over | Yes |
|---|
| Optimized Bass Redirection | Yes |
|---|
| Bass Sync | Yes |
|---|
Music File Support
| Lossy Formats | MP3 / WMA / AAC |
|---|
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
|---|
| DSD Audio | 2.8 MHz / 5.6MHz |
|---|
| Gapless Playback | FLAC, WAV, ALAC, DSD |
|---|
| Compressed Audio Enhancer | MDAX2 Yes |
|---|
| Network Audio Sharing | Yes |
|---|
Streaming Services
| HEOS Multi-room and Streaming | Yes |
|---|
| AirPlay Audio Streaming | AirPlay 2 |
|---|
| Internet Radio | TuneIn |
|---|
| Spotify* | Spotify Connect |
|---|
| Pandora | Yes |
|---|
| SiriusXM | Yes |
|---|
| Other Streaming Services | Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
|---|
| Roon tested | Yes |
|---|
Network Connectivity
| Ethernet Ports | Yes |
|---|
| Wi-Fi (include version / band) | Yes |
|---|
| Bluetooth (Include version) | Yes |
|---|
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
|---|
Smart Home Integration and Controls
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
|---|
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR App |
|---|
| HEOS Multi-Room Integrated | Yes |
|---|
| HEOS Link Compatibility IR/ IP | Yes / Yes |
|---|
| Multi-Room zones | 2 |
|---|
| Zone Audio Source HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
|---|
| Zone Audio Output: Speaker / Preout | Yes / Yes |
|---|
| Zone HDMI Output from HDMI Source | Yes |
|---|
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
|---|
| IR Flasher In | Yes |
|---|
| Marantz Remote Bus | Yes |
|---|
| DC Trigger Output | 1 |
|---|
| HDMI Diagnostics | Yes |
|---|
Others
| Front Display | Port hole OLED |
|---|
| GUI Languages | 9 |
|---|
| Setup Assistant | Yes |
|---|
| Smart Select on Remote | Yes |
|---|
| Firmware Update by Network / USB | Yes / Yes |
|---|
| ECO Mode | Yes |
|---|
| Auto Power off | Yes |
|---|
| Sleep Timer | Yes |
|---|
General
| Metal Front Panel | Yes |
|---|
| System Remote Control | RC-049SR |
|---|
| Power Consumption in W | 680 |
|---|
| Power Consumption No-Sound (ECO on/off) in W | 60 W / 100 W |
|---|
| Standby Consumption in W | 0.2 |
|---|
| CEC Standby Consumption in W | 0.5 |
|---|
| Network Standby Consumption in W | Less than 2.0 |
|---|
| What's in the box | Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
|---|
Dimensions
| Antenna:Horizontal:(W x D x H) in mm | 442 x 404 x 165 |
|---|
| Antenna:Vertical :(W x D x H) in mm | 442 x 404 x 235 |
|---|
| W/o Antenna:(W x D x H) in mm | 442 x 392 x 165 |
|---|
| Weight in kg | 13.5 |
|---|
Monitor Audio Bronze 500 5.1 Speaker Package Specifications

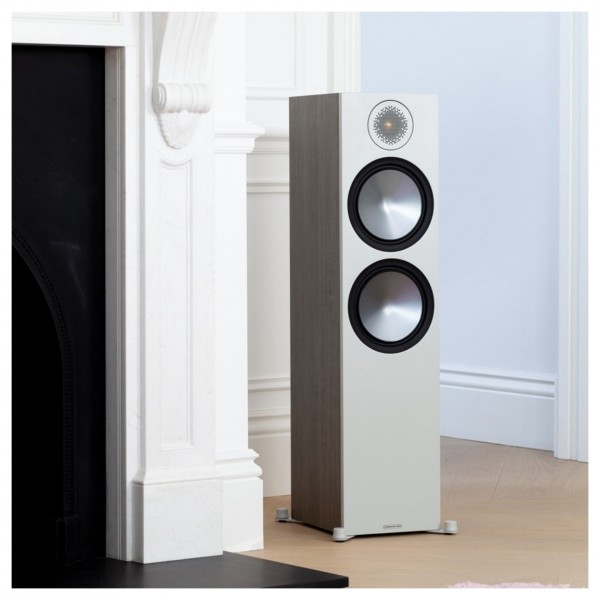

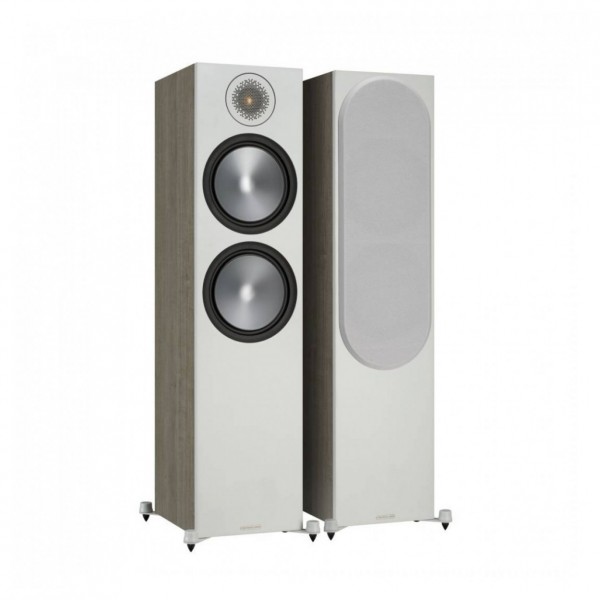

Monitor Audio Bronze 500 Floorstanding Speakers
| External dimensions, incl. outrigger feet and spikes (W x H x D) | 294 x 974 x 364 mm |
|---|
| External dimensions, incl. grille and terminals (W x H x D) | 231 x 951 x 325 mm |
|---|
| Weight (per speaker) | 18kg |
|---|
| System format | 2.5 Way |
|---|
| Frequency response (-6 dB) | 41 – 25,000 Hz (Free field)32 – 30,000 Hz (In room) |
|---|
| Sensitivity (2.83v @ 1m) | 90 dB |
|---|
| Nominal impedance | 8 Ohms |
|---|
| Minimum impedance | 4.1 Ohms |
|---|
| Maximum SPL | 116 dBA (pair) |
|---|
| Power handling (RMS) | 200 W |
|---|
| Recommended amplifier requirements | 60 - 200 W |
|---|
| Bass alignment | Bass Reflex (Dual HiVe II Port System) |
|---|
| Crossover frequency | 550 Hz2,700 Hz |
|---|
| Drive unit complement | 2 x 8" C-CAM midbass driver1 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide |
|---|

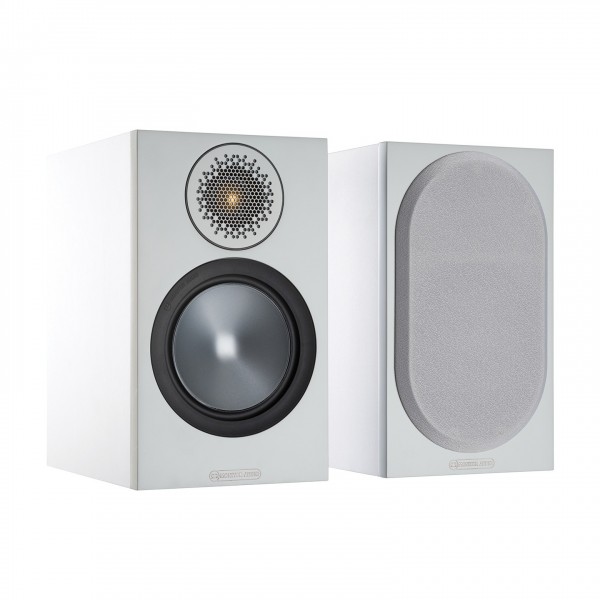

Monitor Audio Bronze 50 Bookshelf Speakers
| Dimensions (incl. Grille and Terminals) (H x W x D) | 281 x 166 x 268 mm |
|---|
| Weight (each) | 5 kg |
|---|
| System format | 2 Way |
|---|
| Frequency response (-6 dB in room) | 40 Hz - 30 kHz |
|---|
| Sensitivity (2.83 v @ 1m) | 85 dB |
|---|
| Nominal impedance | 8 Ohms |
|---|
| Minimum impedance | 4.4 Ohms |
|---|
| Maximum SPL | 107 dBA (pair) |
|---|
| Power handling (RMS) | 80 Watts |
|---|
| Recommended amplifier requirements | 20 - 80 Watts |
|---|
| Bass alignment | Bass reflex, HiVe II port system |
|---|
| Crossover frequency | 2,500 Hz |
|---|
| Drive unit complement | 1 x 5.1/2" C-CAM mid-bass driver 1 x 25 mm C-CAM gold dome tweeter with UD waveguide |
|---|
| Finishes | Black, white, walnut, urban grey |
|---|

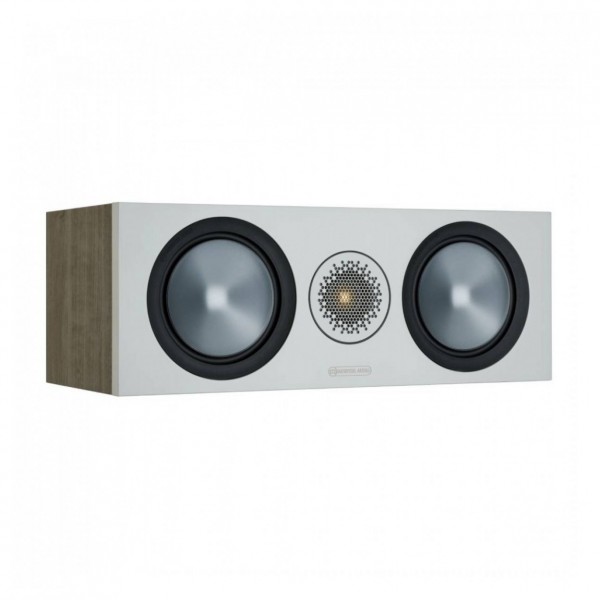

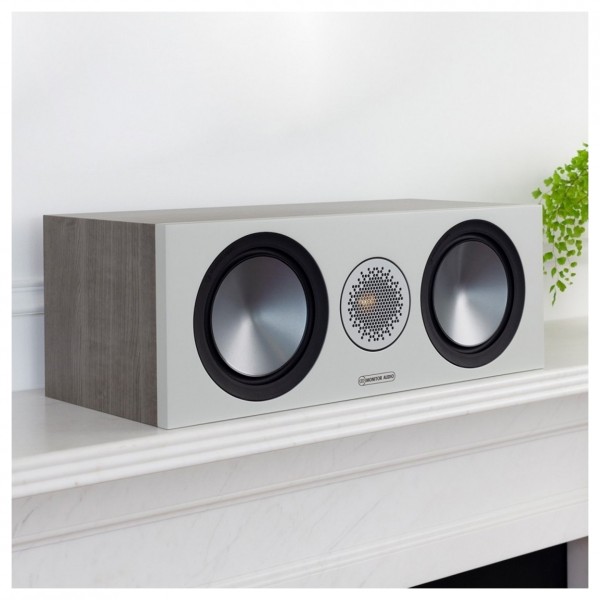

Monitor Audio Bronze C150 Centre Speaker
| System Format | 2 Way |
|---|
| Frequency Response (-6dB in room) | 66 Hz - 30 kHz |
|---|
| Sensitivity (2.83v @ 1m) | 88dB |
|---|
| Nominal Impedance | 8 Ohms |
|---|
| Minimum Impedance | 4.3 Ohms |
|---|
| Maximum SPL | 109 dBA (each) |
|---|
| Power Handling (RMS) | 120 W |
|---|
| Recommended Amplifier Requirements | 30 - 120 W |
|---|
| Bass Alignment | Sealed Cabinet |
|---|
| Crossover Frequency | 2,700 Hz |
|---|
| Drive unit Complement | 2 x 5.1/2" C-CAM Mid-bass Driver 1 x 25mm C-CAM Gold Dome Tweeter with UD Waveguide |
|---|
| External Dimensions, incl. Grille and Terminals (HxWxD) | 166 x 451 x 228mm |
|---|
| Weight (each) | 7kg |
|---|

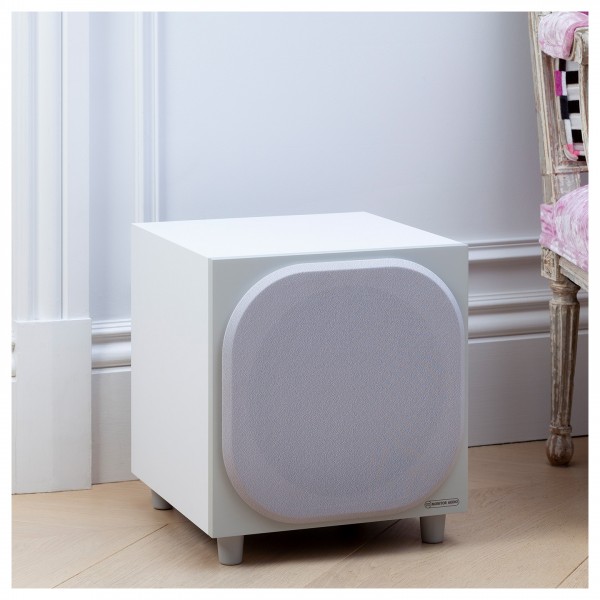

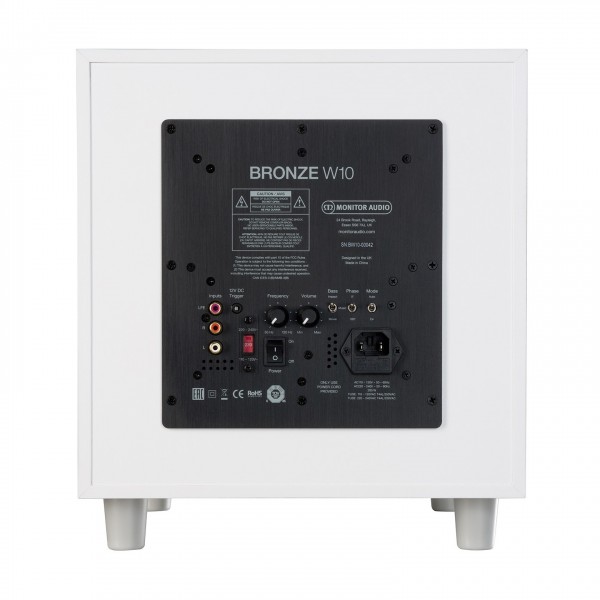

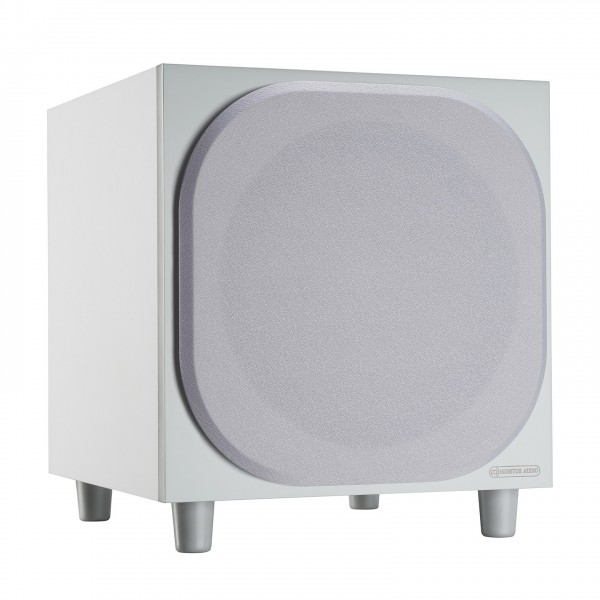

Monitor Audio Bronze W10 6G Subwoofer
| External Dimensions, incl. Amp, Drivers & Terminals (HxWxD) | 321 x 321 x 364 mm |
|---|
| External Dimensions, incl. Amp, Drivers, Terminals & Feet (HxWxD) | 366.5 x 321 x 364 mm |
|---|
| Weight (unpacked) | 13.4 kg |
|---|
| System Format | Long-throw 10” Driver featuring ‘Dished’ C-CAM Cone 10” Flat Panel ABR (Auxiliary Bass Radiator) 18mm MDF Internally Braced Construction |
|---|
| Lower Frequency Limit | -3 dB @ 33 Hz / -10 dB @ 28Hx (Free Field) Default Preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
|---|
| Upper Frequency Limit | -6 dB @ 150 Hz |
|---|
| Drive Unit Complement | 1 x 250mm (10") C-CAM Subwoofer Driver featuring a 2" Long Throw Voice Coil |
|---|
| Linear Driver Excursion | 17 mm Peak to Peak |
|---|
| Amplifier Output | 220 W |
|---|
| Amplifier Classification | Class D with High Current Switch Mode Power Supply (SMPSU) |
|---|
| Phase Control | 0 Degrees & 180 Degree Pure Invert |
|---|
| Low Pass Filter Alignment | 2nd Order (12 dB/Octave), from 40 Hz to 120 Hz |
|---|
| Equalisation DSP | 3 Pre-set Modes: Music, Movie, Impact |
|---|
| Auto Sensing | Line Level > 3 mV. Auto Standby Feature after 20 mins |
|---|
| Audio Inputs | LFE Unbalanced Input RCA Stereo Unbalanced Inputs RCA |
|---|
| Input Impedance | 20 kOhms |
|---|
| 12 V Trigger | 3.5 mm Mono Mini-jack. 6 V Threshold |
|---|
| Electrical Certifications | CE / CB/ ETL / Fcc / CCC / ErP (Energy Saving Compliant) |
|---|
| Mains Input Voltage | 100 - 120 V AC, 50 - 60 Hz / 220 - 240 V AC, 50 - 60 Hz (Manually Selected) |
|---|
| Power Consumption | Maximum 300 W, Standby < 0.5 W (ErP Compliance) |
|---|
| Fuse Type | 20mm T4AL 250 V AC |
|---|
