Key Features
- Projector, Screen, AVR, and 5.1 speakers
- What Hi-Fi? Best Projector £2000-£4000 winner with up to 5,000 hours of lamp life
- A best-selling Denon AVR with 7.2 discrete channels, 4K/120Hz & 8K/60Hz, and 3D audio
- 5.1 speaker package comprising Wharfedale Diamond 9 series bookshelf and centre speakers
- Can't find the bundle you want? Call 01706 878444 and we'll make the perfect package for you!
DISC. Epson EH-TW9400 & Denon AVR-X2800H Home Cinema System Overview
The Epson EH-TW9400 & Denon AVR-X2800H Home Cinema System is a customisable bundle allowing you to select your desired projector screen size and Wharfedale Diamond 9 series 5.1 speaker package. As well as a projector, screen, AVR, and 5.1 speaker package, you will also get all the essential cables included in a home cinema cable pack. Start configuring your custom home cinema with our custom bundles for faster shopping at a discounted price!
Product Ref: 286293
Full Description

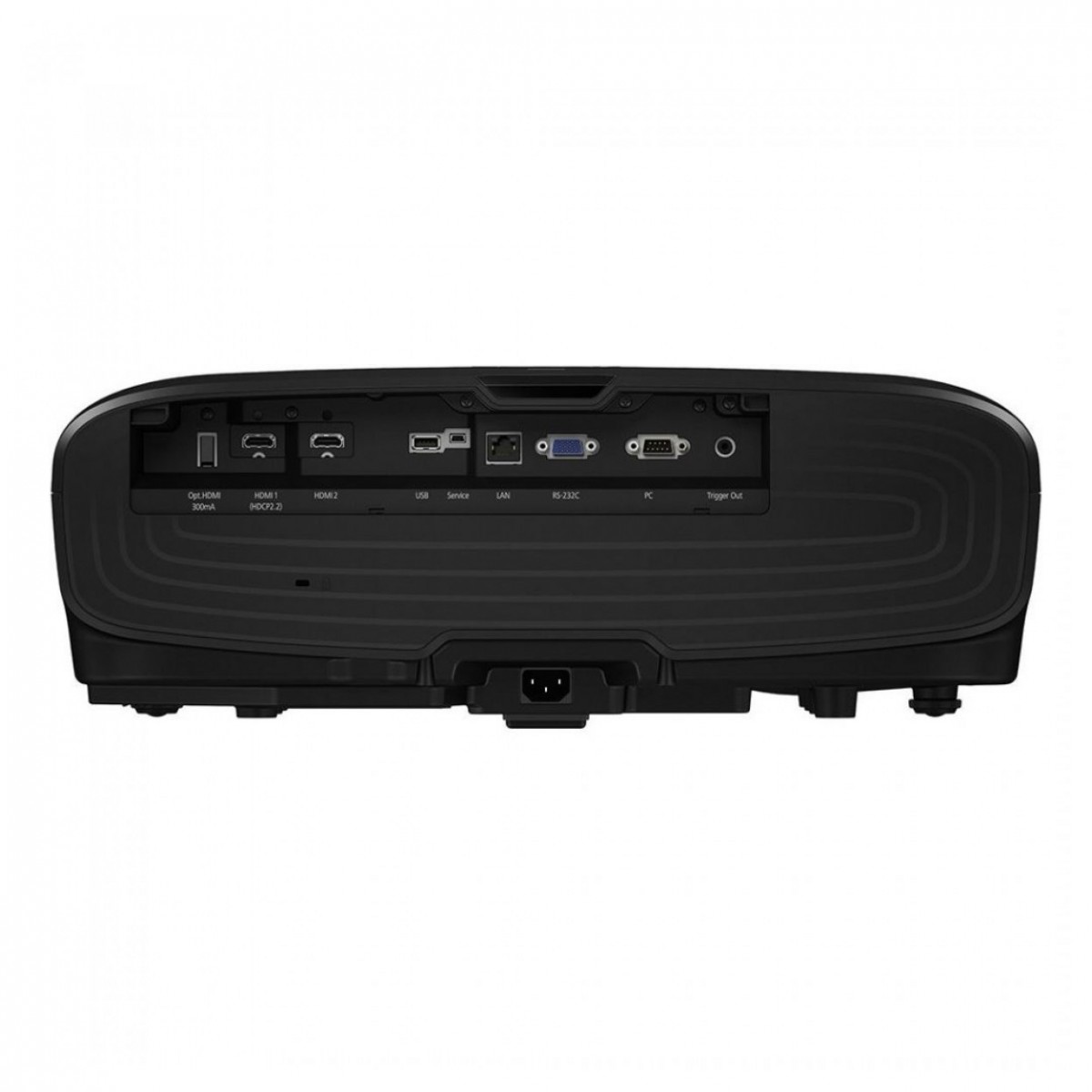

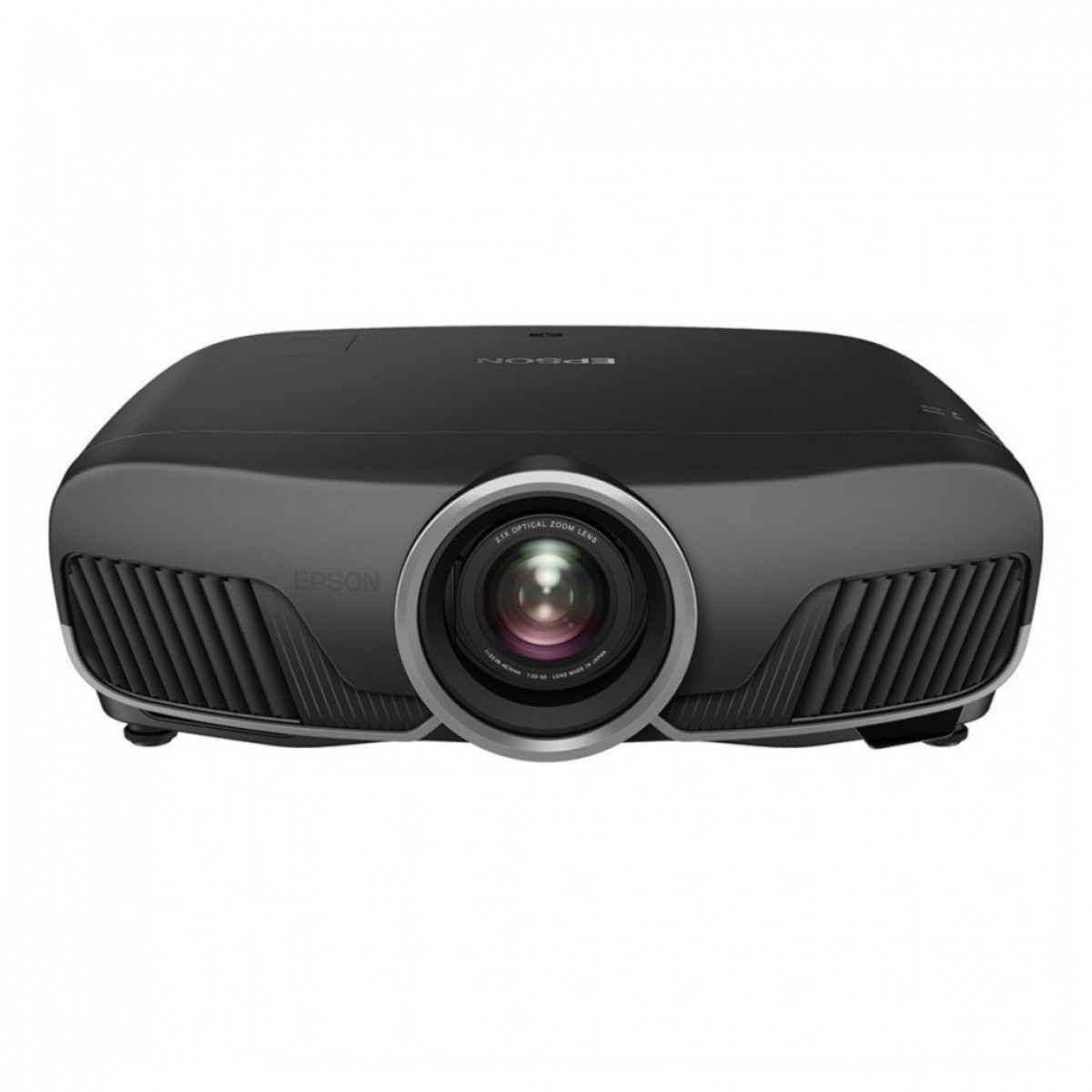

View Full DescriptionEpson EH-TW9400 4K-PRO-UHD Projector
The Epson EH-TW9400 4K-PRO-UHD Projector is a film fanatic's dream. It can display up to 300 inches and harnesses the power of advanced technologies to offer award-winning performance. It has scooped best projector awards from What Hi-Fi? over several consecutive years, so you can certainly trust in its quality and value for money.
At its core, the 4K PRO-UHD technology ensures a stunningly sharp picture while the high dynamic contrast ratio of 1,200,000:1 brings out deep blacks and defined shadows. With HDR support, it reveals extra detail and depth, creating a picture that is as close to reality as it gets. Epsons 3LCD technology eliminates any chance of the 'rainbow effect' phenomenon and delivers vivid colours, further enhanced by an ultra-wide colour gamut.
Despite having such advanced features and being a favourite among tech buffs, the Epson EH-TW9400 is easy to set up thanks to motorised optics and calibration tools. It is made to last too with an incredibly long lamp life of up to 5,000 hours on Eco mode. Thats equivalent to enjoying a daily movie night on the big screen for seven years! Enjoy the magic of the cinema at home for years to come with the Epson EH-TW9400 4K-PRO-UHD Projector.
Features
- 4K with advanced pixel shifting and resolution enhancement technology
- HDR compatibility for vivid images and intense contrast ratio
- Capable of projecting up to 300" displays
- Automated zoom, focus, and lens shift for simplified setup and professional ISF standards
- Compatible with radio frequency 3D glasses (in Full HD)
- Three LCD chips (3LCD) to prevent the rainbow effect you might experience with other projectors
- Frame interpolation and detail enhancement for smooth and sharp motion
- Lamp life of up to 5,000 hours; equivalent to a movie a day for 7 years in Eco mode
- Ultra-wide colour gamut for lifelike levels of colour detail
- Low noise level for a quiet operation

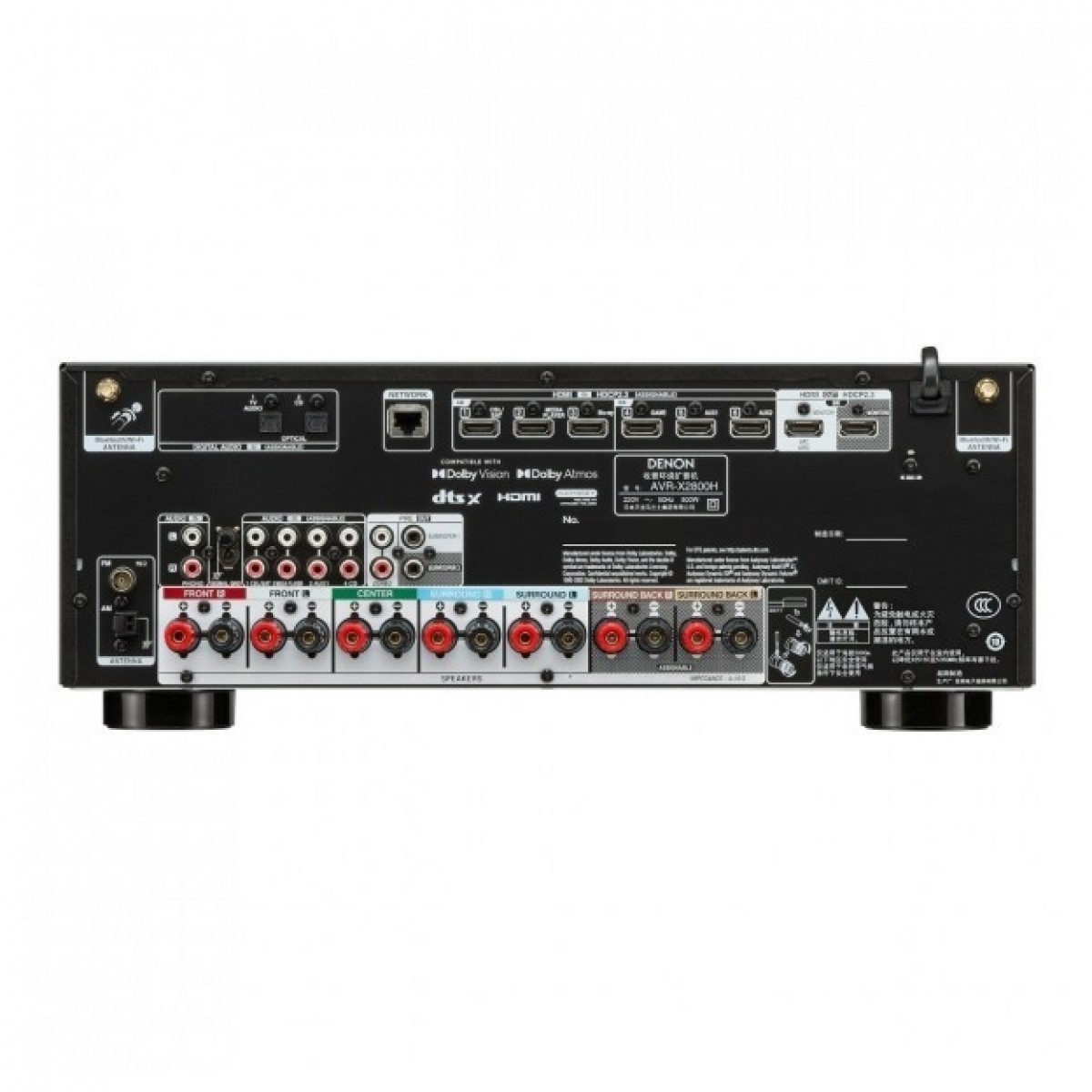

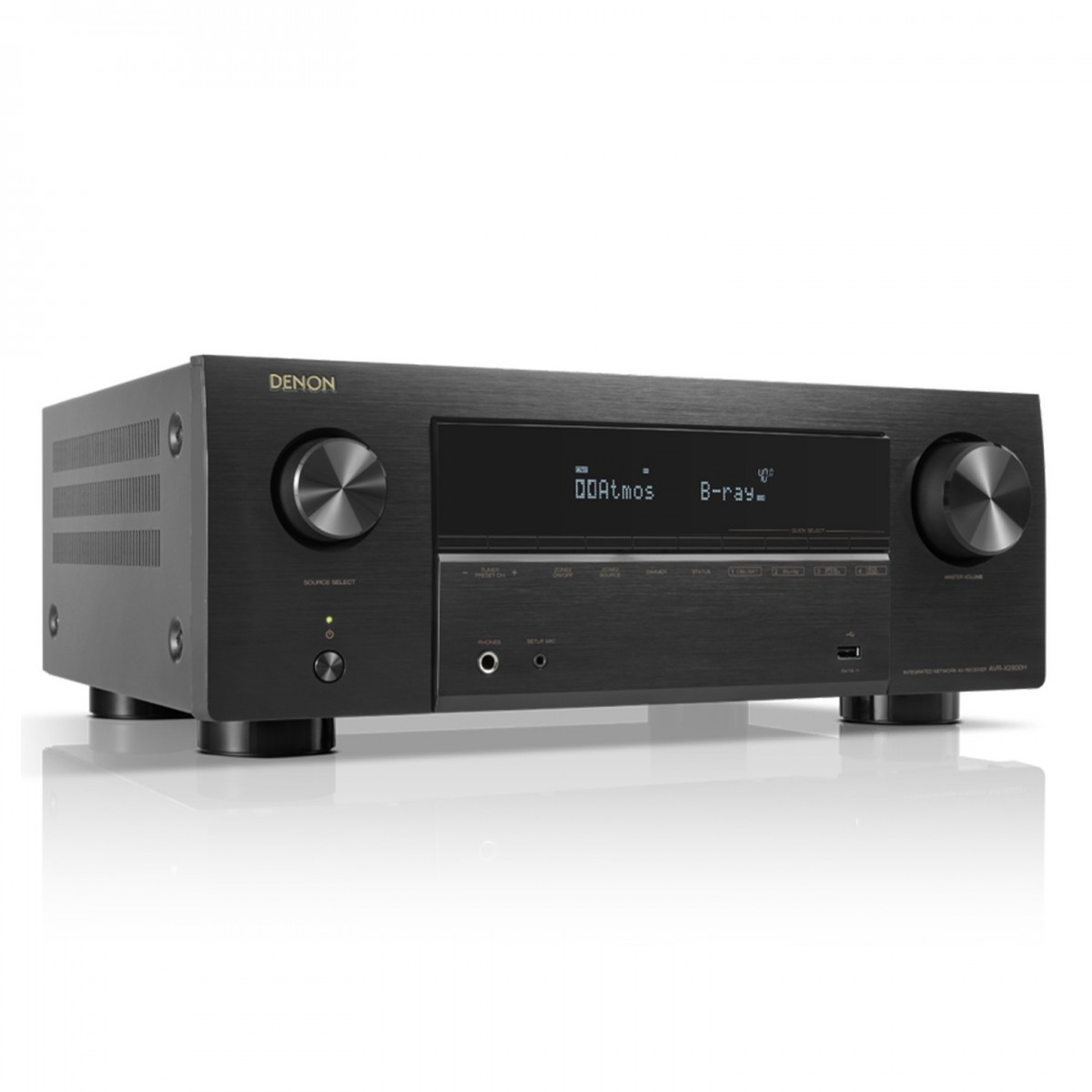

Denon AVR-X2800H AV Receiver
The Denon AVR-X2800H AV Receiver is a high-performing seven-channel amplifier which delivers immersive sounds and images. This high-current amplifier produces up to 150W of power per channel, boosting the audio signal and providing ample power to your speakers. The AVR-X2800H offers Dolby Atmos, Dolby Surround DTS: X, and DTS Neural: X which generates spine-tingling 3D audio, assisted by a high-resolution, 24bit/192kHz USB input. Pair your smart devices via Bluetooth and create an instant wireless home music system. Two-source, two-zone audio compatibility also enables a multi-room listening experience.
Enjoy high-picture quality thanks to Dolby Vision, HDR10+, 8K/HDCP 2.3 that is further enhanced by six ARC/eARC HDMI inputs. For all you game lovers out there, the AVR-X2800H is harnessed with Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) that will optimise your games. With built-in HEOS, you can stream your music from all the major streaming services all around your home within a multi-room sound system. The Denon AVR-X2800H can also be easily controlled via Apple Siri Voice, Amazon Alexa, Google Assistant, and the Denon AVR Remote app. You won't even have to leave your sofa.
Key Features
- Seven-channel, supplying 125W per channel (6Ω, 1kHz 0.7 2ch driven)
- Dolby Atmos, DTS:X, DTS Neural:X, and Dolby Surround offer 3D audio
- HDR, HDR10+, HLG, and Dynamic HDR pass-through provide 8K video
- Built-in HEOS® and two sources, two-zone compatibility offers multi-room listening
- Built-in Wi-Fi and Bluetooth connectivity enable wireless music streaming
- Audyssey optimises the audio
- Airplay 2 allows you to stream Apple Music through the receiver
- Amazon Alexa, Google Assistant and the Denon AVR remote app offer easy control of the Denon AVR-X2800H
- VRR, QFT, and ALLM get the most out of your gameplay
- High-res USB input, 6 HDMI inputs and 2 outputs provide a premium AV experience

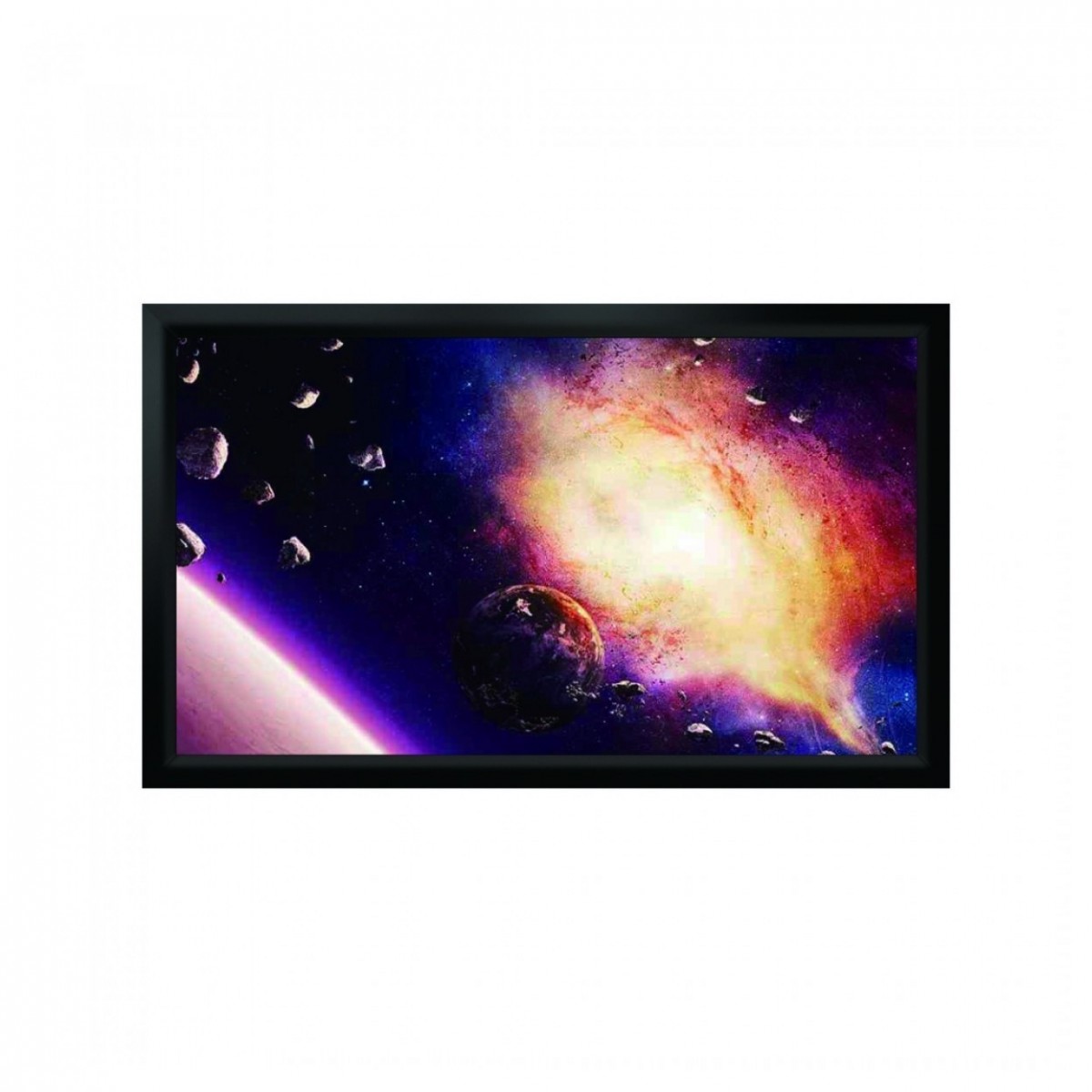

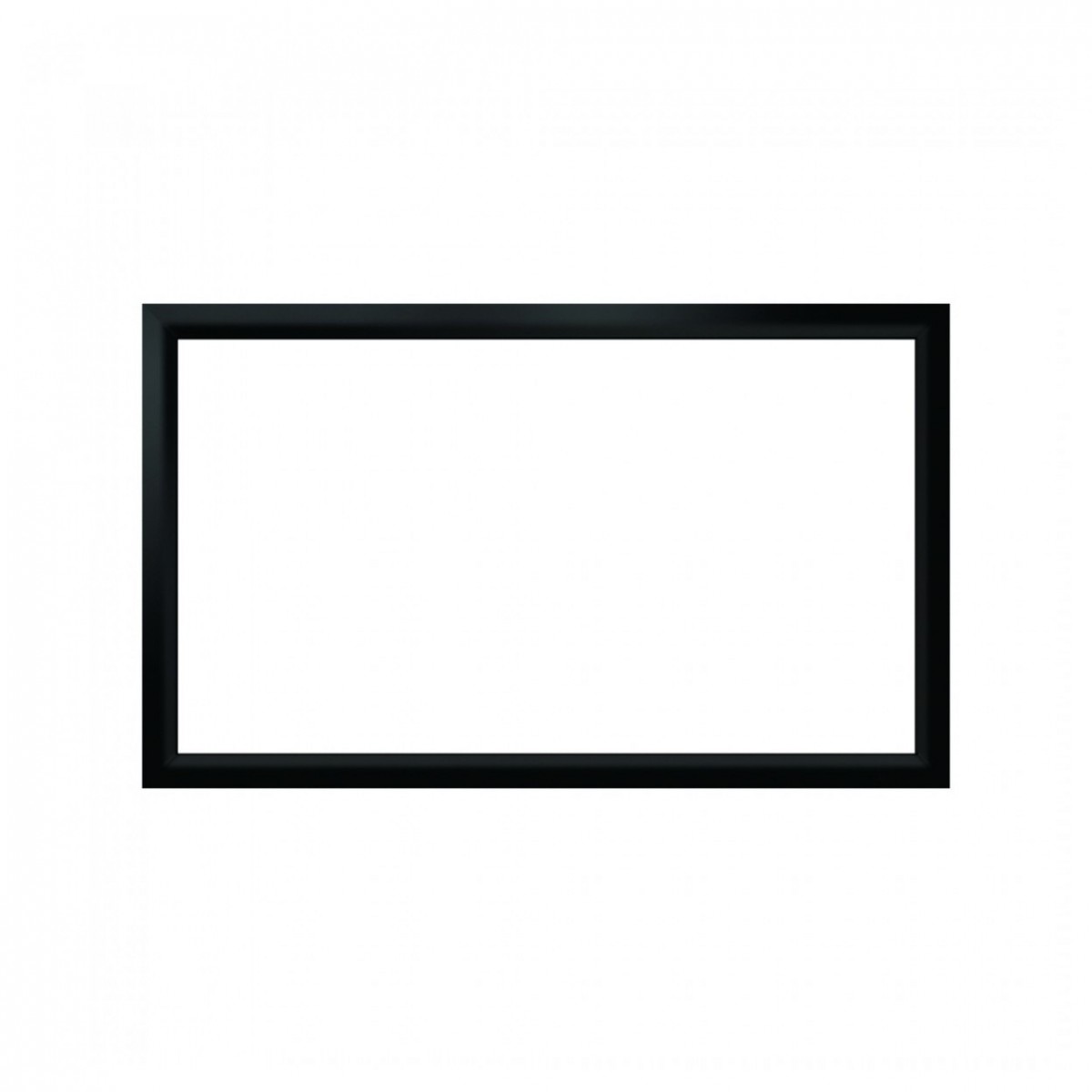

Spitfire Essentials MK2 Fixed Frame Screen
The Spitfire Essentials MK2 fixed frame projection screens are perfect for cinemas or any places where you need to fix the screen. It is enclosed in an attractive velvet-wrapped lightweight aluminium alloy frame. The screen is washable with mild soap and water, is flame retardant and, also mildew resistant. Suitable for high-definition television and movies.
The screen is easy to assemble with its easy and adjustable fabric spring system. The tension springs along with the fixing lugs stretch and tighten the fabric to make the screen surface completely flat and wrinkle-free. The screen comes complete with wall fixings.
Frame Assembly
High quality aluminium alloy frame wrapped in velvet. Braced at the corners for extra stability. The horizontal frame section comes in two pieces.
Easy Installation
The four sided tension design spring system allows for easy installation. Ensuring the screen surface is flat.
Features
- 1.0 Gain
- 160-degree viewing angle
- 6cm velvet frame
- Easy assembly
- Washable
- Flame retardant
- Mildew resistant
- Value for money

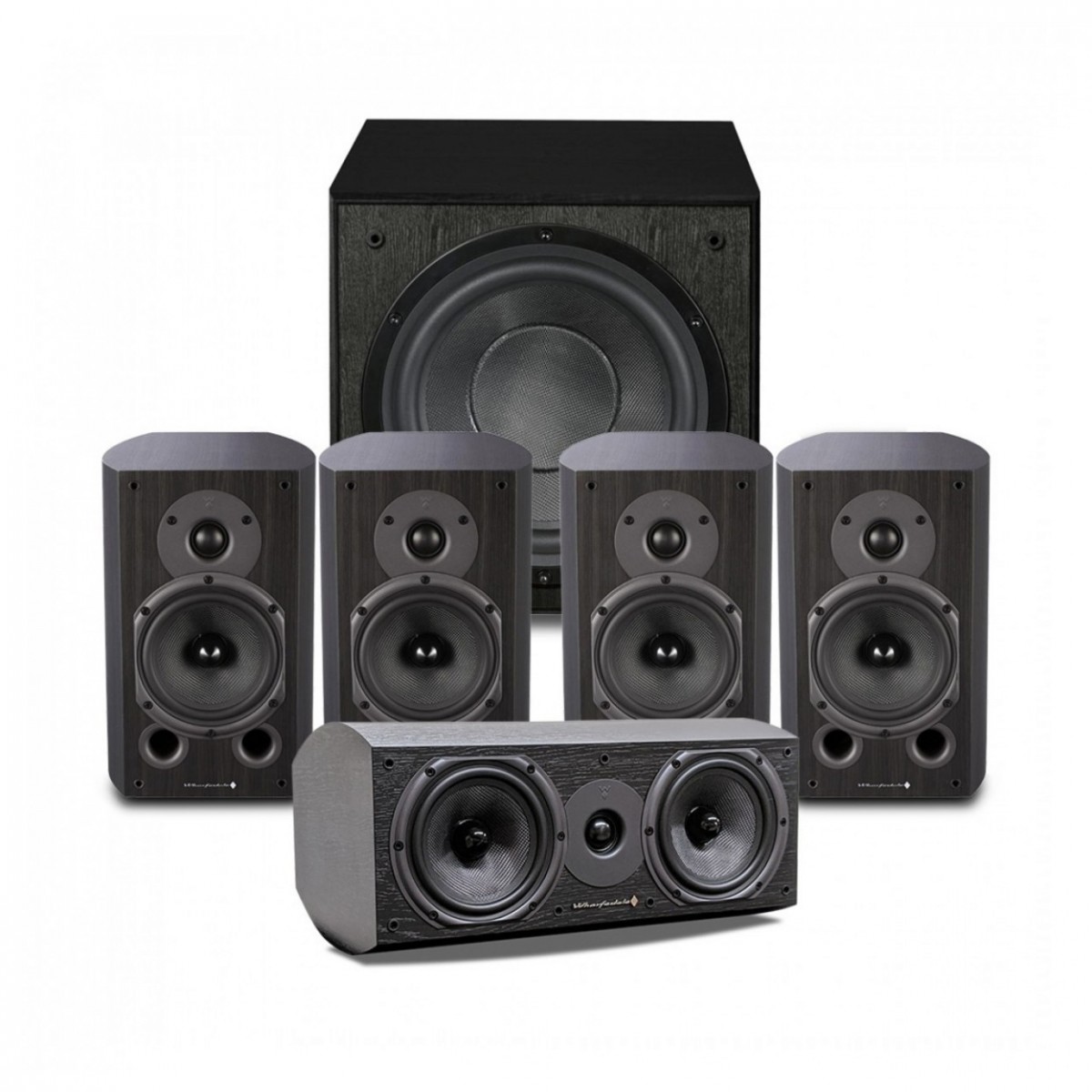

Wharfedale Diamond 9.1 HCP 5.1 Speaker Package
The Wharfedale Diamond 9.1 HCP 5.1 Speaker Package offers incredibly detailed sounds that are sure to take your favourite entertainment to the next level. The Wharfedale Diamond 9.1 Bookshelf Speakers are clear and precise with unmatched sound reproduction. They boast curved, braced cabinets that not only exude the premium aesthetic quality of higher-priced speakers but the design also helps to reduce unwanted cabinet vibrations and dissipate derogatory standing waves that can negatively affect your sound.
The Wharfedale Diamond 9.CS Centre Speaker is the perfect centrepiece for your AV cinema set-up that's sure to improve your favourite movies, TV shows and games. The compact, yet firm design means you can place this speaker in your home cinema cabinet seamlessly and place yourself at the centre of this action. The Diamond 9. CS centre speaker houses two 130mm, bass drivers so you can enjoy thundering sounds whilst watching the latest Hollywood blockbuster or an exciting next-gen game.
The Wharfedale Diamond SW-150 Subwoofer is an excellent starting point in high-fidelity audio. Unbeatable at this value, it strikes the perfect balance between power and sound quality. The long throw 250mm driver will deliver a thundering bass sound that will immerse you in your favourite entertainment, improved even further by the forward-firing design. The Wharfedale Diamond SW-150 has a 150W RMS amplifier power to transmit solid audio signals that make for a more robust sound. The SW-150's reflex ported design will also reduce distortion and allow for elevated bass reproduction.
Epson EH-TW9400 Specifications
Technology
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
|---|---|
| LCD Panel | 0.74 inch with MLA (D9) |
| Colour Light Output | 2,600 Lumen |
|---|---|
| White Light Output | 2,600 Lumen |
| Resolution | Full HD 1080p, 1920 x 1080, 16:9 |
| High Definition | 4K enhancement |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,200,000 : 1 |
| Lamp | 250 W, 3,500 h durability, 5,000 h durability (economy mode) |
| Keystone Correction | Manual vertical: ± 30 ° |
| Colour Processing | 10 Bits |
| 2D/3D Frequency Image | 240 Hz / 480 Hz |
| 2D Vertical Refresh Rate | 192 Hz - 240 Hz |
| 3D Vertical Refresh Rate | 400 Hz - 480 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
Optical
| Projection Ratio | 1.35 - 2.84:1 |
|---|---|
| Zoom | Motorized, Factor: 2.1 |
| Lens | Optical |
| Lens Shift | Motorized - Vertical ± 96.3 , horizontal ± 47.1 |
| Lens position memory | 10 positions |
| Projection Size | 50 inches - 300 inches |
| Projection Distance Wide/Tele | 3 m - 6.3 m (100 inch screen) |
| Projection Lens F Number | 2 - 3 |
| Focal Distance | 22.5 mm - 46.7 mm |
| Focus | Motorized |
Connectivity
| Interfaces | USB 2.0 Type A, USB 2.0 Type B (Service Only), RS-232C, Wireless Network (optional), Trigger out, VGA in, HDMI in (2x), HDMI (HDCP 2.2), Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T) |
|---|---|
| Epson iProjection App | Ad-Hoc / Infrastructure |
Advanced Features
| Security | Kensington lock, Wireless LAN security |
|---|---|
| 3D | Active |
| 2D Colour Modes | Dynamic, Natural, Cinema, Digital Cinema, Bright Cinema |
| 3D Colour Modes | 3D Dynamic, 3D Cinema |
| 3D Supported formats | Side by side, Top and bottom |
| Features | 3D depth adjustment, 4K enhancement, DCI colour gamut, Epson Cinema Filter, Epson Super White, Frame interpolation, ISF certification, Lens position memory, Super resolution, Wireless LAN capable |
| Video Colour Modes | Cinema, Dynamic, Natural, Bright Cinema |
| Projector control | via: AMX, Crestron, Control4 |
General
| Energy Use | 355 Watt, 271 Watt (economy), 0.35 Watt (standby), On mode power consumption as defined in JBMS-84 314 Watt |
|---|---|
| Supply Voltage | AC 100 V - 240 V,50 Hz - 60 Hz |
| Product dimensions | 520 x 450 x 193 mm (Width x Depth x Height) |
| Product weight | 11 kg |
| Noise Level | Normal: 24 dB (A) - Economy: 20 dB (A) |
| Temperature | Operation 5° C - 35° C, Storage -10° C - 60° C |
| Humidity | Storage 10 - 90 |
| Included Software | EasyMP Multi PC Projection |
| Options | 3D active shutter glasses, MB22 ceiling mount, Wireless LAN unit |
| What's in the box | HDMI Cable Clamp, Main unit, Power cable, Remote control with background light incl. batteries, User's Manual Set |
| Colour | Black |
Other
| Warranty | 24 months Carry-in, Lamp: 36 months or 3,000 h |
|---|
Denon AVR-X2800H Specifications
Dimensions
| With antenna horizontal (W x D x H) | 434 x 341 x 167 mm |
|---|---|
| With antenna vertical (W x D x H) | 434 x 341 x 237 mm |
| Without antenna (W x D x H) | 434 x 330 x 167 mm |
| Weight | 4.3 kg |
| Packaged weight | 5.2 kg |
Technical Information
| Number of Power Amps | 7 |
|---|---|
| Power Output | 95 watts per channel (8 ohm, 20Hz-20kHz,0.08% 2ch Drive)125 watts per channel (6 ohm, 1kHz, 0.7% 2ch Drive)185 watts per channel (6 ohm, 1kHz, 10% 1ch Drive) |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT |
| Front Display | 1-Line FLD |
| GUI Languages | 9 |
General
| System Remote Control | RC-1253 |
|---|---|
| Power Consumption in W | 500 |
| Power Consumption No-Sound (ECO on/off) in W | 35W/75W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
Inputs/Outputs
| Video | HDMI In/Out: 6/2 |
|---|---|
| Audio | Analogue - In/Out: 4/-Phono (MM) In: YesDigital In - Optical/Coaxial: 2/-Multi-Room Out - Analog/Digital: 1/-Multichannel Pre-Out: Yes (0.2)Subwoofer out: 2 |
| Number of Speaker Terminals | 7 |
| Speaker A/B | Assignable |
| Bi-Amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
Multichannel Sound
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
|---|---|
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 7.1 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
|---|---|
| Pure Direct | Yes |
| Audyssey | MultEQ XT |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Pandora | Yes |
| SiriusXM* | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 6, No |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, No |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes, Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
Multi-Room CI
| Multi-Room Zones | 2 |
|---|---|
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes, Yes, Yes |
| Remote In / Out | Yes, Yes |
| HDMI Diagnostics | Yes |
Other
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT |
|---|---|
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
Spitfire Essentials MK2 Fixed Frame Screen Specifications
| Aspect Ratio | 16:9 |
|---|---|
| Gain | 1.0 |
| Screen Colour | Front: White / Back: Black |
| Screen Thickness | 0.32mm |
| Acoustic Transparent | No |
Wharfedale Diamond 9.1 Bookshelf Speakers (Pair), Black Specifications
Dimensions
| Dimensions (W x H x D) | 194 x 296 x 278 mm |
|---|---|
| Packaged Dimensions (W x H x D) | 480 mm x 390 mm x 340 mm |
| Weight (each) | 5.5 kg |
General
| Crossover frequency | 2.3 kHz |
|---|---|
| Drivers | High frequency: 25 mm textile tweeter Low frequency: 130 mm Kevlar bass/midrange cone |
| Frequency response | 50 - 24,000 Hz |
| Nominal impedance | 6 ohms |
| Power handling | 20 - 100 Watts |
| Sensitivity | 86 dB |
| Product code | WHRF-DIA-91-BLK |
Wharfedale Diamond 9.CS Centre Speaker, Black Specifications
General
| Format | Centre Channel |
|---|---|
| Bass | 2 x 130mm |
| Tweeter | 25mm |
| Power Handling | 20 - 120W |
| Impedance | 6 Ohms |
| A/V Shielded | Yes |
| Sensitivity (2.83V, 1m | 89dB |
| Frequency Range | 70 - 24KHz |
| HF Limit (-10dB) | 44KHz |
| Crossover Frequency | 2.8KHz |
| Frequency (Fb) | 65Hz |
| Dimensions H x W x D | 189 x 400 x 233mm |
| Product code | WHRF-DIA-9CS-BLK |
Wharfedale Diamond SW-150 Subwoofer, Black Specifications
Technical Specifications
| Bass Driver | 250mm (10 inch) |
|---|---|
| Frequency Response | 35Hz – 110Hz |
| Amplifier Power | 150W RMS |
| Input Impedance | 10kΩ |
| Maximum SPL (Ref: 1M) | 107dB |
| Low Pass Filter Range | 35 – 85Hz (10Hz steps) |
| Driver Orientation | Forward Firing |
| Cabinet Type | Reflex ported |
General Specifications
| Cabinet Dimensions (W x D x H) | 330 x 330 x 330 mm |
|---|---|
| Dimensions inc Feet / Grille (W x D x H) | 330 x 340 x 360 mm |
| Net Weight | 17Kg |
| Packaged Dimensions (W x D x H) | 420 x 420 x 450 mm |
| Packaged Weight | 20kg |
