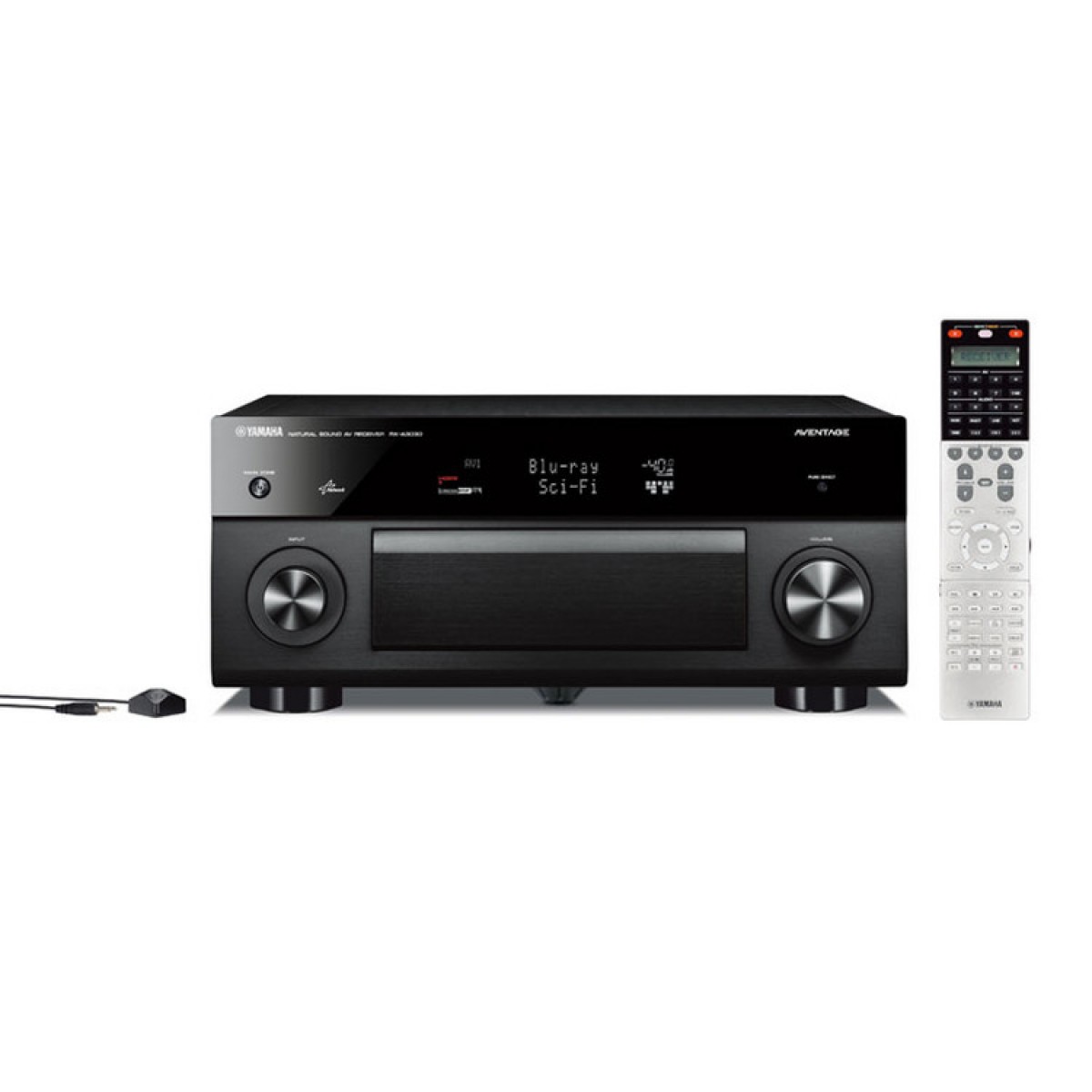

Yamaha RX-A3030 Aventage AV Receiver, Black

Video 1
Video 2

prev next

View PDF

Colour: Black

prev next

Key Features

Selling your equipment to AV.com is straightforward
Click "Trade-in your equipment" above then answer some quick questions for a valuation
We'll arrange to collect the item from you so its journey to us is fully insured
Once we receive your equipment, we'll let you know
When the item has been checked and verified, within a few days you'll get paid

Selling Your Yamaha RX-A3030 Aventage AV Receiver, Black

Trade in the Yamaha RX-A3030 Aventage AV Receiver with AV.com. The receiver's 150W power output and nine-channel setup would certainly be desirable to many home cinema lovers. A trade-in gives you the chance to venture into more contemporary receivers that offer more advanced sound processing and connectivity options. By opting for a trade-in with AV.com, the quality and features of the Yamaha RX-A3030 are valued appropriately, providing an opportunity to step into the future of audio entertainment. It's not about saying goodbye to the old, but welcoming the new.

Product Ref: 292106

Full Description

View Full Description

The Yamaha RX-A3030 AV Receiver has 11.2ch expandability and CINEMA DSP HD3 for the ultimate in surround sound performance. Outstanding features include super-high quality ESS DAC, new Yamaha video processing engine, Advanced HDMI Zone Switching, MHL support and HDMI with Ultra HD (4K) upscaling.

Features

AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
CINEMA DSP HD3 expands the sound field vertically for more thrilling and realistic surround sound
Ultra-high performance DACs for superior sound quality
Aluminium Front Panel Offers Visual and Aural Benefits
Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
H-shape cross member frame and rigid bottom frame / double bottom construction
9-channel powerful surround sound and full discrete amp configuration
230 W per channel (4 ohms, 1 kHz, 0.9 THD, 1 ch driven [European Model])
150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 THD, 2 ch driven)
230 W per channel (8 ohms, 1 kHz, 10 THD, 1 ch driven, JEITA)
MHL supports full HD video and audio from mobile phones and portable devices
Network functions such as AirPlay, Napster®* music streaming service (*Music service availability varies by region.)
AV Controller app for operating various functions from a smartphone or tablet
FLAC or WAV 192kHz / 24-bit audio playback
High-resolution Music Enhancer further heightens musicality from the original content
Advanced HDMI Zone Switching allows unprecedented AV switching to multiple zones
HDMI (8 in [1 on front] ) / 2 out) with 3D and Audio Return Channel
4K Ultra HD Pass-through and Upscaling
YPAO R.S.C. (Reflected Sound Control) sound optimisation with multi-point / speaker angle measurement
Yamaha video processing optimises video content
Full LED Backlight Learning and Preset Remote Unit
Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI, Zone 2 / 3 video assign and Party mode
ECO mode operation for about 20 less power consumption

Specifications

Amplifier Section

Channel	9.2
Rated Output Power (1kHz, 1ch driven)	230 W (4ohms, 0.9 THD [European Model])
Rated Output Power (20Hz-20kHz, 2ch driven)	150 W (8ohms, 0.06 THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	230 W (8ohms, 10 THD)
Dynamic Power per Channel (8/6/4/2 ohms)	175 / 220 / 295 / 410 W

Surround Sound Processing

CINEMA DSP	Yes (HD3)
DSP Programs	23
Dialog Level Adjustment	Yes
Virtual Presence Speaker	Yes
Dialogue Lift	Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP	Yes
Dolby TrueHD	Yes
Dolby Digital Plus	Yes
Dolby Pro Logic IIx	Yes
DTS-HD Master Audio	Yes

Audio Features

Pure Direct	Yes (with video on mode)
Compressed Music Enhancer	Yes
High-resolution Music Enhancer	Yes
YPAO multi-point measurement	Yes with R.S.C. (Reflected Sound Control) and Angle measurement
Adaptive DRC (Dynamic Range Control)	Yes
Initial Volume & Maximum Volume Setting	Yes
A.R.T. Wedge	Yes
Bi-amp capability	Yes
Audio Delay	Yes (0-500 ms)
192kHz/24-bit DACs for all channels	Yes (ESS)

Video Features

4K Ultra HD Pass-through and upscaling	Yes
HDMI 3D passthrough	Yes
HDMI Audio Return Channel	Yes
Component upconversion	Yes
HDMI upscaling	Yes (Analogue to HDMI / HDMI to HDMI)
Video adjustment	Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

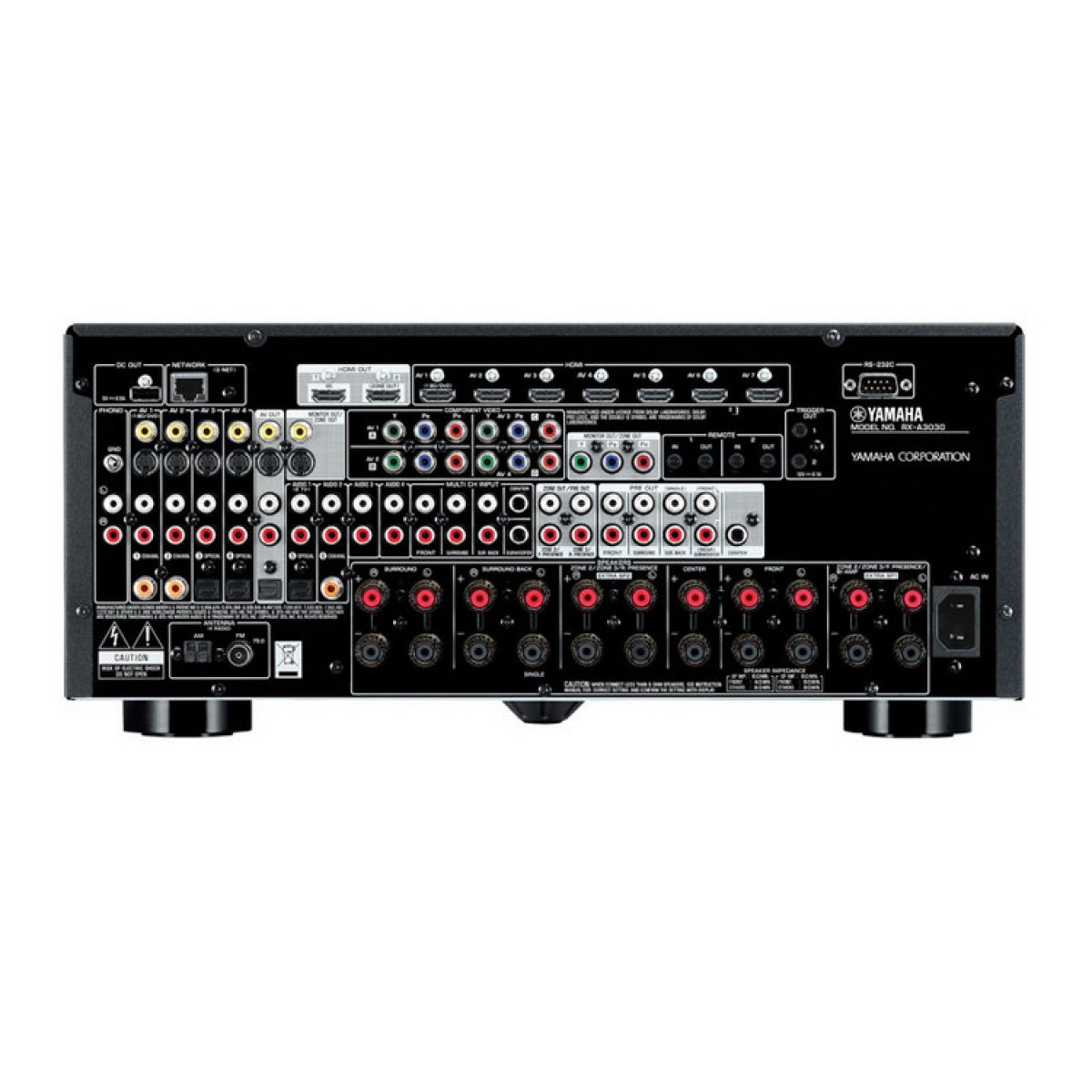

Connectivity

HDMI Input/Output	8 (front 1) / 2 (assignable for zone 2 / 4)
HDMI CEC	Yes (SCENE, Device Control)
MHL Support	Yes
USB Input	iPod / iPhone / iPad, USB Memory, Portable Audio Player
Network Port	Yes
AirPlay	Yes

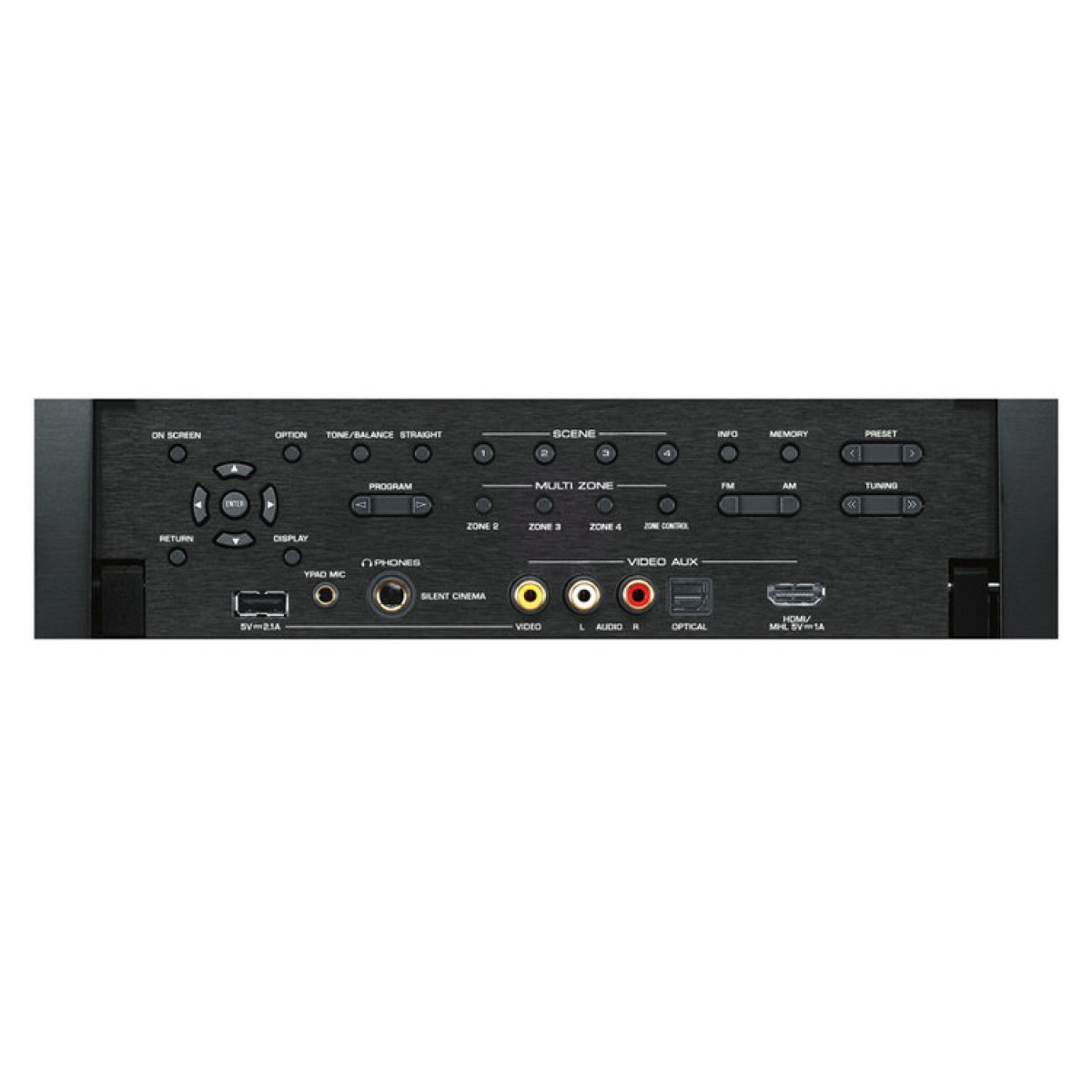

Front AV Input	HDMI (MHL support) / USB / Analogue Audio / Optical / Composite
DC Out	Yes
Digital Audio Input/Output: Optical	4 (front 1) / 1
Digital Audio Input/Output: Coaxial	3 / 0
Analog Audio Input/Output	10 (front 1) / 1
Phono Input	Yes
Component Video Input/Output	4 / 1
S-Video Input/Output	4 / 1
Composite Video Input/Output	5 (front 1) / 1
Multi-Channel Input	8ch
Preout	11.2ch
Headphone Output	1

Tuner Section

FM/AM Tuner	Yes

User Interface

On-screen display	Graphical User Interface
SCENE	SCENE PLUS (12 sets)
App Control	Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control	Yes
Remote Control Unit	Yes (Preset, Learning, Macro, Full LED Backlight)

Zone Control

Zone 2 Audio Output	Preout / HDMI
Zone 3 Audio Output	Preout
Zone 4 Audio Output	HDMI
Powered Zone	Zone 2 / 3
Zone Video Output	HDMI / Component / S-Video / Composite
Zone HDMI	Yes (Advanced HDMI Zone Switching)
Zone B Output	HDMI
Zone GUI	YES
RS-232C Interface	Yes
+12V Trigger Output	2
Remote (IR) Input/Output	2 / 2
Party Mode	Yes

General

Standby Power Consumption (IR only)	≤0.35W (typical)
Auto Power Standby	Yes
ECO mode	Yes
Dimensions (W x H x D)	435 x 192 x 467 mm
Weight	19.9 kg
