Key Features
Product Ref: 314971

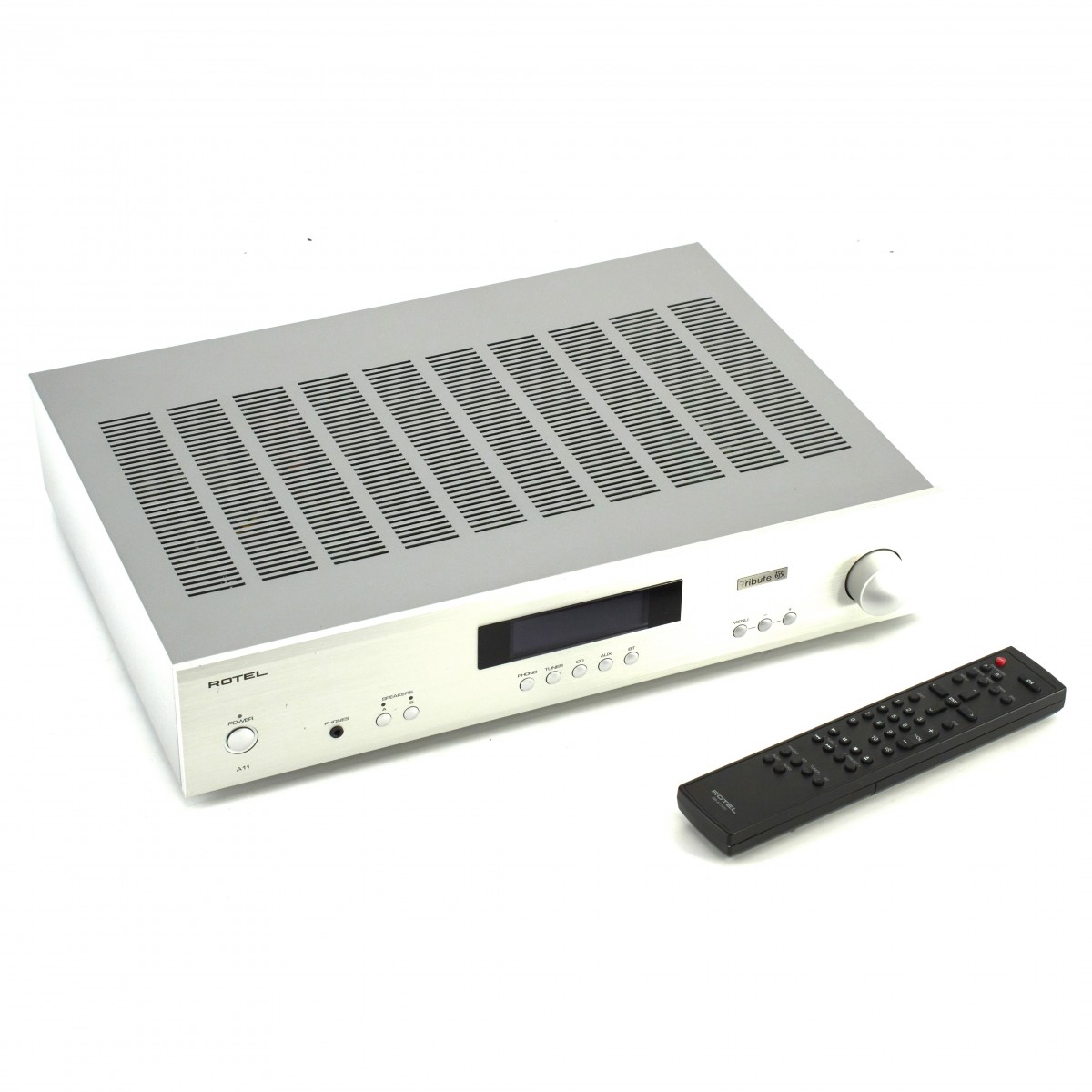

"The A11 is the latest in this illustrious line, and it's an absolute bargain. Built around the classic Rotel Class AB amplifier design, it’s rated at 50W per channel, and has a sensible array of inputs for the modern user."
Ken Ishiwata was a true pioneer in his field offering superlative performance upgrades to affordable pieces of HiFi equipment. Improvements to the A11 and CD11 were some of his last pieces of work, later finished by Rotel with approval from the Ishiwata family. Ishiwata meticulously investigated the A11 and upgraded the transformers, capacitors and resistors and also redesigned the signal path for uncompromising natural audio with coherence and complete musicality that is sure to enhance your audio no matter the source.
The Class AB amplifier provides solid audio signals with 2 x 50W of power output. The 8 ohms impedance will also enhance the sound even more. The A11 offers two speaker outputs so you can directly connect to your speakers and enjoy your favourite music. The 12V trigger output will let you use a projector and enjoy an engrossing viewing experience.
The Rotel A11 Tribute amplifier is equipped with multiple RCA inputs so you can directly connect to your CD player, Tuner and mobile devices. The MM phono input enables a seamless turntable connection and lets you listen to all your favourite vinyl records. The line level inputs even have a frequency response of 10Hz - 100kHz and the phono input offers a 20Hz - 20kHz range. The reliable headphone output accepts any 3.5mm mini stereo headphone connectors so you can listen to your music in excellent sound quality on your headphones.
The A11 Tribute amplifier comes with a Bluetooth amplifier so you can enjoy wireless streaming from your smart devices and listen to your music and podcasts from Spotify, TIDAL, Apple Music, and more. This amplifier even supports AAC and APTX audio codecs, enabling stunning sound quality. With a low THD rating, the A11 create distortion-free audio that gets you totally enveloped in the sound.
Find a sound that you've always wanted with four separate Tone Control options. The BYPASS mode switches off the bass and treble controls for a more dynamic audio path, the ENABLED mode offers user-selectable bass and treble settings. The ROTEL BOOST and ROTEL MAX boost modes will take care of optimising configurations to adapt to the A11s surroundings. The Texas Instruments DAC is also on hand to provide solid audio signals.
You can navigate your way through the inputs/outputs and have effective volume control with the IR remote control. The display dimmer lets you alter the brightness on the front panel screen so you can adapt the A11 to suit your home's layout. The compact design allows the A11 amplifier to fit into most HiFi cabinets and provides long durability.
Continuous Power Output (20 - 20kHz, < 0.03 , 8 ohms) | 50 watts/ch |
---|---|
Total Harmonic Distortion (20 Hz - 20 kHz at rated power) | < 0.03 |
Intermodulation Distortion (60 Hz : 7kHz, 4:1) | < 0.03 |
Frequency Response | Phono Input: 20 Hz - 20k Hz, ± 0.5 dBLine Level Inputs: 10 Hz - 100k Hz, ± 0.5 dB |
Damping Factor (20 - 20,000 Hz, 8 ohms) | 140 |
Input Sensitivity / Impedance | Phono Input: 2.3 mV / 47k OhmsLine Level Inputs: 180 mV / 47k Ohms |
Input Overload | Phono Input: 50 mVLine Level Inputs: 4 V |
Preamp Output / Impedance | 1 V / 470 Ohms |
Tone controls - Bass / Treble | ± 10 dB at 100 Hz / 10k Hz |
Signal to noise ratio ("A" weighting) | Phono input: 85 dBLine Level Inputs: 100 dB |
Power requirements | Europe: 230 V, 50 HzUSA: 120 V, 60 Hz |
Power Consumption | 160 watts |
Standby Power Consumption | < 0.5 watts |
BTU (4 ohms, 1/8 power) | 479 BTU/h |
Dimensions | 430 x 93 x 345 mm |
Front Panel Height | 80 mm |
Weght (net) | 6.85 kg |
Product code | FR01763 |
