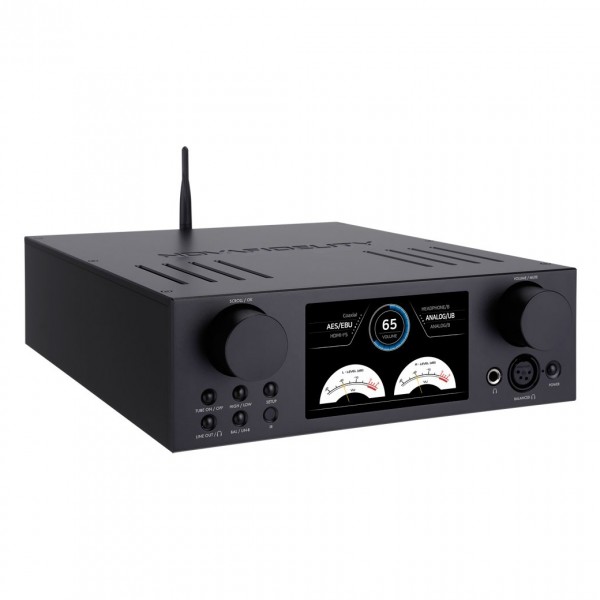

Novafidelity HA500H Black DAC and Headphone Amplifier

Full Description

• USB Input



• Bluetooth



• 384 kHz/32-bit



• Balanced XLR



View Full Description

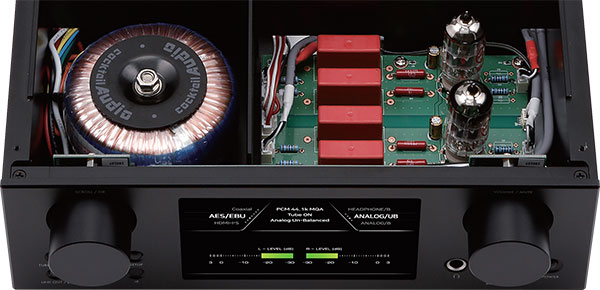

The HA500H is a premium Hybrid Headphone Amplifier, DAC, Pre-Amplifier and Asynchronous USB DAC for audiophiles. It is equipped with two(2) ECC82 vacuum tubes and solid state OP Amp, which will work as preamp stage for the headphone section, and will work as out stage for the pre-out section, while solid state transistors are built in at power amp stage for headphone section. So, you can select one out of Tube and OP Amp according to character of music, your feelings and mood.

All music has its own character. Some music need to be reproduced clearly and dynamically, others will be better when they are played warmly and smoothly. The HA500H will be the best device that will let you choose different sonic signature in reproducing music according to your feelings and music character.

The HA500H offers impedance selector(High/Low) with which you can choose one of High or Low impedance, which suits better your headphones.

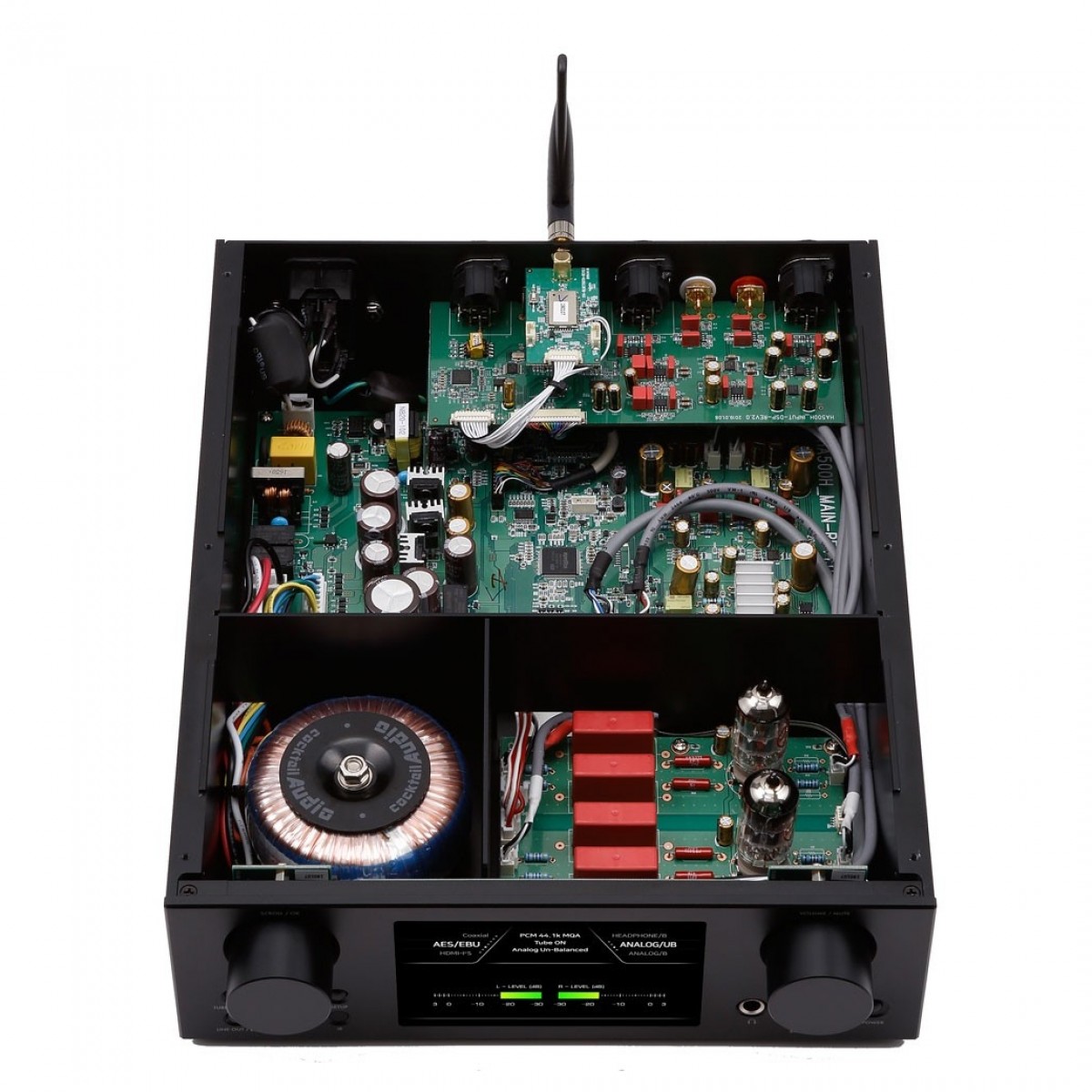

Equipped with two(2) Sabre³² ES9018K2M DAC(one DAC per channel), additional multicore microcontroller for high performance USB Audio DAC, completely isolated circuit design for analogue and digtial section with customised SMPS and Toroidal Transformer and high quality aluminium enclosure crafted precisely by CNC machine with beautiful glass-sanding finish, the HA500H will be Reference Level Hybrid Headphone Amplifier, DAC, Pre-Amplifier and Asynchronous USB DAC for audiophiles



• Hybrid(Vaccum Tubes & Solid State Electronics) Headphone Amplifier
• Hybrid Premium Digital to Analog Converter
• Pre-Amplifier
• Asynchronous USB DAC

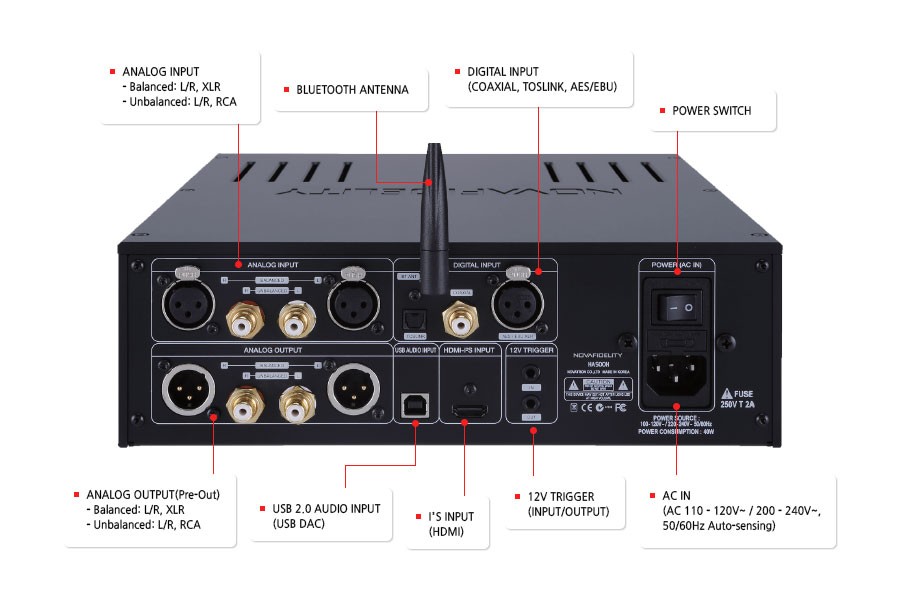

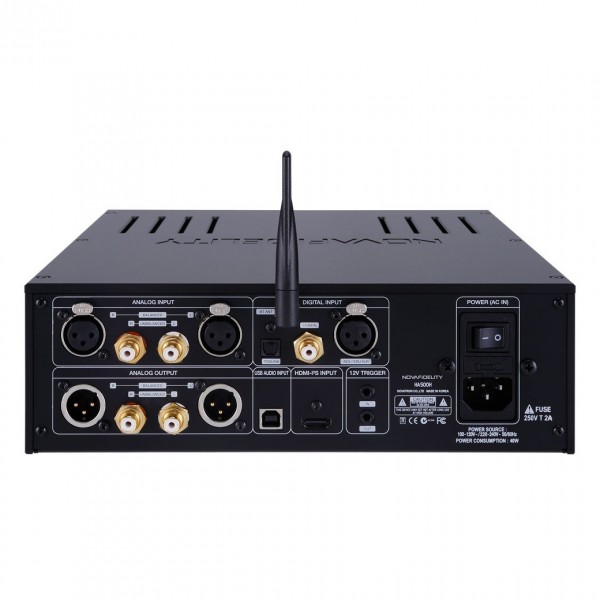

Input Specification

Analog	Unbalanced (RCA) - Input impedance: 47K ohm, Default 2Vrms (controllable 1 ~ 4Vrms Balanced (XLR) - Input impedance: 47K ohm, Default 4Vrms (controllable 2 ~ 8Vrms)
Digital	COAXIAL x 1 - Sample Rate: up to 192Khz Toslink x 1 - Sample Rate: up to 192Khz AES/EBU x 1 - Sample Rate: up to 192Khz
I²S	HDMI x 1 - Native DSD256, DoP(Max DSD128), PCM up to 384Khz, MQA
Bluetooth Input	Bluetooth 4.2 - Profile: AVRCP/A2DP, Format: SBC, aptX, AAC, MP3
USB DAC Audio	USB B Type x 1 - USB Audio Class 2.0, Support up to PCM 32Bit/384Khz, Native DSD256, MQA384Khz

DAC Specification

DAC Performance - Sabre³² ES9018K2M Dual DAC (One per each channel)	Sabre³² ES9018K2M Dual DAC Balanced Line Out( XLR x 2) Dynamic Range: 130dB(Max 4Vrms/8Vrms, Stereo) THD+N:0.0004% Unbalanced Line Out (RCA x 2))Dynamic Range: 130dB (Max 2Vrms/4Vrms, Stereo) THD+N:0.0004%

Analog Balanced Line Out (XLR) Specification

Rated Output Level(High/Low)	High - 8Vrms / Low - 4Vrms
Frequency Response	10Hz ~ 80KHz: +/- 0.1dB 20Hz ~ 20KHz: +/- 0.01dB
THD+N @ 1KHz(20Hz ~ 20KHz)	< -105dB (< 0.00056%)
Channel Separation	-110dB
Signal-to-Noise Ratio	< -113dB

Analog Unbalanced Line Out (RCA) Specification

Rated Output Level(High/Low)	High - 4Vrms / Low - 2Vrms
Frequency Response	10Hz ~ 80KHz: +/- 0.1dB 20Hz ~ 20KHz: +/- 0.01dB
THD+N @ 1KHz(20Hz ~ 20KHz)	< -105dB (< 0.00056%)
Channel Separation	-110dB
Signal-to-Noise Ratio	< -112dB

Headphone Balanced Output Specification

Rated Output Power	600 ohm, 485mW per CH, 120mW per CH 16 ohm, n/a, n/a
Frequency Response	10Hz ~ 80KHz ±0.5dB 10Hz ~ 80KHz ±0.15dB
THD+N@1KHz(20Hz ~ 20KHz)	0.001% (-100dB) 0.0012% (-99dB)
Signal-to-Noise Ratio	< -111dB < -113dB

Headphone Unbalanced Output Specification

Rated Output Power	125mW per CH 31mW per CH
Frequency Response	10Hz ~ 80KHz ±0.5dB 10Hz ~ 80KHz ±0.5dB
THD+N@1KHz(20Hz ~ 20KHz)	0.009% (-81dB) 0.0041%(-88dB)
Signal-to-Noise Ratio	< -106dB < -110dB

General Specification

Model name	HA500H

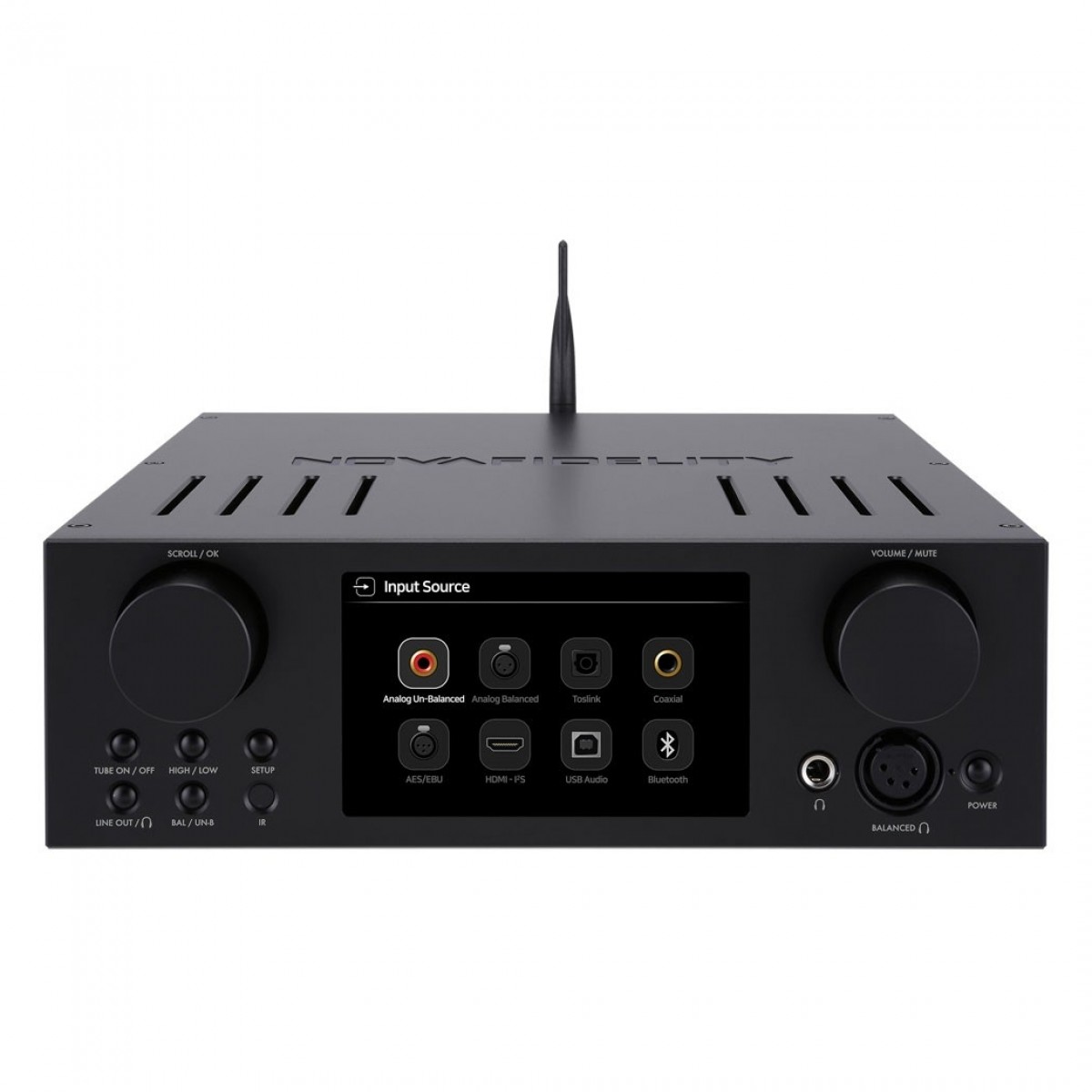

Display	5.0" TFT LCD(800 x 480 pixels)
Interface	Key & Jog(Volume/Scroll), IR Remote Control
Trigger	InputMax. 12V OutputMax 200mA, 12Vl
Headphone Out Pin Order	Balanced(XLR-4pin) - 1: L+, 2: L-, 3: R+, 4: R-, Shell: Ground Unbalanced(6.35mm) - Tip: L, Ring: R, Sleeve: Ground
Recommended Headphone Impedance	16 ohm ~ 600 ohm
Power Supply	AC 110-120V~ / 220-240V~, 50/60Hz Auto-sensing
Power Consumption	50W(Operation) 0.5W(Standby)
Material	Front, Body, Top, Knob -High quality and beautiful glass-sanding aluminium crafted by CNC Rear, bottom - High quality steel
Dimensions H x W x D	Without feet - 85 x 270 x 333mm With feet - 90 x 270 x 333mm
Weight	6.9 Kg
