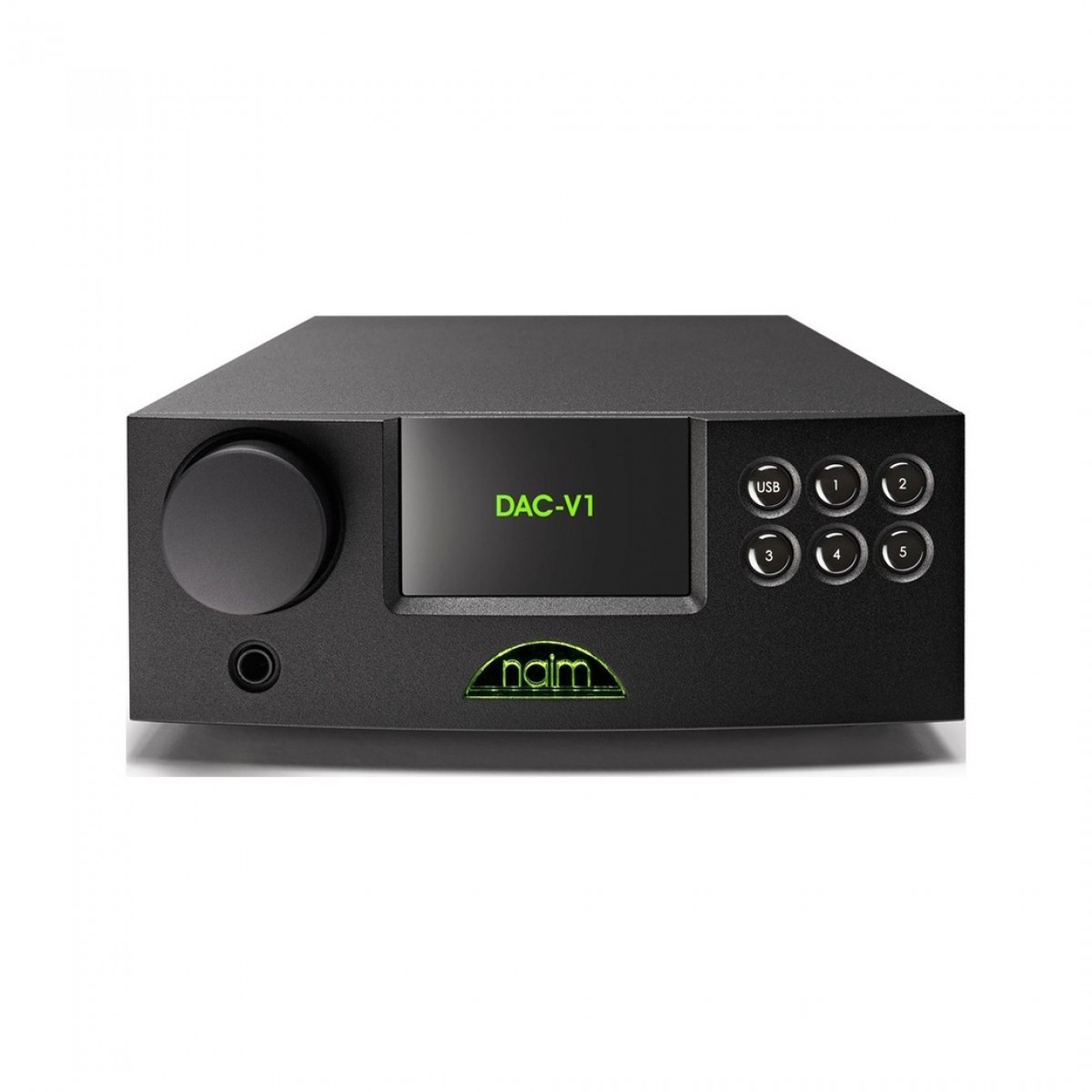

Naim DAC-V1 High-End Digital to Analogue Converter, Black
Do you have one of these to sell?
Key Features
- Selling your equipment to AV.com is straightforward
- Click "Trade-in your equipment" above then answer some quick questions for a valuation
- We'll arrange to collect the item from you so its journey to us is fully insured
- Once we receive your equipment, we'll let you know
- When the item has been checked and verified, within a few days you'll get paid
Selling Your Naim DAC-V1 High-End Digital to Analogue Converter, Black
Trade in your Naim DAC-V1 High-End DAC with AV.com. Opting for a trade-in can be a wise choice if you're looking to keep pace with the evolving landscape of digital audio technology. The Naim DAC-V1 is renowned for its precise sound reproduction and detailed audio output, but advancements in digital-to-analogue conversion technology may offer you newer features or more tailored audio solutions for your specific needs. Consider exchanging it for the latest generation of DACs or perhaps an all-in-one streaming amplifier that integrates DAC capabilities with streaming functions, providing a more versatile and streamlined audio system setup. With AV.com, the trade-in process is made straightforward, ensuring you can easily upgrade your audio equipment to match your current listening preferences and future ambitions.
Product Ref: 292583
Full Description
"Bold, punchy and precise, and now supports DSD – Naim’s best ever DAC just got even better...."
Convert the ordinary to extraordinary with Naims newest DAC. It is perfectly optimised for modern digital listening. It features an asynchronous USB input – ideal for getting stunning sound quality from your computer. DAC-V1’s single-ended class-A headphone amplifier affords it added versatility. The output stages of this amplifier are kept as pure as possible, ensuring outstanding sound quality for headphone listening. The DAC-V1 is now DSD compatible and able to play 64 (2.8MHz sample rate) and 128 files (5.6MHz sample rate); the upgrade required significant optimisation of the core DSP code which has also improved sound quality.
The DAC-V1’s compact size makes it perfectly suited as a desktop companion to your Mac or PC, but its exceptional musicality means it will complement our standard-width hi-fi components just as well. Combine it with our UnitiServe hard disk music server and its matching NAP 100 power amplifier and you’ll create a stunning hi-fi system from just three compact boxes.
Digital audio isn’t just about the data – 0s and 1s – and ensuring that each sample value is accurately converted into a corresponding output voltage. Also vital to achieving the highest fidelity is ensuring that each successive sample is reproduced at a precise time interval from those around it. If that time interval varies – an effect known as jitter – then the output waveform will be distorted. To prevent this, the master clock that controls the process should, ideally, be placed right next to the digital to analogue converter circuitry, not remote from it. Asynchronous mode USB provides for this because it allows data to be ‘pulled’ from the source as required, whereas in other modes the data is ‘pushed’ down the interface under control of the far inferior and
The single-ended Class-A headphone amplifier of the DAC-V1 cleverly uses the pre-amp output amplifier for headphone drive. The moment headphones are plugged in, the output current drive is automatically turned up five times to give dynamic drive for all headphone impedances. The amplifier runs from a high voltage power supply so has the ability to drive high impedance headphones with the voltage swing they require for open and dynamic sound. The result is the audio stages are kept as simple and pure as possible for both normal and headphone modes.
Key Features
- High-speed asynchronous USB input up to 24bit/384kHz
- Five S/PDIF inputs for digital sources like gaming consoles, set-top boxes and hard disk servers
- Selectable fixed or variable analogue outputs (DIN or RCA)
- Naim Audio digitally controlled analogue volume control for performance and precision 40bit SHARC DSP chip handling filtering and oversampling
- Single-ended class-A headphone amplifier output
Specifications

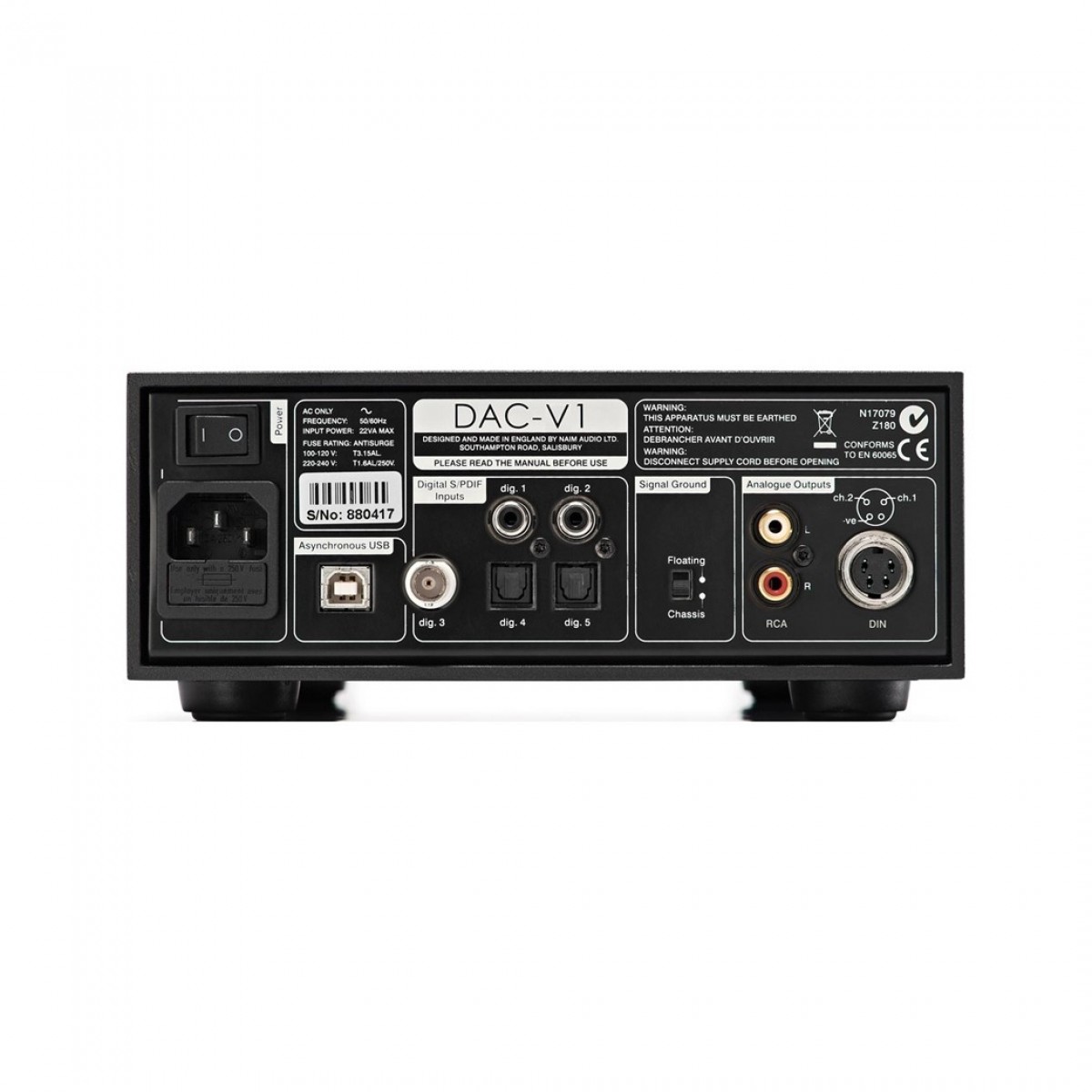

Audio Inputs
| Digital | 5 x S/PDIF | 1 x Coaxial BNC | 2 x Coaxial RCA | 2 x Optical TOSLINK |
|---|---|
| USB | 1 x asynchronous USB (type B socket) |
Audio Outputs
| Analogue | 2 (RCA and DIN) Variable Pre-amp Output, Line Output Fixed: 2.1V RMS |
|---|---|
| Output Impedance | <10Ω |
| Line Output | Variable or 2.1V RMS fixed |
| Load Impedance | 10kΩ (min) |
| Headphone Output | 1⁄4 inch (6.35mm) TRS Socket |
| Frequency Response | 10Hz – 20kHz, +0.1/-0.5dB |
| THD | <0.002 |
Connectivity
| Remote Control | Infra Red (RC5) |
|---|
Sample Rates Supported
| S/PDIF | 32kHz - 192kHz (up to 24bit) |
|---|---|
| USB | 44.1kHz - 384kHz (16 to 24bit) |
User Control
| Front Panel | Front panel buttons and touch-sensitive logo mute function |
|---|---|
| IR Input | Front panel |
| Hand Held | Remote handset |
Operating System
| Windows | Windows 7 and 8 (up to 24bit/348kHz), Custom driver available |
|---|---|
| Mac OSX | OSX 10.7 and above (up to 24bit/384kHz) |
Power
| Supply Voltage | 115V or 230V, 50 or 60Hz |
|---|---|
| Power Consumption | <17VA (max.) |
Physical
| Dimensions (HxWxD) | 87 x 207 x 314 mm |
|---|---|
| Weight | 4.3 kg |
| Supplied With | Power-Line Lite mains cable (UK denominations only) | Remote Handset |
