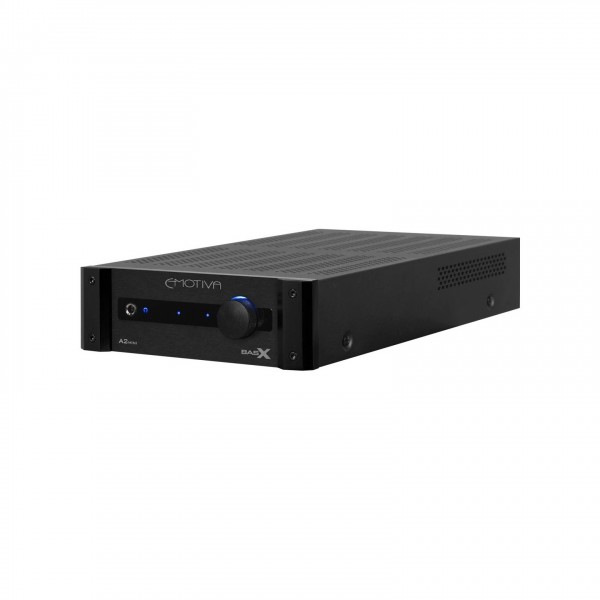

Emotiva BasX A2m Stereo Flex Amplifier

Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.

Video 1

prev next

~~RRP £379.00~~

Key Features

Stereo power Amp delivering 50 watts per channel
Unbalanced RCA inputs allow use with almost any preamp or processor
Versatile five-way terminals accept banana plugs, spade plugs or bare wire
A Class A/B output stage offers detailed, natural sound

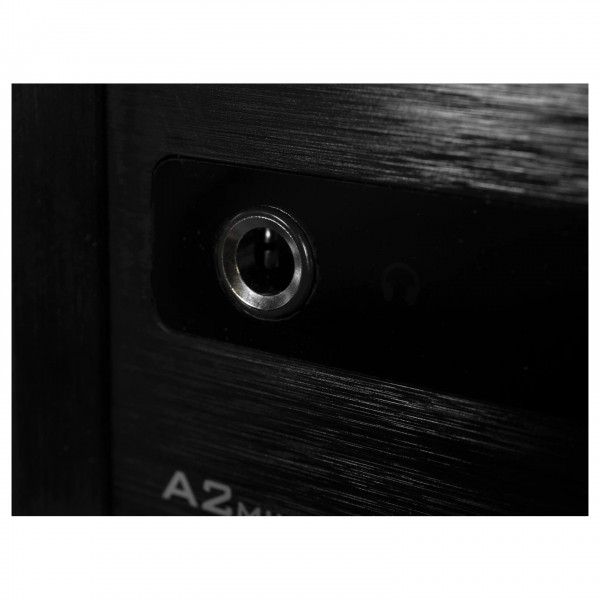

A full-sized 1/4 inch headphone jack offers compatibility with a variety of headphone types

Questions? Email [email protected] or call 01706 878444

Emotiva BasX A2m Stereo Flex Amplifier Overview

The Emotiva BasX A2m Stereo Flex Amplifier is perfect for situations where space is limited or multiple two-channel amplifiers will be used to power multiple zones or sets of height and surround speakers. 50 watts per channel into 8 ohms and 90 watts per channel into 4 ohms have a rated THD+N of less than 0.1% and an S/N ratio of 112dB. A switch on the rear panel allows you to utilise the A2m as a power amplifier with fixed gain or as an integrated amplifier with front-mounted volume control. A Headphone output enables amplification for the most demanding of headphones including Planar headphones. Sound will be smooth, natural and detailed with any audio system for any type of music.

Product Ref: 227143

Full Description

View Full Description

Flexible connections

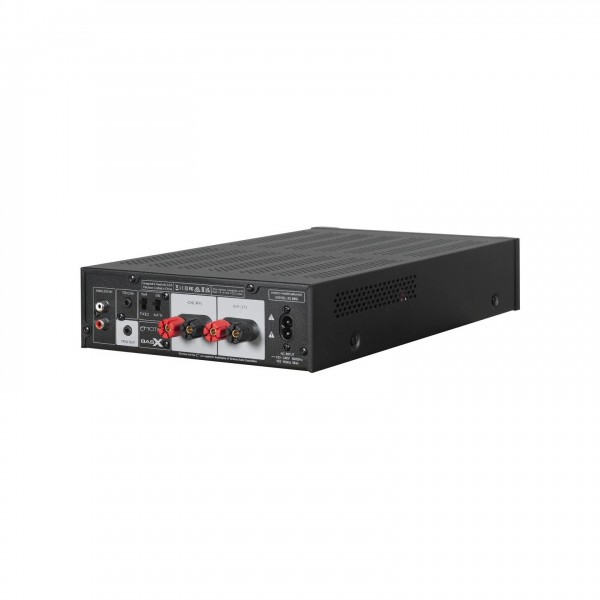

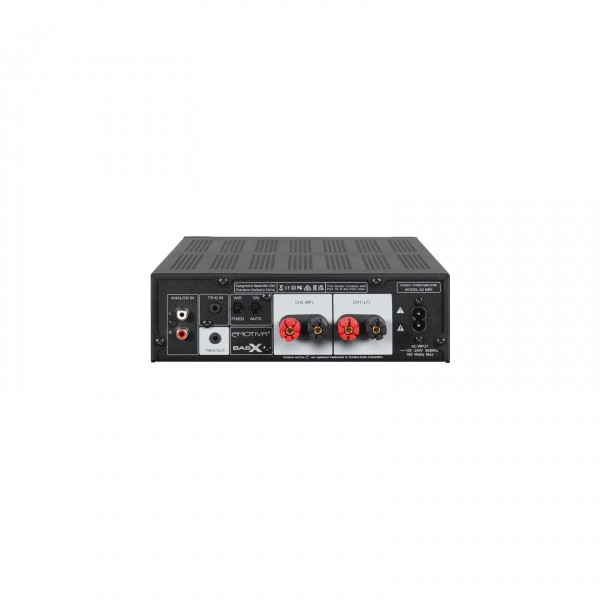

The BasX amplifier series is designed to be versatile and work in just about any system. To that end, Emotiva uses unbalanced inputs via industry-standard RCA connectors and accepts all standard unbalanced interconnects. Five-way speaker binding posts allow you to use a wide range of cable types with various terminations including bare wires, lugs, or banana plugs. A remote trigger input and output allow you to control your system with trigger-enables equipment.

Class A/B amplifier stage

A lot of power amps on the market opt for digital amplification stages. Emotiva does it differently. An analogue Class A/B amplification stage retains your favourite music's emotion and warmth. Short signal paths and a high current ensure a sound that is optimised, smooth and stable with minimal distortion.

Premium construction

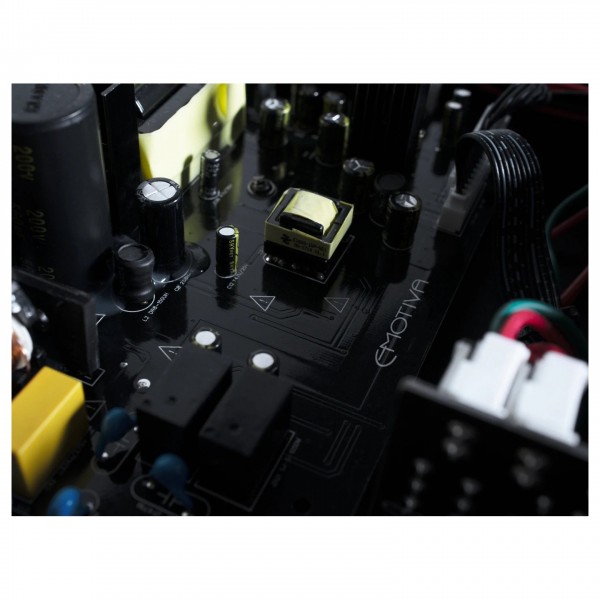

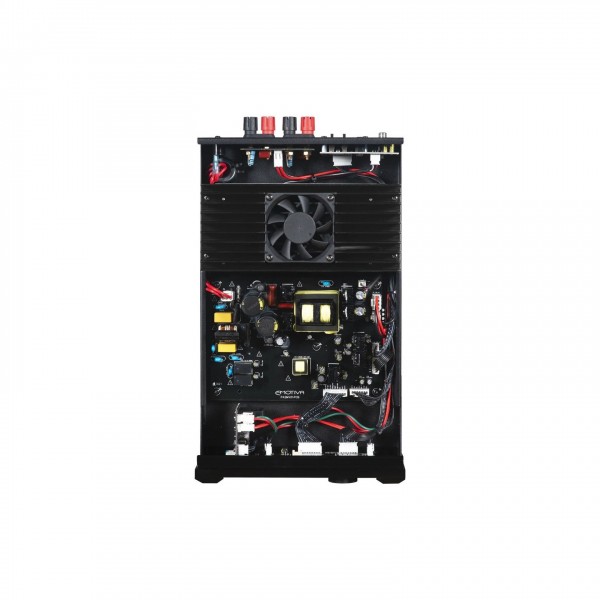

Trouble-free service is assured through the use of top quality parts and components. The steel chassis offers durable longevity and rugged good looks that will blend into any set-up. Double-sided FR4 circuit boards, with plated-through holes, help optimise signal paths and minimize the need for point-to-point wiring. A heavy-duty linear power supply with an oversized toroidal power transformer offers to drive for the most demanding speakers.

Features

Class A/B output offers natural, detailed sound
Low noise, wide bandwidth design lets you hear everything your Hi-res sources have to offer
A heavy-duty linear power supply with an oversized toroidal power transformer delivers drive to the most demanding speakers
A heavy steel chassis delivers good looks and rugged longevity

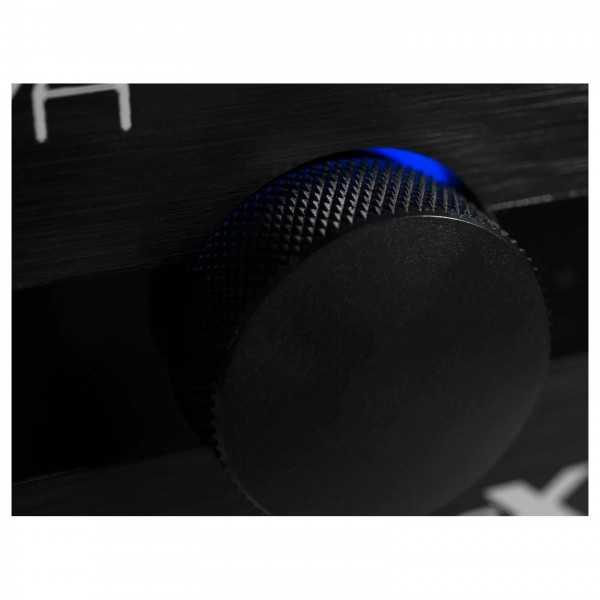

Option of fixed or variable input level with convenient front panel Volume control
Unbalanced inputs via industry-standard RCA connectors
Five-way speaker binding posts are compatible with a wide range of speaker cables with bare wires, lugs, or banana plugs.
Unique high power headphone output which delivers exceptional performance with both low and high impedance headphones as well as difficult to drive low efficiency planar
Remote trigger enables control from external equipment
Designed to operate on either 115 VAC or 230 VAC at 50/60 Hz with automatic detection
Audiophile-grade fault protection protects your components from common faults

Audio Specifications

Power Output (two channels driven)	50 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms. 90 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power Output (headphone output; normal mode)	8 Ohms: 60 mW / channel 33 Ohms: 200 mW / channel 47 Ohms: 250 mW / channel 150 Ohms: 430 mW / channel 300 Ohms: 440 mW / channel 600 Ohms: 350 mW / channel
Power Output (headphone output; direct drive mode - requires internal jumper; USE WITH CAUTION)	8 Ohms: 50 watts / channel 33 Ohms: 12 watts / channel 47 Ohms: 8.5 watts / channel 150 Ohms: 2.6 watts / channel 300 Ohms: 1.3 watts / channel 600 Ohms: 0.6 watts / channel
Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.07 dB).
Broad Band Frequency Response	10 Hz to 80 kHz +0/-1.8 dB.
THD + noise	112 dB; ref rated power; (A-weighted).
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load)	> 500.
Input Sensitivity (for rated power; 8 Ohm load)	Fixed gain mode: 0.7 V / 29 dB. Variable gain mode: 0.5 V / up to 32 dB.
Input Impedance	27 kOhms.

Input and Output Connections

Input Connections	Unbalanced (RCA); one each per channel.
Speaker Output Connections	Audiophile grade 5-way binding posts.
Headphone output (front panel)	Full-sized ¼” stereo headphone jack.
Trigger	Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required. Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

Requirements	115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators

Standby	Push button.
Status LEDs	One per channel; blue. (Status LEDs change to red to indicate a fault condition.)
Standby LED	Amber.

Rear Panel Controls

AC Power Switch	slide switch selects between On and Auto-On modes.
Gain switch	Slide switch selects between Variable Gain and Fixed Gain modes.

Internal settings

Type	One pair of internal jumpers which can be used to bypass the series dropping resistors to enable full output power to be routed directly to the headphone output (shipped with jumpers OFF).

Protection

Protection	The BasX A6 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Dimensions

Dimensions	209.5mm wide x 76.2 high x 362mm deep (not including connectors).
Weight	3.4kg (unboxed) 4.8kg (boxed)

General

Product code	BASX A2m
