Key Features

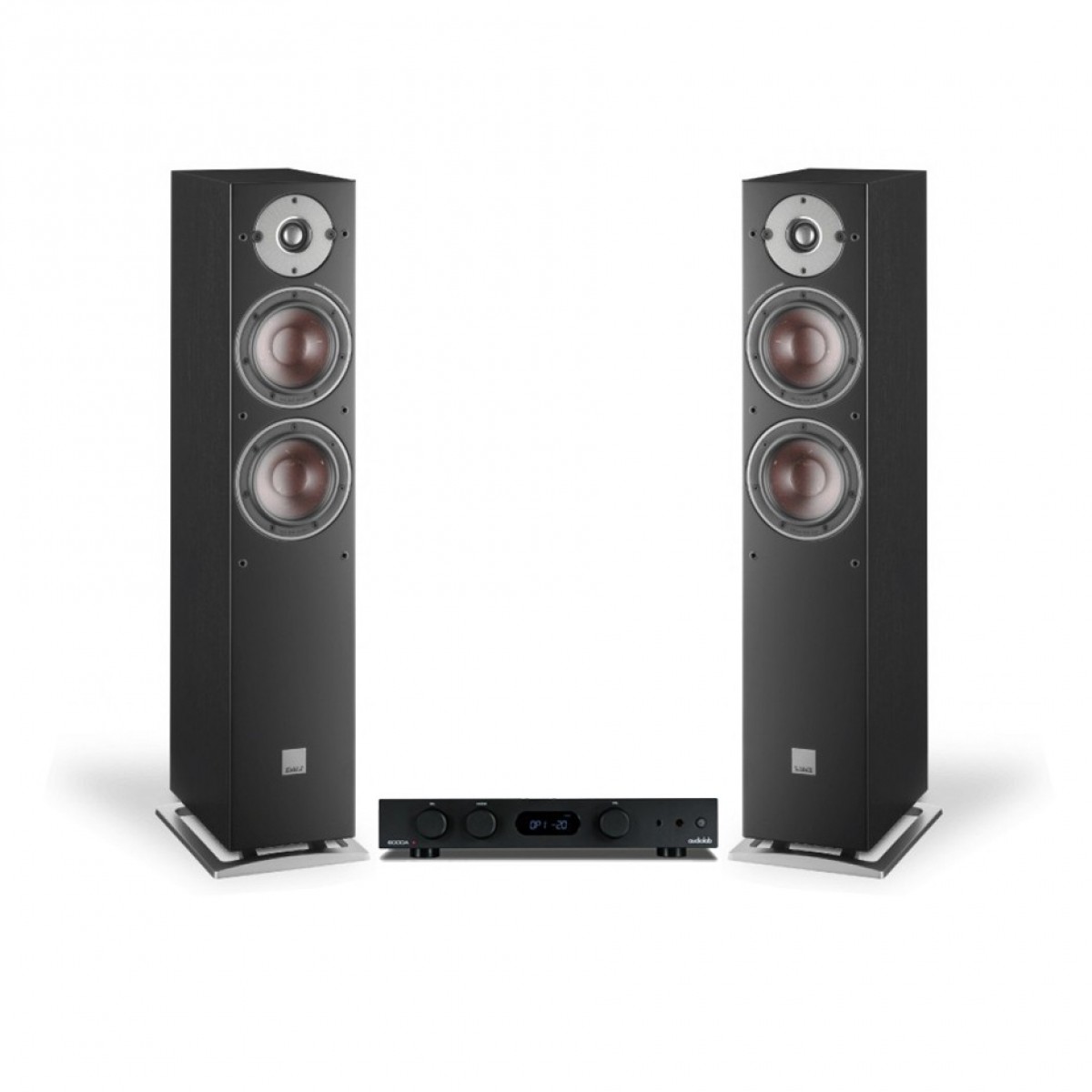

The Audiolab 6000A Stereo Amp & SPEKTOR 6 Speakers, HiFi Package is an all-in-one solution with what you need to get you started on your hi-fi journey with an amplifier, speakers, and cables all included. The OBERON 5 is the ultimate performer. A compact and elegant floor-standing speaker, housing 2 x 5" wood fibre SMC-based woofers and the series' wide bandwidth 29 mm ultra-lightweight soft dome tweeter. This slim floor-stander will surprise with its ability to deliver a deep firm bass. Together with the clear and well-defined mid-range and the airy high frequencies, this speaker is at home with any music or movie soundtrack.

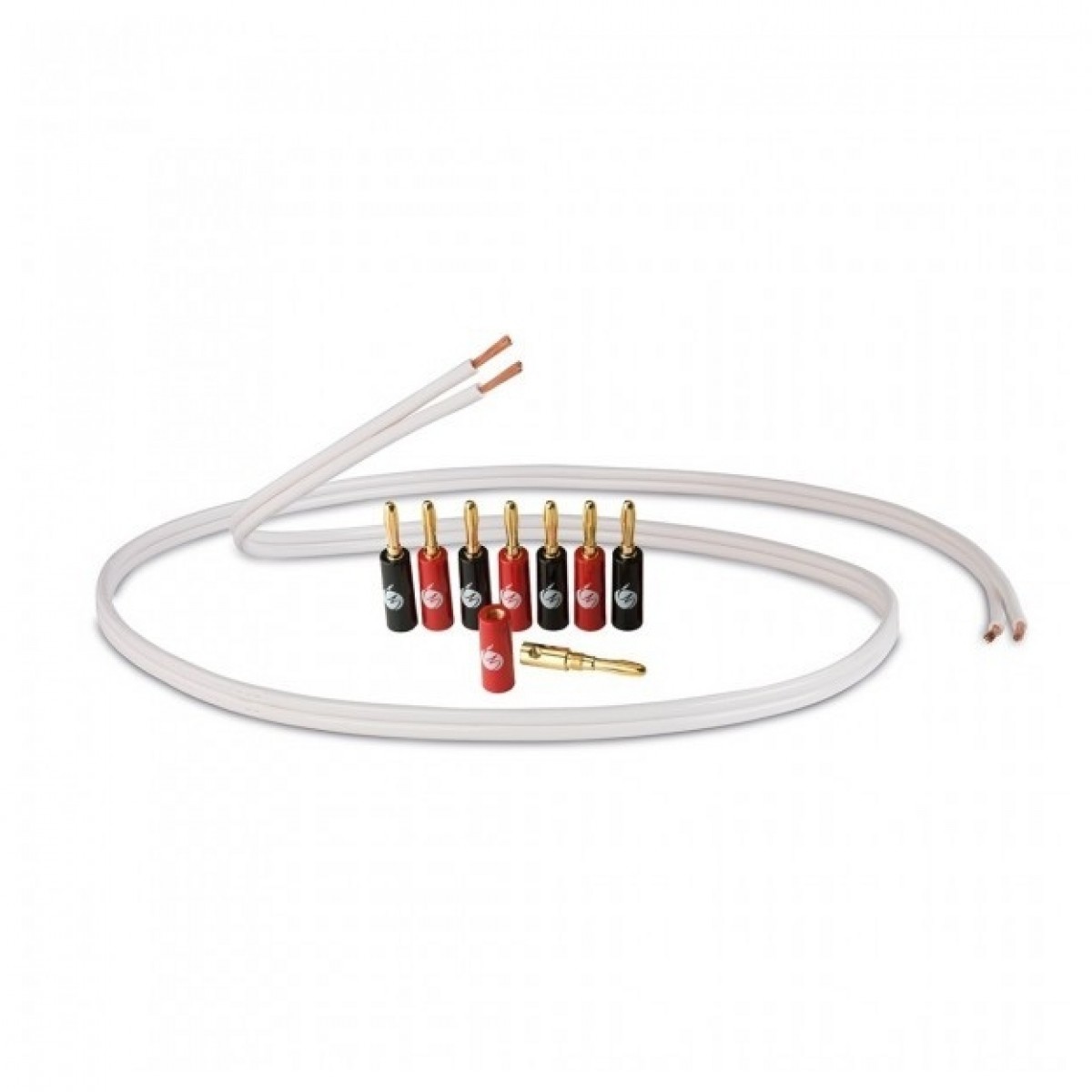

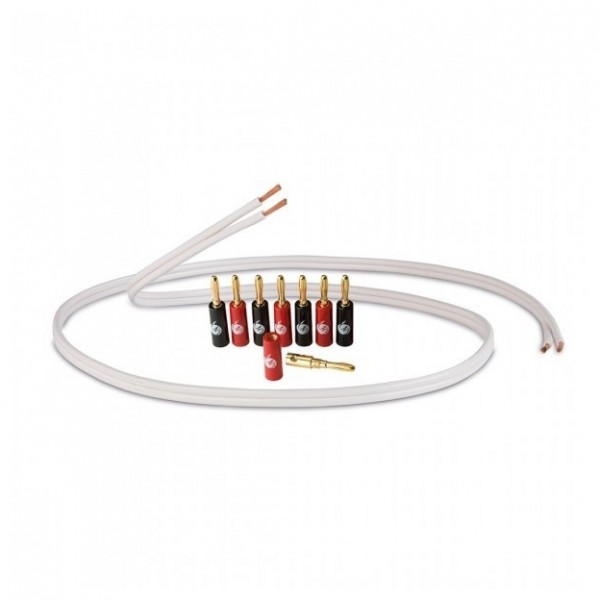

The 6000A is the latest in a long time of Audiolab integrated Amplifiers with a pedigree that stretches back to the very first 8000A that made Audiolab an overnight sensation. An amplifier remains the beating heart of any high-performance audio system, but a truly versatile integrated amp needs to cover many bases. digital and analogue sources, wireless connectivity for portable devices, a phono stage to cater for vinyl playback, and amplification for headphones and speakers. That's a lot to pack in, whilst keeping performance high and the price tag affordable and yet, that's exactly what the 6000A delivers. The Fisual / QED Hi-Fi Cable Pack is also included to get you up and running straight away.
Product Ref: 228755

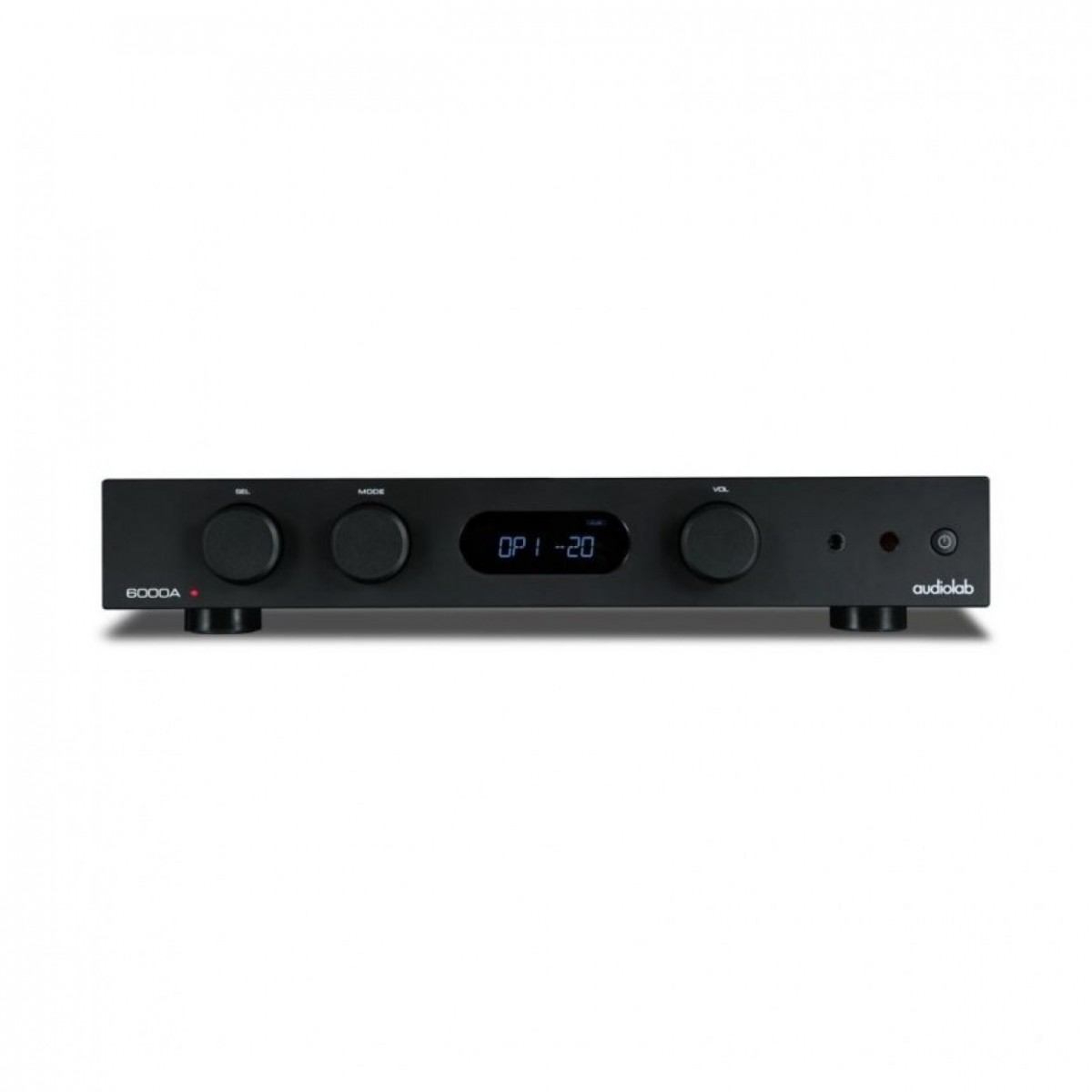

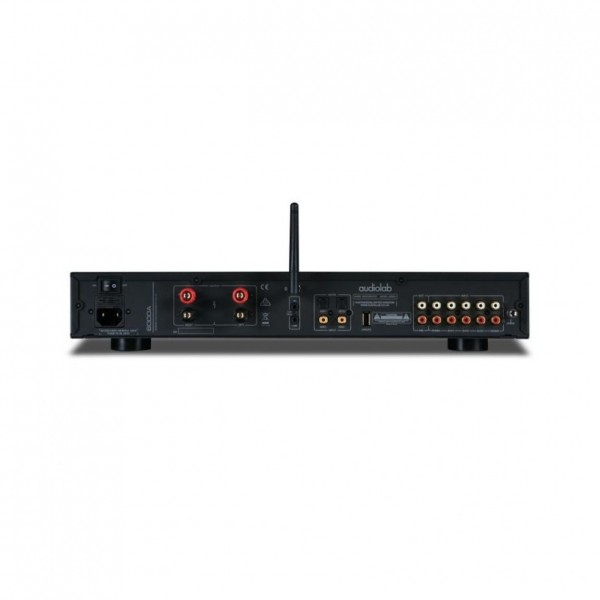

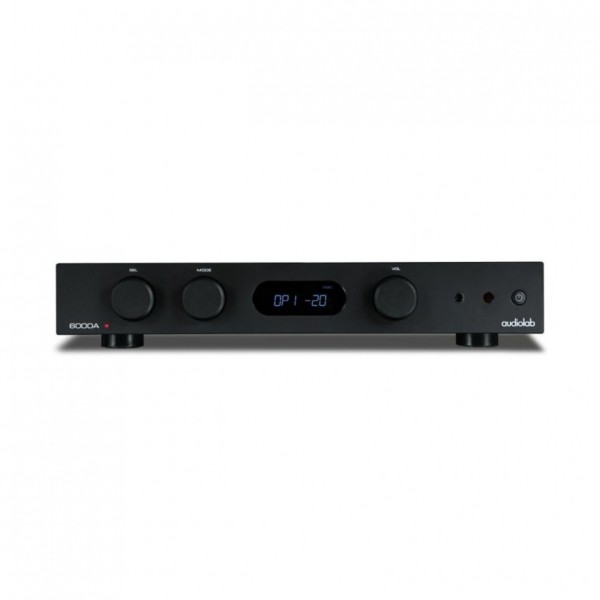

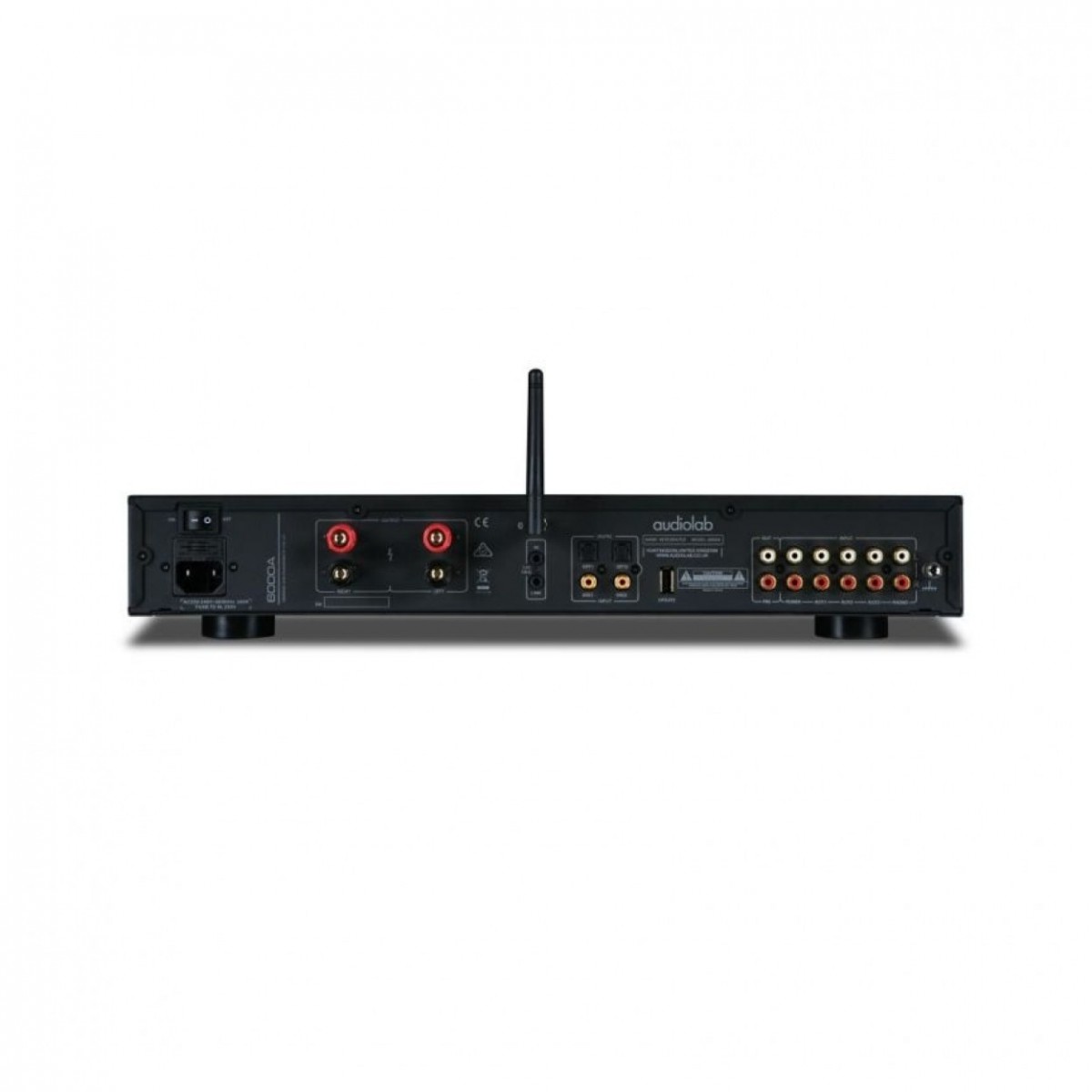

Outwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Much effort has been made to ensure the 6000A’s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
The 6000A’s discrete Class AB power amp stage delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
In recognition of the recent vinyl revival, Audiolab has included a phono stage for moving magnet phono cartridges – a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation. Similarly, an increasing number of people are using headphones for music listening, so Audiolab has incorporated a dedicated headphone amp with current-feedback circuitry.

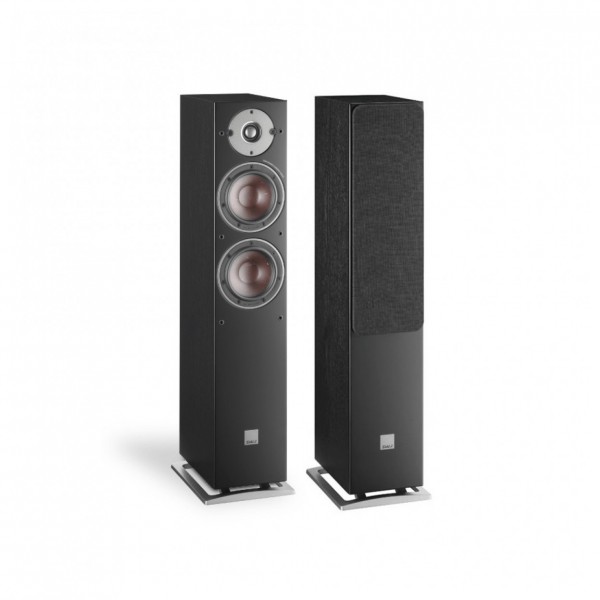

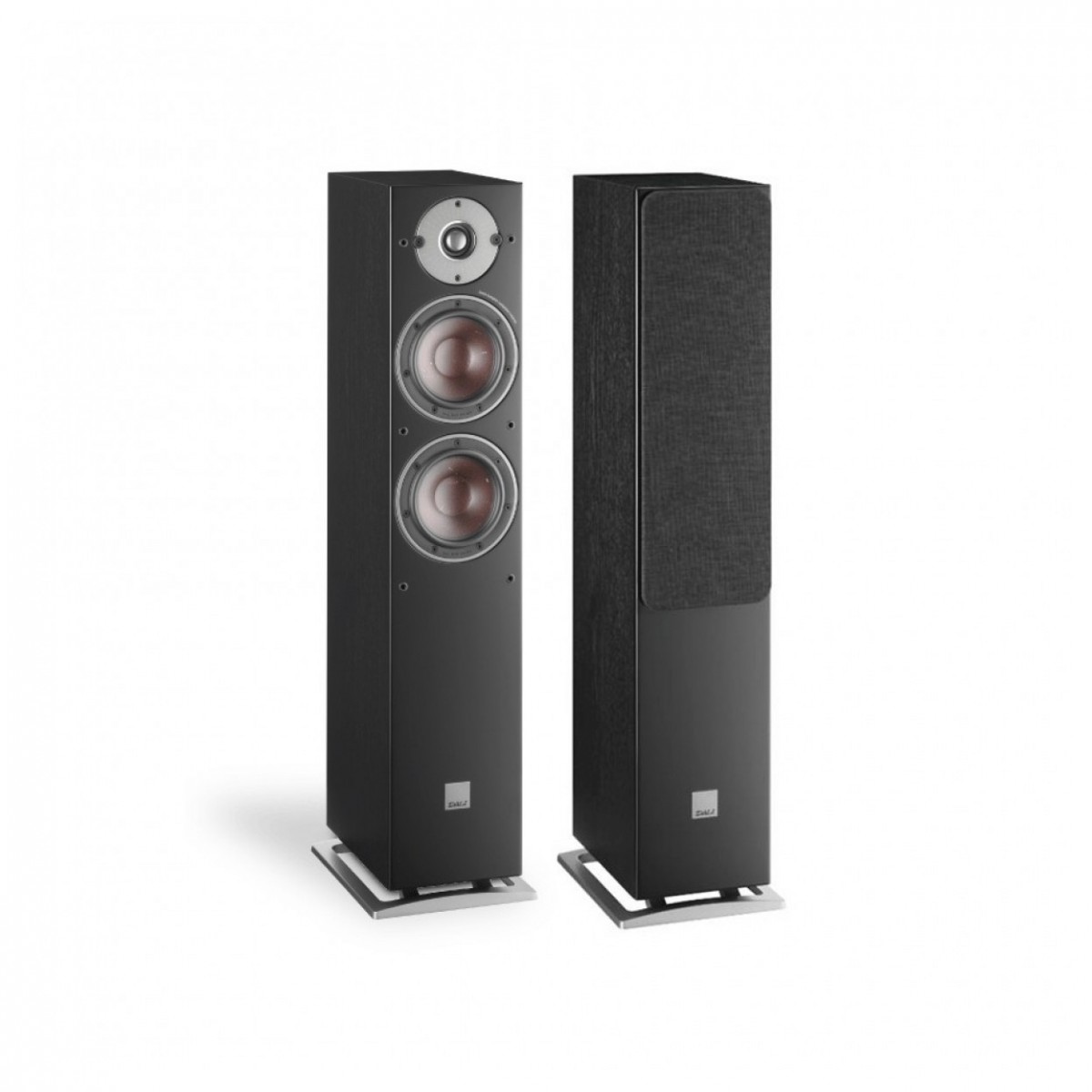

The OBERON 5 cabinet employs a very rigid construction, with solid bracings across the inside of the cabinet for reinforcement. This contributes to the stiffness and practically eliminates resonance within the cabinet. The cabinet housing of the OBERON 5 is constructed from high-density CNC machined MDF board - dressed in carefully selected high-grade vinyl. The bass ports are placed on the rear of the OBERON 5, optimising room integration by utilising the wall for improved bass performance. The elegantly shaped aluminium base gives the OBERON 5 a lighter look.
OBERON utilises a 29 mm ultra-light soft dome tweeter, the large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice coil motion to a precise minimum. The membrane is constructed based on an ultra-light wave weave fabric and is additionally optimised for a larger bandwidth in its lower frequency area. This ensures the optimal handover from the midrange woofer to the tweeter, creating a well-balanced, unforced and very coherent upper midrange.
OBERON 5 features a pair of 5.25" low-loss woofers that are optimised with a new wood fibre structured cone which is dedicated to reproduce the delicate midrange and bass frequency area - like every other driver made by DALI. It is constructed from a blend of fine grain paper pulp and reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.
DALI makes it easy to integrate your loudspeakers into any room. Both the driver materials and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern in the listening area. The same principles have been applied in the design of the crossover. An added benefit is seriously reduced harmonic distortion and frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.
The DALI OBERON series is available in four finishes: Black Ash, White, Dark Walnut and Light Oak. Matched with a matte black or white front baffle. The OBERON series introduces a brand new front grille design with rounded edges that add a lighter and contemporary visual look to the speaker series. 'Mountain Grey' is the standard grille supplied with the light finishes while Shadow Black is standard on the dark finishes. Marshmallow White is available as an accessory.
The use of SMC in the OBERON 5 greatly reduces mechanical distortion caused by hysteresis and eddy currents. These combined improvements in the magnet motor system results in a lowering of third order distortion. This allows the OBERON 5 to present longer listening pleasure, a relaxed midrange and a surprising amount of detailing for the class.
Gain (Max) | +8dB (Line) +55dB (Phono MM) |
---|---|
Input Sensitivity | 720mV (Line, Volume = 0dB) 3.1mV (Phono MM, Volume=0dB) |
Input Impedance | 10K (Line) 47K//100pF (Phono MM) |
Total Harmonic Distortion (THD) | 110dB (Line, A-weighted) |
D to A converter | ES9018K2M |
---|---|
Total Harmonic Distortion (THD) | 112dB (A-weighted) |
Digital Filters | Fast Roll-off , Slow Roll-off , Minimum Phase |
Gain | +29dB |
---|---|
Rated Max. Power Output | 2 X 50W (8 ohm, THD<1 ) 2 X 75W (4 ohm, THD<1 ) |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Input Sensitivity | 720mV |
Total Harmonic Distortion (THD) | 110dB (A-weighted) |
Max. Output Current | 9A |
Total Harmonic Distortion (THD) | < 0.01 (1kHz, 50mW) |
---|---|
Output Impedance | 2.35 ohm |
Load impedance | 20-600 ohm |
Standby Power Consumption | <0.5W |
---|---|
Power Requirements | 240V 50 - 60Hz 230V 50 - 60Hz 115V 50 - 60Hz 100V 50 - 60Hz |
Dimensions (mm) (W x H x D) | 445 x 65.5 x 300 |
Carton Size (mm) (W x H x D) | 512 x 467 x 146 |
Weight | 7.8kg (Net) |
Frequency Range (+/-3 dB) [Hz] | 39 - 26,000 |
---|---|
Sensitivity (2,83 V/1 m) [dB] | 88 |
Nominal Impedance [ohms] | 6 |
Maximum SPL [dB] | 108 |
Recommended Amplifier Power [W] | 30 - 150 |
Crossover Frequency [Hz] | 2,400 |
Crossover Principle | 2-way |
High Frequency Driver, Quantity | 1 x 29 mm |
High Frequency Driver, Diaphragm Type | Soft Textile Dome |
Low Frequency Driver, Quantity | 2 X 5.25" |
Low Frequency Driver, Diaphragm Type | Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 43 |
Connection Input | Single Wire |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 15 - 80 |
Dimensions With Base (HxWxD) [mm] | 830 x 162 x 283 |
Weight [kg] | 10.8kg |
Accessories Included | Manual / Rubber Feet / Spikes / Front Grille |
