SVS SoundPath Tri-Band Wireless Audio Adaptor
-
-
-
-
-
-
-
-
-
-
Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.
Key Features
- True stereo wireless adapter
- Eliminates messy cable clutter
- Wirelessly connects your subwoofers, speakers and more
- Quick and easy set-up enables immediate use
SVS SoundPath Tri-Band Wireless Audio Adaptor Overview
The SVS SoundPath Tri-Band Wireless Audio Adaptor is the perfect solution for a pristine wireless connection between your hi-fi components such as subwoofers, speakers and amplifiers without interruption. The tri-band wireless adapter automatically switches between 2.4 GHz, 5.2 GHz, and 5.8 GHz wireless bands to provide you with the most stable connection possible.
A clutter-free solution to wireless without compromised sound quality offered by standard wireless transmitter/receiver pairings passing up to pristine 16-bit/48KHz audio signal up to 130-feet with no noticeable delay. Perfect for those with busy wireless environments the Tri-Band prevents interruption from security cameras, Bluetooth devices, smart TVs, WiFi mesh networks, or other wireless devices.
Product Ref: 229184
Full Description
View Full DescriptionHow to setup

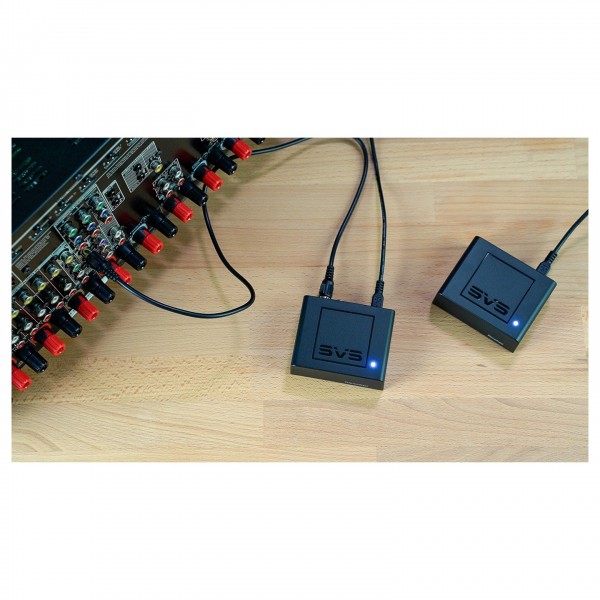

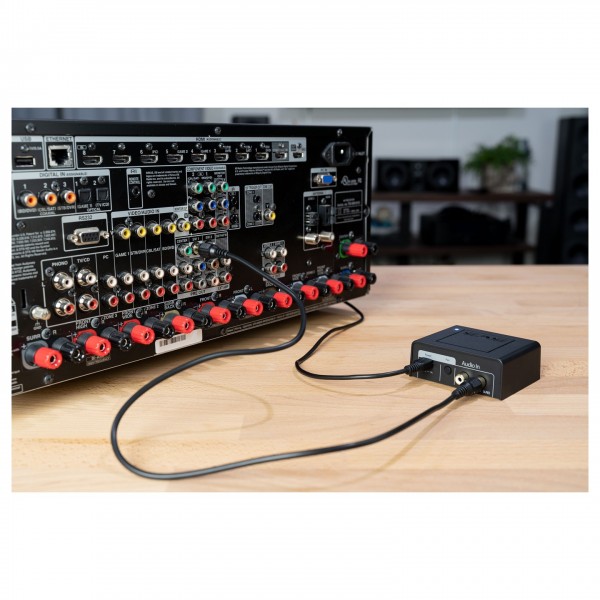

- Connect the transmitter to an AV receiver, TV or another audio source via RCA
- Connect the receiver to a subwoofer, powered speaker, power amplifier, or other line-level devices
- Make sure both the transmitter and receiver are receiving power (through included wall adapter or USB source)
- Wait a few seconds for the adapters to sync and you’re ready
- Up to three receivers can be paired to one transmitter to create a multi-room distributed audio system or for use with multiple powered subwoofers or speakers

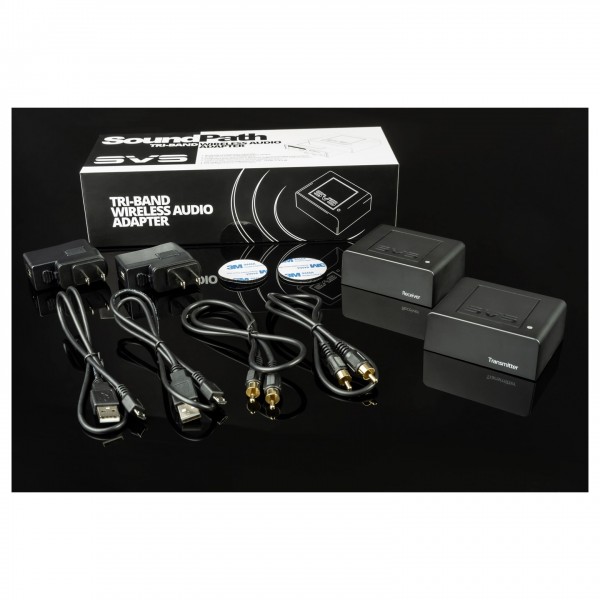

What's in the box
- Wireless Transmitter
- Wireless Receiver
- Two AC Power Adapters
- Two USB cables for the AC power adapter
- Two Mono RCA to Mono RCA cables
- Two Velcro
- Quickstart Guide

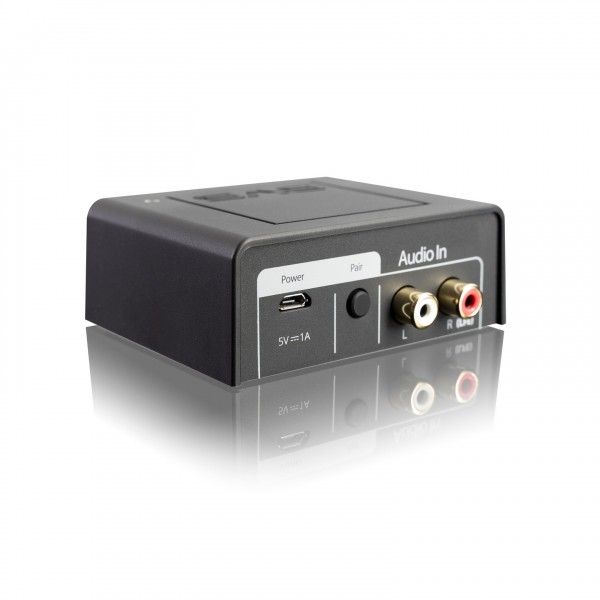

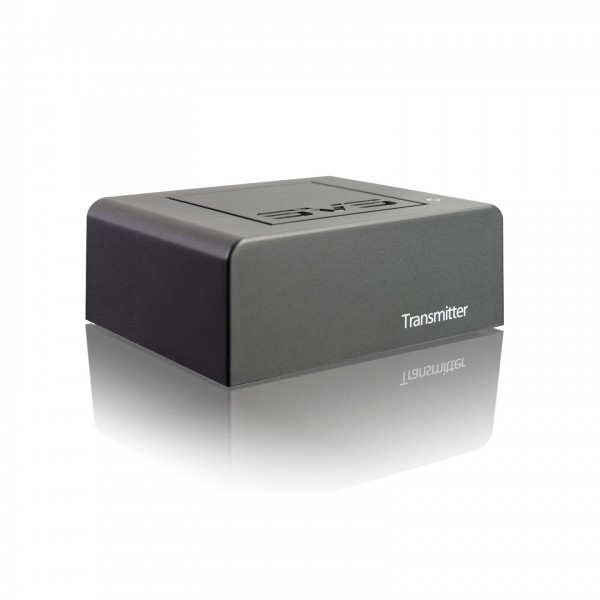

Transmitter
| Analog input level | Maximum 2Vrms |
|---|---|
| Minimum power | 5V @0.5A |

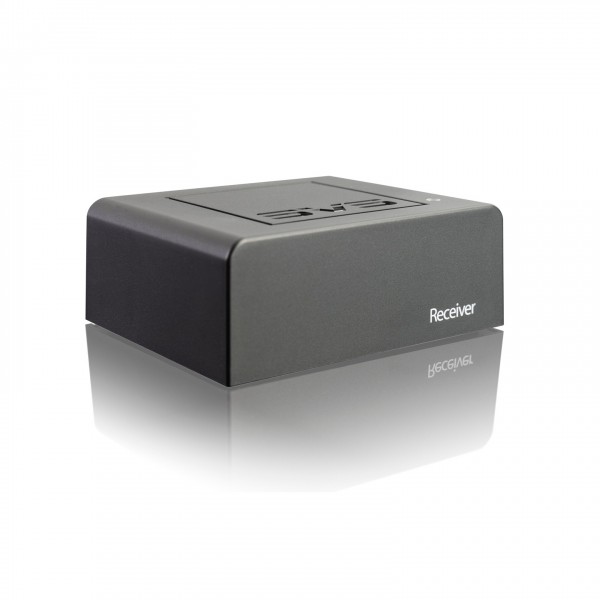

Receiver
| Analog output level | Maximum 1Vrms |
|---|---|
| Minimum power requirement | 4.75V @0.3A |
Three RF frequency ranges for each frequency band
| Band 1 | 2400-2483.5MHz |
|---|---|
| Band 2 | 5150-5250MHz |
| Band 3 | 5725-5875MHz |
Audio
| Sample Rate | 48kHz |
|---|---|
| THD+N | -70dB (10Hz – 20kHz) |
| S/N | +105dB (10Hz - 20kHz) |
| Cross-talk | >75dB @1KHz |
| Frequency Response | 6Hz – 20 kHz +/- 0.5 dB |
| Audio Latency | < 19ms |
| Transmission Range | 130’ (line of sight) |
Key Specifications
| Dimensions | W 3.15" (80mm) x D 2.36" (60mm) x H 1.02 (26mm) |
|---|---|
| Weight | 1.25 lbs |
| Product code | SVS-SoundPath-Tri-Adapter |
