Key Features
- Seven-channel amp, with 90W per channel
- BasX+ adds balanced XLR inputs alongside the standard unbalanced RCA
- Discrete Class A/B amplification for smooth, natural sound
- Flexible trigger and auto-on system integration options
- Audiophile-grade protection against shorts and faults

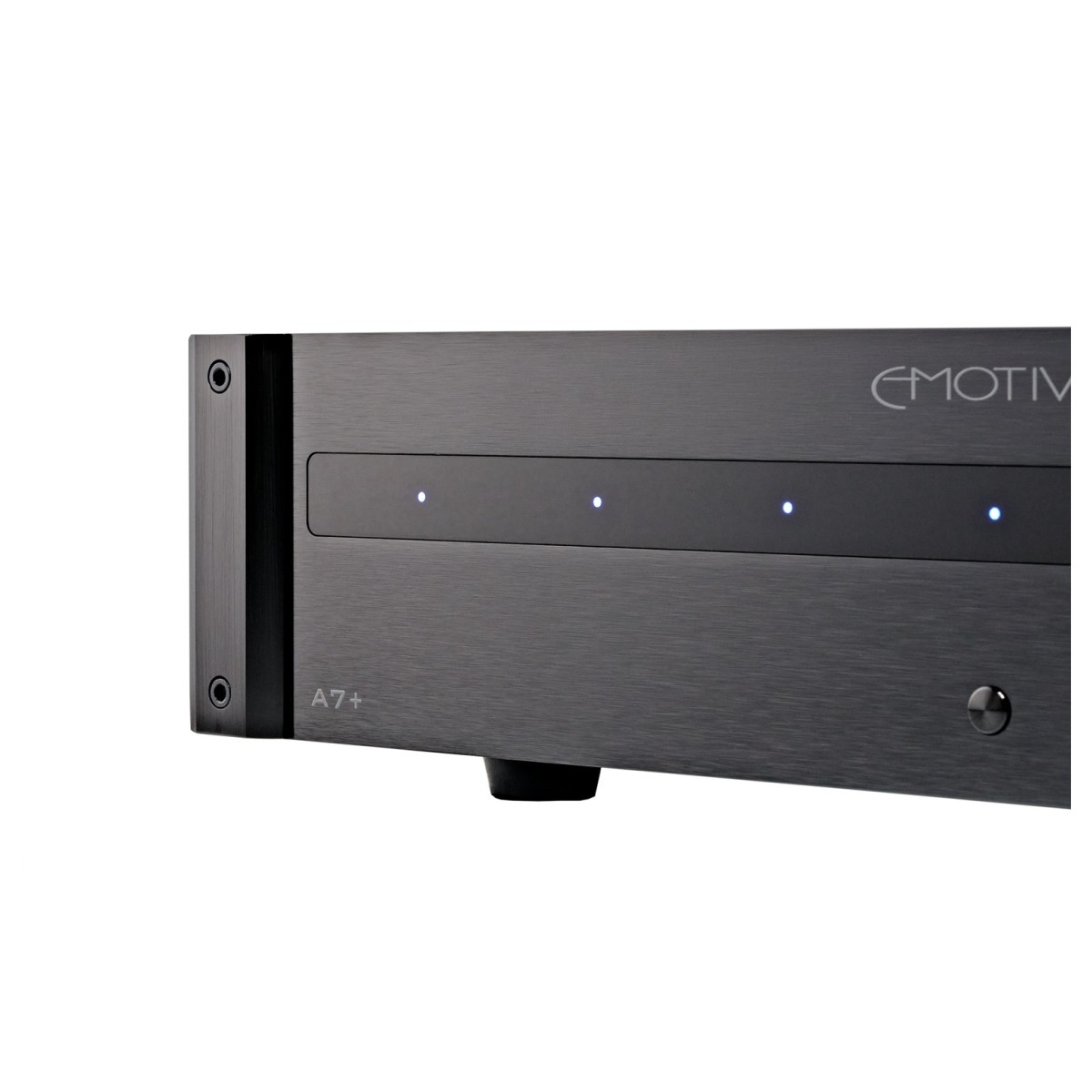

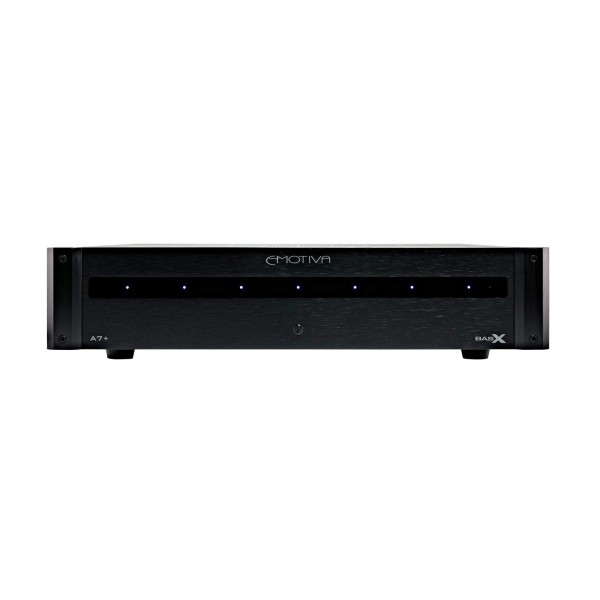

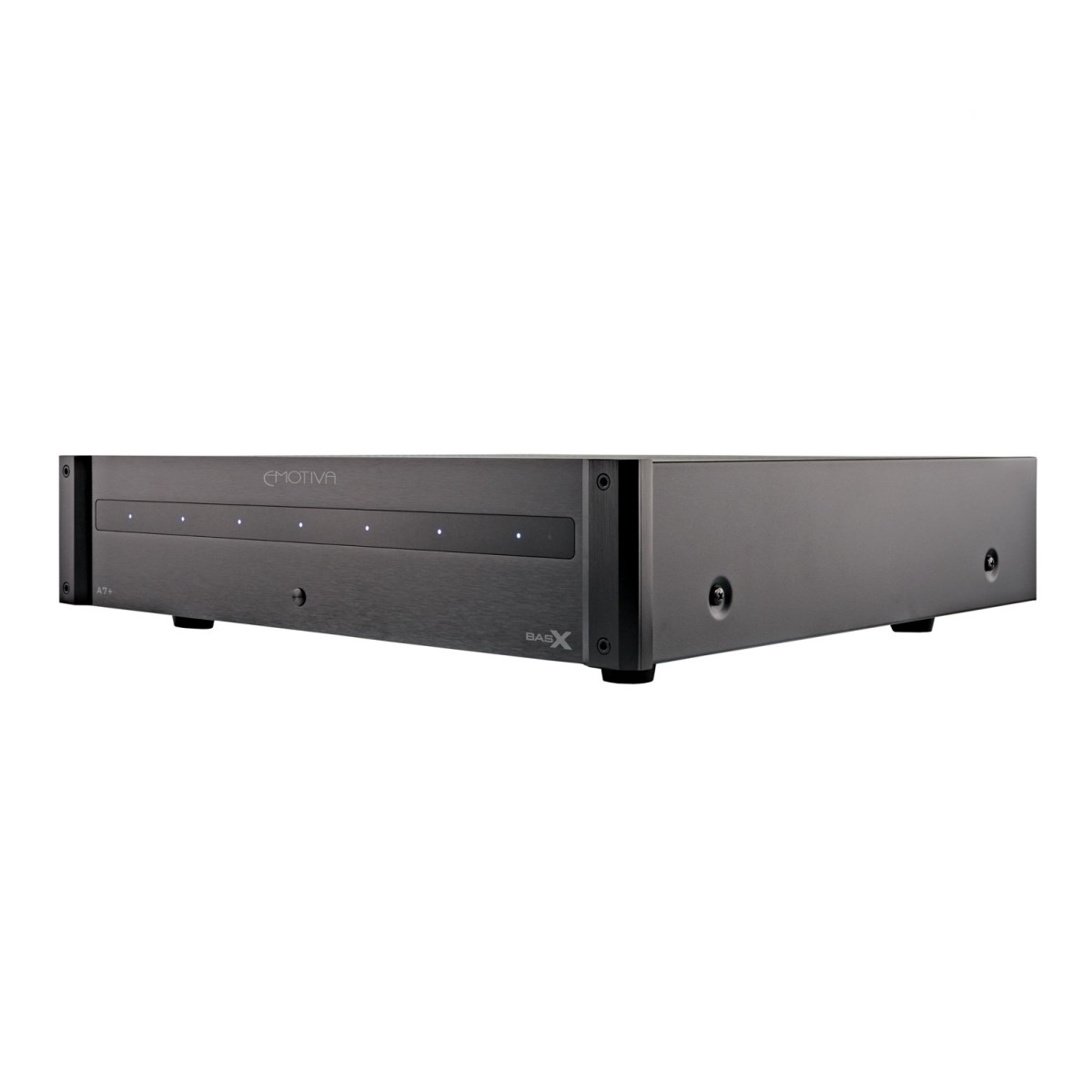

Emotiva BasX A7+ Power Amplifier, Black Overview
The Emotiva BasX A7+ Power Amplifier is ideal for home cinema enthusiasts building a 7.1 surround system or adding height channels to an existing setup. This seven-channel amplifier delivers 90 watts into 8 ohms or 125 watts into 4 ohms, with all channels driven. As part of the BasX+ line, it supports both RCA and XLR inputs per channel, so you can integrate it with studio-grade processors or standard AV gear.
The linear power supply with a high-current toroidal transformer ensures stable output, even at high volumes. It also includes 12V trigger and auto-sensing power supply, helping it switch on with your AV receiver or processor. It also features advanced fault protection, including safeguards against overheating, shorts, and ground faults. If you're expanding a Dolby Atmos setup or driving multiple zones, the BasX A7+ offers efficient, reliable power with simple connectivity.
Product Ref: 338325
Full Description
View Full DescriptionWhat's in the Box?
- Emotiva BasX A7+ Power Amplifier
- High-quality commercial AC power cable
- Trigger cable
- User Manual
Specifications
| Power output | 90 watts RMS per channel into 8 Ohms; all channels driven (20 Hz - 20 kHz, THD < 0.02%)125 watts RMS per channel into 4 Ohms; all channels driven (1 kHz, THD 1%) |
|---|---|
| Gain | 29 dB |
| Broad Band Frequency Response | 5 Hz - 80 kHz (+0 / -1.8 dB) |
| THD + Noise | < 0.02% (A-weighted, 1 kHz e 8 Ohms, rated power) |
| Signal-to-Noise Ratio | 112 dB (A-weighted, referenced to rated power)95 dB (A-weighted, referenced to 1 watt) |
| Rated Load Impedance | 8 Ohms |
| Minimum Load Impedance | 4 Ohms |
| Damping Factor | >500 (8 Ohms) |

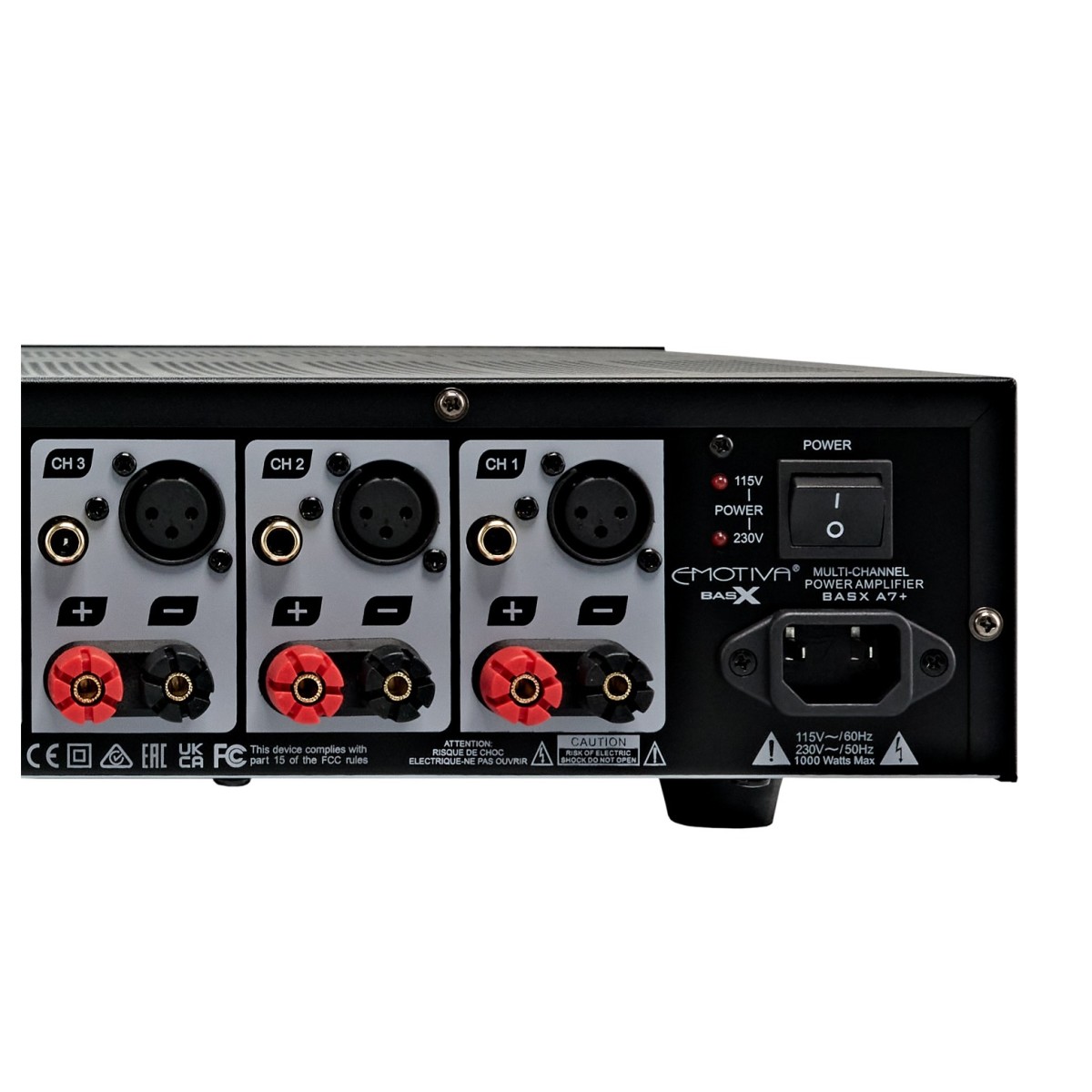

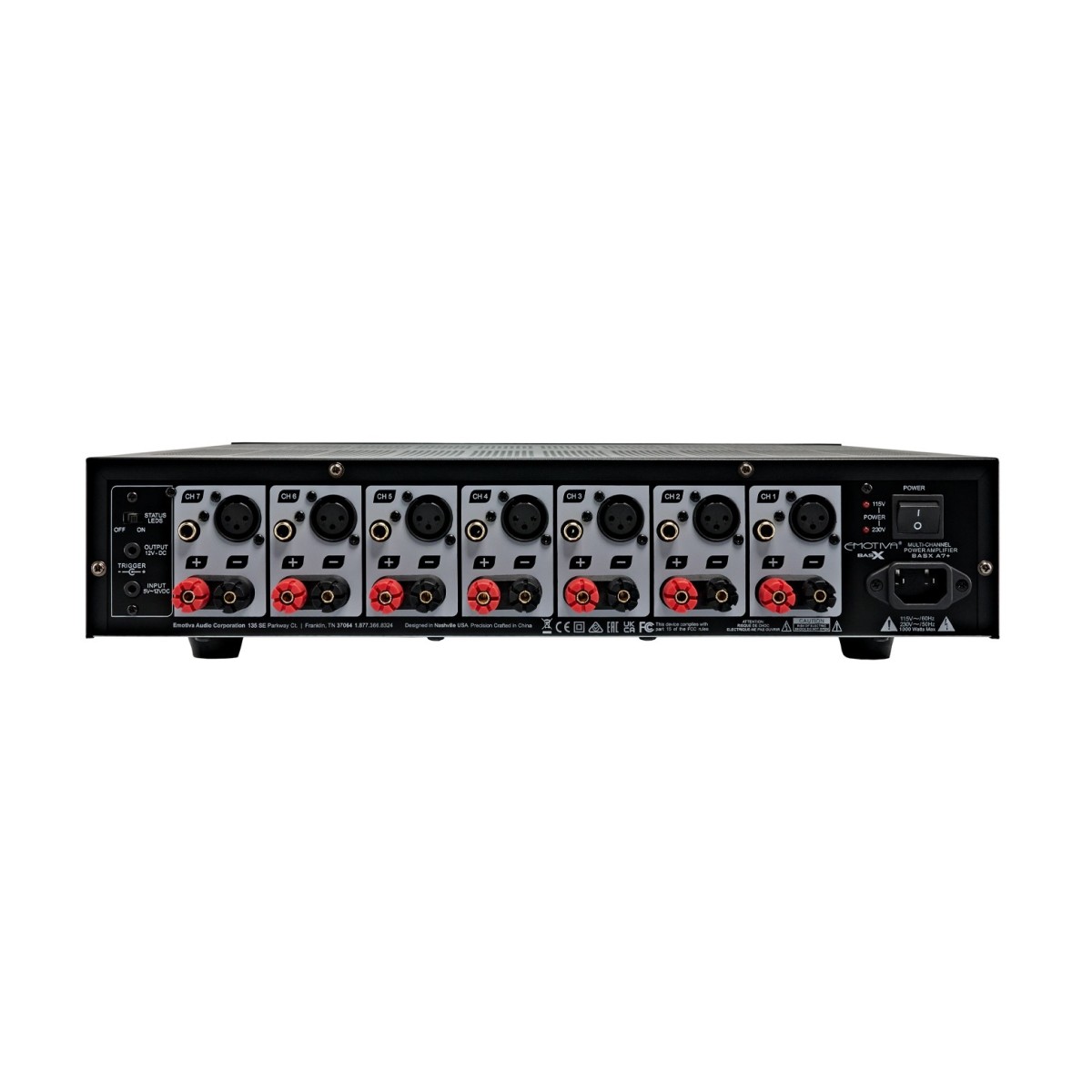

| Inputs | RCA (unbalanced) and XLR (balanced) for each channel |
| Speaker outputs | Audiophile-grade 5-way binding posts |

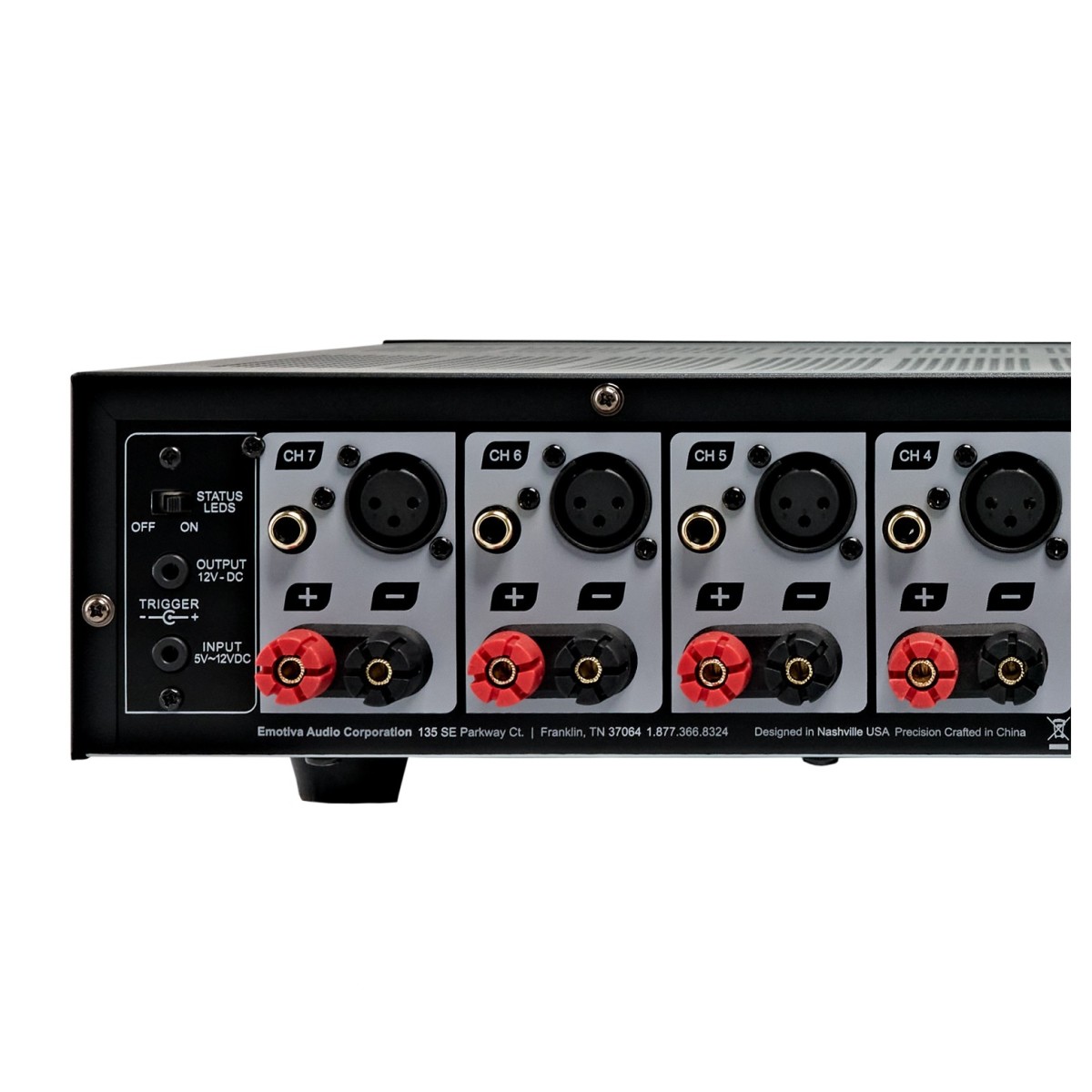

| Trigger Input | 5-12 V (AC or DC), <10 mA required |
| Trigger Output | 12 VDC, up to 120 mA |
| Auto-sensing | 115/230V power supply with high-current toroidal transformer |
| Protection note | Guarded against over-temperature, shorts, ground faults, and more |
| Dimensions (W x H x D) | With feet: 17" x 4.25" x 15.5" (approx. 431.8 x 361.95 x 393.7 mm)Without feet: 17" x 4.25" x 15.5" (approx. 431.8 x 107.95 x 393.7 mm) |
| Product Weight | 28 lbs (approx. 12.7 kg) |
| Product Code | Emotiva-BasX-A7+ |
| EAN | 818841013000 |
