Key Features
- Hi-Res format compatibility including MQA
- Discrete ESS Sabre Hyperstream DAC with 112 dB dynamic range and jitter elimination
- Optimised capacitance with distortion suppression from TDK and Murata
- Silver-plated copper conductors are insulated and twisted for reduced noise from interference
- Colour LED reflects incoming audio format
iFi Audio Go Link Headphone Amp & DAC USB-C Overview

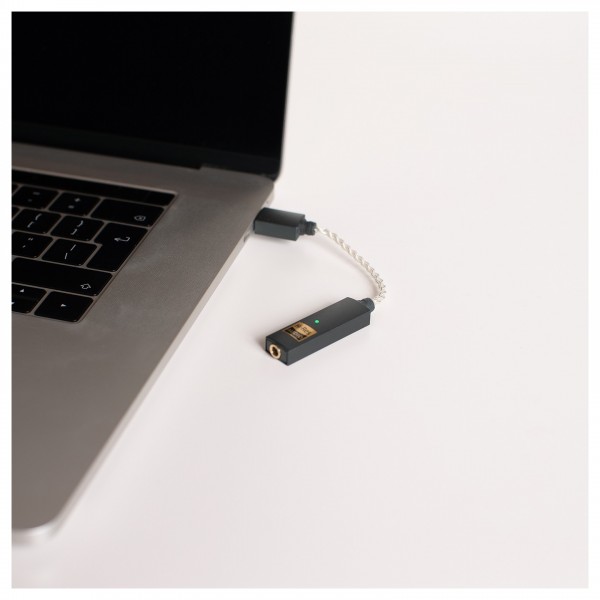

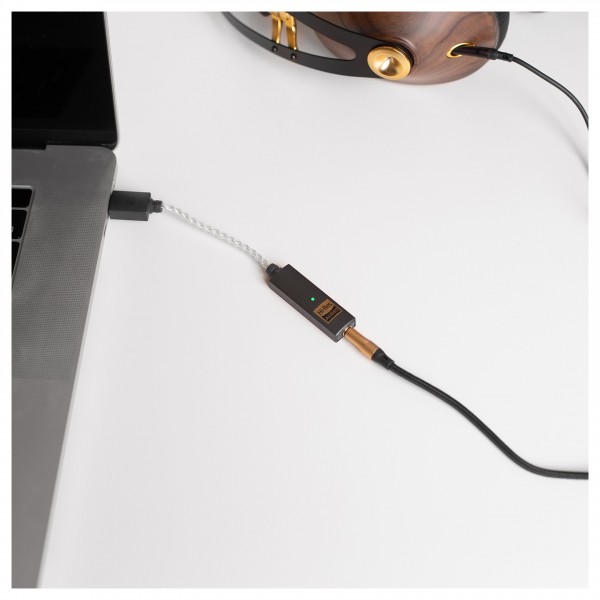

The iFi Audio Go Link Headphone Amp & DAC is the latest addition to iFi's GO series and a game-changer for wired headphone users. This ultraportable DAC/headphone amp dongle links corded headphones and earphones to digital devices that lack a 3.5mm headphone output. But it's not just a connector; the GO link significantly enhances sound quality with its sophisticated digital-to-analogue converter and headphone amp circuitry, outperforming the audio tech in mobile devices and computers.
Product Ref: 270350
Full Description
"The iFi Go Link is like a featherweight UFC fighter – beneath that slender exterior lies an impressive machine just waiting to be unleashed."
Design and Build

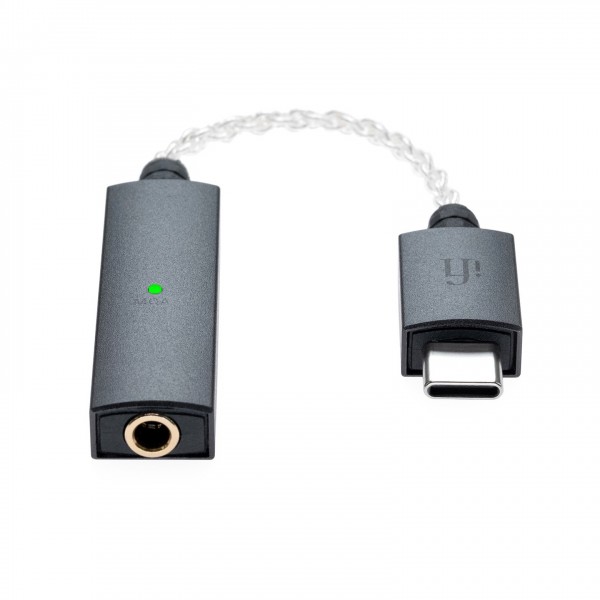

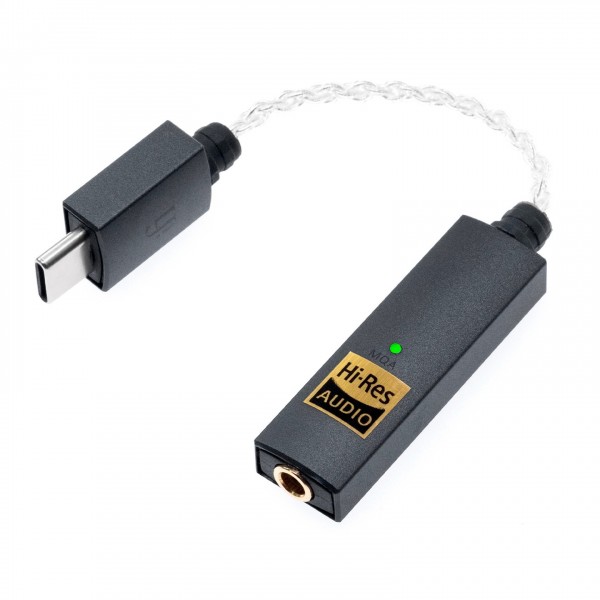

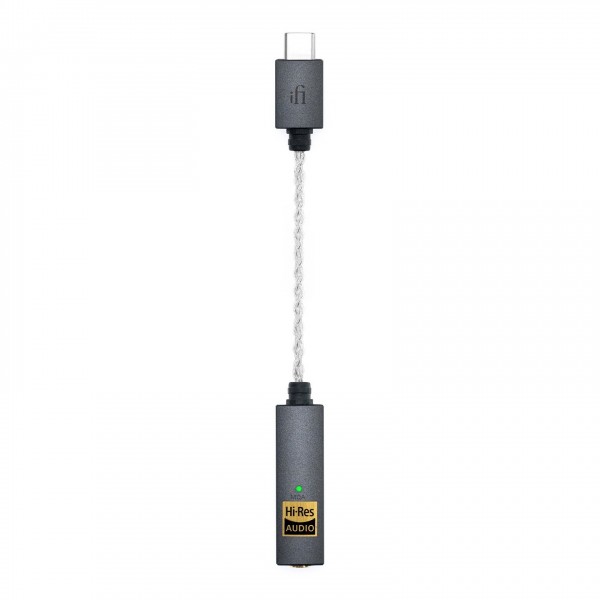

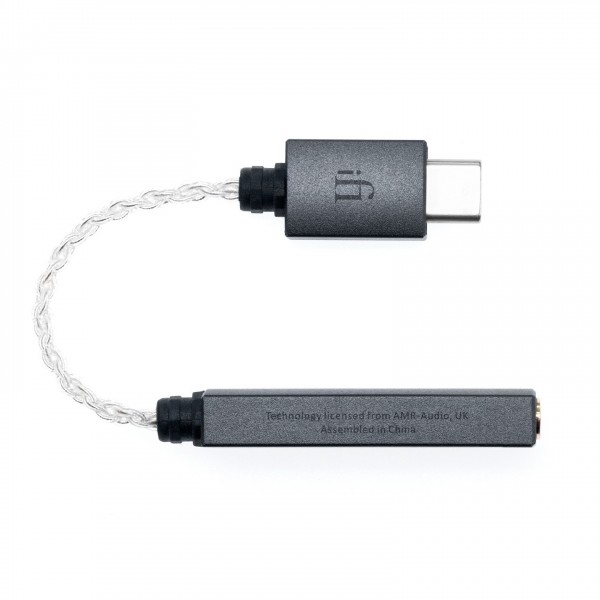

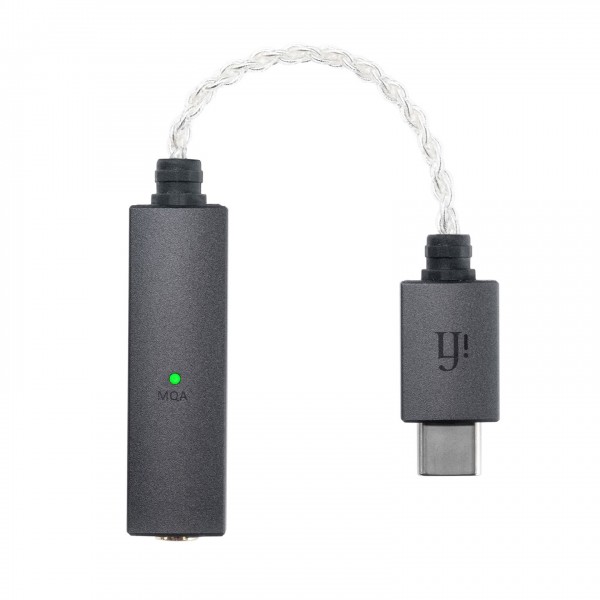

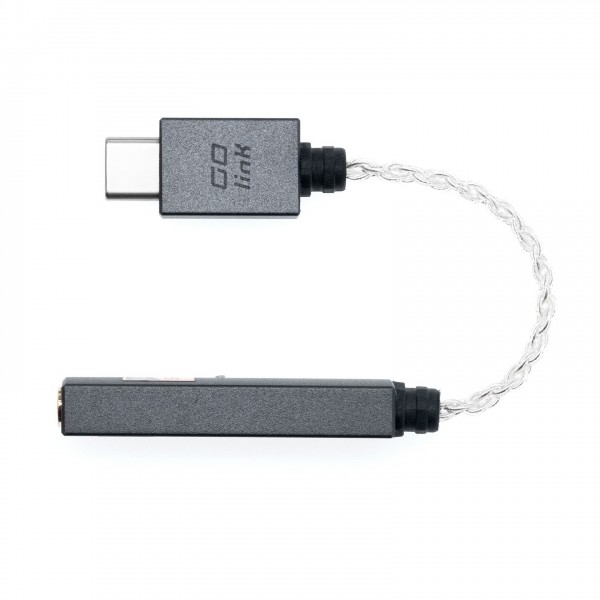

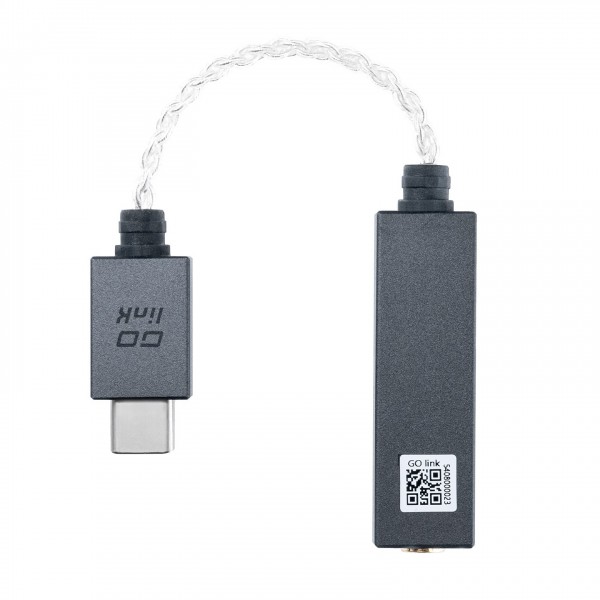

The GO Link is a fusion of high-end technology and practical design. It features a USB-C connector at one end and the DAC and headphone amp circuitry at the other, both encased in sturdy magnesium alloy. The six-centimetre flexible cable linking these components allows the DAC/amp to be angled towards the listener, easing stress on the USB port while enhancing user convenience. Moreover, the cable boasts silver-plated copper conductors with individual polymer insulation in a ‘twisted pair’ configuration, optimising inductance and capacitance while reducing noise interference.
Technology
At the core of the GO Link lies an ESS Technology’s Sabre HiFi series DAC chip—the ES9219MQ/Q. This power-efficient, high-performance chip, combined with Quad DAC+ and Time Domain Jitter Eliminator technologies, delivers ultra-low distortion, excellent clarity, and impressive dynamic range. The GO Link supports PCM audio data up to 32-bit/384kHz, DSD to 11.2MHz (DSD256), and MQA, making it a perfect companion for Tidal’s ‘HiFi Plus’ tier users. Moreover, the LED changes colour to indicate the incoming audio format and the PCM/DSD sample rate.
Power
The GO Link's headphone amp feeds a gold-plated 3.5mm socket incorporating iFi’s S-Balanced configuration. This provides a power output of 70mW/1.5V into 32 ohms, rising to 2V with higher impedance headphones. This ensures ample power to drive your headphones while minimising drain on the connected device’s battery. And if you want to switch to a larger sound system, the 3.5mm analogue output can connect to a preamp, integrated amp, or powered speakers. Packaged with adapters for USB-A and Apple Lightning ports, the GO Link is ready for use with any device right out of the box.
Features
- Supports True Native® Hi-Res playback for music formats from MP3 to DSD256, PCM384, and DXD384.
- The ESS Sabre Hyperstream DAC chipset offers a discrete oscillator, time domain jitter eliminator, and a 112dB dynamic range for refined listeners.
- Incorporates extensive jitter-elimination technologies in the digital stage, including GMT femto-precision clock and intelligent memory buffer for comprehensive eradication of jitter.
- iFi's unique technology broadens the Dynamic Range by at least 6 dB
- iFi's exclusive S-Balanced® circuit optimises performance for both single-ended and balanced headphones
- TDK C0G capacitors provide high stability and low losses, ideal for resonant circuit applications
- Murata's low-ESR high-Q multi-layer capacitors with an 'ESR control' feature brings impressive noise suppression capabilities
- Power output of 70mW into 32 ohms and a max voltage output of 2.05V into 600 ohms
Specifications
Formats
| DSD | 256 / 11.3MHz |
|---|---|
| PCM | 384kHz |
| MQA | Supported |
| Input | USB-C |
| DAC | Bit-Perfect DSD & DXD DAC by ESS |
| Headphone | 3.5mm |
| Power | ≥1.5V/70mW @ 32?; ≥2V/14mW @ 300? |
| Impedance | <0.4? |
| SNR | ≥125dBA (2.05V) |
| DNR | ≥122dB(A) @ 0dBFS |
| THD+N | ≤0.004 (1.27V @ 32?) |
| Frequency Response | 5Hz - 80kHz ±3dB |
| Power consumption | No Signal 0.7W/Max Signal 1W |
Dimensions
| Dimensions | 158 x 100 x 35 mm (6.2" x 3.9" x 1.4") |
|---|---|
| Cable Length | 60mm (2.8”) |
| Net weight | 485g (1.1 lbs) |
