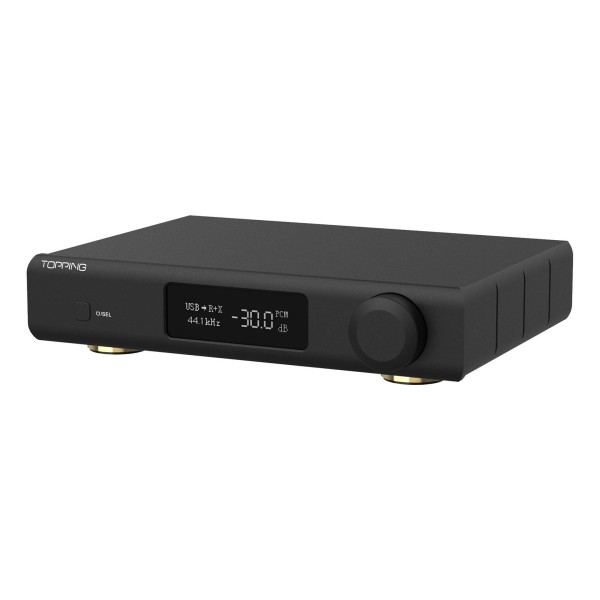

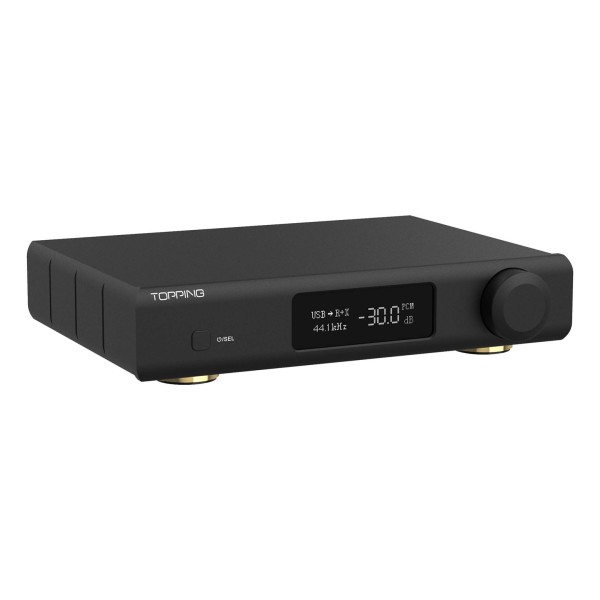

Topping D Series D90 III Sabre Desktop DAC, Black

View PDF
This product is currently not available for purchase
JUST ADDED

Colour: Black

Key Features

  • High-res ES9039PRO DAC chip
  • Full MQA decoding for master-quality streaming
  • Bluetooth 5.1 with LDAC & aptX HD for wireless high-res audio
  • Extensive connectivity including USB, optical, and I2S
  • Selectable output modes for flexible system integration

Topping D Series D90 III Sabre Desktop DAC, Black Overview

View this description in German

The Topping D Series D90 III Sabre is a high-performance DAC designed for audiophiles who demand precision, flexibility, and top-tier sound quality. At its core is the ES9039PRO DAC chip, delivering ultra-low distortion and an incredibly detailed listening experience. Full MQA decoding ensures that you can stream studio-quality audio from services like Tidal.


Connectivity is a major highlight, with USB, optical, coaxial, AES, and IIS inputs, making it easy to integrate with various audio sources. Bluetooth 5.1 with LDAC, aptX HD, and AAC add the convenience of high-resolution wireless streaming. The DAC also supports PCM up to 768kHz and DSD512, catering to hi-res music enthusiasts.


For system integration, the D90 III Sabre offers both RCA and XLR outputs, with selectable output modes for DAC-only or preamp functionality. Whether you're pairing it with an amplifier, powered speakers, or a headphone setup, this DAC delivers clean, accurate, and immersive sound tailored to your needs.

Product Ref: 325564

Full Description

View Full Description

What's in the Box?

  • Topping D Series D90 II Sabre DAC
  • Remote control
  • USB cable
  • AC cable
  • Bluetooth antenna
  • Product information card

Specifications

Input range

USB IN PCM 44.1kHz-768kHz/16bit-32bit

DSD DSD64-DSD512 (Native), DSD64-DSD256 (DoP)

MQA 44.1kHz-384kHz/16bit-24bit
IIS IN PCM 44.1kHz-768kHz/16bit-32bit

DSD DSD64-DSD512 (Native), DSD64-DSD256 (DoP)
COAX/OPT/AES IN PCM 44.1kHz-192kHz/16bit-24bit

DSD DSD64 (DoP)
BT IN MQA 44.1kHz-384kHz/16bit-24bit

AAC/SBC/aptX/aptX HD/aptX-Adaptive/LDAC

RCA

THD+N @ A-wt <0.00006% @1kHz
THD @ No-wt 90kBw <0.0003% @20-20kHz
SNR @ A-wt 129dB @1kHz
Dynamic Range @ A-wt 129dB @1kHz
Frequency Response 20Hz-20kHz (±0.1dB)

20Hz-40kHz (±0.3dB)
Output Level 2.1Vrms @0dBFS (4V Mode)

2.6Vrms @0dBFS (5V Mode)
Noise @ A-wt <1.1uVrms
Channel Crosstalk -133dB @1kHz
Channel Balance 0.3 dB
Output Impedance 50Ω

XLR

THD+N @ A-wt <0.000045% @1kHz
THD @ No-wt 90kBw <0.0001% @20-20kHz
SNR @ A-wt 135dB @1kHz
Dynamic Range @ A-wt 135dB @1kHz
Frequency Response 20Hz-20kHz (±0.1dB)

20Hz-40kHz (±0.3dB)
Output Level 4.2Vrms @0dBFS (4V Mode)

5.2Vrms @0dBFS (5V Mode)
Noise @ A-wt <1.1uVrms
Channel Crosstalk -149dB @1kHz
Channel Balance 0.3 dB
Output Impedance 100Ω

General

Dimensions (W x D x H, with protrusions) 220 x 160 x 45 mm
Weight 1.17 kg
Power input 100-240VAC 50Hz/60Hz

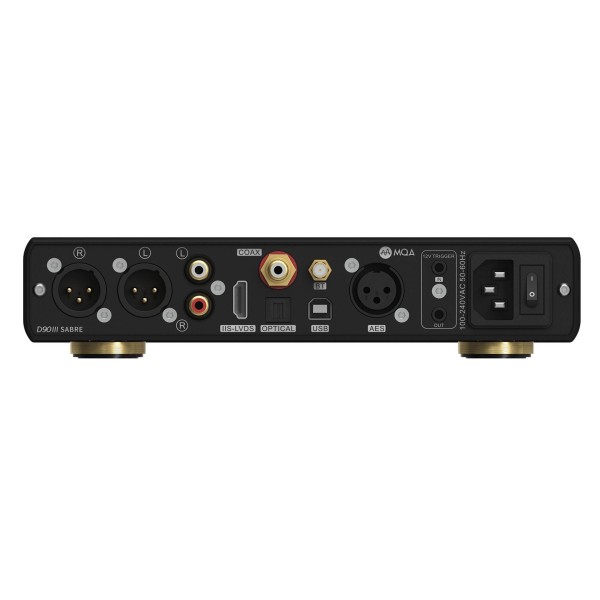

Signal input USB/BT/OPT/COAX/AES/IIS
Line Out output XLR/RCA
Other connectors 12V Trigger In (3.5mm jack)

12V Trigger Out (3.5mm jack)
Bluetooth receiving distance >10 m
Display White OLED
Standby power consumption <1W
Power consumption <9.5W
Product Code TOP-D90MK3-B
EAN 6974268483568
