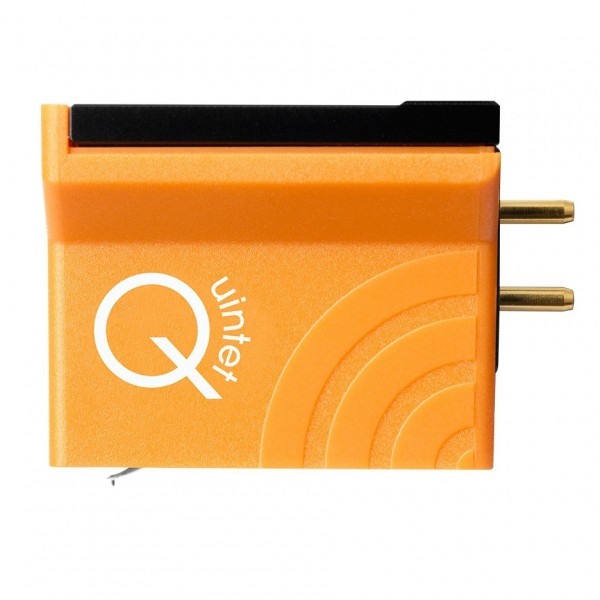

The Quintet Bronze moves into the higher league of the Quintets. All types of music will be conveyed with the highest accuracy, precision and dynamics of this Nude Fine diamond stylus. The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.
Product Ref: 200967
Since 1948 Ortofon has introduced about 100 different moving coil models, with their latest being the Quintet Series.
The Quintet Bronze moves into the higher league of the Quintets. The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear. The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.
A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface. Neodymium magnets are implemented to achieve an optimal output. Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell. The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. All in all, the Quintet series from Ortofon gives out excellent results with mist common tonearms bringing many hours of new and surprising listeneing experiences to their precious vinyll collection.
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
Ortofon has a long history and a rich heritage, but the most important point is to have something to offer today’s consumer. They preserve their heritage by continuously investing in technology and product development. It is their philosophy that even a traditional product can benefit greatly from new technology and industrial competences.
| Output voltage at 1 kHz 5 cm/sec | 03 mV |
|---|---|
| Channel balance | < 1.2 dB |
| Channel separation at 1 kHz | > 23 dB |
| Channel separation at 15 kHz | > 15 dB |
| Frequency range at -3 dB | 20 - 25.000Hz |
| Frequency response 20-20.000 Hz | +/-1.5 dB |
| Tracking ability at 315 Hz at recommended tracking force *) | 80 μm |
| Compliance, dynamic, lateral | 15 μm/mN |
| Stylus type | Nude Fine Line |
| Stylus tip radius | r/R 840 μm |
| Tracking force range | 2.1-2.5 g (21-25 mN) |
| Tracking force recommended | 2.3 g (23 mN) |
| Tracking angle | 20º |
| Internal impedance, DC resistance | 7 Ohm |
| Recommended load impedance | >20 Ohm |
| Cartridge body material | ABS/Aluminium |
| Coil wire material | Pure 4-nines copper |
| Cartridge colour | Bronze |
| Cartridge weight | 9 g |
