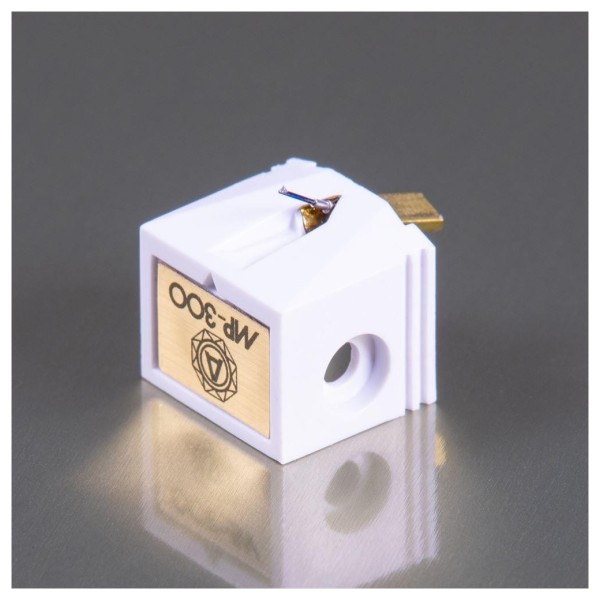

Nagaoka MP-300 MM Phono Cartridge Overview
The Nagaoka MP-300 is ideal for audiophiles who want superior detail and lifelike spatial definition from their vinyl setup. Designed for users who prefer to handle cartridge alignment themselves, the MP-300 offers full installation flexibility on a range of tonearms and headshells. A boron cantilever and elliptical diamond stylus work in harmony to capture subtle dynamics, while the machined aluminium body controls unwanted resonance for greater sonic purity. With extended frequency response and exceptional channel balance, the MP-300 is a refinement for those looking to go beyond the capabilities of the MP-200.
Product Ref: 257095
Full Description
View Full DescriptionSuperior Detail Through Boron Precision

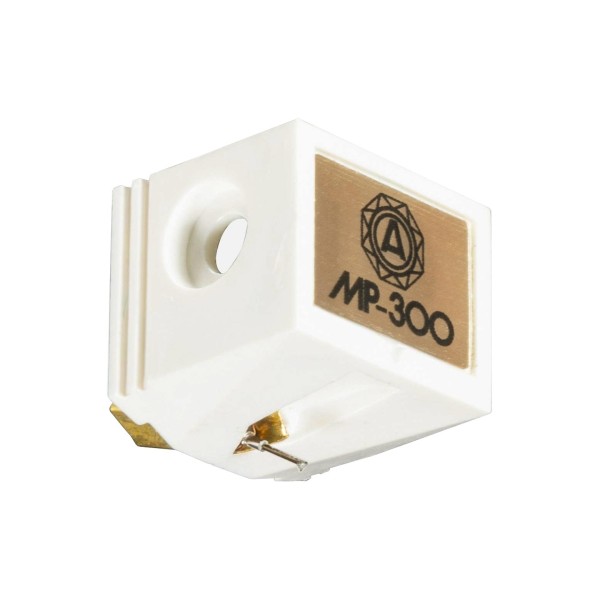

The MP-300 continues Nagaoka’s use of a 0.4 x 0.7mil elliptical diamond stylus but pushes performance further with a boron cantilever that responds with remarkable speed and accuracy. This extra responsiveness results in clearer articulation of subtle musical cues—like trailing reverb or the position of a plucked string. With a frequency range extending up to 25kHz, it brings out the sparkle and spatial definition in high-resolution recordings, giving you more from every groove.
Machined Body for Enhanced Control
Unlike the plastic-bodied models further down the range, the MP-300 features a precisely machined aluminium frame. This adds mechanical stability and helps reduce unwanted resonance, allowing the stylus to focus purely on the signal in the groove. The cartridge is slightly heavier at 7.8g, offering a more substantial physical presence that pairs well with mid- to high-mass tonearms. The result is more composure in the playback and a more accurate sense of space and imaging.
Upgrade Path From the MP-200
While the MP-200 offers excellent musicality, the MP-300 is designed to push resolution and spatial realism even further. Channel separation remains at a strong 25dB, but the MP-300 improves dynamic handling and instrument placement—particularly in more complex recordings. The enhanced frequency range (up to 25kHz vs. 23kHz) and tighter channel balance (1.0dB vs. 1.5dB) contribute to a cleaner, more holographic sound. For greater definition and headroom, the MP-300 is a clear step-up.
Specifications
| Machined Frame | Machined aluminum frame |
|---|---|
| Output Voltage | 3 mV (5 cm/sec) |
| Frequency Response | 20Hz 25,000Hz |
| Channel Separation | 25 dB (1 kHz) |
| Channel Balance | 1.0 dB or less |
| Load Resistance | 47 kΩ |
| Load Capacitance | 100 pF |
| Cantilever | Boron |
| Needle Tip | 0.4 × 0.7 mil ellipse / diamond |
| Proper Needle Pressure | 1.3 1.8 g |
| Cartridge Weight | 7.8 g |
| Product Code | MP-300 |
| EAN | 4967736076401 |
