FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black

  • FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black

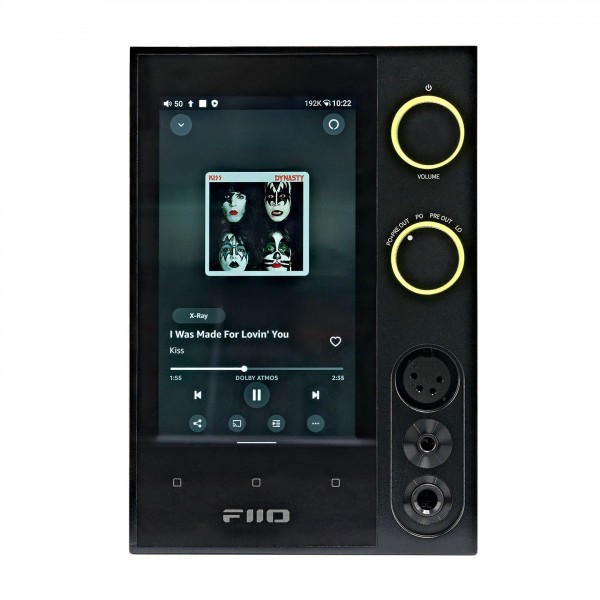

  • FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black - player page
  • FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black - rear

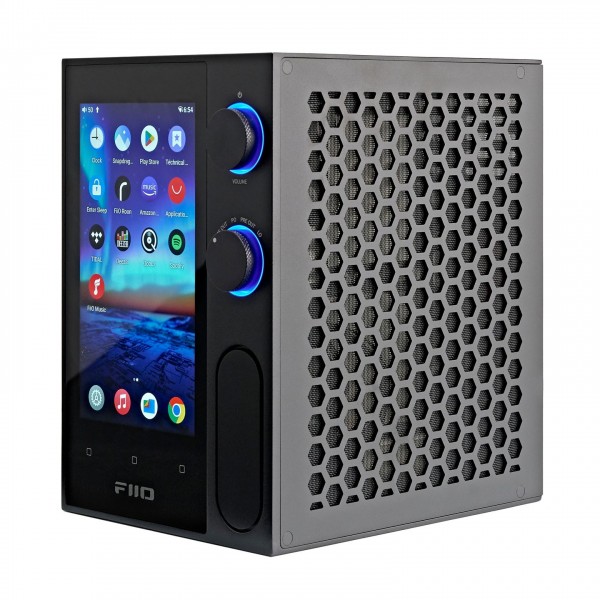

  • FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black - angled home screen

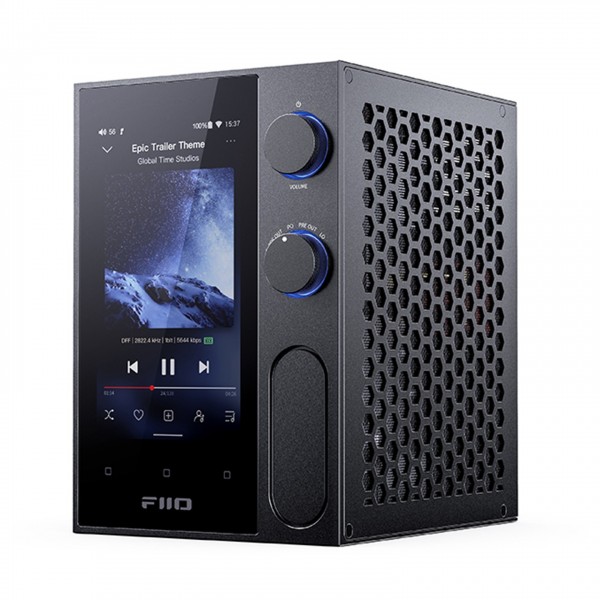

  • FiiO R7 Desktop Streaming Player and DAC and Amp Front View

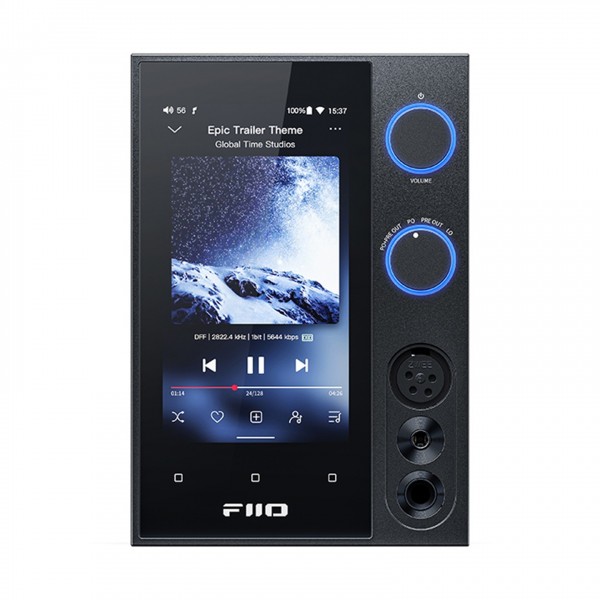

  • FiiO R7 Desktop Streaming Player and DAC and Amp Front View 2

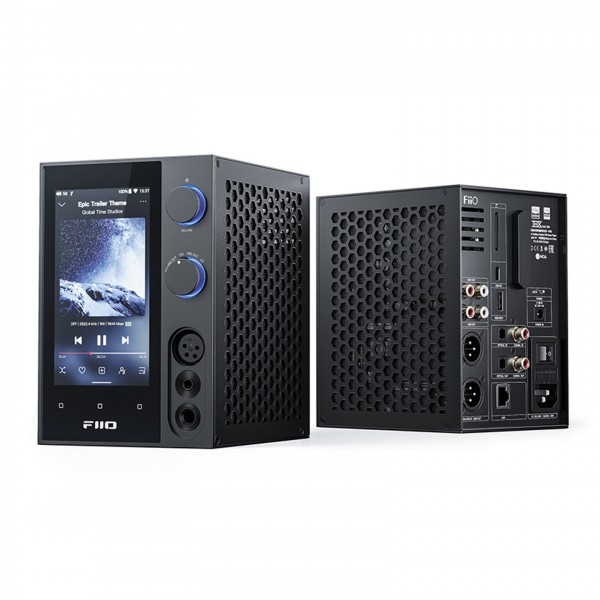

  • FiiO R7 Desktop Streaming Player and DAC and Amp Front View 3

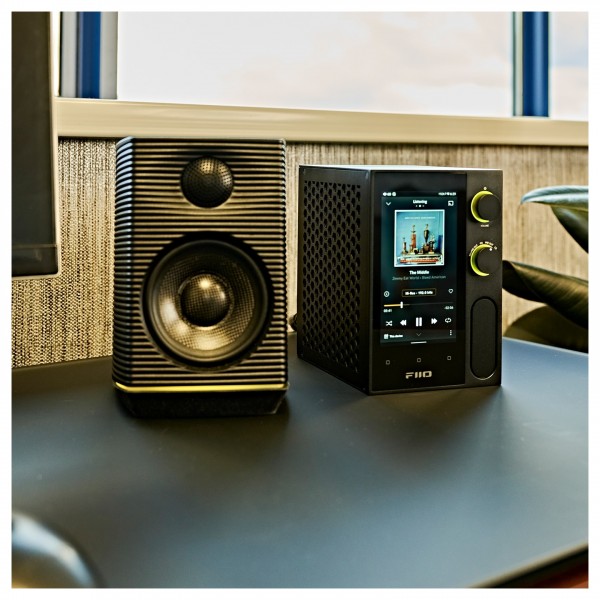

  • FiiO R7 Desktop Streaming Player and DACAmplifier, Black - lifestyle

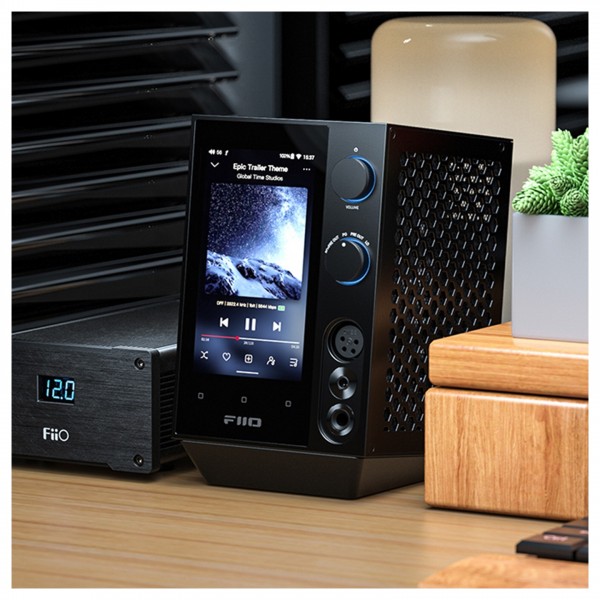

  • FiiO R7 Desktop Streaming Player and DAC and Amp Lifestyle View 2

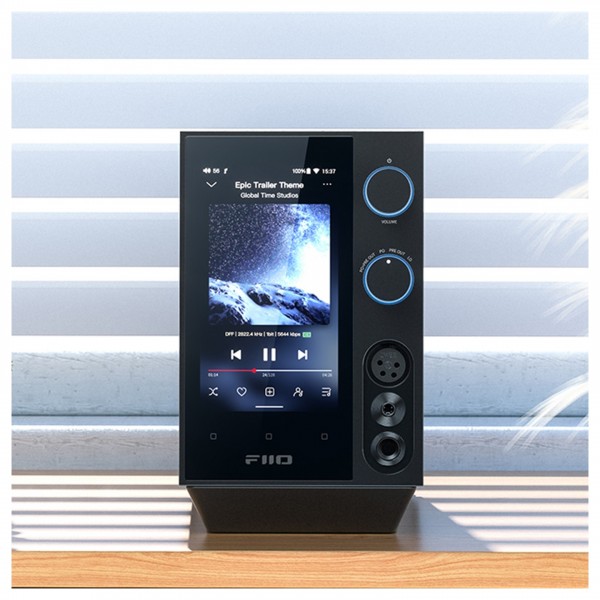

  • FiiO R7 Desktop Streaming Player and DAC and Amp Lifestyle View 4

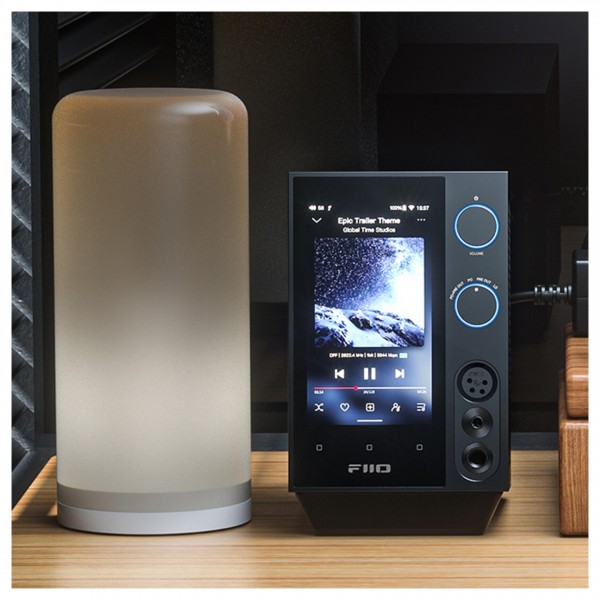

  • FiiO R7 Desktop Streaming Player and DAC and Amp Lifestyle View

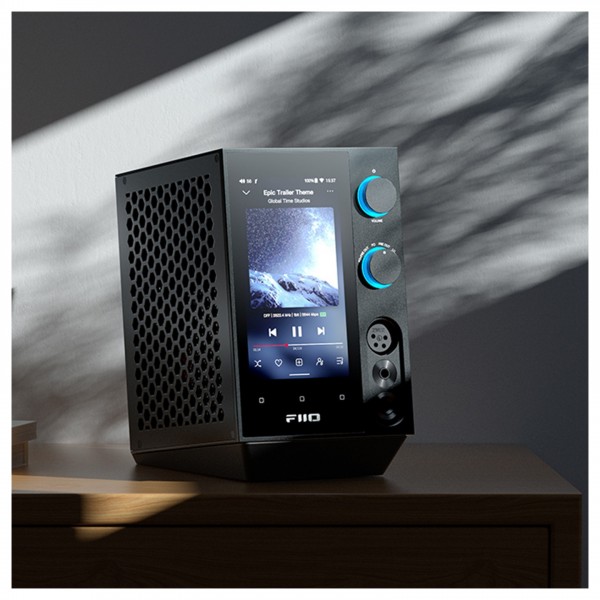

  • FiiO R7 Desktop Streaming Player and DAC and Amp Lifestyle View 3

  • Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.

  • Playing videos requires marketing & advertising cookies. By pressing Play, you consent to their use, which will override previously rejected settings. To update your preferences, see our cookie policy.

View PDF
This product is currently not available for purchase
JUST ADDED

Colour: Black

Key Features

  • FiiO's first-ever desktop DAP
  • Streamer, DAC, and headphone amp all-in-one, ideal for desktop audio setups
  • ESS Sabre DAC supports 32-bit/768kHz hi-res audio and MQA-compatible
  • THX AAA-788+ amplification circuit delivers up to 3000mW of power
  • Snapdragon 660 SoC processor ensures lag-free, user-friendly performance

FiiO R7 Desktop Streaming Player and DAC/Amplifier, Black Overview

View this description in German

The FiiO R7 is an all-in-one desktop solution, combining a streaming player, DAC, and headphone amplifier for a premium listening experience. Equipped with a high-performance ESS Sabre DAC Chipset and THX amplification circuit, it delivers crystal-clear high-resolution 32-bit/768kHz audio with minimal distortion. Powered by an eight-core Snapdragon 660 SoC and Android 10 OS, it opens up a world of unlimited streaming and media applications. Whether using XLR-4, 4.4mm or 6.35mm headphones, you can access an extensive music library with 2TB micro SD storage.

Product Ref: 294693

Full Description

View Full Description

Elegant All-in-One Design

The R7 can act as a transmitter, streaming media player, amplifier, preamplifier, and decoder, offering a streamlined audio experience without sacrificing quality. The integration of an ESS Sabre DAC chipset delivers PCM(up to 32-bit/768kHz) and DSD audio to provide a supreme sound with reduced distortion and a high SNR. The R7 even supports MQA audio, so you can hear your favourite songs the way the artist intended.

THX Amplification Circuit

The desktop-grade THX amplification circuit produces an incredibly clean sound, without unwanted colouration. Designed to excellence, this circuit includes two THX AAA 788+ headphone chips capable of producing up to 3000mW of power. Coupled with five-level gain modes, a 4-pin XLR, 4.4mm balanced, and 6.35mm single-ended outputs, the R7 is ideal for elevating a wide range of IEMs and headphones.

Powered by Snapdragon 660 SoC

The heart of the R7 is the Qualcomm Snapdragon 660 SoC processor, with its eight-core CPU offering a balance of high performance and power efficiency. Its four gigabytes of RAM ensure effortless multitasking capabilities and the smooth operation of advanced applications. The addition of an open Andriod 10 OS also allows access to streaming services such as Spotify and TIDAL, making the R7 a versatile choice for all your listening needs.

Extensive Connectivity

Offering an extensive range of connectivity options, the R7 is designed to be the centrepiece of your audio setup. With RCA, coaxial, optical, and USB inputs, this player can connect to a variety of audio seperates, including the FiiO SP3 speakers (sold separately). The R7 also boasts support for AirPlay, Wi-Fi, and Bluetooth 5.0, enabling high-quality wireless streaming.

Roon Ready and Broad Storage Options

Certified Roon Ready, the R7 seamlessly integrates with your Roon audio network. Enjoy world-class sound quality and seamless audio synchronisation across compatible speakers throughout your home. Looking to listen to all your favourite songs on one device? Not a problem. The R7 can support up to 2TB SD cards, letting you immerse yourself in an extensive library.

Stylish Design

The five-inch portrait-oriented touch screen, with Android 10 OS, provides an interface intuitive to smartphone users. This setup lets you smoothly navigate your music library and control playback and settings with an output selection knob that allows easy switching between connected devices. While the R7 is ideal for desktop use, its compact design offers excellent positional versatility.

Key Features

  • Functions as a headphone amplifier, DAC, streaming media player, among other uses
  • Includes an ESS Sabre DAC chipset, capable of 32-bit/768kHz audio performance
  • Authentic sound reproduction is guaranteed through MQA compatibility
  • THX amplification circuit delivers a distortion-free sound
  • Two THX AAA 788+ headphone chips each provide a 3000mW power output
  • Offers both balanced and single-ended outputs so you can connect to various headphone types
  • Runs on Snapdragon 660 SoC and Android 10 OS for lag-free, intuitive functionality
  • Supports a range of digital and analogue inputs
  • Bluetooth 5.0 lets you wirelessly stream your music
  • Easy-to-use touch screen ensures a hassle-free user experience
  • The compact design gives you broad positioning options

What's in the Box?

  • FiiO R7 Desktop Streaming Player and DAC/Amplifier
  • Power cords
  • 1 x Spare fuse
  • 1 x USB cable for data transfer
  • Flat Base and an Angled Base
  • Double-sided tapes to secure the connection to the base
  • 6.3mm to 3.5mm converter
  • SD card converter
  • Jack cover lids
  • Documentation

Specifications

General

Name/model R7
Hardware solution Soc: Snapdragon 660

DAC: ES9068AS

AMP: 2 x THX AAA-788

USB: Snapdragon 660
Working mode Android mode

Pure music mode

USB DAC mode

Bluetooth receiving mode

AirPlay mode

COAX mode

OPT mode

Roon Ready
Colour Black

White
Weight 1282g
Dimension (W x H x D) 160 x 110 x 134mm (without base)

170 x 110 x 134mm (with 0° flat base)

182.5 x 110 x 134mm (with 7° elevation base)
Volume control Knob
Screen 4.97 inches (720 * 1280) full-fit screen
Internal storage/Free space (ROM) 64GB/46GB
RAM 4GB
Gain Ultra high

Super high

High

Medium

Low
Memory card Single SD card expansion, theoretically supports up to 2TB
Recommended headphone impedance PO: 16-150Ω

BAL: 16-300Ω
Channel balance L20 -R20 (0.5dB per level)
Product Code FIIOR7

Buttons and Ports

Button 1 x Volume knob (it has button's function

1 x Output selection knob (similar to button's function)
USB 1 x Type-C (USB3.0)

1 x USB A (USB2.0) (data transfer)
DC power in port Φ 6.2mm DC socket
Toggle switch DC/AC switch
Balanced output ports 1 x Standard 4.4mm

1 x 4-cores XLR
Phone out port Standard 6.35mm
Balanced line out ports 2 x 3-cores XLR
Single-ended line out ports 2 x RCA
OPT input port Standard TOSLINK
OPT output port Standard TOSLINK
COAX input port RCA
COAX output port RCA
Network port 100M Ethernet port

Features

WiFi 2.4GHz/5GHz

DLNA

AirPlay

WiFi music transmission

Roon Ready etc.
Bluetooth Emission (5.0) AAC

SBC

aptX

aptX HD

LDAC

LHDC
Bluetooth receiving (5.0) SBC

AAC

LDAC
FiiO Link WiFi and Bluetooth control for Android, WiFi control for iOS.
MQA 8x decoding
All to DSD Yes
Max sampling rates USB DAC: 384kHz/32bit; DSD256 (Native)

Local decoding: 384kHz/32bit; DSD256 (Native)

USB Audio:768kHz/32bit?DSD512 (DoP/D2P/Native)

COAX IN: 192kHz/24bit

OPT IN: 96kHz/24bit

COAX OUT: 384kHz/24bit; DSD128 (DOP)

OPT OUT: 192kHz/24bit
Bluetooth codec indicator (knob light) Blue: SBC

Cyan: AAC

Yellow: aptX HD

White: LDAC

Orange: LHDC
EQ 10-segment dynamic EQ (±12dB)

8 preset EQ

Custom EQ

PEQ supported.
Sampling rate indicator (knob light) Blue: Lossy

Cyan: SQ

Yellow: HR

Green: DSD

Magenta: MQA
Operation modes Support gesture operation,

Two-button navigation,

Three-button navigation
Screen saver Yes
Firmware upgrade Local upgrade

OTA upgrade
Double-click to wake up Yes
Power supply DC 12V/3A OR AC 100-240V 50/60Hz

Audio Parameters

Headphone out performance (6.35mm, USB DAC/OPT/COAX, Ultra-high)

Output power L+R≥1850mW+1850mW (16Ω, THD+N < 1%)

L+R≥1250mW+1250mW (32Ω, THD+N < 1%)

L+R≥160mW+160mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥77dB
Peak voltage 18Vp-p
SNR ≥ 124dB (dbA)
THD+N < 0.0005 (1kHz / -8dB@32 Ω)
Frequency response 5Hz 50kHz: attenuation < 1dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 4uV (dbA)

Headphone out performance (6.35mm, USB DAC/OPT/COAX, Super high)

Output power L+R≥1450mW +1450mW (16Ω, THD+N < 1%)

L+R≥750mW +750mW (32Ω, THD+N < 1%)

L+R≥80mW+80mW (300Ω, THD+N < 1%)
Output impedance < 0.4Ω
Crosstalk ≥73dB
Peak voltage 14Vp-p
SNR ≥ 124dB (dbA)
THD+N < 0.0005 (1kHz / -6dB@32 Ω)
Frequency response 20Hz 80kHz: attenuation < 1dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 4uV (dbA)

Line out performance (RCA, USB DAC/OPT/COAX)

THD+N < 0.0005% (1kHz/-0dB@10KΩ)
SNR ≥ 118.5dB (dbA)
Crosstalk ≥112dB
Noise floor < 2.7uV (dbA)
Frequency response 5Hz 80kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.1dB
Line out level 2.2Vrms

Balanced headphone out performance (XLR4/4.4mm, USB DAC/OPT/COAX, Ultra-high)

Output power L+R≥1000mW+1000mW (16Ω, THD+N < 1%)

L+R≥3650mW+3650mW (32Ω, THD+N < 1%)

L+R≥630mW+630mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥116dB
Peak voltage 39Vp-p
SNR ≥ 122dB (dbA)
THD+N < 0.0005 (1kHz / -8dB@32 Ω)
Frequency response 20Hz 50kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 7.5uV (dbA)

Balanced headphone out performance (XLR4/4.4mm, USB DAC/OPT/COAX, Super high)

Output power L+R≥800mW+800mW (16Ω, THD+N < 1%)

L+R≥3000mW +3000mW(32Ω, THD+N < 1%)

L+R≥320mW+320mW (300Ω, THD+N < 1%)
Output impedance < 0.5Ω
Crosstalk ≥116dB
Peak voltage 27.7Vp-p
SNR ≥ 122dB (dbA)
THD+N < 0.00048% (1kHz / -6dB@32 Ω)
Frequency response 5Hz 80kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.3dB
Noise floor < 7.5uV (dbA)

Balanced line out performance (XLR3, USB DAC/OPT/COAX)

THD+N < 0.0005% (1kHz/0dB@10KΩ)
SNR ≥ 125dB (dbA)
Crosstalk ≥121dB
Noise floor < 2.5uV (dbA)
Frequency response 20Hz 50kHz: attenuation < 2dB

20Hz 20KHz: attenuation < 0.1dB
Line out level 4.5Vrms

Audio format support

Lossless DSD: DSD64/128/256(".iso”,".dsf”,".dff”),DST iSO

DXD: 352.8K/24bit

APE FAST/High/Normal: 384kHz/24bit (MAX)

APE Extra High: 192kHz/24bit (MAX)

APE Insane: 96kHz/24bit (MAX)

Apple Lossless: 384kHz/32bit (MAX)

AIFF: 384kHz/32bit (MAX)

FLAC: 384kHz/32bit (MAX)

WAV: 384kHz/32bit (MAX)

WMA LOSSLESS: 96kHz/24bit (MAX)

DTS: 192kHz/24bit (MAX)

MQA: Full Decoderer
Lossy compression MP3

OGG

WMA

AAC and other formats
