Key Features
- Non-Bluetooth portable CD player
- Listening to CDs away from home? Features up to eight hours of battery life
- Desktop Mode lets you run the player on mains power, saving battery
- Seamless wired connectivity with the 3.5mm and 4.4mm headphone outputs
- Includes USB, SPDIF, and analogue line outputs for a variety of audio systems
FiiO DM13 Portable CD Player, White Overview
The FiiO DM13 Portable CD Player is your new music companion, letting you take your CDs on the go with an eight-hour battery life and slimline design. Whether you're dusting off your old collection or revelling in custom mixes, the DM13 supports MP3, WAV, FLAC, and more. Plus, with both 3.5mm single-ended and 4.4mm balanced outputs, you can pair this player with a wide range of headphones, so you're never limited in your choices. Connect it to your home audio system via analogue or SPDIF outputs, or use Desktop Mode for direct power operation, perfect for non-stop listening.
Product Ref: 312492
Full Description
View Full DescriptionPlease note
This is the non-Bluetooth DM13 model. For the Bluetooth version, please click here.
High-Performance with Advanced DACs
The DM13 supports a range of file formats, including MP3, FLAC, WAV, AAC, and WMA, with quality ensured by the dual Cirrus Logic CS43198 DACs. These deliver detailed sound reproduction, reducing noise and distortion for a dynamic and immersive listening experience. Paired with two SGM8262 headphone amplifiers, the player can provide up to 660mW of balanced output power, effortlessly driving even high-impedance headphones. The DM13 includes both 3.5mm single-ended and 4.4mm balanced outputs for headphones, along with line-level outputs for integration with home audio systems.
Portable Playback with Long Battery Life

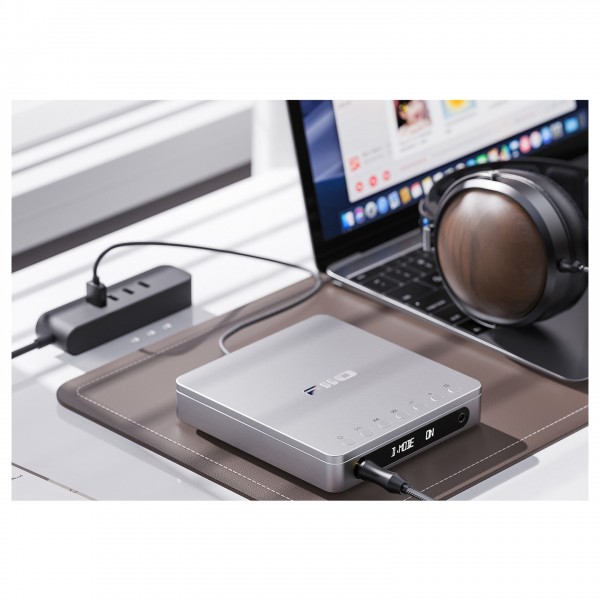

Enjoy your CDs on the go with up to eight hours of playback. The FiiO DM13 is lightweight and portable, making it perfect for travel, commutes, or relaxing at home. You can also switch to FiiO’s patented Desktop Mode for USB-powered operation at home. This allows you to connect the player directly to your hi-fi system and non-stop listening. Its low-jitter digital outputs ensure precise audio transmission for use with an external DAC, complemented by a custom optical head and mechanism for reliable performance. Electronic Skip Protection (ESP) ensures uninterrupted playback, whether at home or on the go.
Smart Design with Usability Features
The DM13 is built to make every listening moment better. It comes with usability features like gapless playback for smooth track transitions, while favourites saving and track or album looping let you tailor your experience. A quick 2.5-hour charge keeps you ready to go, and USB CD ripping allows you to convert your collection into WAV files for digital backups—perfect for preserving your favourite albums and enjoying them on any device without losing sound quality. With a bright 1.5-inch LCD display and stylish colour options like white, black, and silver, the DM13 combines practicality with a touch of personality.
Key Features
- Dual Cirrus Logic CS43198 DACs deliver detailed, dynamic sound
- Plays MP3, FLAC, WAV, AAC, and WMA formats, offering versatile playback options
- Two SGM8262 headphone amplifiers provide up to 180mW (single-ended) or 660mW (balanced) at 32Ω, THD <1
- Includes 3.5mm single-ended and 4.4mm balanced headphone outputs, plus line-level outputs for home setups
- Achieve precise digital signal transmission with custom low-jitter crystal oscillators, whether using coaxial or optical outputs
- Lightweight design with up to eight hours of battery life, ideal for travel and commuting
- Desktop Mode offers continuous power via USB for non-stop listening at home
- Gapless playback, save favourites, and looping features ensure tailored listening sessions
- USB CD ripping allows you to convert CDs into high-quality WAV files for digital backups
- Electronic Skip Protection (ESP) ensures uninterrupted playback on the move
- Compact aluminium alloy body with a 1.5-inch LCD display and multiple colour options
What's in the Box?
- FiiO DM13 CD Player
- Quick-start guide
- USB A-C charging and data cable
- 3.5mm coaxial adapter
- Warranty card
Specifications
General
| Bluetooth | No - For Bluetooth, see instead: FiiO DM13 Portable CD Player with Bluetooth |
|---|---|
| Hardware platform | Main Control: CS6137Op-Amp: SGM82622DAC: CS431982 |
| Output modes | PRE OUT / USB OUT / SPDIF OUT |

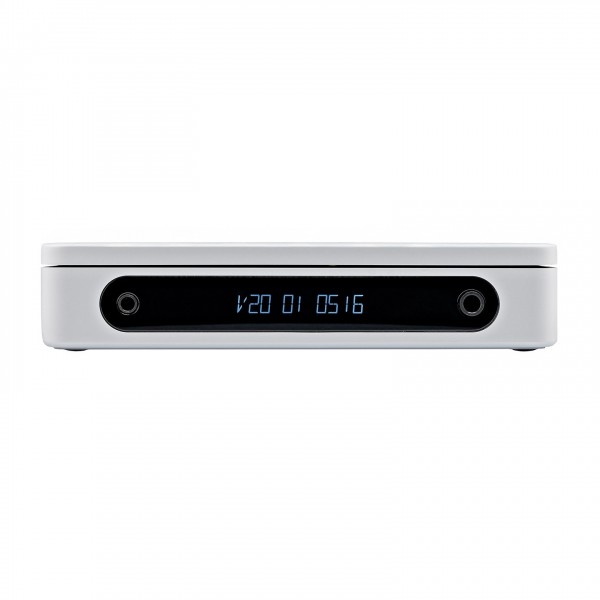

| Screen | 1.5-inch LCD display |
| Optical head | Custom optical head |
| Mechanism | Custom mechanism |
| Volume control type | Button |
| Compatible impedance | PO: 8150ΩBAL: 8350Ω |
| Playback Support | CD, FLAC, WAV, WMA, AAC, MP3 |
Buttons and Interface
| Controls | Power buttonPlay/Pause buttonPrevious track buttonNext track buttonVolume downVolume upFunction select button |
|---|---|

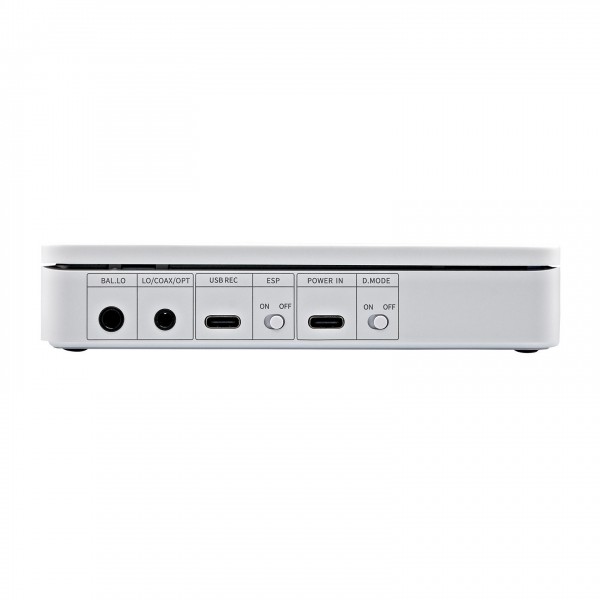

| USB interface | 2 x USB Type-C (1 x Power in, 1x USB audio for charging and data transfer) |
| Headphone output interface | Standard 3.5mm jack |
| Single-ended line output interface | Standard 3.5mm jack |
| Balanced output interface | Standard 4.4mm jack |
| Balanced line output interface | Standard 4.4mm jack |
| Coaxial/optical output interface | Standard 3.5mm jack (shared with LO port) |
| Toggle switches | ESP switchD.MODE switch |
Battery Life and Testing Conditions (3.5mm Headphone Output)
| Battery life | ≥10 hours |
|---|---|
| Audio input | CD playback on the device |
| ESP switch | Off |
| Volume level | 32 |
| D.MODE switch | Off |
| Screen status | Off |
| Load | 32Ω |
Battery Life and Testing Conditions (4.4mm Headphone Output)
| Battery life | ≥10 hours |
|---|---|
| Audio input | CD playback on the device |
| ESP switch | Off |
| Volume level | 26 |
| D.MODE switch | Off |
| Screen status | Off |
| Load | 32Ω |
Headphone Output Performance
| Output power | L+R ≥ 270mW + 270mW (16Ω, THD+N < 1 )L+R ≥ 180mW + 180mW (32Ω, THD+N < 1 )L+R ≥ 20mW + 20mW (300Ω, THD+N < 1 ) |
|---|---|
| Output impedance | < 1Ω |
| Total harmonic distortion + noise (THD+N) | ≤ 0.0025 (1kHz/0dB @32Ω) |
| Signal-to-noise ratio (SNR) | ≥ 120dB (A-weighted) |
| Channel separation | ≥ 77dB (1kHz @32Ω) |
| Noise floor | ≤ 2.4μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Peak output voltage | 7Vp-p |
Line Output Performance
| Total harmonic distortion + noise (THD+N) | ≤ 0.0026 (1kHz/0dB @10kΩ) |
|---|---|
| Signal-to-noise ratio (SNR) | ≥ 113dB (A-weighted) |
| Channel separation | ≥ 105dB (1kHz @10kΩ) |
| Noise floor | ≤ 4.3μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Line output level | 2.5Vrms |
Balanced Headphone Output Performance
| Output power | L+R ≥ 620mW + 620mW (16Ω, THD+N < 1 )L+R ≥ 660mW + 660mW (32Ω, THD+N < 1 )L+R ≥ 80mW + 80mW (300Ω, THD+N < 1 ) |
|---|---|
| Output impedance | < 1.5Ω |
| Total harmonic distortion + noise (THD+N) | ≤ 0.0024 (1kHz/0dB @32Ω) |
| Signal-to-noise ratio (SNR) | ≥ 124dB (A-weighted) |
| Channel separation | ≥ 120dB (1kHz @32Ω) |
| Noise floor | ≤ 2.8μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Peak output voltage | 14Vp-p |
Balanced Line Output Performance
| Total harmonic distortion + noise (THD+N) | ≤ 0.0022 (1kHz/0dB @10kΩ) |
|---|---|
| Signal-to-noise ratio (SNR) | ≥ 124dB (A-weighted) |
| Channel separation | ≥ 106dB (1kHz @10kΩ) |
| Noise floor | ≤ 3μV (A-weighted) |
| Frequency response | 20Hz 20kHz (attenuation < 2.3dB) |
| Line output level | 5Vrms |
Product Information
| Power supply | Supports DC 5V / ≥2A |
|---|---|
| Charging time | Approximately 2.5 hours (using 5V 2A adapter) |
| Product size (W x D x H) | Approx. 137.5 x 144.7 x 28.7mm |
| Weight | Approx. 450g |
| Name/Model | DM13 |
| Colour options | DM13: Silver, Black, WhiteDM13 BT: Silver, Black, Transparent White, Red |
| Product code | FIIODM13-WHITE |
| EAN | 6953175760986 |
