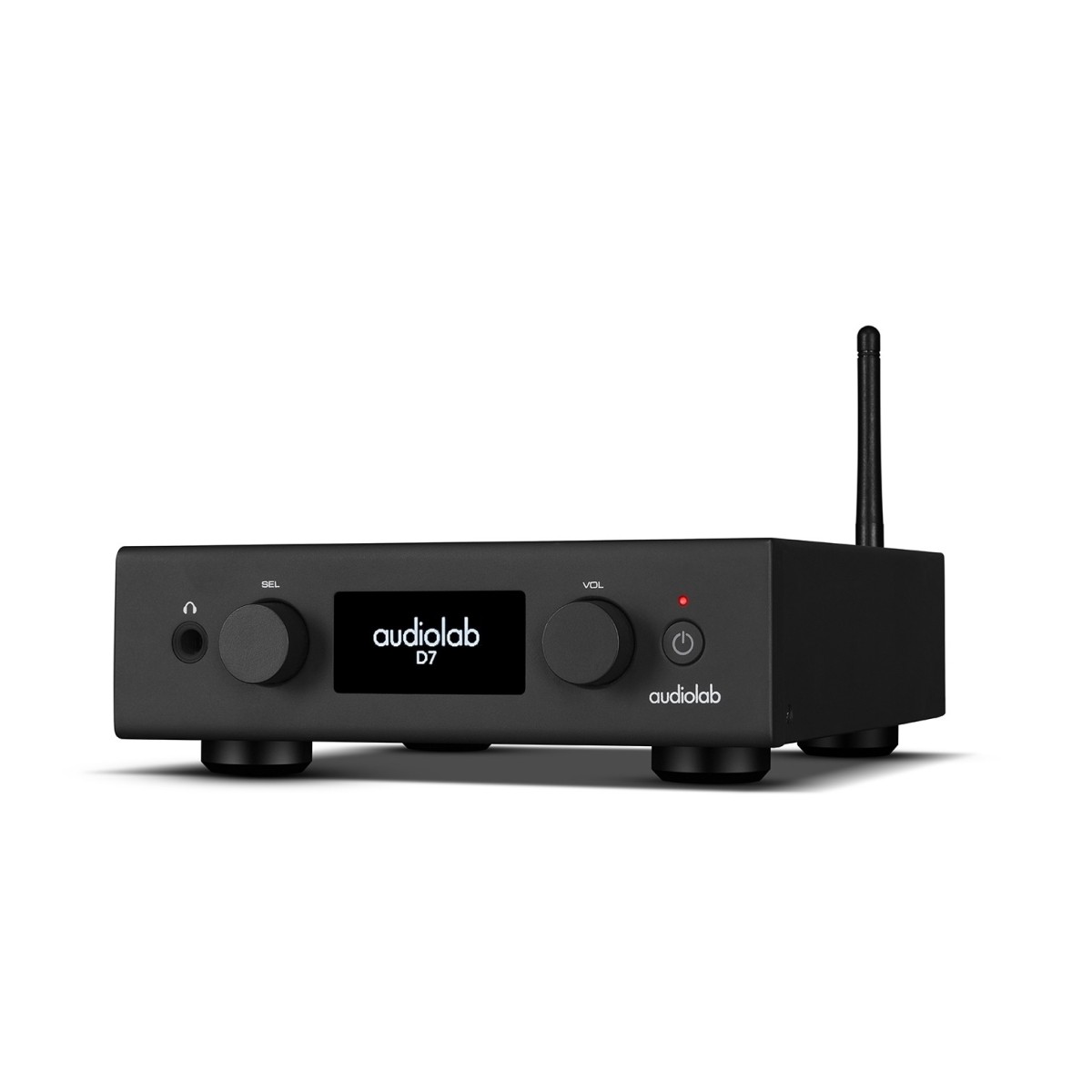

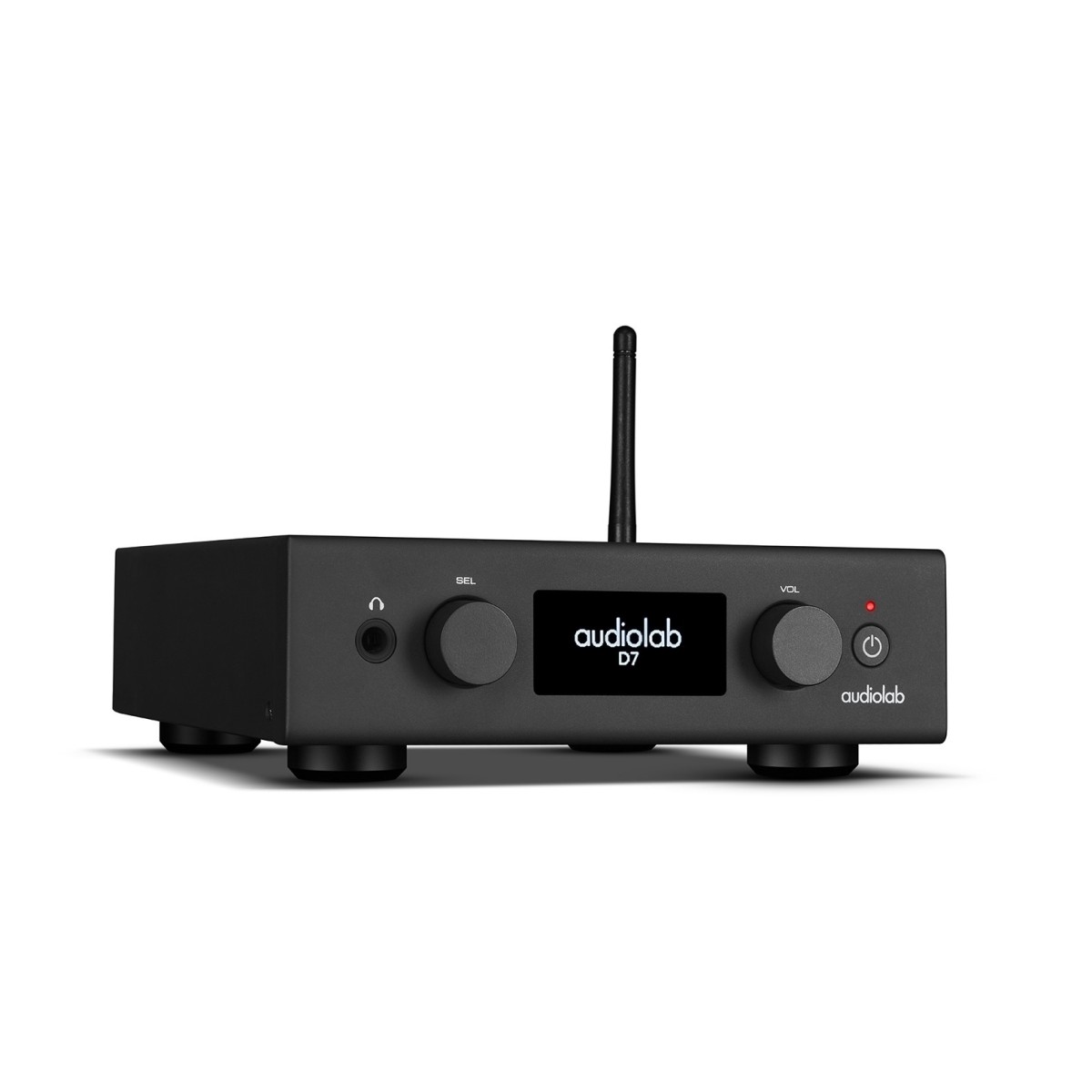

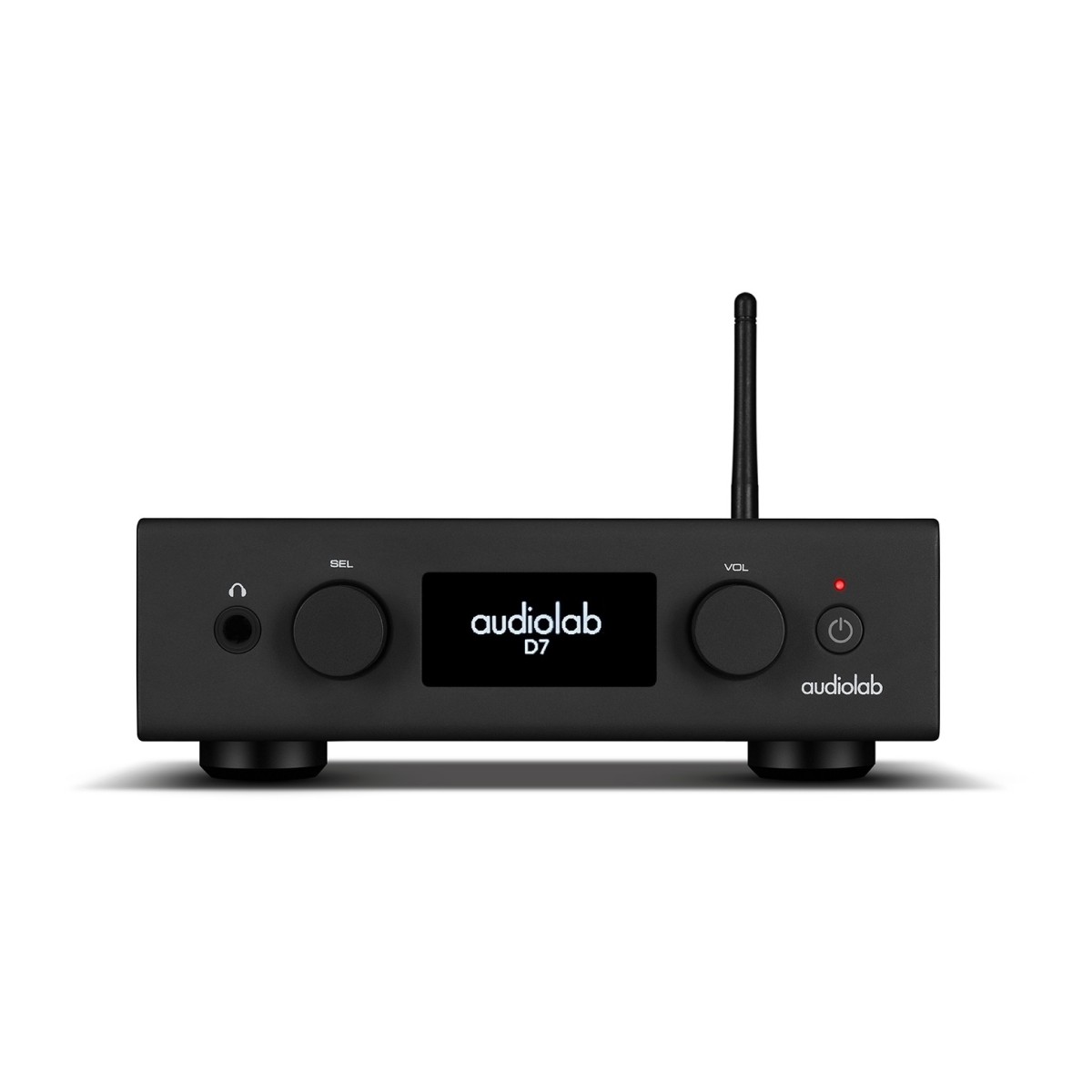

Audiolab D7 DAC & Headphone Amplifier, Black

View PDF
This product is currently not available for purchase

Colour: Black

Key Features

  • State-of-the-art ESS DAC
  • High-res audio and full MQA decoding up to 32-bit 768kHz, DSD512
  • ESS9038Q2M DAC chip offers exceptional detail and precision

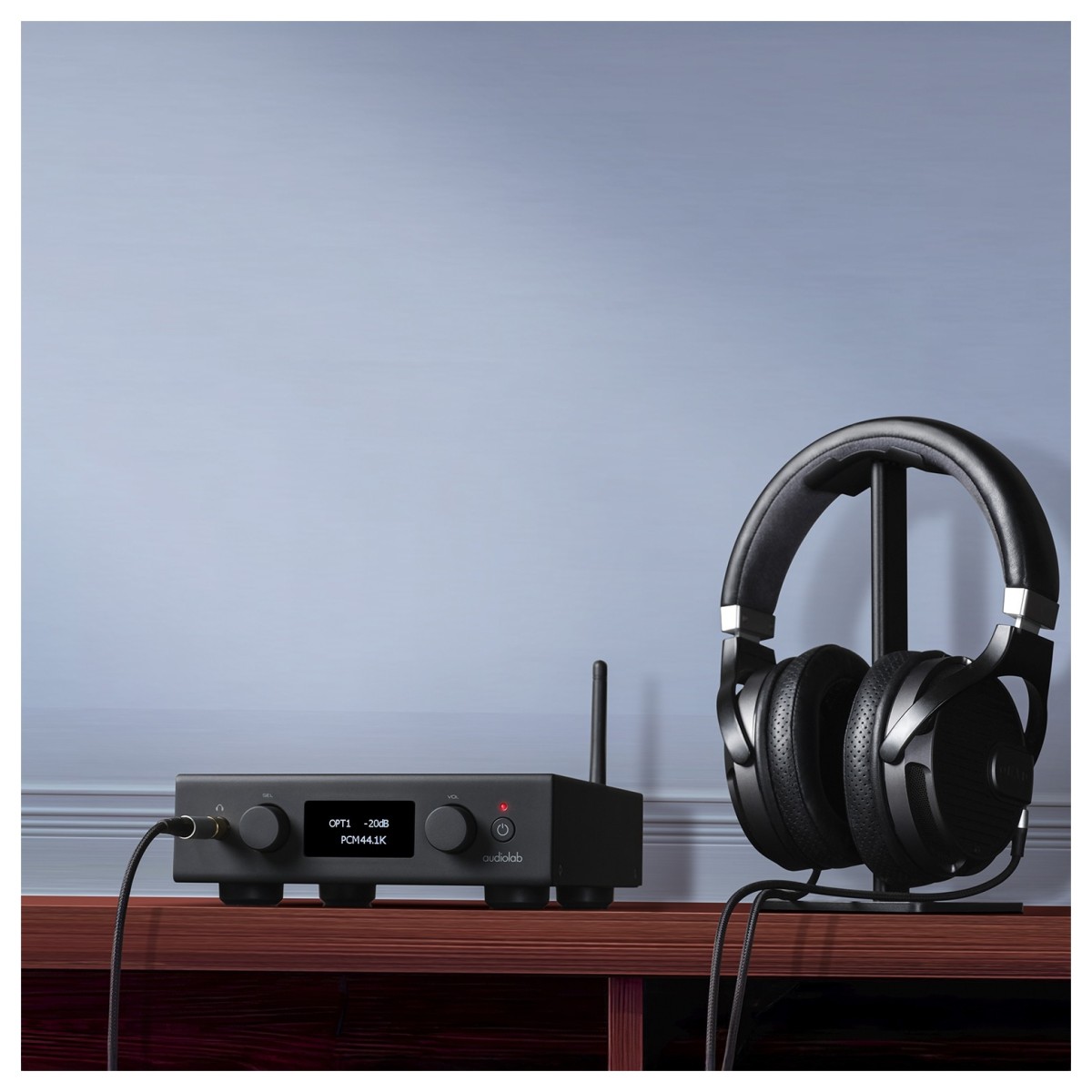

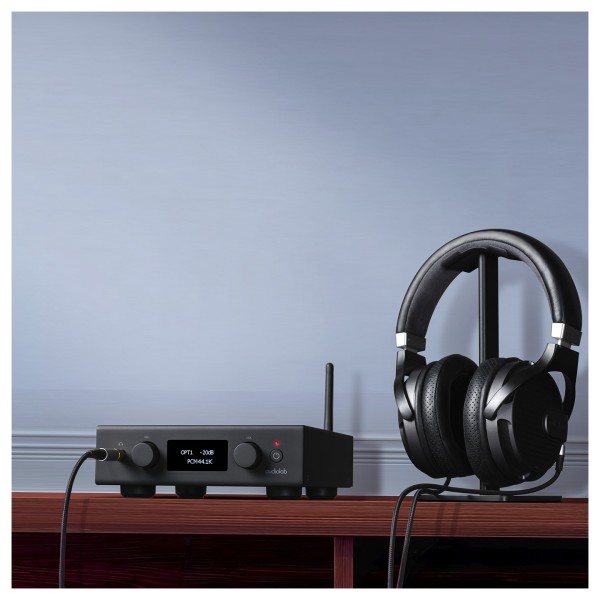

  • Built-in headphone amp for private listening
  • OLED screen and remote for easy control

Audiolab D7 DAC & Headphone Amplifier, Black Overview

View this description in German

The Audiolab D7 is ideal for music lovers who want high-quality digital audio in a compact, easy-to-use design. It features the ESS9038Q2M DAC chip for crisp, detailed sound from a wide range of sources, including USB, optical, coaxial and Bluetooth. High-resolution formats are fully supported, with PCM up to 32-bit 768kHz, DSD512, and full MQA decoding for compatible streams and files.

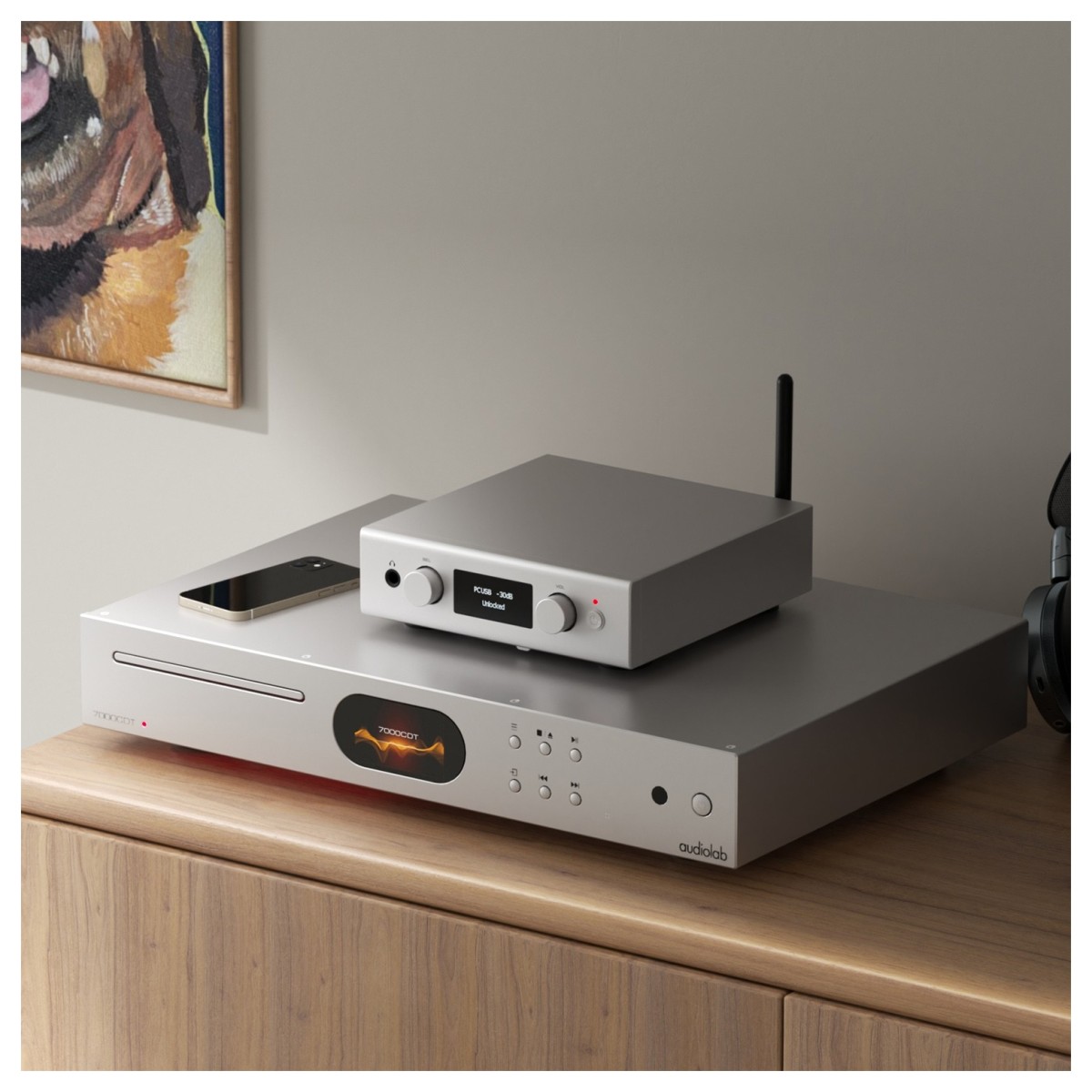

With multiple outputs, including balanced XLR and a built-in headphone amp, the D7 fits into any system and suits all listening styles. The OLED screen and remote control make everyday use simple, while five selectable DAC filters let you tailor the sound to your setup. Its aluminium chassis matches Audiolab's 6000 and 7000 series perfectly, offering both style and substance. Whether upgrading an existing system or starting fresh, the D7 delivers versatile, high-performance digital audio without taking up much space.

Product Ref: 337096

Full Description

View Full Description

Carrying Forward the M-DAC Legacy

The D7 proudly follows in the footsteps of the original M-DAC, a product that changed expectations around affordable high-end digital audio. The M-DAC set the foundation for Audiolab’s reputation in digital-to-analogue performance, becoming a firm favourite among audiophiles. The D7 takes this heritage and condenses it into a compact, approachable unit. It delivers much of the same clarity, precision, and intuitive design, but with updated connectivity and modern features. It's a continuation of what made the M-DAC iconic, made more accessible for today’s listener.

Positioned Beside the D9 with Purpose

While the D9 brings expanded features for more complex systems, the D7 remains a strong choice for listeners seeking simplicity with premium performance. Both share Audiolab’s refined digital engineering and elegant design ethos. The D7 offers essential digital inputs, balanced XLR and RCA outputs, and aptX HD Bluetooth for high-quality wireless listening. It lacks the AES/EBU input and colour display found on the D9, but its streamlined layout and smaller footprint make it ideal for setups where space and ease of use are key priorities without compromising on audio quality.

Precision Conversion Technology

At the heart of the D7 is the ESS Sabre32 ES9038Q2M DAC chip, a high-performance 32-bit solution known for its clean signal processing and dynamic range. Paired with Audiolab’s proven HyperStream II implementation and Time Domain Jitter Eliminator circuitry, the D7 handles even complex digital audio with control and finesse. It supports up to 32-bit/768kHz PCM and DSD512 via USB, while S/PDIF inputs manage up to 24-bit/192kHz. With full MQA decoding and five selectable DAC filters, the D7 gives users flexible, high-quality playback across a wide range of formats.

What's in the box

  • Audiolab D7 DAC
  • Power Cable
  • Remote handset
  • User’s manual
  • 2x AAA Batteries

Key Features

  • ESS Sabre32 ES9038Q2M DAC chip for accurate, low-distortion conversion for high-resolution playback
  • Supports up to 32-bit/768kHz PCM & DSD512 allowing it to handle the most demanding digital formats with ease
  • Full MQA decoding for master-quality playback for studio-grade streaming and local file reproduction
  • Bluetooth 5.1 with aptX HD for wireless streaming from phones, tablets or laptops
  • Multiple digital inputs for flexible connectivity, two coaxial, two optical, USB-B and USB flash drive support
  • Balanced XLR and RCA analogue outputs Integrates cleanly into professional and hi-fi systems
  • Headphone amp with current-feedback circuitry drives a wide range of headphones with clarity
  • OLED screen and intuitive menu navigation
  • Quick access to settings and formats with full remote control
  • Selectable DAC filters and upsampling options allowing you to tailor playback to suit different systems and file types

Specifications

Design Philosophy and Core Technology ES9038Q2M 32-bit DAC
MQA Full decoder PC USB

Coax / Optical
Display OLED Display
Bluetooth Streaming Bluetooth 5.1 (aptX / aptX HD)
Headphone Amplifier Dedicated Current-Feedback Headphone Amp
USB Playback Compatibility MP3

WMA

APE

AAC

WAV

FLAC
USB Firmware Upgrade Supported

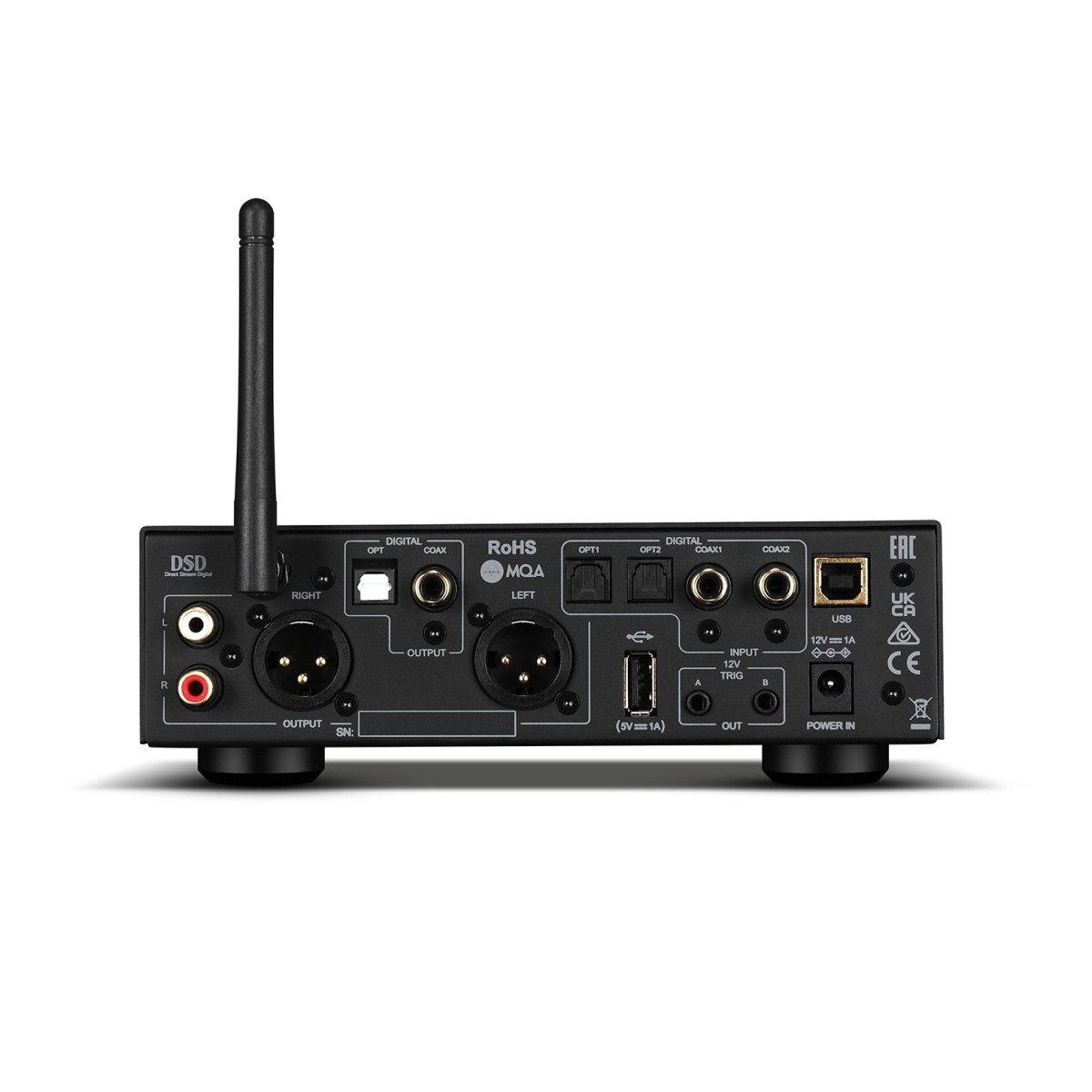

Inputs

Analogue None
Digital 2 x SPDIF (Coax)

2 x SPDIF (Optical)

1 x PC USB (USB B)

1 x USB HDD (USB A)

1 x Bluetooth (aptX / aptX HD)

Outputs

Analogue 1 x RCA

1 x XLR

1 x Headphone (1/4")
Digital 1 x Optical

1 x Coax
Other 2 x 12V Trigger

Sampling Frequency

Optical/Coaxial 44.1kHz–192kHz
USB HDD 44.1kHz–96kHz
PC USB 44.1kHz–768kHz (PCM) / DSD64

DSD128

DSD256

DSD512

DAC

D to A Converter ES9038Q2M
Output Level (0dBFS, 1kHz) 2.05Vrms (RCA)

4.1Vrms (XLR)
Total Harmonic Distortion (THD) < 0.001 (1kHz @ 0dBFS)
Frequency Response 20Hz–20kHz (+/-0.2dB)
Output Impedance 120 ohm
Max. Sampling Frequency USB HDD: 96kHz

Optical, Coaxial: 192kHz

PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N) > 115dB (A-weighted, RCA)

> 117dB (A-weighted, XLR)

Product Details

Product Code AH-011001-03A
EAN 6976522469622
