Eversolo DAC-Z6 DAC & Headphone Amplifier

View PDF
This product is currently not available for purchase

Key Features

  • Improve your headphone performance
  • Enhances the detail and dynamic range of your music regardless of source quality
  • USB output supports PCM768@32bit, DSD512 Native, and MQA decoding
  • Two low jitter clock oscillators for high performance audio conversion
  • RCA and XLR outputs with optical and coaxial inputs ensure ample connectivity options

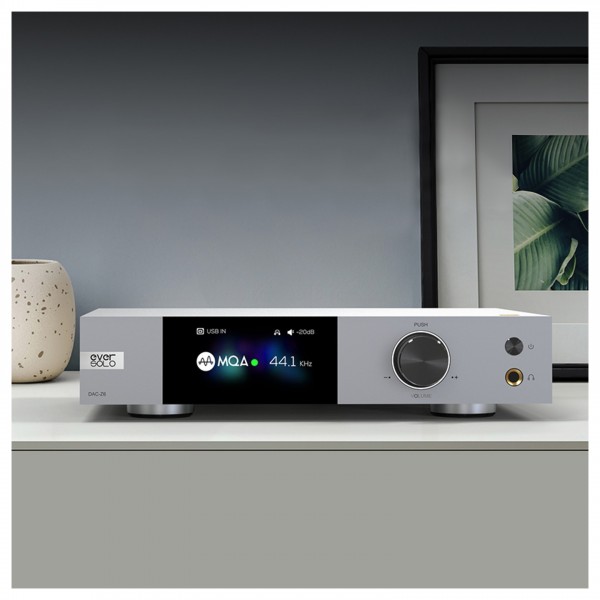

Eversolo DAC-Z6 DAC & Headphone Amplifier Overview

View this description in German

The Eversolo DAC-Z6 DAC and Headphone Amplifier is perfect for producing high-quality sound, featuring a built-in headphone driver circuit suited for a wide collection of HiFi headphones anywhere from 16 - 300 ohm. Powered by a dual ES9068 DAC chip, the DAC-Z6 minimises the noise floor to 6dB and offers crisp quality audio. Fitted with the third-generation XMOS XU316 processor, the DAC-Z6 is capable of rapid processing speeds and lossless transmission to enable a hi-res listening experience.


Enjoy optimal sample processing thanks to the two low-jitter dual clock oscillators. The DAC-Z6 also supports PCM768@32bit, DSD512 Native, and even MQA full decoding which lets you hear the music as the artist intended. As well as headphones, you can connect multiple audio devices via USB, coaxial, and optical inputs along with RCA and XLR outputs. With the integrated Qualcomm QCC5125 Bluetooth 5.0 module, the DAC-Z6 supports AAC, aptX, aptX LL, and aptX HD audio codecs and establishes reliable, wireless connectivity to your smart devices. You will also have total control over navigation and source selection thanks to the multifunctional dial and exclusive Eversolo Controller app. Whether it's your headphones, CD player, or speakers, the DAC-Z6 will envelop you in thrilling sound.

Product Ref: 266346

Full Description

View Full Description

What's in the box?

  • 1 x Remote control
  • 1 x Power cable
  • 1 x User manual

Specifications

General

Model EverSolo DAC-Z6
Display Screen 3-inch LCD screen
Chassis Aluminum Alloy
DAC Audio ES 9068*2
Audio Processor XMOS XU316
OPA Chip RT 6863*6
Power Supply High quality switching power supply with low noise
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, BT5.0

Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input Compatible with Windows (7, 10)

Mac

Android and IOS Up to stereo DSD512

PCM 768KHz 32Bit

MQA
USB-C DAC Input Compatible with Windows (7, 10)

Mac

Android and IOS Up to stereo DSD512

PCM 768KHz 32Bit

MQA
OPTICAL Audio Input Up to stereo PCM 192Khz 24Bit

DSD64 Do

MQA
COAXIAL Audio Input Up to stereo PCM 192Khz 24Bit

DSD64 Dop

MQA
Analog Audio Output Preamp output: XLR(balanced)+RCA

Headphone output: 6.3mm single-ended
USB Port USB2.0*1?only for firmware upgrade
Control Methods Remote control

Mobile APP control

Knob control
Headphone Impedance 16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω)
XLR Audio Output Output Level(Vrms): 4.1Vrms@0dBFS

THD+N@A-wt: 0.000094 @1kHz?-120dB@1kHz

THD+N@No-wt: 0.000117 @1kHz?-118dB@1kHz

Noise@No-wt: <3uVrms

SNR)@No-wt:125@1kHz

Frequency response: 20Hz-20kHz(±0.15dB)

CROSSTALK: -123dB@1kHz

DNR)@No-wt:125dB@1kHz
RCA Audio Output Output Level(Vrms): 2.1Vrms@0dBFS

THD+N@A-wt: 0.000116 @1kHz(-118dB@1kHz)

THD+N@No-wt: 0.000138 @1kHz(-117dB@1kHz)

Noise@No-wt <2.5uVrms

SNR)@No-wt: 21dB@1kHz

Frequency response: 20Hz-20kHz(±0.15dB

CROSSTALK: -118dB@1kHz

DNR)@No-wt: 121dB@1kHz
Headphone (low gain mode) Output Level(Vrms)?1.2Vrms@0dBFS

Max Power: 45 mW@32Ω

THD+N@A-wt: 0.00028 @1kHz(-111dB@1kHz)

THD+N@No-wt: 0.00031 @1kHz(-110dB@1kHz)

Noise@No-wt: <3.5uVrms

SNR)@No-wt: 114dB@1kHz

Frequency response: 20Hz-20kHz(±0.15dB)

DNR)@No-wt: 114dB@1kHz
Headphone (high gain mode) Output Level(Vrms): 2.8Vrms@0dBFS

Max Power: 26 mW@300Ω

THD+N@A-wt: 0.00014 @1kHz(-117dB@1kHz)

THD+N@No-wt: 0.00016 @1kHz(-116dB@1kHz)

Noise@No-wt: <3.5uVrms

SNR)@No-wt: 121dB@1kHz

Frequency response: 20Hz-20kHz(±0.15dB)

DNR)@No-wt: 121dB@1kHz
Power Input AC 110 240V 50/60Hz
Rated power 9W
Product Dimensions 270mm(W) x 187mm(D) x 50mm(H)
Product code EVSOL-Z6-DAC
