Full Description

The Naim CDX2 CD Player is a classic redefined and shares plenty of design DNA with its predecessor. The original Naim Audio CDX debuted in 1999 and the CDX2 certainly lives up to it and beyond.

Its radial arc disc tray is classic Naim Audio. It is different from the motorised assemblies used by other players, but undoubtedly better, with superior isolation and resistance to resonance. In its latest incarnation, the CDX2 has incorporated some useful new enhancements, including a switchable digital output and extra low-noise clock regulation. After all, being able to do something well shouldn’t stop you from trying to do it better.

Integrity and stability of the signals read by the laser were prime design considerations for the CDX2's development. A suspended transport and low mass magnetic clamping system ensure that the disc spins accurately and silently, unhindered by mechanical resonance.

The mass of the custom-made glass reinforced front-loading drawer mechanism has been carefully calculated to optimise rigidity and isolation. Additionally, the internal shielding has been improved bringing about further upgraded performance and lower noise. Paths between critical components are as short as possible to preserve delicate signals and each stage of the circuitry is powered by a separate regulated supply.

The CDX2 has a fully double-regulated power supply with 20 low-noise, regulated power supplies on the main circuit board, plus a separate supply on the servo control board and another on the display board. The CDX2 is easily upgradable via the XPS ultra low noise power supply to provide a substantial improvement in sound quality.

All main control functions are handled by a microprocessor running Naim Audio-written software. Every aspect of the servo controller/decoder functionality is under software control: Naim Audio-written codes allow maximised performance in all areas. For example, the transport parameters are optimised for each disc as it is loaded.

• Suspended transport with low-mass magnetic clamping mechanism to resist resonance
• Anti-vibration resonance-controlled feet plus cast and extruded anti-magnetic chassis to further counter vibration
• Fully double-regulated power supply with 20 low-noise, regulated voltages on the main circuit board, plus separate supplies on the servo control and display boards
• User-selectable DIN and RCA analogue outputs, plus digital output (only functions when analogue outputs are disabled)

Partner the CDX2 with the following as a great starting point:

NAP 250 DR

NAP 250 DR Power Amplifier

NAC 282

NAC 282 Pre-Amplifier

HiCap DR

HiCap DR Power Supply

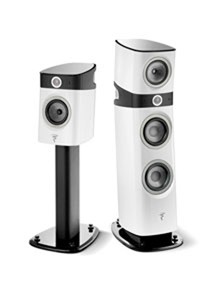

Focal Sopra

Focal Sopra Hi Fidelity Speakers

Suggested Upgrade Paths

• Power supplies - XPS DR, 555 PS DR
• Add a DAC

Audio Outputs

Connectivity

Formats

User Control

Power

Physical
